Elektros atsparumo suvirinimo aparatas, lenkiškas meniu, 20–400 mm, 4,2 kW, 8 kg

Trumpai apie prekę

Prekė: Elektros atsparumo suvirinimo aparatas, lenkiškas meniu, 20–400 mm, 4,2 kW, 8 kg. Kategorija: Sandarikliai.

• Gamintojas: Hydrotec
• Modelis: HT6000
• Įtampa: 230 V

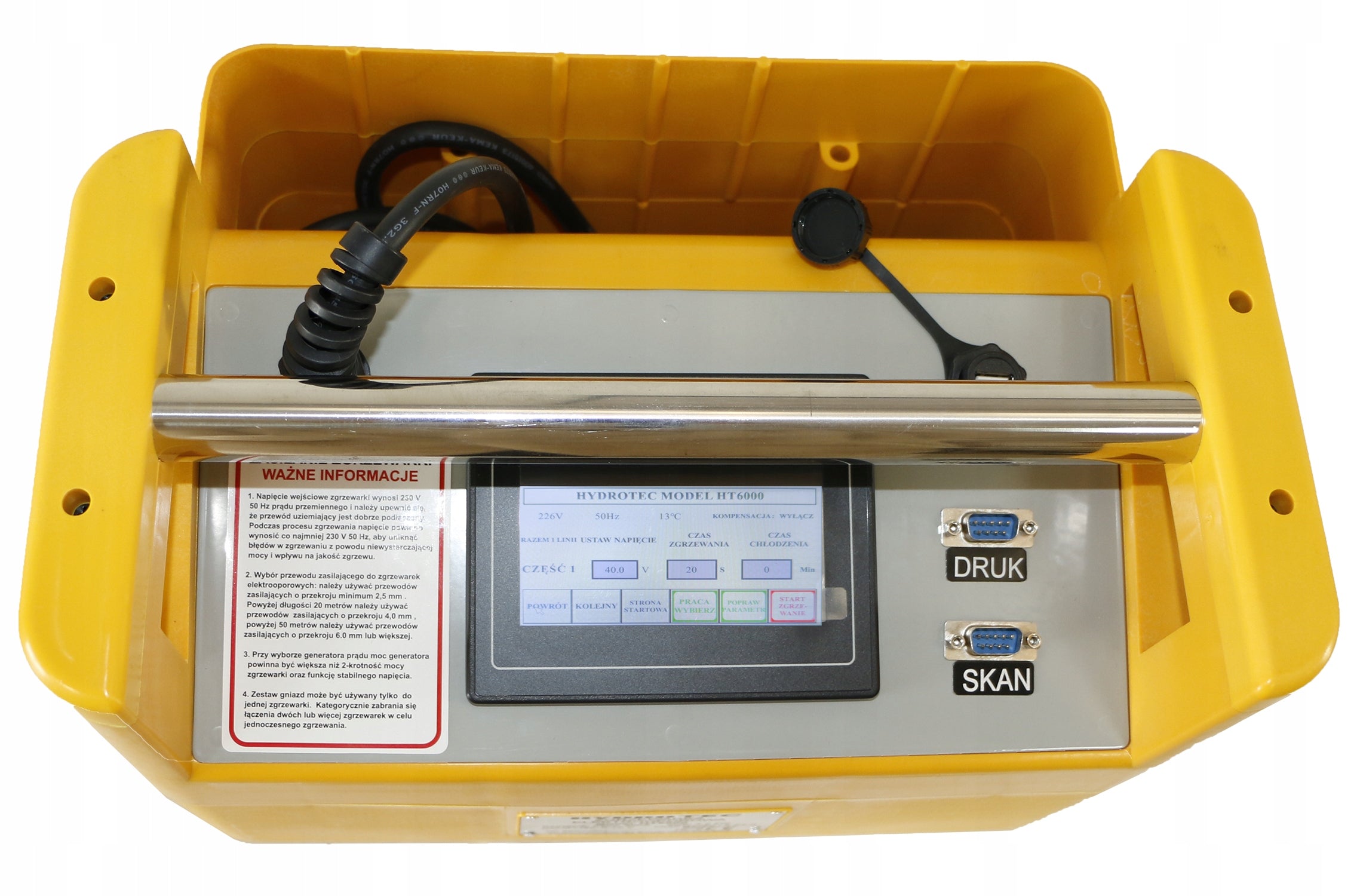

TOUCH SCREEN WITH POLISH MENU

USB SOCKET

SUPPLIED IN AN ALUMINIUM BOX

CLEAR SAFETY INFORMATION

ULTRA modern - TOUCH PANEL

ULTRA easy to use - POLISH MENU and AUTOMATIC OPERATING MODE

ULTRA strong - 4,2 kW

ULTRA light - ONLY 8 kg WEIGHT

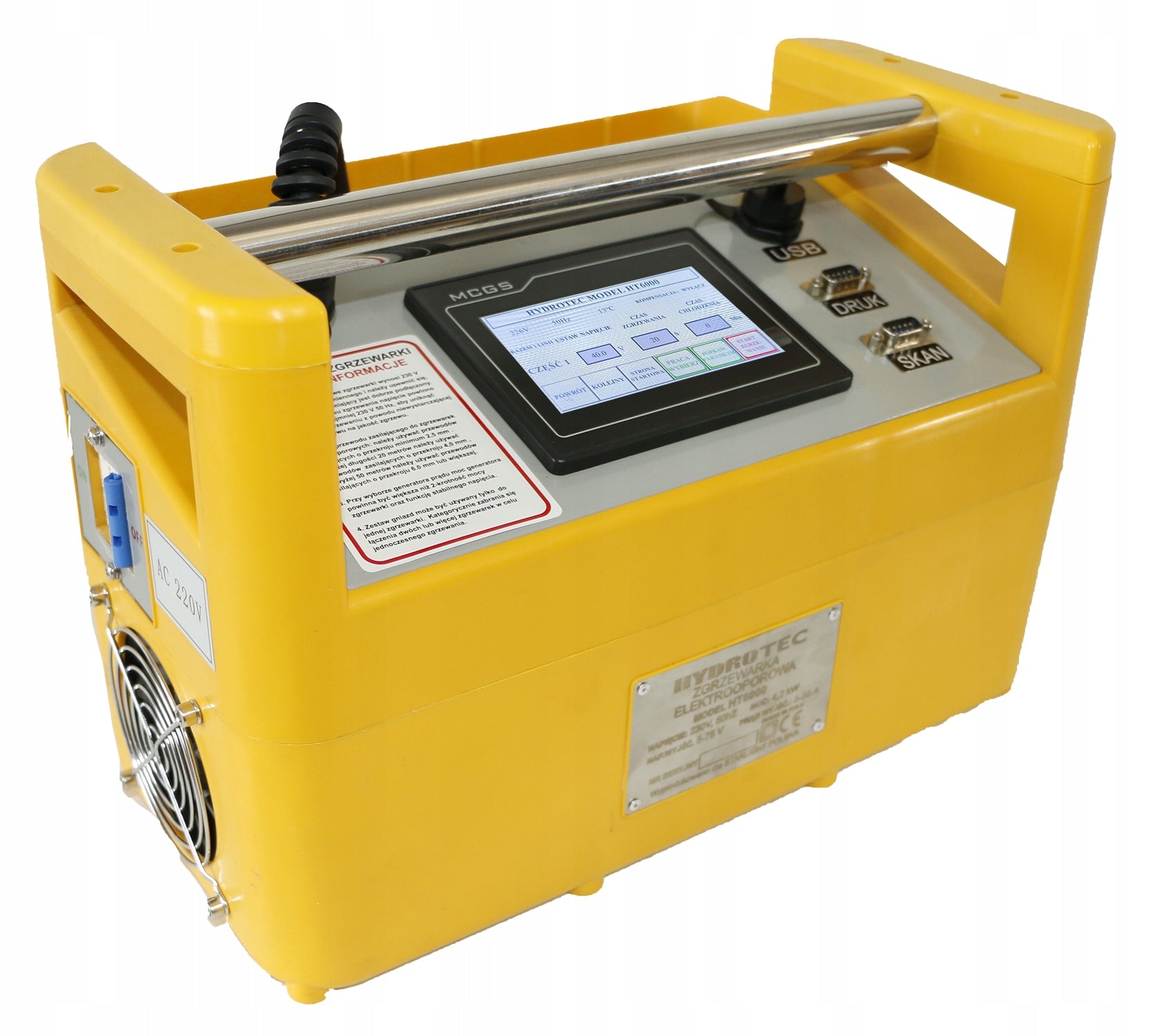

This is our new electroresistance welding machine HYDROTEC from the HT6000 series

HT6000 is the latest generation innovative electroresistance welding machine that combines advanced technology with intuitive operation. Control based on the latest generation of chips, ambient temperature compensation and the latest software guarantees precise setting of operating parameters and constant control of the entire process. Equipped with a clear touch screen with POLISH MENU, USB input for saving data to an external media and a set of necessary accessories such as a code scanner and printer, it guarantees precise and durable connections of thermoplastic pipes and fittings: PE, HDPE, PP, PVDF. It meets the ISO 12176-2 standard, ensuring the highest quality and safety of the installations. The HT6000 welding machine is used in the construction and modernization of water supply, gas and sewage networks, as well as in industrial installations where reliable connections are crucial.

Choose a professional solution! Bet on HT6000 – a modern electroresistance welding machine that will provide precise and durable connections and convenient operation.

Key features of HT6000:

✅ Touch screen and POLISH MENU – intuitive operation and quick parameter setting.

✅ Wide range of pipe diameters – supports pipes with diameters from 20 to 400 mm, which allows for wide application.

✅ High power and stability: AUTO CALIBRATION thanks to automatic temperature compensation and stabilization of current and voltage

✅ Light and mobile construction – weight 8 kg, and aluminum box which facilitates transport and use in the field.

✅ The device is equipped with automatic voltage stabilization and overvoltage protection function.

✅ Full documentation of the process – the ability to save data to USB and print reports immediately.

✅ Automatic temperature compensation allows you to eliminate the influence of ambient temperature during welding.

SET CONTAINS EVERYTHING NECESSARY FOR WORK, NOTHING MORE YOU NEED TO BUY

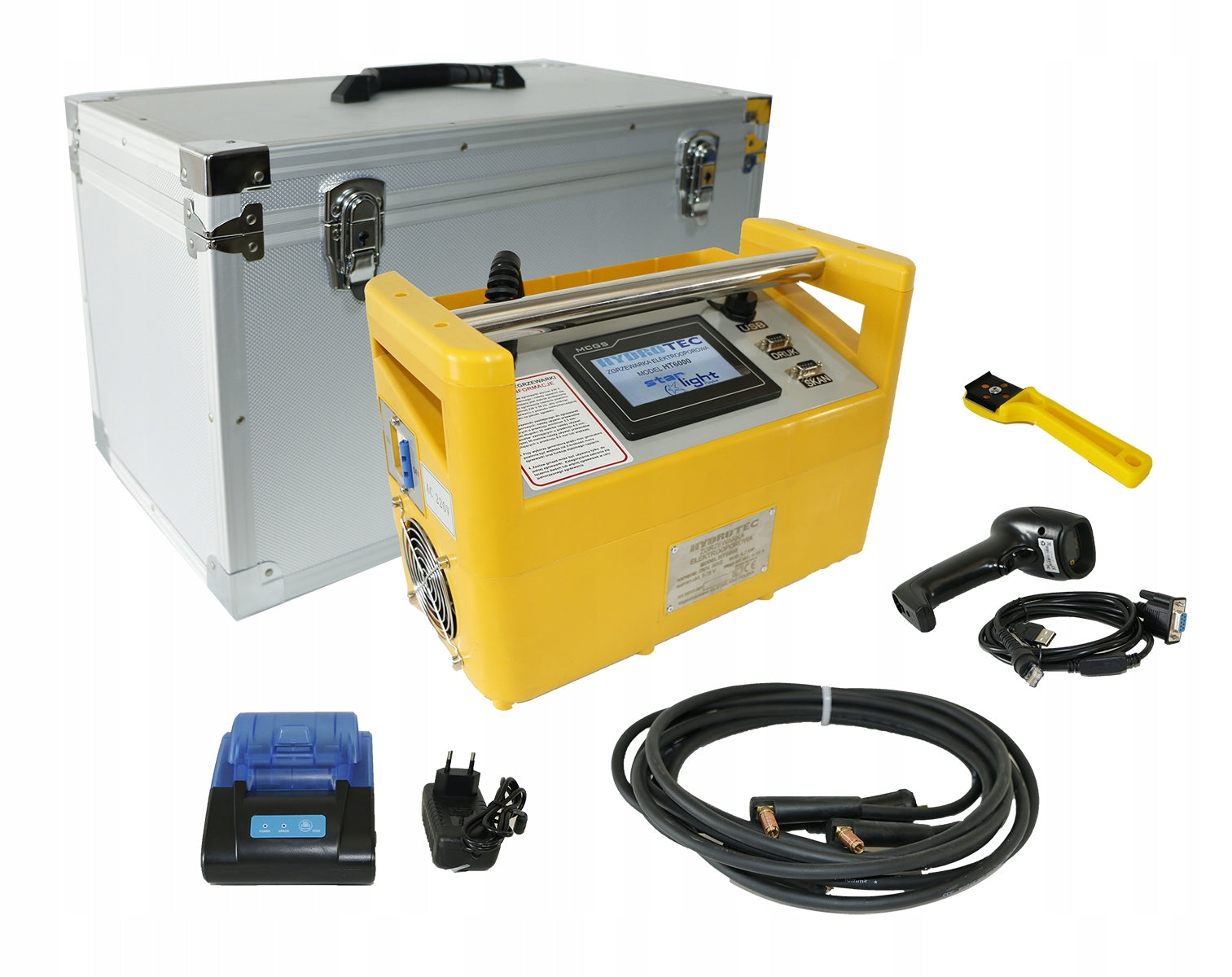

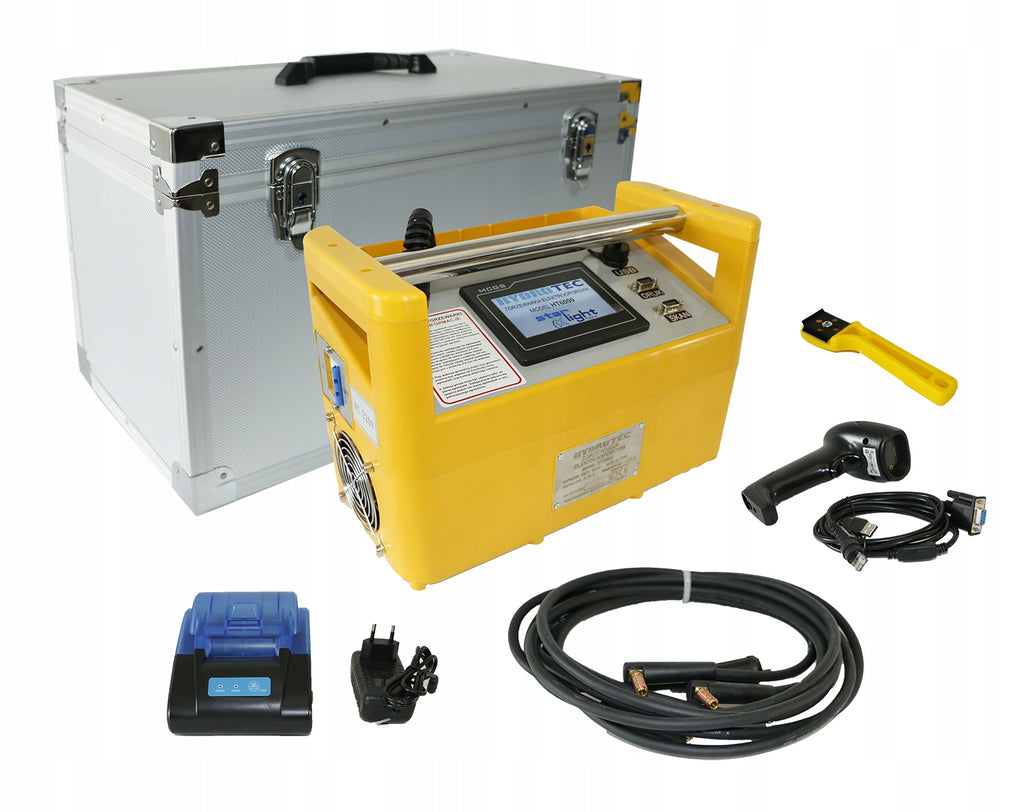

The complete set includes:

Welder HT6000

Barcode scanner – fast and precise input of welding parameters.

Printer – the ability to print reports immediately.

Connection cables with a length of 3 m – provide convenience when working in the field.

Aluminum transport box – robust and lightweight, protects the device during transport.

Tube scraper – necessary for proper surface preparation before welding.

Rysik – for convenient operation of the touch screen.

TECHNICAL DATA:

• Supply Voltage: 230 V
• Total power: 4,2 kW
• Output voltage: 75 V
• Output Power: 55 A
• Weight of the device: 8 kg
• Length. Connection cables: 3 m
