Elektros energijos matuoklis DIN bėgiui, vienfazis

Trumpai apie prekę

Prekė: Elektros energijos matuoklis DIN bėgiui, vienfazis. Kategorija: Automatizavimo moduliai.

• Gamintojas: Appio
• Modelis: 0186

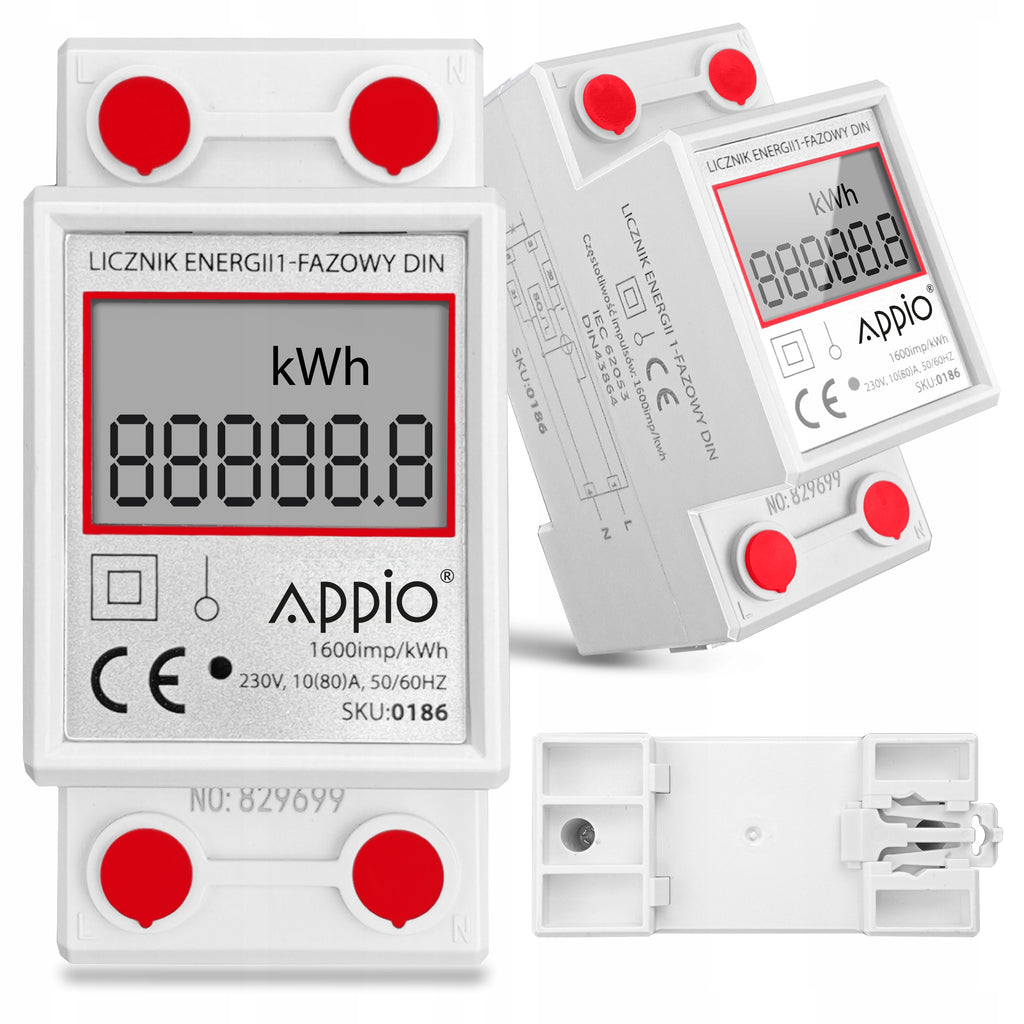

1-PHASE WATT METER Electricity Meter DIN Meter

The watt meter allows you to measure the energy consumption of your home. Thanks to it, you can check which devices consume the most energy and easily eliminate exactly those devices that use electricity unnecessarily. The measured energy consumption is displayed in kWh.

⭐⭐⭐⭐⭐

Invest in savings! Monitor your energy consumption, analyze data and optimize your electricity bills.

Main features of the product:

⚡ Single-phase, two-wire – Ensures reliability in everyday use

⚡ Precise energy measurement – Counts energy regardless of the direction of its flow, which gives full control over consumption

⚡ Easy installation – Assembly on DIN rail 35mm in the dashboard – fast and hassle-free

⚡ Built-in memory - saves your settings even in the event of a power outage

⚡ Real-time view of the state of energy consumption so that energy theft can be prevented

⚡ LCD display – 5+1 digits for monitoring energy consumption – readability and comfort of use

⚡ Measurement in kWh – Accurate data on electricity consumed

⚡ Accuracy class 1.0 – High precision measurement

⚡ ideal for: single-family houses and larger farms, companies and workshops, production halls and warehouses, power switchgears

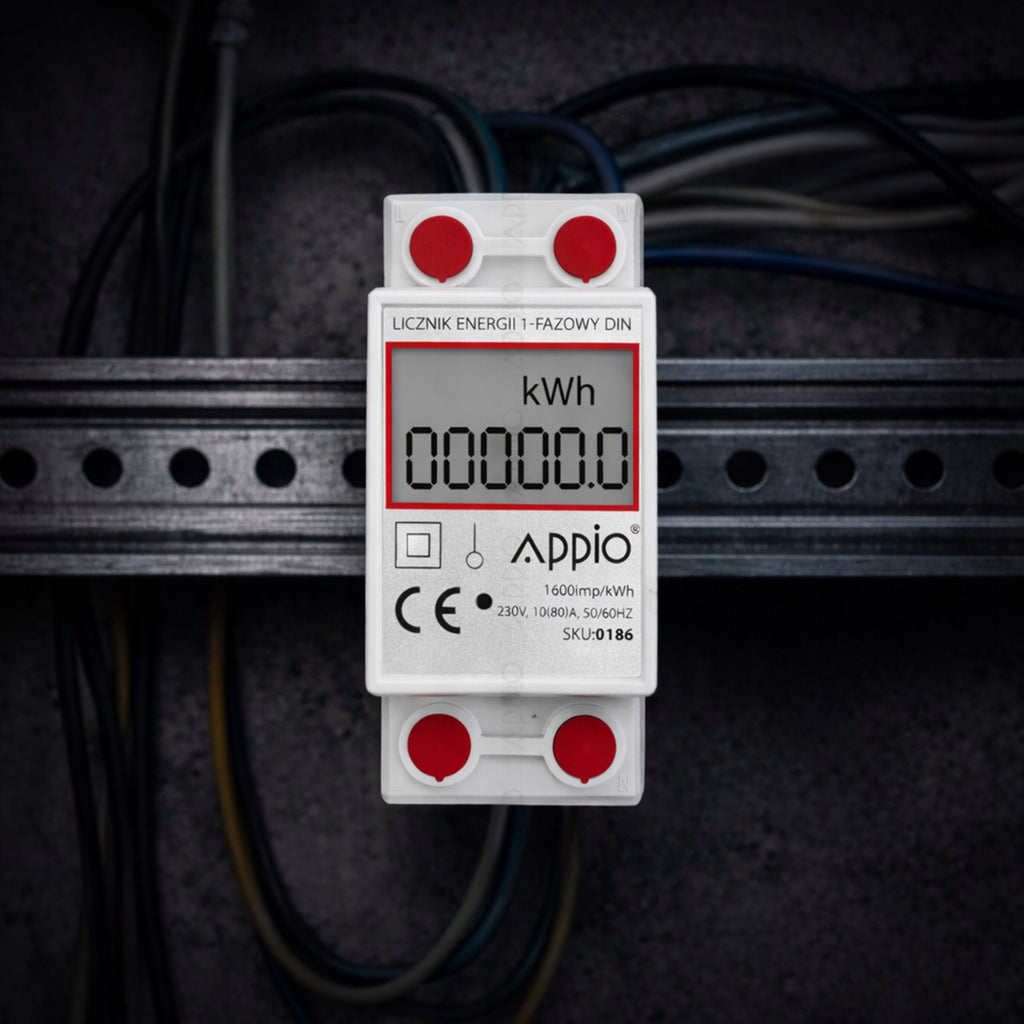

✅Compact and easy installation on DIN rail

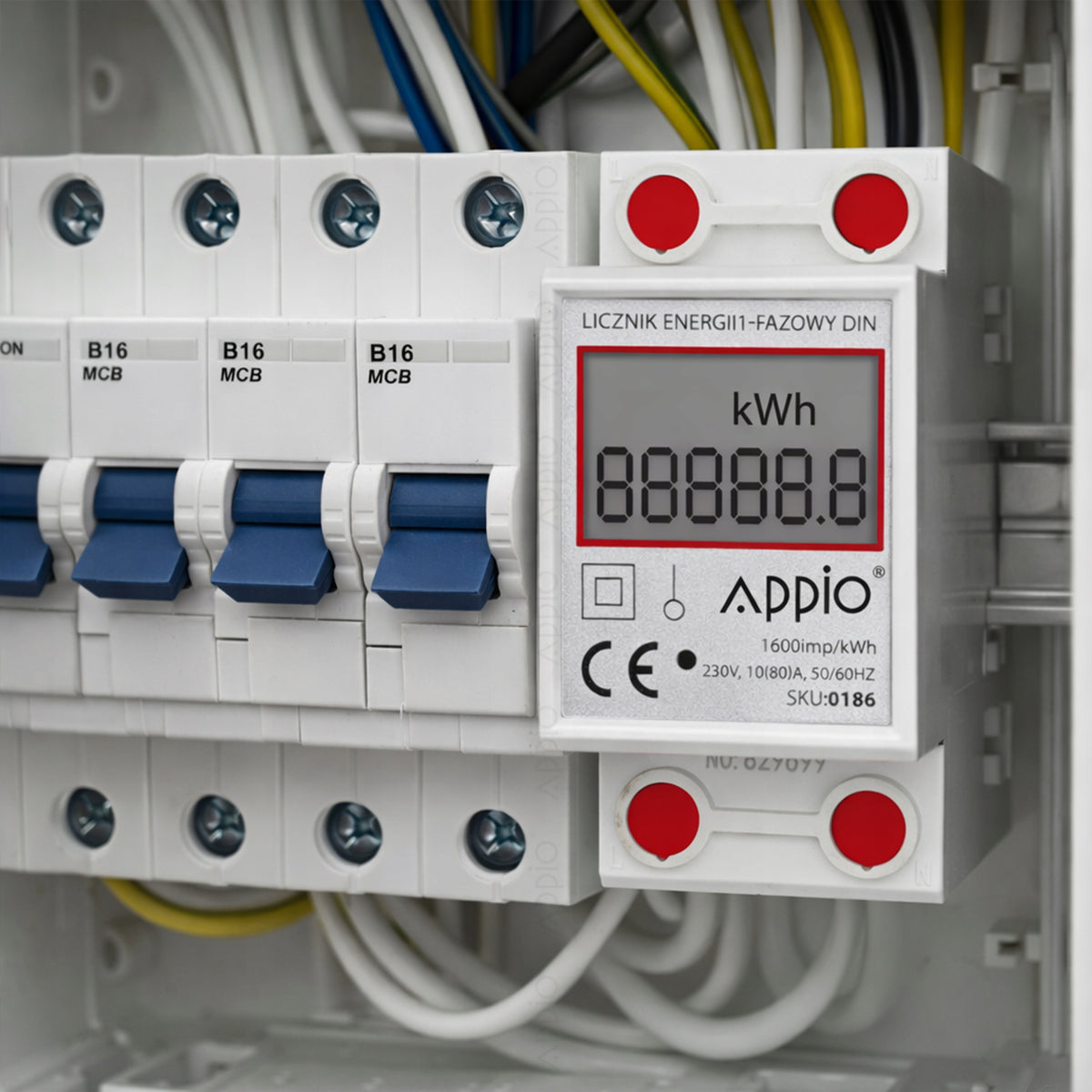

The 35 mm DIN rail design allows for quick installation in the switchgear without unnecessary wires. The device takes up minimal space, which spares space in electrical panels. It can be easily mounted in electric cabinets or connected to an external power source.

✅Readable LCD display

The large LCD display presents values in kWh in 5+1 digits, and the LED flashes according to the current consumption – allows immediate identification of energy consumption.

✅ Monitor your energy consumption in real time!

The meter allows you to keep track of electricity consumption by single-phase devices powered by alternating current 230V (50Hz). Thanks to this, you have full control over energy costs!

✅ Invest in energy control and save on bills!

The ideal choice for home and industrial applications where precise measurement of energy consumption counts.

Specification

• Single-phase electricity meter
• Product code: 0186
• Max current: 80A
• Accuracy: Class 1.0
• Voltage: 230V
• Frequency: 50/60Hz
• Power consumption of the device: < 2W/10V A
• Measurement type: one-way (energy consumption)
• Degree of protection: IP20
• Operating temperature: –20 °C to +55 °C
• Pulse frequency: 1600imp/kwh
• Display: LCD 5+1
• Dimensions: 36x101x66mm
• DIN rail: 35mm

Contents of the pack:

• Wattmeter
• Red end caps
• Instruction in Polish
• Original packaging

❓Does the meter fit standard DIN rail?

Yes! The meter is suitable for mounting on a standard 35 mm DIN rail – installation is quick, simple and does not require special tools.

❓Does the meter work in a single-phase 230V installation?

Yes, it is a single-phase, two-wire meter, designed to work in 230V/50Hz networks.

❓Can I use it at home or in the workshop?

Of course! The meter is perfect for homes, workshops, offices, production halls and warehouses – wherever you want to monitor energy consumption.

❓Does the device measure energy in both directions (e.g. with photovoltaic installation)?

The meter counts energy in one direction (energy consumption). It is not intended to measure energy released into the grid.

❓Will the data be saved after power disconnection?

Yes – the meter has built-in memory, which preserves data and settings even after the voltage disappears.

❓How accurate is the measurement?

The meter has an accuracy class of 1.0, which means high precision measurement and reliable data on energy consumption.

❓ Under what conditions can it work?

The operating temperature range is from –20°C to +55°C, making the meter suitable for both home and industrial spaces. However, it is not intended to be used directly outdoors.

❓Will the counter help me save on bills?

Yes! With real-time energy monitoring, you can quickly detect the devices that consume the most electricity and reduce costs.
