Elektros energijos matuoklis MEF-3-200 FOX su LK-BZ lizdu F&F FOX

Trumpai apie prekę

Prekė: Elektros energijos matuoklis MEF-3-200 FOX su LK-BZ lizdu F&F FOX. Kategorija: Išoriniai moduliai.

• Gamintojas: no brand
• Modelis: WI-MEF-3-200SET

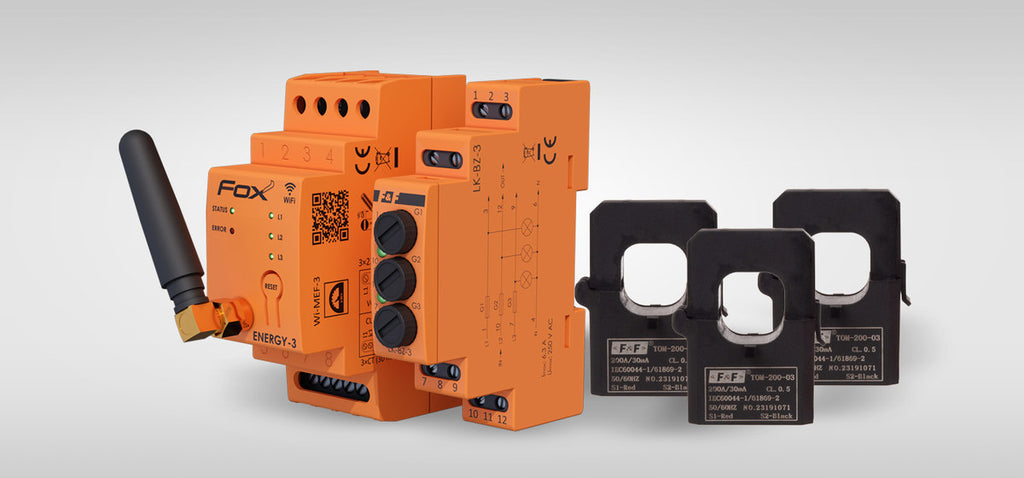

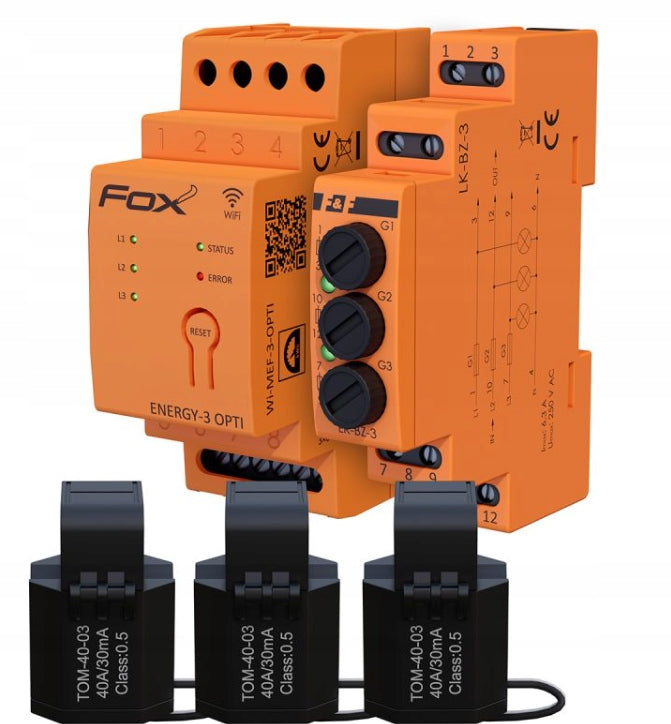

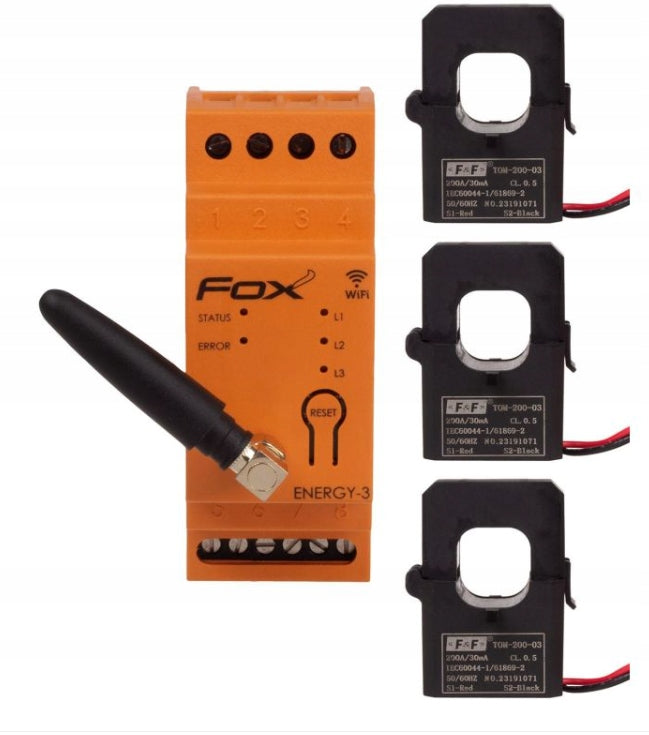

Set: MEF-3-200 FOX power consumption monitor with fuse socket and LK-BZ-3 indicator light

F&F

Supply voltage 3× 230/400 V AC (-25%÷15%)Frequency 50÷60 HzInstallation 3-phase, 4-wireAccuracy meter 1%Accuracy - measuring transformers 0,5%Transformers - primary current 200 ATransformers - secondary current 30 mATransformers - cable diameter ? 24 mmPermanent meter 1000 imp/kWhMoisture (non-condensing) ? 90%Radio frequency 2,4 GHzWi-FIMoc radio transmission (IEEE 802.11n) ? 20 dBmReceiver sensitivity -98 dBmConnection screw terminals 2,5 mm2 (link), screw terminals 4,0 mm2 (wire) Tightening torque 0,5 NmPower consumption ? 2 WWorking temperature -20÷50°CDimensions 2 modules (35 mm) - 90 x 35 x 85 mm with antennaAssembly on 35 mm rail Protection degree IP20

• Manufacturer code: DFJ399
• Manufacturer index: WI-MEF-3-200SET

Note!!!

Shipping takes place up to two working days/48 hours.

They are made depending on the time of purchase, usually on the same day as the purchase, but for various reasons beyond our control, it can be shipped the next day.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and order fulfillment.

Specifications
