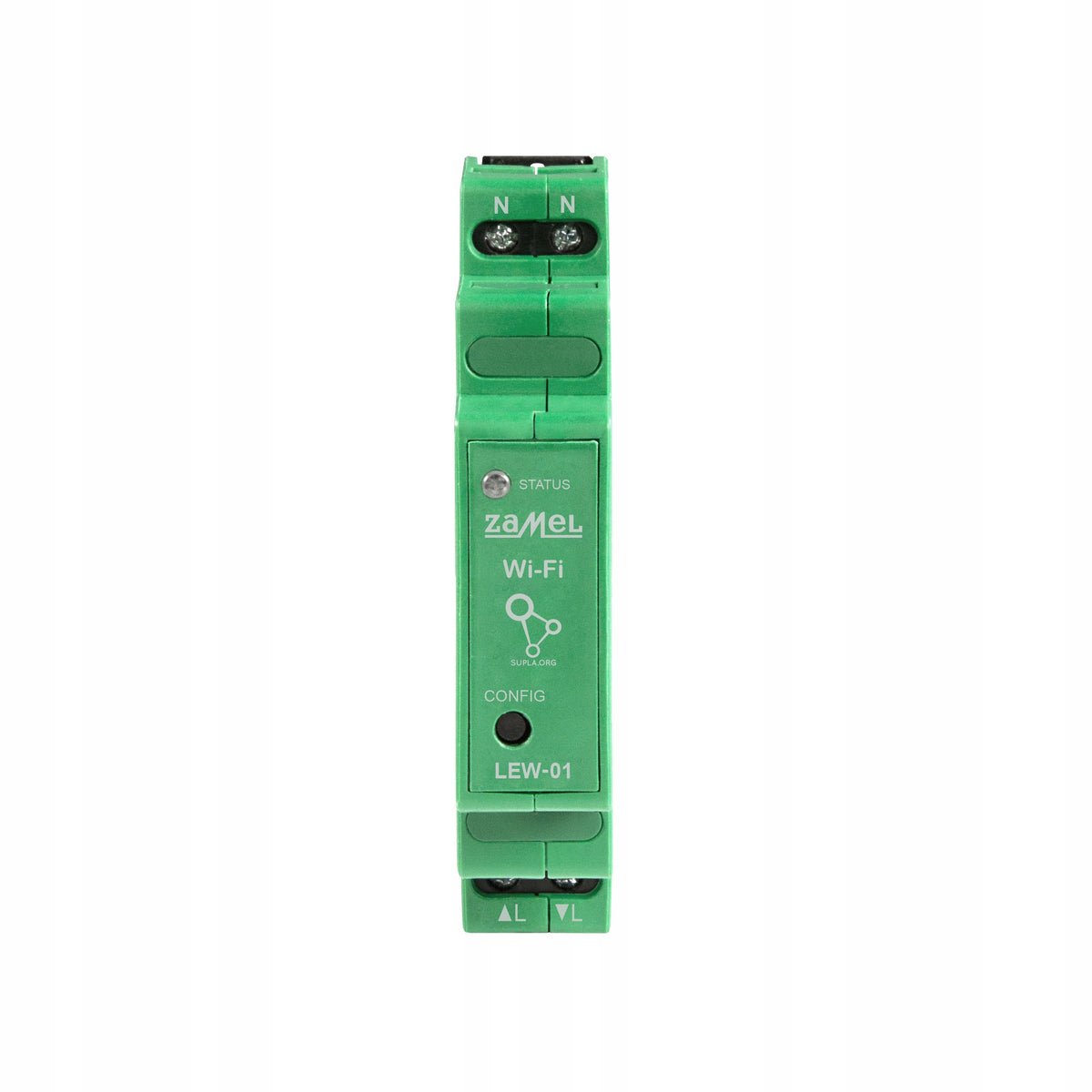

Elektros energijos matuoklis su Wi-Fi LEW-01, 1 fazė, 16A, SUPLA

Trumpai apie prekę

Prekė: Elektros energijos matuoklis su Wi-Fi LEW-01, 1 fazė, 16A, SUPLA. Kategorija: Jutikliai.

• Gamintojas: Zamel
• Modelis: 5903669480297

✔ Product Description

LEW-01 is a device operating in the Supla system designed to monitor electricity on single-phase circuits protected by an overcurrent circuit breaker with a maximum value of 16 A.

The measurement is performed bidirectionally, using the direct method, which makes the monitor suitable for use both in lighting circuits, sockets or single-phase photovoltaic installations.

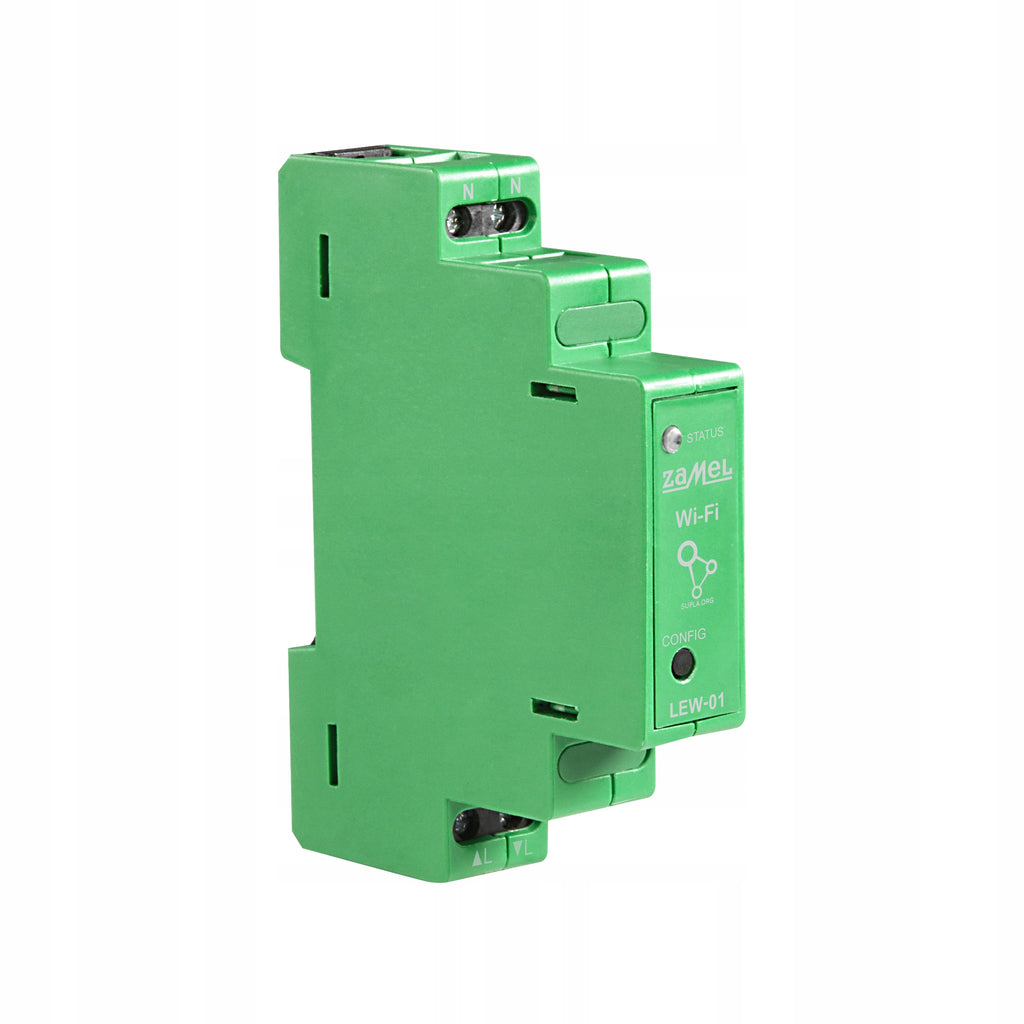

The device is mounted on a DIN rail (TH-35) and occupies the width of one module. Measurement data is available in the Supla application with the possibility of exporting to a CSV file.

✔ Product Features

✅ direct measurement – without the use of transformers

✅ for monitoring single-phase circuits protected by an overcurrent circuit breaker with a maximum value of 16 A

✅ two-way monitor – also suitable for single-phase photovoltaic installations,

✅ DIN rail mounting (TH-35), width of one module

✅ data analysis in the Supla application with the possibility of export

✅ wide integration possibilities via the MQTT protocol

✅ the ability to work with the Supla system and the ability to go outside the system (after MQTT)

✅ ability to read data by API, by direct links

✔ Technical data

✔ Assembly method: TH-35 rail, 1 module

✔ Rated voltage: 230V AC

✔ Voltage tolerance: -20% to 10%

✔ Rated power consumption: 0,8W

✔ Frequency: 50Hz

✔ Measurement accuracy: Class 2 (+/-2%)

✔ Measurement parameters: Direct measurement 16A

✔ Operating temperature range: from -1 to 55°C

✔ Power supply optical signaling: LED

✔ Degree of protection: IP20

✔ Maximum wire cross-section: 4 (wires up to 2,5mm2)

✔ Transmission: Wi-Fi 2.4GHz

✔ Height of the device: 90mm

✔ Device width: 17,5mm

✔ Depth of device: 66mm

✔ Range of operation: Range of Wi-Fi network

✔ Weight: 0,050kg

✔ Voltage supply terminals: L; N

✔ Measuring clamps: L’
