Elektros generatorius 10,3 kW, elektrinis starteris, valandų skaitiklis, varinis statorius, AVR+

Trumpai apie prekę

Prekė: Elektros generatorius 10,3 kW, elektrinis starteris, valandų skaitiklis, varinis statorius, AVR+. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A5
• Įtampa: 230 V

✅NEW model with extended generator

✅MOTOR HOUR COUNTER

✅COPPER stator winding

✅Engine power of 14HP!

✅Tubeless wheels on the axle

✅FEET guaranteeing the stability of the device during operation.

✅Obtained increased true power max. generator up to 6,6kW

✅EQUIPPED WITH AVR voltage stabilizer

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A5 equipped with an intelligent throttle system that automatically responds to load changes.

KowaL Polska aggregates are characterized by reliability, uninflated parameters and are equipped with many systems that guarantee the best possible power parameters and current quality while maintaining the lowest possible combustion. The intelligent throttle operating automatically is responsible for this, which maintains rotations at the level of about 3 thousand rpm regardless of load and AVR guaranteeing very good current quality. The A5 model has one strong phase very well suited for powering large construction tools or household appliances (AVR system), which require high power, e.g. kettle, microwave, oven.

⭐

Thanks to the use of these and many other solutions described later in the auction, they make blacksmith aggregates in a short time become one of the most popular aggregates in the country.

⭐

They are successfully used both on construction sites, plots or as an emergency power supply at home. We have a wide selection thanks to which everyone will find an aggregate for their needs.

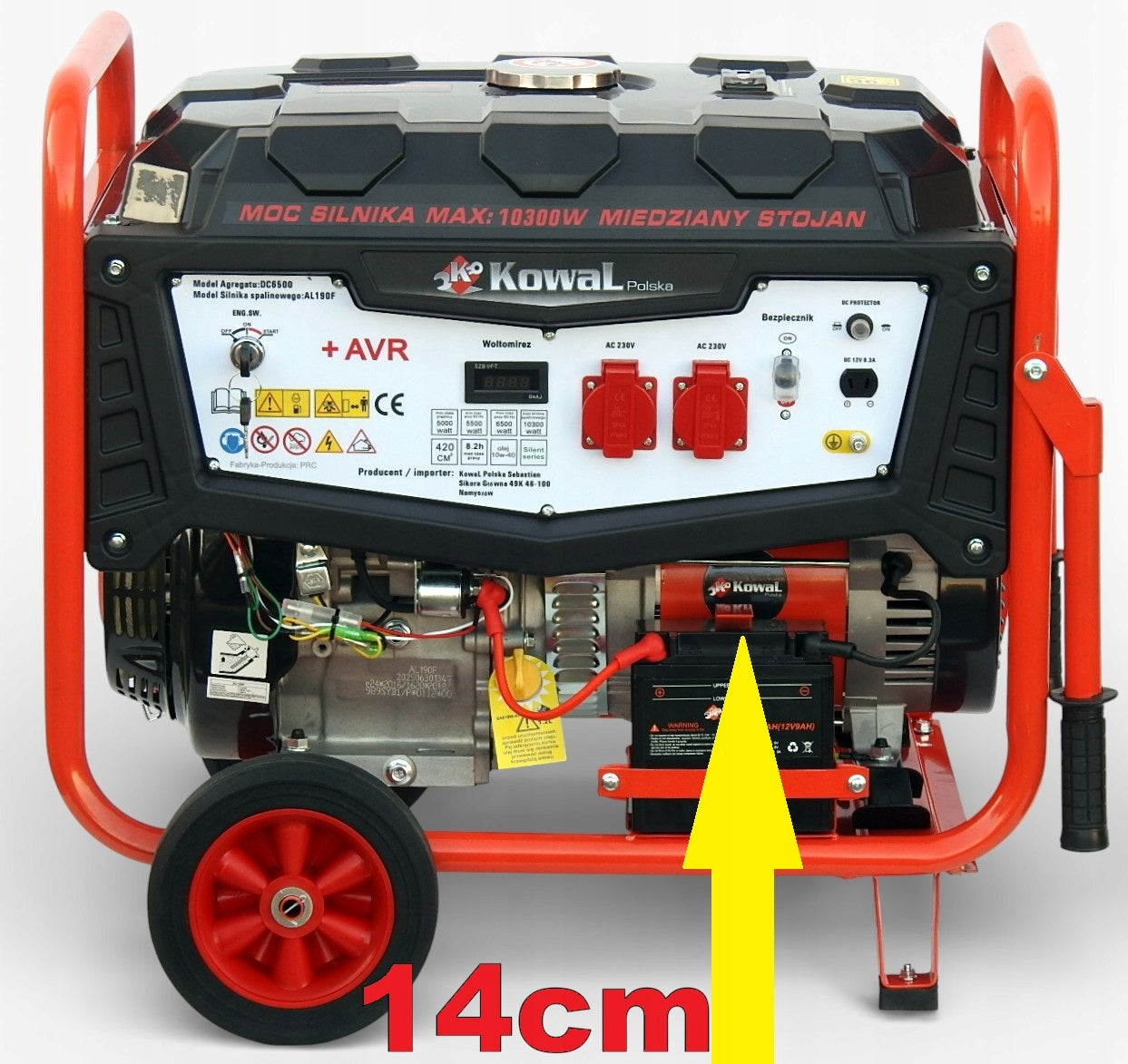

The stator and rotor account for nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 110-130mm. All blacksmith units with an engine power of 10,3kW use a stator with a length of up to 140mm. Stator wound with fully copper wire.Copper generator cooperates with a very popular engine with the symbol: AL190F, which on behalf of the brand KowaL Polska is produced from the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, valves. Details later in the auction.

The latest model uses extended generators. The power of the unit increases directly in proportion to the length of the stator core that is in it - thanks to which the A5 model has reached the maximum power of 6,6kW! When connecting the same devices to the unit compared to other weaker models, this one is much less loaded and thus the life of the device is significantly extended and fuel combustion is reduced, which makes the generator more economical.

• new original appearance
• motor-hour counter
• new generation silencer, quieter engine operation. Tolerates much better long intensive work
• Thicker frame
• harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices
• thickened castings of the internal combustion engine body and stator base
• Third generation voltage regulator
• additional pair of shock-absorbing rubbers (under the generator and motor)
• new type of generator, more wire wound

• motor power / max generator power at 60Hz: 10,3 kw /6,6 kw
• constant power at 50Hz: 5000 watt
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 15 L
• startup: electric and manual
• nominal voltage: 230V
• nominal frequency at 3000rpm: 50Hz
• built-in AVR - voltage regulator
• weight with packaging approx. 85 kg
• dimensions: 60cmx60cmx70cm
• built-in rectifier output 12 volt
• engine displacement approx. 420cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 1,2 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 1,2 - 1,5 L/h
• Please refer to the instruction manual before using!

Intelligent Throttle Technology

The NEW BLACKSMITH A5 model is equipped with an intelligent throttle system that automatically adjusts the engine operation to the current load of the generator. The system helps to maintain the working turnover at the level of approx. 3000 rpm /min, which is important for stable operation of the unit and proper power supply of many typical household and utility receivers.

With less power consumption, the system can reduce fuel dose, supporting cost-effective operation and lower fuel consumption. The whole process takes place automatically, without the need for constant user intervention.

In the freebie you also get:

✅2x plug 230v

✅12v cables

✅A set of keys

✅Chrome fuel cap

✅Fuel filter

✅Readable fuel level indicator

✅Silent operation of the device

1. The unit is equipped with an air filter with a double cartridge. This minimizes the risk of contaminants entering the engine, which significantly extends the life of the device. The filter does not need to be replaced, just maintain it (details in the user manual)

2. On behalf of blacksmith, an additional external fuel filter is installed in the aggregate. It significantly reduces the risk of contamination of the carburetor.

The latest model of the A5 generator uses a built-in on-board computer. The computer displays information such as:

⭐voltage of electricity produced

⭐Frequency of electricity produced

⭐working time since last inclusion

⭐overall mileage of the device expressed in hours

To operate the computer, one button is enough, with which the user has the ability to exchange the displayed information.

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Tubeless wheels on the axle ensure easy handling and virtually maintenance-free operation of the suspension system. Fully cast (uninflated) wheels are puncture and deformation resistant. The addition of rubber improves the cushioning of the unit, which translates into lower noise levels.

Thanks to the use of transport handles specially designed for the dimensions of the unit, the unit gives the impression of being very light and easy to move

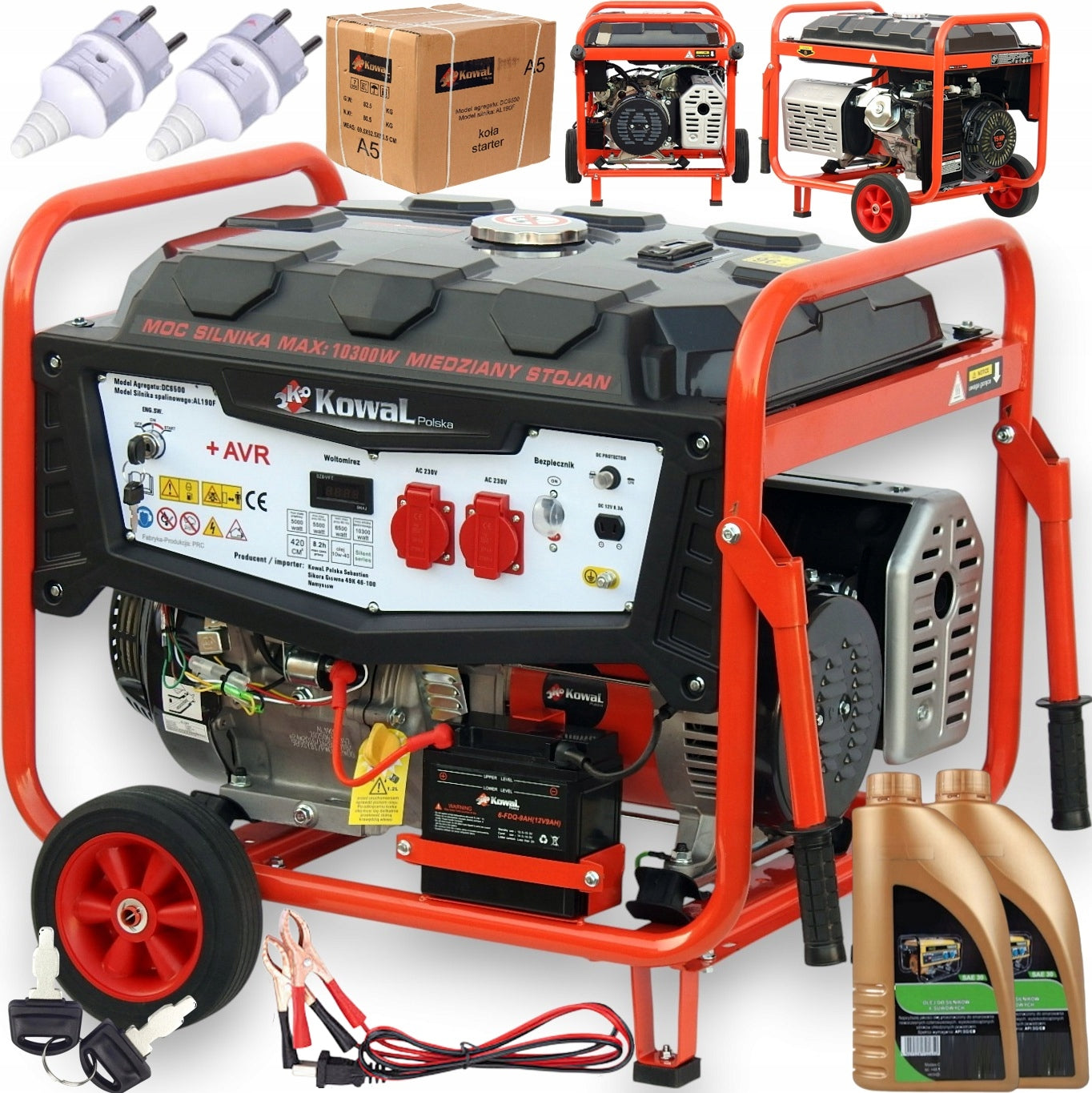

✅2x 230v socket

✅cables for 12v power supply

✅fuel filter

✅keys (2 pieces)

✅key for candles

✅wheels (2 pieces)

✅transport handles

✅1,2 L oil bottle FREE (in two bottles of 0,6l or one 1,2l)

✅2 anti-vibration feet

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅receipt or f-vat

✅Manufacturer's declaration of conformity

Specifications
