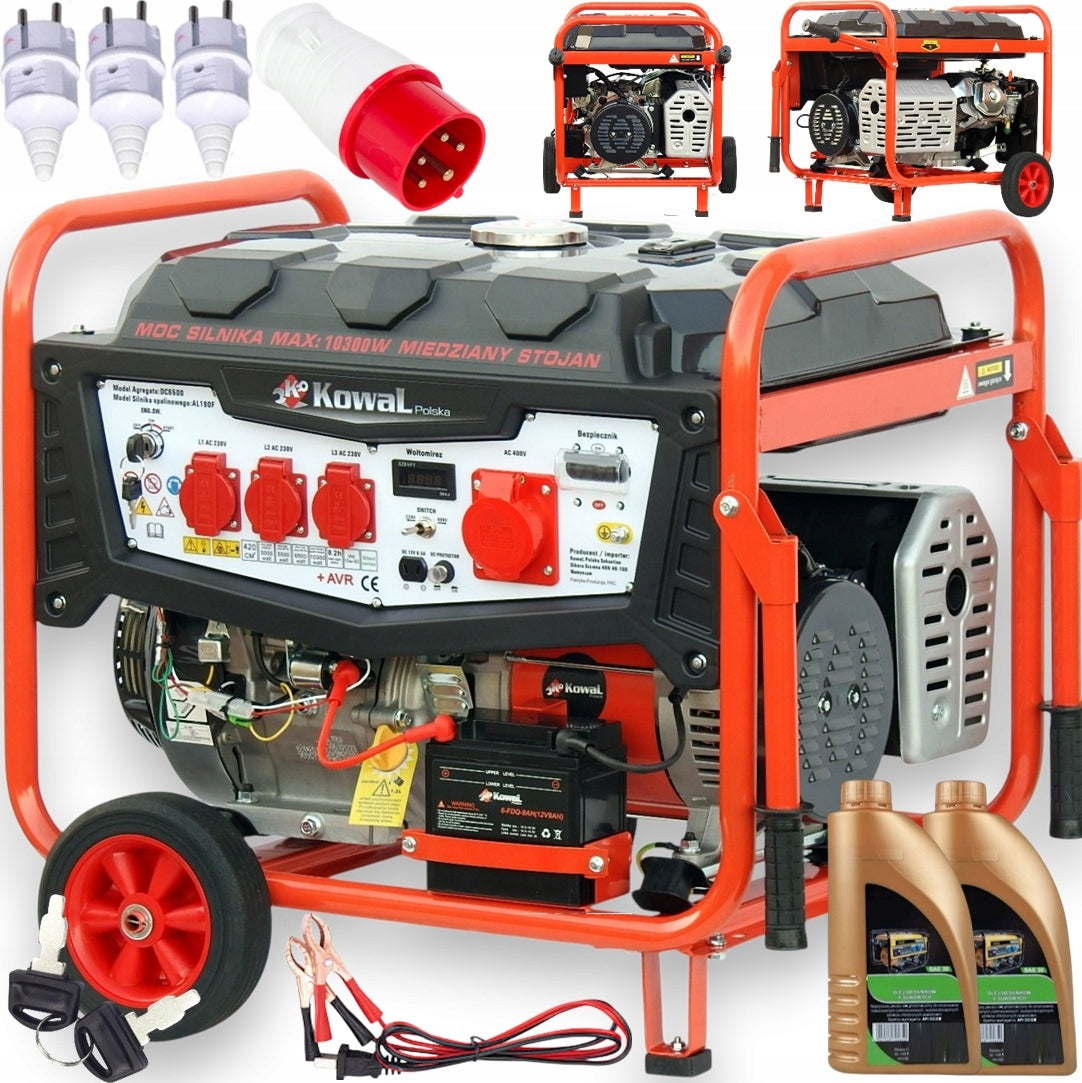

Elektros generatorius 10,3 kW, elektrinis užvedimas, valandų skaitiklis, vario statorius, AVR, Blacksmith

Trumpai apie prekę

Prekė: Elektros generatorius 10,3 kW, elektrinis užvedimas, valandų skaitiklis, vario statorius, AVR, Blacksmith. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A6
• Įtampa: 400 V

✅NEW model with extended generator

✅COPPER stator winding

✅Engine power of 14HP!

✅MOTOR HOUR COUNTER

✅Tubeless wheels on axle

✅FEET guaranteeing the stability of the device during operation.

✅EQUIPPED WITH 230/400V SWITCH

✅Obtained increased true power max. generator up to 6,6kW

✅EQUIPPED WITH AVR voltage stabilizer

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A6 equipped with an intelligent throttle system that automatically responds to load changes.

KowaL Polska generators are characterized by reliability, unexcessive parameters and are equipped with many systems that guarantee the achievement of the best possible power parameters and power quality while maintaining the lowest possible fuel consumption. This is due to the stator, which uses an additional circuit to equalize the power and voltage between the phases , as well as an intelligent throttle that operates automatically, which maintains the speed at approximately 3,000 rpm regardless of the load, and an AVR that guarantees very good power quality. The unit is additionally equipped with a 230/400V voltage switch.

⭐

Thanks to the use of these and many other solutions described later in the auction, blacksmith generators have quickly become one of the most popular generators in the country.

⭐

They are successfully used on construction sites, allotments or as emergency power supply in homes. We have a wide selection so everyone can find a generator to suit their needs.

The stator and rotor make up nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 110-130mm. All blacksmith units with an engine power of 10,3kW use a stator with a length of up to 140mm. Stator wound with fully copper wire.Copper generator cooperates with a very popular engine with the symbol: AL190F, which on behalf of the brand KowaL Polska is produced from the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, valves. Details later in the auction.

The latest model uses extended generators. The power of the unit increases directly in proportion to the length of the stator core that is in it - thanks to which the A6 model has reached the maximum power of 6,6kW! When connecting the same devices to the unit compared to other weaker models, this one is much less loaded and thus the life of the device is significantly extended and fuel combustion is reduced, which makes the generator more economical.

✅new original look

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅thicker frame

✅harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator

✅additional pair of shock-absorbing rubbers (under generator and motor)

✅new type of generator, more wire wound

• motor power / max generator power at 60Hz: 10,3 kw /6,6 kw
• constant power at 50Hz: 5000 watt
• Constant power at 230V: 3 x 1700 watt
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 15 L
• startup: electric and manual
• nominal voltage: 230/ 400V
• nominal frequency at 3000rpm: 50Hz
• built-in voltage regulator AVR
• weight with packaging approx. 85 kg
• dimensions: 60cmx60cmx70cm
• built-in rectifier output 12 volt
• engine displacement approx. 420cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 1,2 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 1,2 - 1,5 L/h
• Please refer to the instruction manual before using!

Intelligent Throttle Technology

The NEW BLACKSMITH A6 model is equipped with an intelligent throttle system that automatically adjusts the engine operation to the current load of the generator. The system helps to maintain the working turnover at the level of approx. 3000 rpm /min, which is important for stable operation of the unit and proper power supply of many typical household and utility receivers.

With less power consumption, the system can reduce fuel dose, supporting cost-effective operation and lower fuel consumption. The whole process takes place automatically, without the need for constant user intervention.

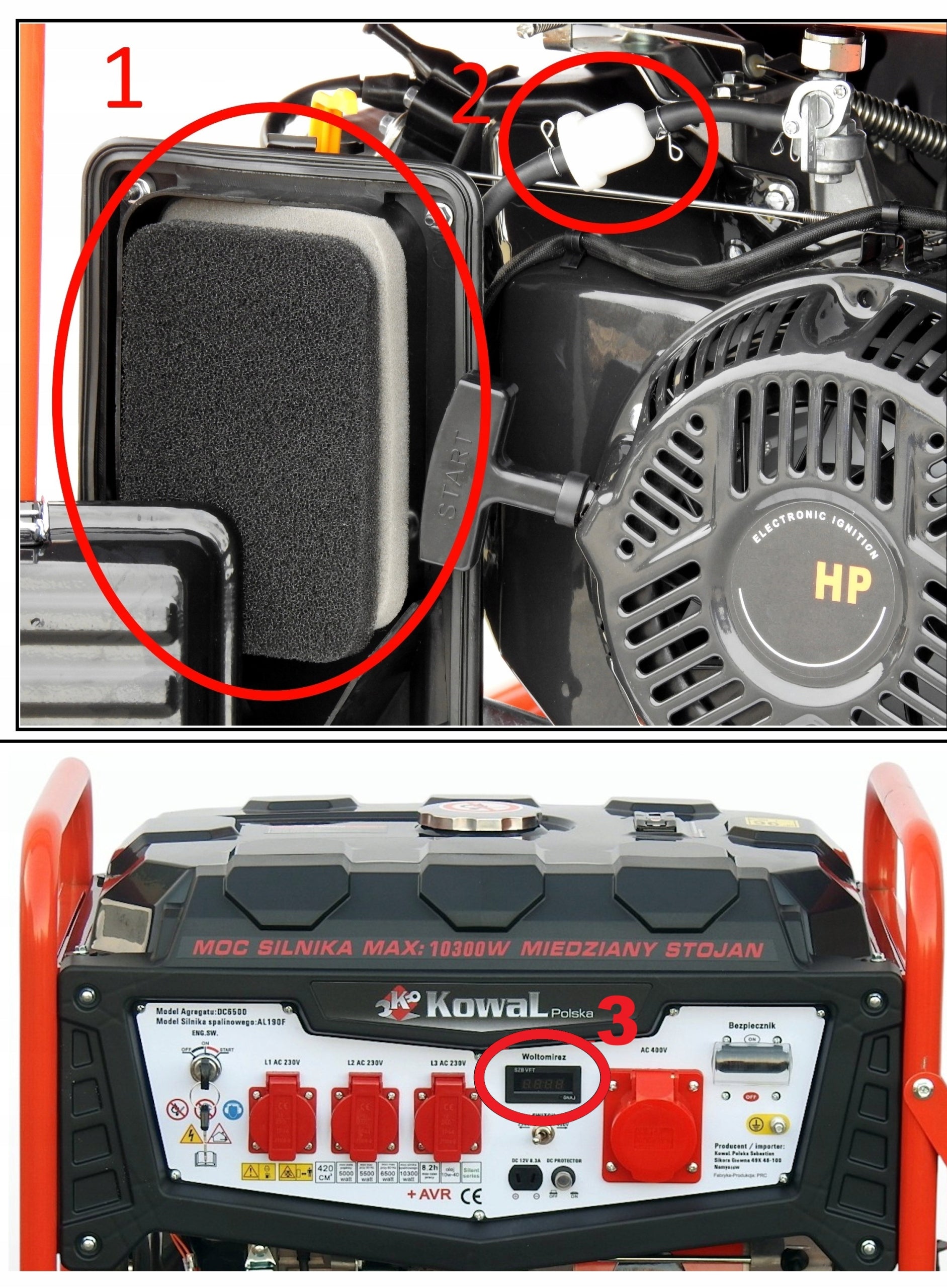

1. The unit is equipped with an air filter with a double cartridge. This minimizes the risk of contaminants entering the engine, which significantly extends the life of the device. The filter does not need to be replaced, just maintain it (details in the user manual)

2. On behalf of blacksmith, an additional external fuel filter is installed in the aggregate. It significantly reduces the risk of contamination of the carburetor.

The latest model of the A6 generator uses a built-in on-board computer. The computer displays information such as:

⭐voltage of electricity produced

⭐Frequency of electricity produced

⭐working time since last inclusion

⭐overall mileage of the device expressed in hours

To operate the computer, one button is enough, with which the user has the ability to exchange the displayed information.

In the freebie you also get:

✅3x 230v plug

✅400v plug

✅12v cables

✅A set of keys

✅Chrome fuel cap

✅Fuel filter

✅Readable fuel level indicator

✅Silent operation of the device

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Tubeless wheels on the axle ensure easy handling and virtually maintenance-free operation of the suspension system. Fully cast (uninflated) wheels are puncture and deformation resistant. The addition of rubber improves the cushioning of the unit, which translates into lower noise levels.

Thanks to the use of transport handles specially designed for the dimensions of the unit, the unit gives the impression of being very light and easy to move

✅ELECTRIC START-UP

✅3x 230v socket

✅400v socket

✅cables for 12v power supply

✅fuel filter

✅keys (2 pieces)

✅key for candles

✅wheels (2 pieces)

✅transport handles

✅1,2 L oil bottle FREE (in two bottles of 0,6l or one 1,2l)

✅2 anti-vibration feet

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅proof // purchase

✅Manufacturer's declaration of conformity

Specifications
