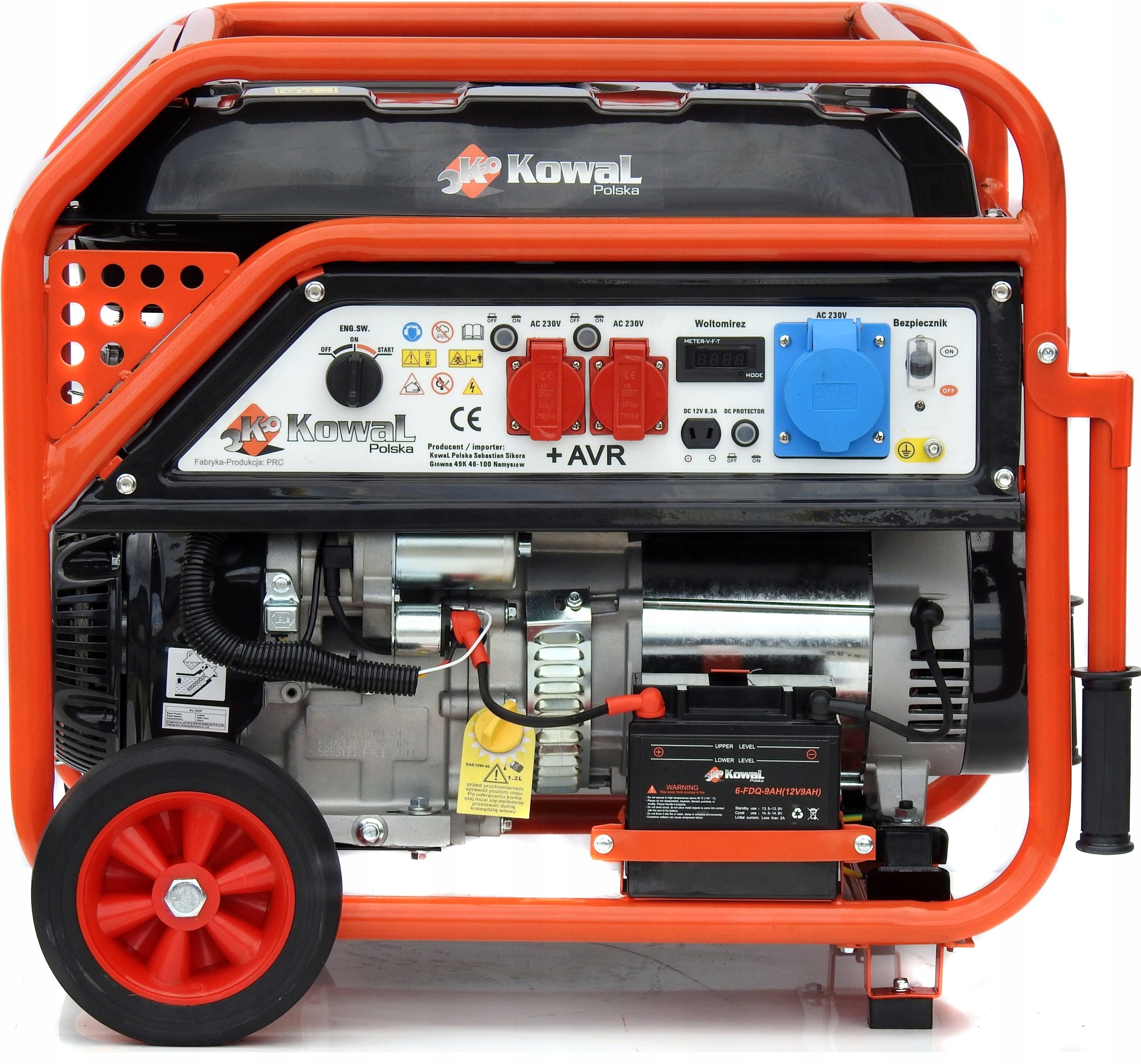

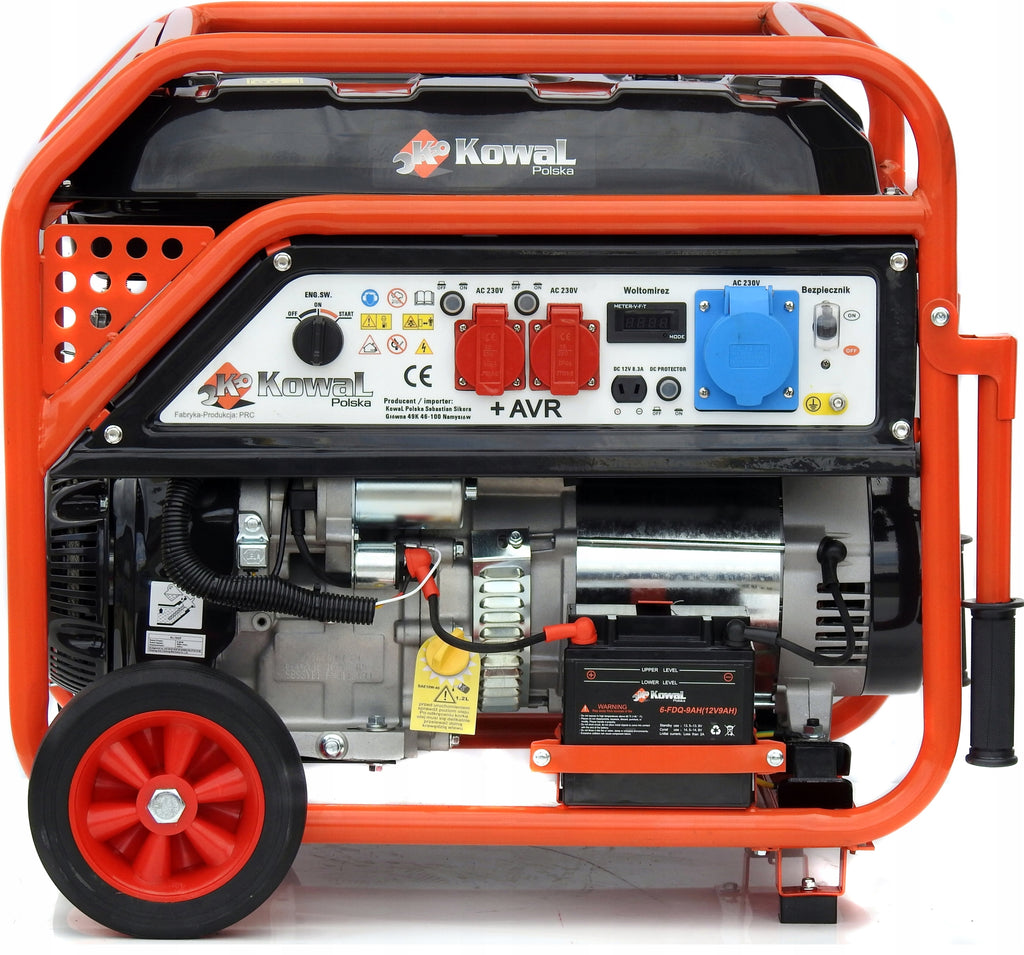

Elektros generatorius 11,8 kW su el. starteriu ir AVR, varinis statorius, blacksmith

Trumpai apie prekę

Prekė: Elektros generatorius 11,8 kW su el. starteriu ir AVR, varinis statorius, blacksmith. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A10 PRO
• Įtampa: 230 V

✅NEW DESIGN

✅NEW model with extended generator constant power up to 8KW!

✅COPPER stator winding

✅OIL BOWL COOLER

✅COPPER rotor winding with metal fan

✅16HP motor power!

✅REINFORCED FRAME

✅ 32A 230V SOCKET (INDUSTRIAL)

✅MAINTENANCE-FREE BATTERY!

✅EQUIPPED WITH SHORT-CIRCUIT FUSE

✅Wheels made of full cast rubber with an admixture of rubber.

✅Obtained increased true power max. generator up to 8,5kW

✅EQUIPPED WITH AVR voltage stabilizer

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A10 equipped with an intelligent throttle system that automatically responds to load changes.

The stator and rotor account for nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 100-130mm. All blacksmith units with an engine power of 11,8kW use a stator with a length of up to 160mm. Stand and rotor wound with fully copper wire.Copper generator and rotor cooperates with a very popular engine with the symbol: AL192F, which on behalf of the brand KowaL Polska is produced from the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, valves. Details later in the auction.

The latest model uses extended generators. The power of the unit increases directly in proportion to the length of the stator core that is in it - thanks to which the A10PRO model has reached the maximum power of 8,5KW! When connecting the same devices to the unit compared to other weaker models, this one is much less loaded and thus the life of the device is significantly extended and fuel combustion is reduced, which makes the generator more economical.

• motor power / max generator power at 50Hz: 11,8 kw /8,5 kw
• Constant power at 50Hz: 8000 watt
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 25 L
• startup: electric and manual
• nominal voltage: 230V
• nominal frequency at 3000rpm: 50Hz
• weight with packaging approx. 91 kg
• built-in rectifier output 12 volt
• engine displacement approx. 440cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 1,2 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• built-in on-board computer
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 1,5-2,0 L/h
• Please refer to the instruction manual before using!

✅new original look

✅built-in on-board computer

✅Oil Bowl Cooler

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅thicker frame

✅harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator

✅new type of generator, more wire wound

Intelligent Throttle Technology

The NEW BLACKSMITH A10 model is equipped with an intelligent throttle system that automatically adjusts the engine operation to the current load of the generator. The system helps to maintain the working turnover at the level of approx. 3000 rpm /min, which is important for stable operation of the unit and proper power supply of many typical household and utility receivers.

With less power consumption, the system can reduce fuel dose, supporting cost-effective operation and lower fuel consumption. The whole process takes place automatically, without the need for constant user intervention.

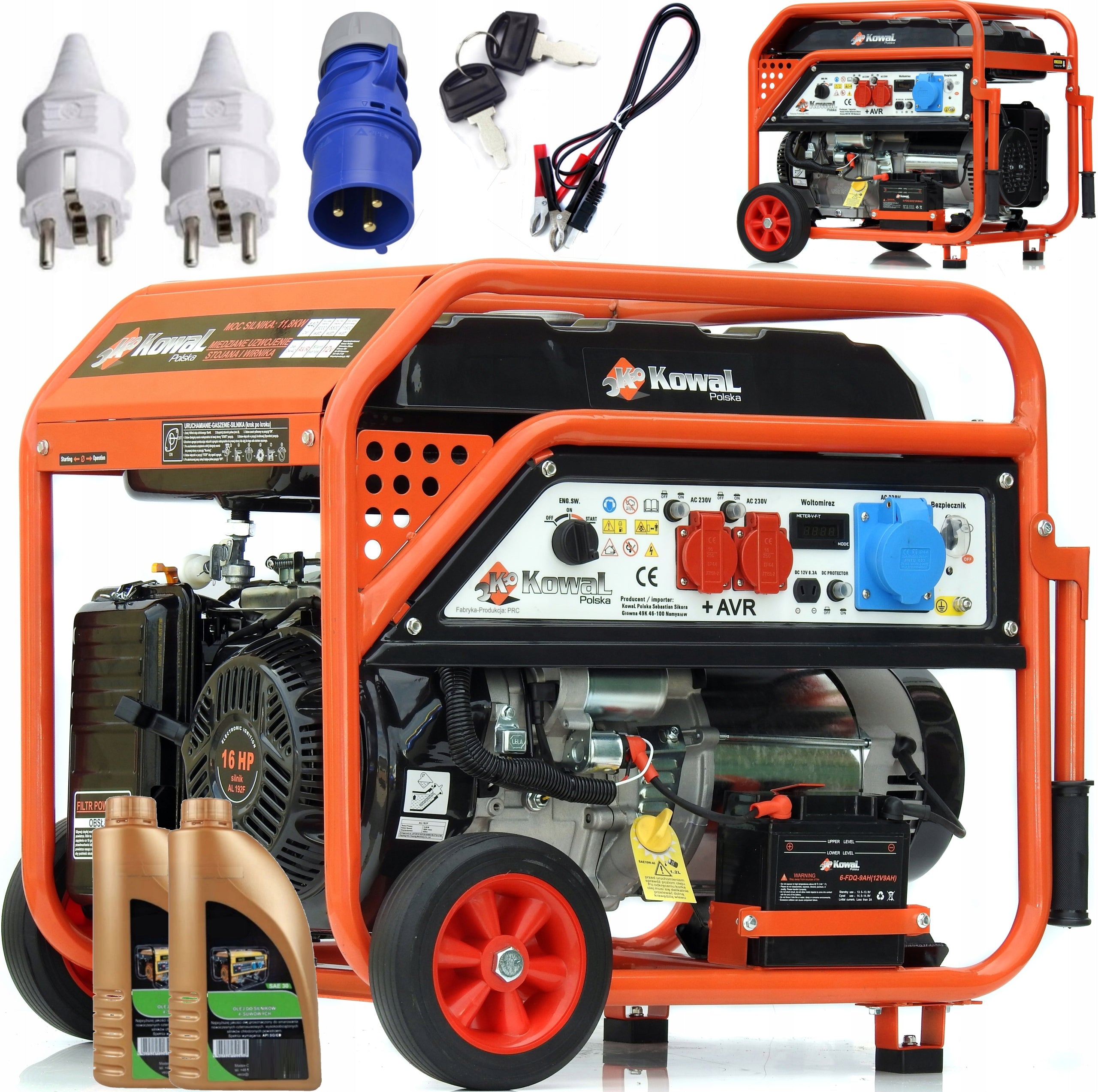

In the freebie you also get:

✅2x plug 230v 16A

✅230v 32A plug

✅12v cables

✅A set of keys

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Robust wheels guarantee lightness in handling and practically no operation of the suspension system. Fully cast (not pumped) wheels are not prone to punctures or deformation. The rubber additive improves the cushioning of the unit, which in turn goes hand in hand with less noise.

The A10PRO model is equipped with an on-board computer with a screen on which information such as: voltage, frequency or lmotor hour counter are displayed! Operation is very simple, one button is enough to operate. From now on, you have complete control over the device!

1. The unit is equipped with an air filter with a double cartridge. This minimizes the risk of contaminants entering the engine, which significantly extends the life of the device. The filter does not need to be replaced, just maintain it (details in the user manual)

2. On behalf of blacksmith, an additional external fuel filter is installed in the aggregate. It significantly reduces the risk of contamination of the carburetor.

3. IMPORTANT - solid silencer mount, guarantees its reliability. The direction of the exhaust outlet is exactly opposite to the working panel with sockets. All noise goes in the opposite direction from the potential workplace, which significantly reduces the real noise of the device.

✅2x socket 230v 16A

✅230C 32A socket

✅cables for 12v power supply

✅fuel filter

✅keys (2 pieces)

✅key for candles

✅wheels (2 pieces)

✅transport handles

✅double-sided screw driver (cross, flat)

✅ oil FREE (two bottles of 0,6l or one 1,2l)

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅Manufacturer's declaration of conformity

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kowal Polska
Parametry	Model	A10 PRO
Parametry	Kind	portable
Parametry	Generator type	single-phase
Parametry	Engine	4-stroke
Parametry	Maximum power	8500 W
Parametry	Nominal power of the alternator	8000 W
Parametry	Engine power	16 KM
Parametry	Gasoline tank capacity	25 l
Parametry	Device weight	90 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	10 h
Parametry	Lc IEC noise level	96 dB
Parametry	Product height	60 cm
Parametry	Product width	70 cm
Parametry	Product depth	60 cm
Parametry	Average combustion	1.5 l/h
Parametry	Number of 1-phase outlets	3
Parametry	Number of 3-phase outlets	none
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	KowaL A10 PRO
Parametry	Product weight with unit packaging	91 kg
Parametry	Packaging status	original
Parametry	Startup	electric,manual
Parametry	Additional information	voltage regulation (AVR),12 V outlet
