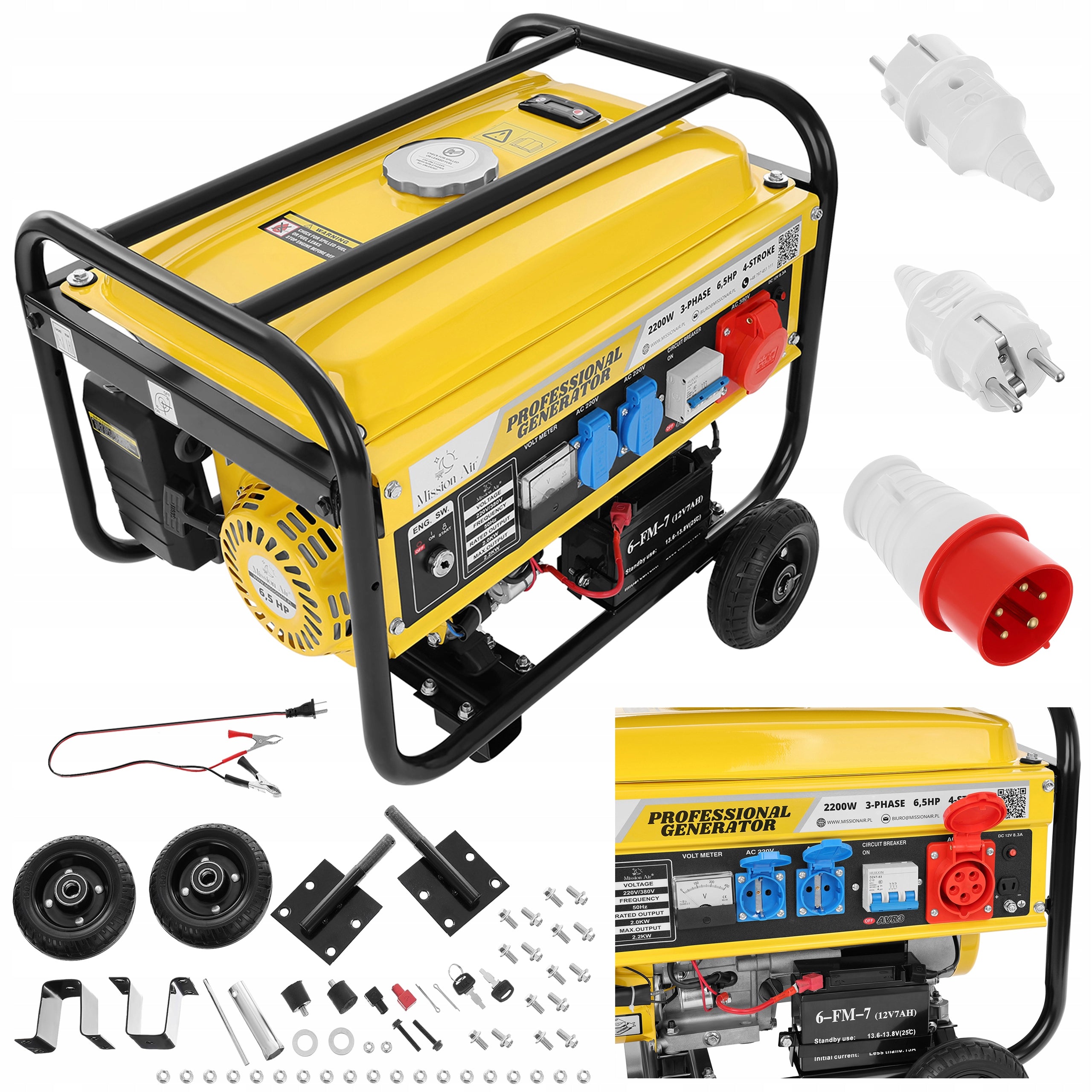

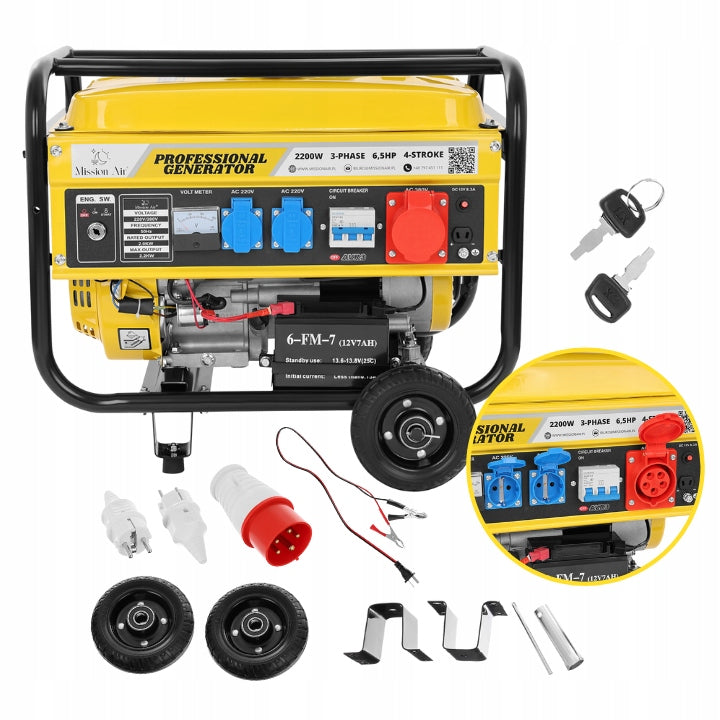

Elektros generatorius 3 fazių, 2200, 230V/380V, 6,5 AG, 4,41 kW, su AVR

Trumpai apie prekę

Prekė: Elektros generatorius 3 fazių, 2200, 230V/380V, 6,5 AG, 4,41 kW, su AVR. Kategorija: Elektros generatoriai.

• Gamintojas: Mission Air
• Modelis: Agregat prądotwórczy 2,2kW 3-fazy 4-suw 6,5KM
• Įtampa: 230 V

✔ 3-PHASE AGGREGATE

✔ POWERFUL 4,41kW MOTOR

✔ MAXIMUM POWER: 2200 W

✔ TWO 230V SOCKETS

✔ POWER SOCKET 380 V

✔ 12 V SOCKET

✔ AVR VOLTAGE STABILIZATION

✔ ELECTRIC STARTER / STARTER

✔ COPPER STATOR WINDING

✔ 4-STROKE ENGINE WITH 6,5 KM

+ free motor oil SG/CD 10W/30 op.0,6l ORLEN

➡ The Mission Air® generator set is a reliable tool for outdoor work.

➡ Efficient, resistant to all weather conditions and mechanical damage (IP44)

➡ It will provide you with constant access to electricity. Indispensable during electrical failures and construction works.

➡ Solid wheels as standard!

Thanks to its stable construction and durable wheels, it is very convenient to transport.

✅ CopperCore™ 196 - generator with copper stator winding and 196cc motor for stable power supply

✅ AVR StableVolt™ - electronic voltage regulation protects home electronics from fluctuations and surges

✅ EasyStart™ 7AH - electric starter with 7 AH battery eliminates tiring cable tugging

✅ TriPhase™ 230/380V - 230 V, 380 V power and 12 V sockets in one device

✅ ShieldFrame™ IP44 - truss frame with IP44 degree of protection protects the unit in the field

✅ PureFuel™ 4T - 4-stroke engine for clean gasoline, without fuel-oil mixture

✅ DualStart™ - double electric and manual start, start in all conditions

• Engine Power / Generator Max Power: 4.41 kW / 2.2 kW
• Air Cooled: YES
• 4-Stroke: YES
• Number of Cylinders: 1
• Displacement: 196cc
• Engine Power: 6.5 HP
• Rated Power: 2000W
• Maximum Power: 2200W
• AVR Voltage Stabilizer: YES
• 230V Sockets: 2 pcs
• Power Socket: YES, 380V
• 12V Socket: 1 pc
• Voltmeter: YES
• Electric Starter: YES
• Manual Starter: YES
• Circuit Breaker: YES
• Low Oil Level Sensor: YES
• Fuel Tank Capacity: 15 liters
• Oil Tank Capacity: 0.6 liters
• Frame: Truss frame
• Unit Dimensions: 605/444/443 mm (W/H/D)
• Package Dimensions: 635/480/480 mm
• Net Weight: 40kg
• Gross Weight: 43kg
• Estimated Run Time: 7-8 hours on one tank
• Fuel: Gasoline
• Color: Yellow

😩 Power failure, and at home a fridge full of food, freezer and electric stove - everything stands?

➡ 😊 CopperCore™ 196 - generator with copper winding and 196cc motor. 2000W of continuous power (up to 2200W temporarily) will keep your refrigerator, lighting and phone charging at the same time.

😩 Do you turn on the generator and voltage spikes damage your laptop or TV?

➡ 😊 AVR StableVolt™ - electronic voltage stabilizer protects electronics from fluctuations and surges. You plug in the equipment without stress.

😩 Do you the starting line dozens of times, your hand hurts, and the unit does not start?

➡ 😊 EasyStart™ 7AH - electric starter with 7 AH battery. One button and it works. And if the battery dies, there is also a manual start (DualStart™).

😩 Do you have tools for 230 V and 380 V - do you need two power sources?

➡ 😊 TriPhase™ 230/380V - 230V, 380V and 12V sockets in one device. One source for construction, land plot and emergency power supply of the house.

😩 The unit is outside, it's raining - are you afraid of short circuit?

➡ 😊 ShieldFrame™ IP44 - frame with IP44 degree of protection protects against water drops on all sides. You can use it outside.

😩 Old 2-stroke generator - mix gasoline with oil, stinks and smokes?

➡ 😊 PureFuel™ 4T - 4-stroke engine for clean gasoline, without mixture. You refuel like a car, less exhaust fumes, simpler operation

▶ Winter windstorm, 12 hours without electricity - line broken, fridge and freezer full. The 2,2 kW unit keeps your phones cool, illuminated and charged until the power returns.

▶ House in the raw state - no connection, and you need to forge, grind and mix mortar. The 5,5 kW generator with 400 V socket drives power tools without voltage drops.

▶ Weekend on the plot - lighting gazebo, water pump, chargers. 2,2 kW covers all basic needs throughout your stay.

▶ Full load construction site - betoniarka, grinder and headlights at once - PowerHorse™ 13HP gives you a supply of power for an intense workday.

▶ Wedding or outdoor event - sound system, lighting, catering. 5,5 kW or a set of 2× will power the infrastructure of the event away from the network.

▶ Farm during a breakdown - pumps, blowers and inventory lighting can not stand. 5,5 kW is a real security of continuity.

❓Question: What power generator to choose for your home?

✅Answer: Aggregate the power of the devices you want to power at once. Refrigerator, lighting, router and chargers fit in 2 kW - then a 2,2 kW UNIT is enough.

❓Question: Will I connect the refrigerator from the unit?

✅Answer: Yes. Refrigerators and freezers have a temporary jump in consumption at the start of the compressor - the AVR stabilizer and the maximum power supply (2200 W in the 2,2 kW model) allow you to handle them.

❓Question: Will the unit start the device with the engine (pump, compressor)?

✅Answer: Devices with motor have high starting current. Leave the power supply - select the unit so that the rated power of the device is clearly lower than the rated power of the unit.

❓Question: How much does the unit burn?

✅Answer: Consumption depends on load. Approximately, under typical load, the 2,2 kW model consumes approx. 2 l/h (15 l ≈ 7-8 h).

❓Question: Can I use the unit in the rain?

✅Answer: The frame has an IP44 rating (protection against water drops). Set the unit outside, on a stable ground, under a roof protecting against flooding - never in a closed room due to exhaust fumes.

❓Question: Does the unit need to be grounded?

✅Answer: When powering installations or sensitive receivers, it is recommended to ground in accordance with instructions and regulations. If in doubt, consult a connection with an authorized electrician.

❓Question: How to maintain the unit?

✅Answer: Check the oil level before each start, replace the oil and filter according to the instructions, clean the air filter and do not store the unit with full, old fuel for a long time.

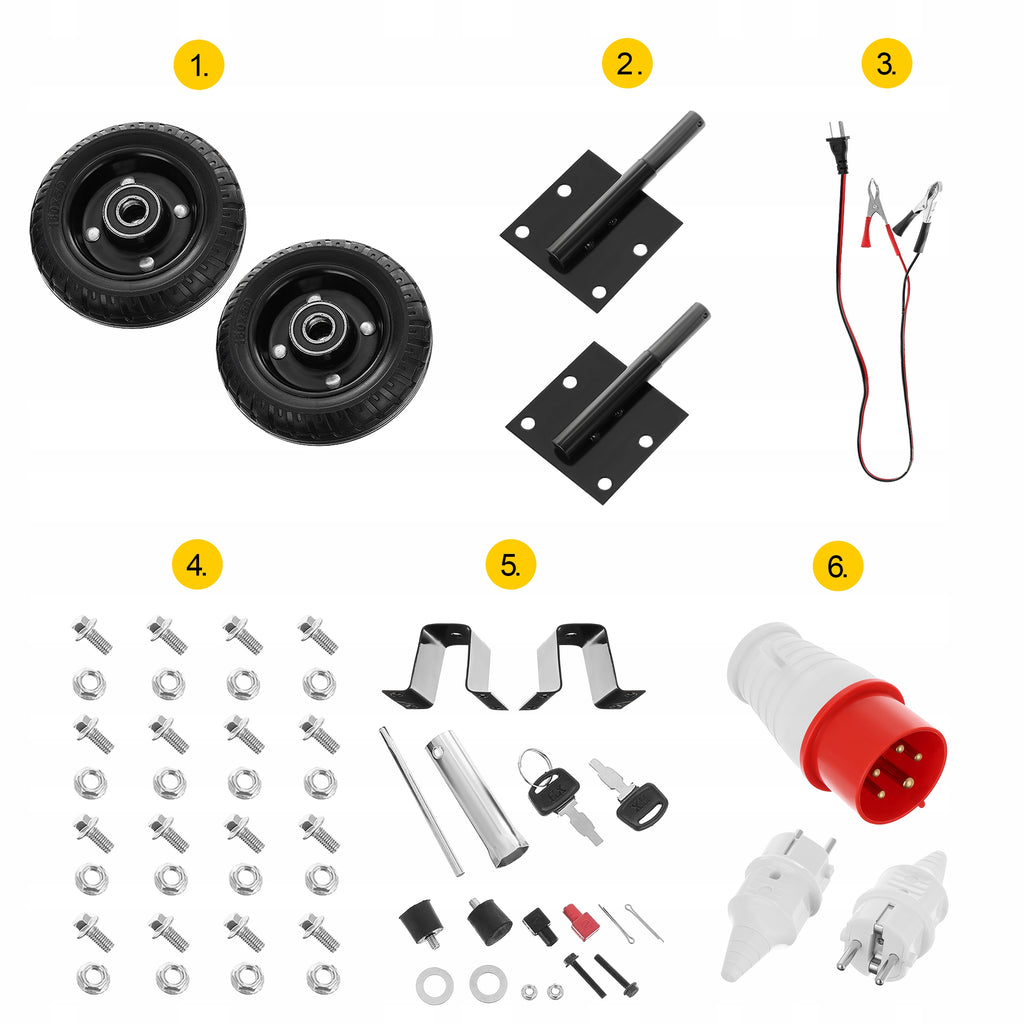

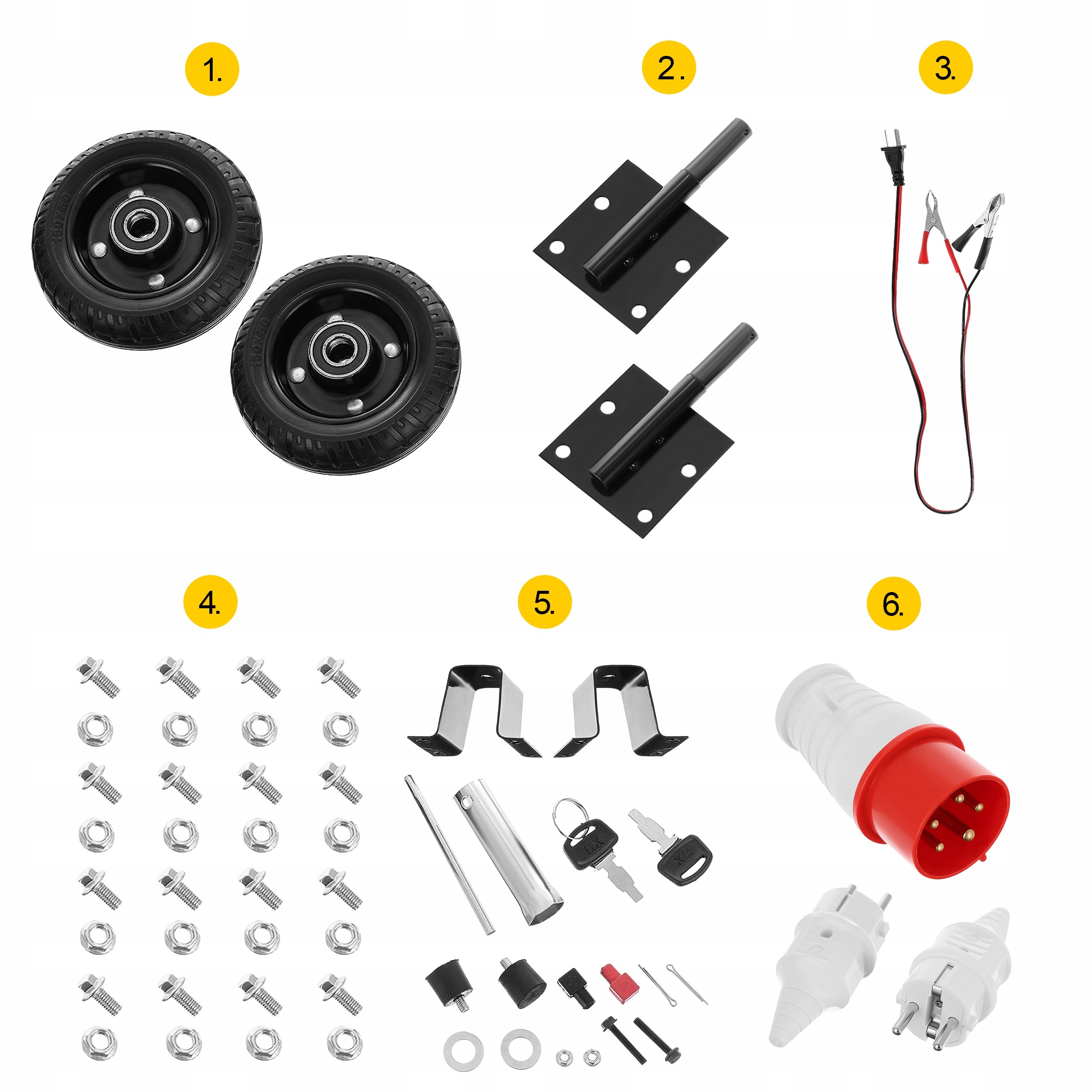

❓Question: What can I find in the set?

✅Answer: Aggregate with frame and wheels, 7 AH battery for electric start and documentation.

❓Question: Is the generator loud?

✅Answer: The 4-stroke engine and vibration damping make it run quieter than cheap 2-stroke generators. Under load, this is the level of louder conversation (indicatively 68-72 dB in the 2,2 kW model).

🏡Out-of-town homeowner - when a storm breaks the line, 2,2 kW will keep the refrigerator, lighting, router and electricity stove. Calm during any network failure.

🧑 🌾Działkowicz and the owner of the holiday home - lot without connection? 2,2 kW will power tools, pump and lighting for the weekend.

⛵Caravaning, motorhome, yacht - 2,2 kW is a compact power source for camping, marina and on the road.

🏢Small company and workshop - security of continuity of work during power outages - cash registers, cold stores, tools.

🏕 Angler, hunter, off-grid fan - energy independence where there is no net - from charging to power tools.

❌ MYTH: "A 2 kW generator can't power a house."

✅ FACT: 2000 W of continuous power can handle essential circuits during an outage: refrigerator, lighting, router, and charging. This provides real backup, not full house power simultaneously.

❌ MYTH: "A cheap generator and a branded one are the same."

✅ FACT: They differ in winding (copper vs. aluminum), AVR presence, IP protection rating, starter type, and the manufacturer's local after-sales support.

❌ MYTH: "You have to keep pulling the starter cord endlessly."

✅ FACT: DualStartTM - electric start with a button (7 AH battery charged during operation), the pull cord is only an emergency option.

❌ MYTH: "A 4-stroke engine requires a fuel-oil mixture."

✅ FACT: PureFuelTM 4T - you refuel the generator with pure gasoline, like a car. Oil is in a separate system, not mixed with fuel.

➡ Step 1 - Check the oil level with a bayonet and refill if necessary (oil for 4-stroke engines).

➡ Step 2 - Refuel pure gasoline Pb95. No mixture with oil.

➡ Step 3 - Set the unit outside, on stable ground, away from windows and doors (exhaust fumes). Open the fuel valve and turn on the suction (choke).

➡ Step 4 - Start with an electric starter (turn the key) or emergency pull the manual start cable.

➡ Step 5 - After heating up, turn off the suction, check the voltmeter indication and connect the receivers.

By choosing Mission Air products, you get the Mission Air SHIELD package. It is an additional after-sales care, thanks to which you can be sure of peaceful and comfortable use of the purchased device.
