Elektros generatorius 5,1 kW su AVR, PL

Trumpai apie prekę

Prekė: Elektros generatorius 5,1 kW su AVR, PL. Kategorija: Elektros generatoriai.

• Gamintojas: Schwarzbau
• Modelis: GW3500 1 faza
• Įtampa: 230 V

Generator set polish brand

FIRED FROM THE BUTTON + BATTERY

• New, improved design!
• HAS LARGE WHEELS
• fold-out transport handles
• has an AVR voltage stabilizer
• fired manually or from a battery
• has a fuel level indicator
• integrated fuel valve (tap)
• Silenced silencer chamber!
• embedded on cushioning cushions
• Intelligent throttle system
• Voltmeter
• Built-in rectifier
• CHARGING 12V!
• NEW MODEL equipped with an intelligent throttle system responsible for maintaining constant rotation! (constant frequency value 50Hz)

Tens of thousands of sold pieces and satisfied customers. We also provide warranty and post-warranty service. We have all spare parts.

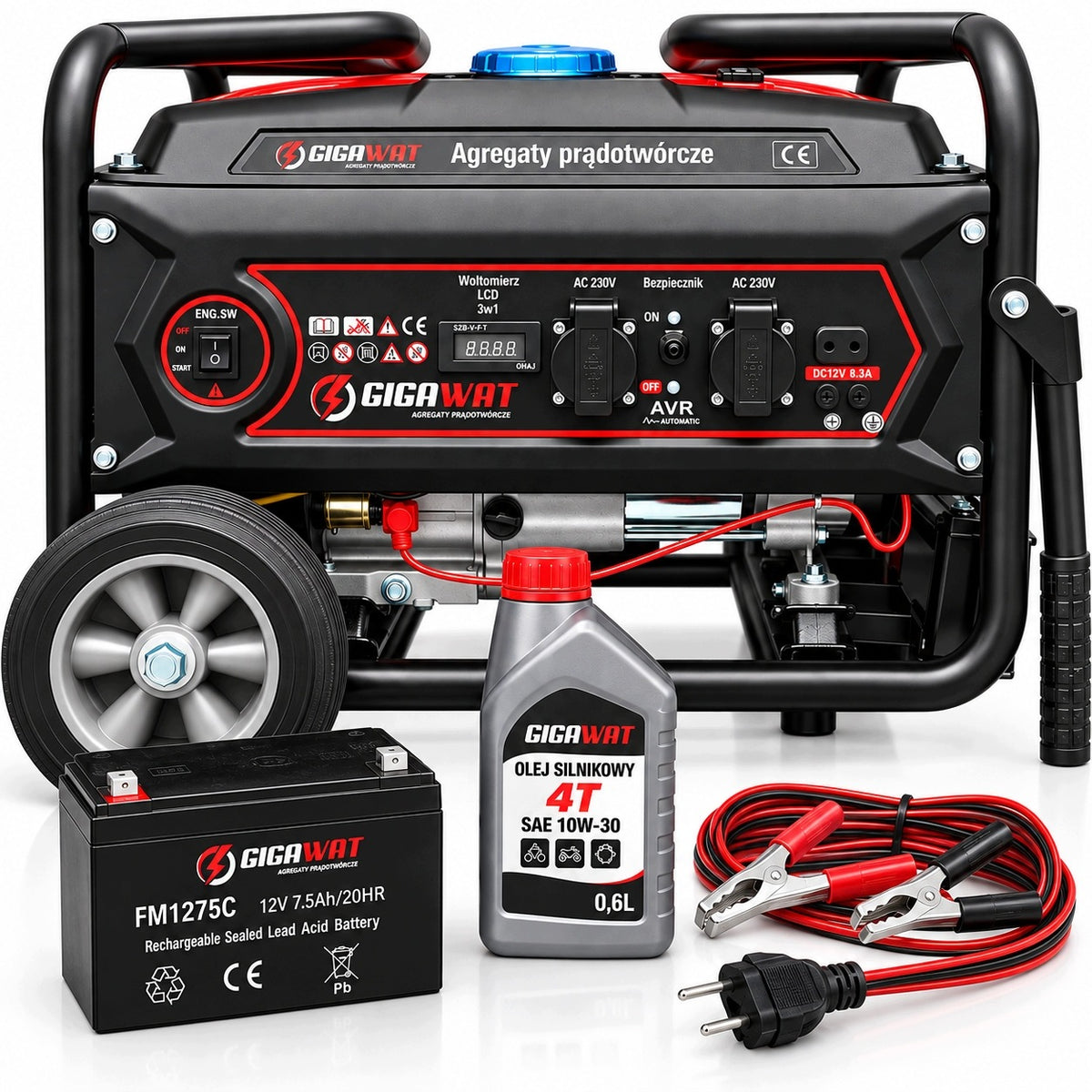

Robust, mobile generator set designed for home, workshop, construction and off-road applications. It combines a simple design with practical equipment: electric starter, manual start-up system, AVR voltage stabilization, multifunctional LCD display and 12 V output.

Large wheels, folding transport handles and a reinforced frame make the device comfortable to move despite its sturdy construction.

• key to candles
• 0,6 L oil bottle
• metal support
• anti-vibration feet
• 2 wheels + axles
• nuts and mounting screws
• 2 plug 230V
• battery
• instruction PL
• manufacturer's declaration of conformity

The unit is equipped with a petrol, four-stroke engine ZH210 (ZH170F) with a power of 7 HP / 5,1 kW.

Generator parameters:

• maximum power: 2,8 kW / 3,5 kVA
• continuous power: 2,5 kW / 3,1 kVA
• Voltage: 230 V
• Frequency: 50 Hz
• engine: 7 HP / 5,1 kW
• engine model: ZH210 (ZH170F)
• degree of protection: IP23M
• sound power level: 94 db
• built-in AVR - voltage stabilizer

• output to 12V
• fired from a BUTTON or by hand
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity approx. 15 L
• 230 volt power supply
• weight about 45 kg
• colour: orange/grey
• 10w-40 or SAE30 oil used
• oil pan capacity approx. 0,6 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed about 3.000 r/min
• low combustion: from 0,7 - 1,1 L/h

Intelligent Throttle Technology (Throttle Change Control). Unlike most other generators that operate at a variable speed per minute, our portable generator is equipped with the Intelligent Engine Throttle Technology system, which, depending on the load on the generator, adjusts the fuel dose to keep the engine at a constant speed of 3000 r/min. This is very important while maintaining a constant frequency [Hz], which must be 50 Hz in order to be able to properly power the devices. In addition, thanks to the intelligent throttle, with less power consumption, it is set to EKO mode, which results in much less combustion! All these activities take place automatically without unnecessary user intervention!

Copper winding generator

📊 MULTIFUNCTIONAL LCD DISPLAY

The unit has a built-in digit LCD display, allowing you to control the most important parameters of the device.

Depending on the mode displayed, the user can control m.in. output voltage, Hz frequency and operating/motor hours.

This is particularly practical during longer operation of the unit – the motor-hour meter also makes it easier to keep an eye on oil changes and periodic engine maintenance.

🔇 ENLARGED, MUTED SILENCER – GREATER COMFORT

The GIGAWAT ZH3500 is equipped with a large silencer with a design that reduces noise generated by the exhaust system. Its task is to effectively suppress exhaust gas pulsation and reduce the annoying sound of the engine during operation.

The use of enlarged silencer housing allows for more pleasant sound characteristics than in simple constructions using small, basic silencers.

An additional advantage is the metal thermal shield, which protects the hot element of the exhaust system and at the same time gives the unit a solid, professional finish.

🔋 BATTERY INCLUDED

The unit has an installation that allows electric start from a 12 V battery.

You do not have to use the starter cable every time – with a properly charged battery, starting the engine is much more convenient.

At the same time, the manufacturer left the traditional jerky as an independent, emergency way to start the engine.

⚙ BUILT-IN AVR – AUTOMATIC VOLTAGE REGULATION

The ZH3500 is equipped with AVR (Automatic Voltage Regulator).

The system automatically regulates the voltage generated by the generator and reduces its fluctuations during changing loads.

Thanks to this, the unit provides more stable voltage parameters than basic structures without an AVR regulator.

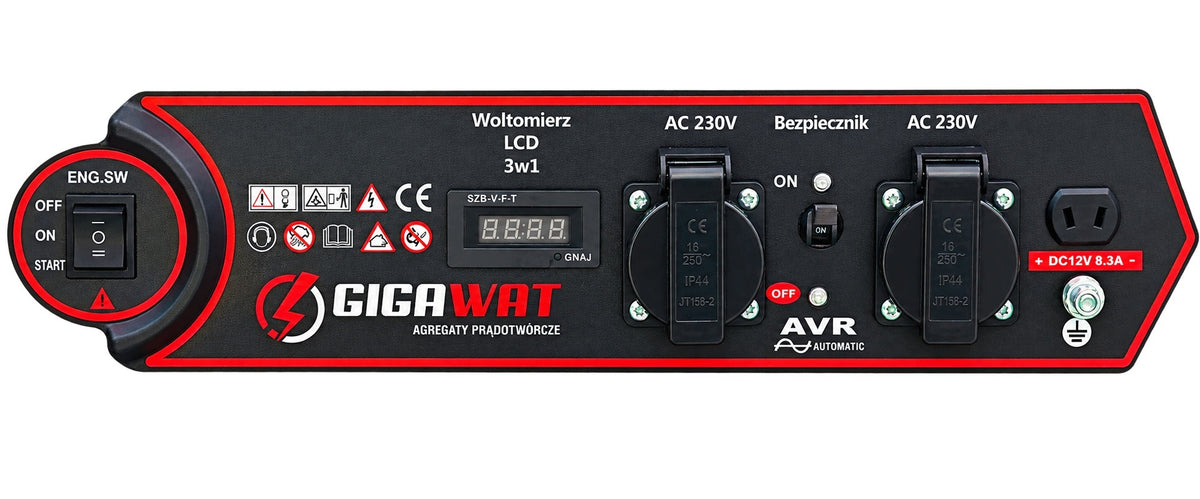

🔌 2 SOCKETS 230 V + 12 V OUTPUT

The control panel is equipped with two AC 230 V sockets, so you can connect more than one device at the same time.

In addition, the unit has a DC output of 12 V / 8,3 A, increasing the possibilities of using the device.

The panel also includes a fuse, an AVR controller and clearly arranged control elements.

🛞 LARGE WHEELS AND FOLDING TRANSPORT HANDLES

The unit is designed for comfortable movement.

large, wide and solid transport wheels were used, which make it much easier to transport the device around the property, workshop or construction site.

In addition, the design has convenient folding transport handles. When unfolded, they provide adequate leverage when driving the unit, and after transport, they can be folded.

🔑 ELECTRIC + MANUAL START

One of the most important advantages of the ZH3500 is the double start system.

The unit can be started:

⚡ electrically – with starter and battery

🖐 manually – using a classic cable starter (“scarf”)

Instead of a typical keyed ignition, a solid, convenient switch/boot button is used, which simplifies the operation of the device.

By leaving the manual start, the unit can also be started when the battery is discharged.

GIGAWAT ZH3500 – energy always at hand

This is a model for the user who expects something more than the simplest aggregate. Electric start, AVR, LCD, battery, large wheels, folding handles and reinforced frame create a practical set for both backyard use and more demanding applications.

Important before the first start: the engine should be poured with appropriate oil according to the instruction manual. The unit should not be started without oil.

Specifications
