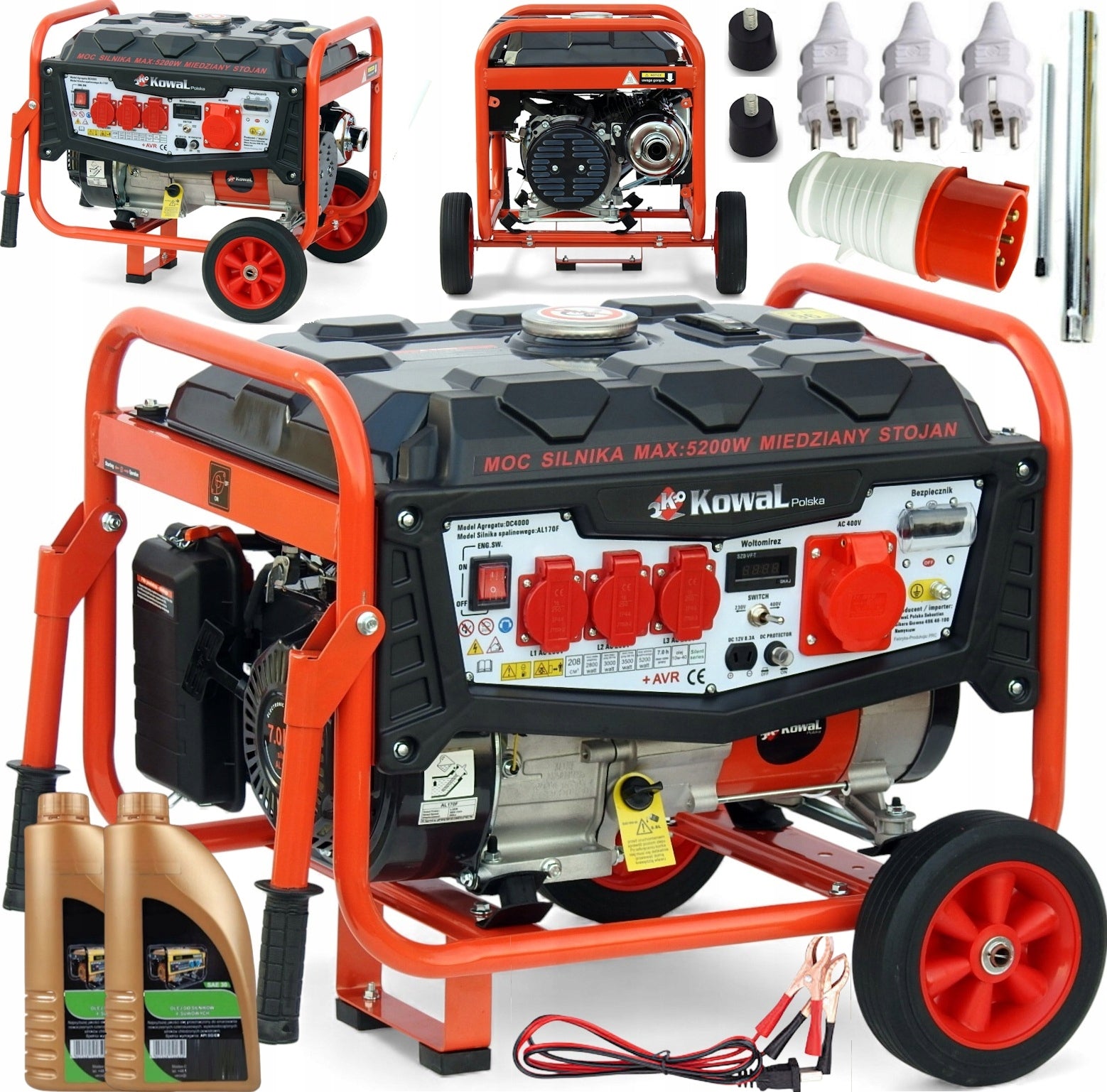

Elektros generatorius 5,2 kW su AVR, varinis statorius, BLACKSMITH, su valandų skaitikliu

Trumpai apie prekę

Prekė: Elektros generatorius 5,2 kW su AVR, varinis statorius, BLACKSMITH, su valandų skaitikliu. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A8
• Įtampa: 400 V

MAX ENGINE POWER: 5,2kW

POWER MAX GENERATORS: 3,5kW

✅NEW model with extended generator

✅COPPER stator winding

✅Engine power of 5,2kW!

✅MOTOR HOUR COUNTER

✅EQUIPPED WITH 230/400V SWITCH

✅FEET guaranteeing the stability of the device during operation.

✅Obtained increased true power max. generator up to 3,5kW

✅EQUIPPED WITH AVR voltage stabilizer

✅Socket short-circuit protection 400V

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A8 equipped with an intelligent throttle system that automatically responds to load changes.

KowaL Polska generators are characterized by reliability, unexcessive parameters and are equipped with many systems that guarantee the achievement of the best possible power parameters and power quality while maintaining the lowest possible fuel consumption. This is due to the stator, which uses an additional circuit to equalize the power and voltage between the phases , as well as an intelligent throttle that operates automatically, which maintains the speed at approximately 3,000 rpm regardless of the load, and an AVR that guarantees very good power quality. The unit is additionally equipped with a 230/400V voltage switch.

⭐

Thanks to the use of these and many other solutions described later in the auction, blacksmith generators have quickly become one of the most popular generators in the country.

⭐

They are successfully used on construction sites, allotments or as emergency power supply in homes. We have a wide selection so everyone can find a generator to suit their needs.

model A8 professional version!

✅new original look

✅motor hour counter

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅thicker frame

✅harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator

✅new type of generator, more wire wound

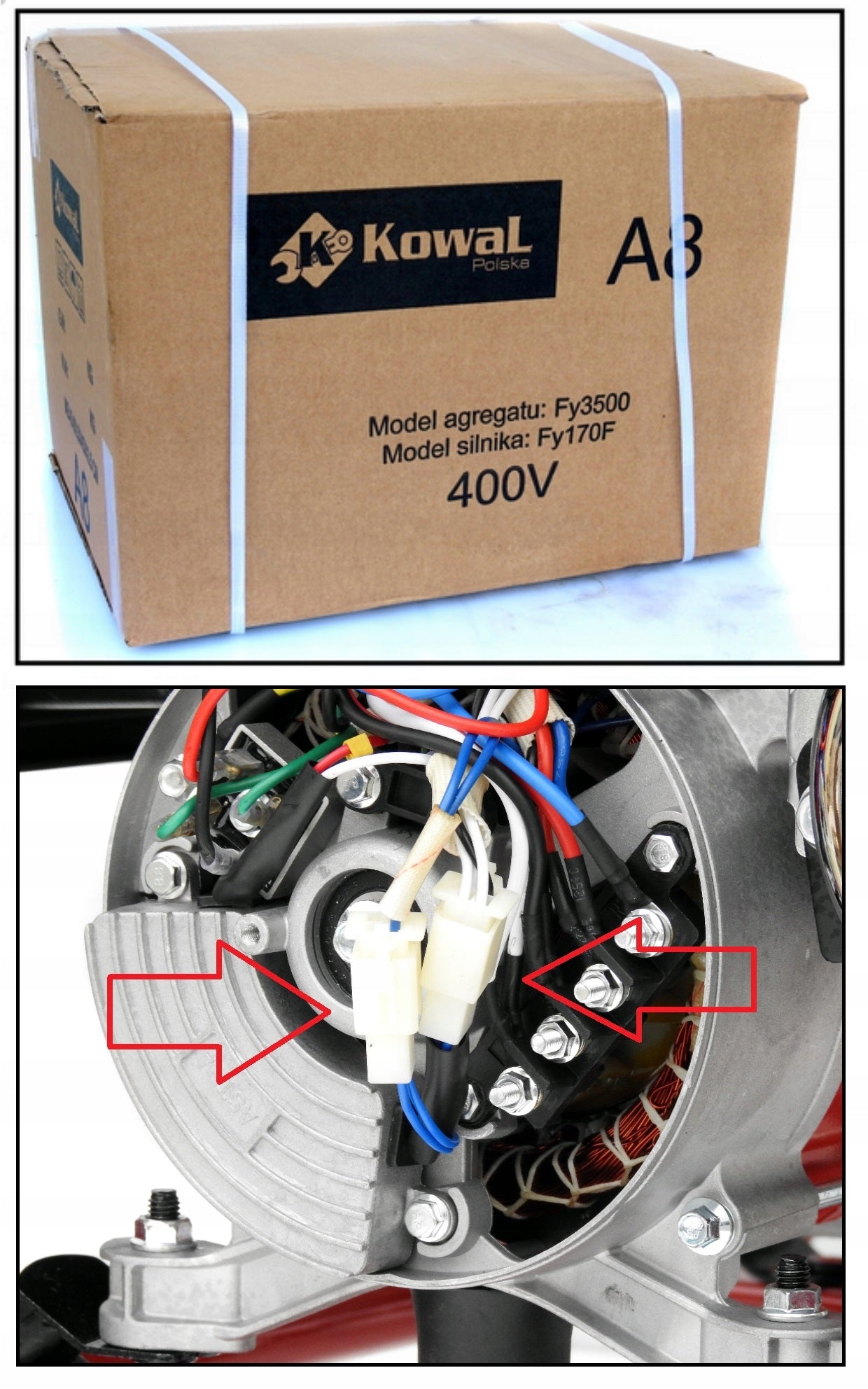

The stator and rotor account for nearly half of the value of the unit. Many companies use only a “copper” stator winding with a width of 70 to 100 mm.

All blacksmith units with a 5,2 kW engine use a stator with a length of up to 120 mm. The stator is wound fully with copper wire.

The copper generator cooperates with a very popular engine with the symbol AL170, which was produced on behalf of the KowaL Polska brand from the highest quality spare parts and main components, i.e. shaft, piston, connecting rod and valves. Details later in the auction.

The latest model uses an extended current. The power of the unit increases in proportion to the length of the stator core, thanks to which the A8 model reached a maximum power of 3,5 kW.

When connecting the same devices (compared to weaker models), the unit is much less loaded. This translates into longer life of the device and lower fuel consumption, making the generator more economical.

• motor power / max generator power at 60Hz: 5,2 kw / 3,5 kw
• constant power at 50Hz: 2800 watt
• Maximum power at 230v: 3 x 1000watt
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 15 L
• startup:manual
• nominal voltage: 230/400V
• nominal frequency at 3000rpm: 50Hz
• built-in voltage regulator AVR
• weight with packaging approx. 45 kg
• dimensions: 45cmx60cmx44cm
• built-in rectifier output 12 volt
• engine displacement approx. 200cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 0,6 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 0,7 - 1,1 L/h
• Please refer to the instruction manual before using!

Intelligent Throttle Technology

The NEW BLACKSMITH A8 model is equipped with an intelligent throttle system that automatically adjusts the engine operation to the current load of the generator. The system helps to maintain the working turnover at the level of approx. 3000 rpm /min, which is important for stable operation of the unit and proper power supply of many typical household and utility receivers.

With less power consumption, the system can reduce fuel dose, supporting cost-effective operation and lower fuel consumption. The whole process takes place automatically, without the need for constant user intervention.

Tubeless wheels on the axle ensure easy handling and virtually maintenance-free operation of the suspension system. Fully cast (uninflated) wheels are puncture and deformation resistant. The addition of rubber improves the cushioning of the unit, which translates into lower noise levels.

Thanks to the use of transport handles specially designed for the dimensions of the unit, the unit gives the impression of being very light and easy to move

✅3x 230v plug

✅400v plug

✅12V cables

*

The latest model of the A8 PRO generator uses a built-in on-board computer. The computer displays information such as:

⭐voltage of electricity produced

⭐Frequency of electricity produced

⭐working time since last inclusion

⭐overall mileage of the device expressed in hours

To operate the computer, one button is enough, with which the user has the ability to exchange the displayed information.

✅3x socket 230v

✅400v socket

✅fuel filter

✅cables 12v

✅candle wrench

✅wheels (2 pieces)

✅transport handles

✅0,6l oil bottle (in two bottles of 0,3l or one 0,6l)

✅2 anti-vibration feet

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅Manufacturer's declaration of conformity
