Elektros generatorius 6600W, 3 fazių, 400V/230V, varinis, 15KM

Trumpai apie prekę

Prekė: Elektros generatorius 6600W, 3 fazių, 400V/230V, varinis, 15KM. Kategorija: Elektros generatoriai.

• Gamintojas: Tvardy
• Modelis: T05003
• Įtampa: 400 V

Product code: T05003

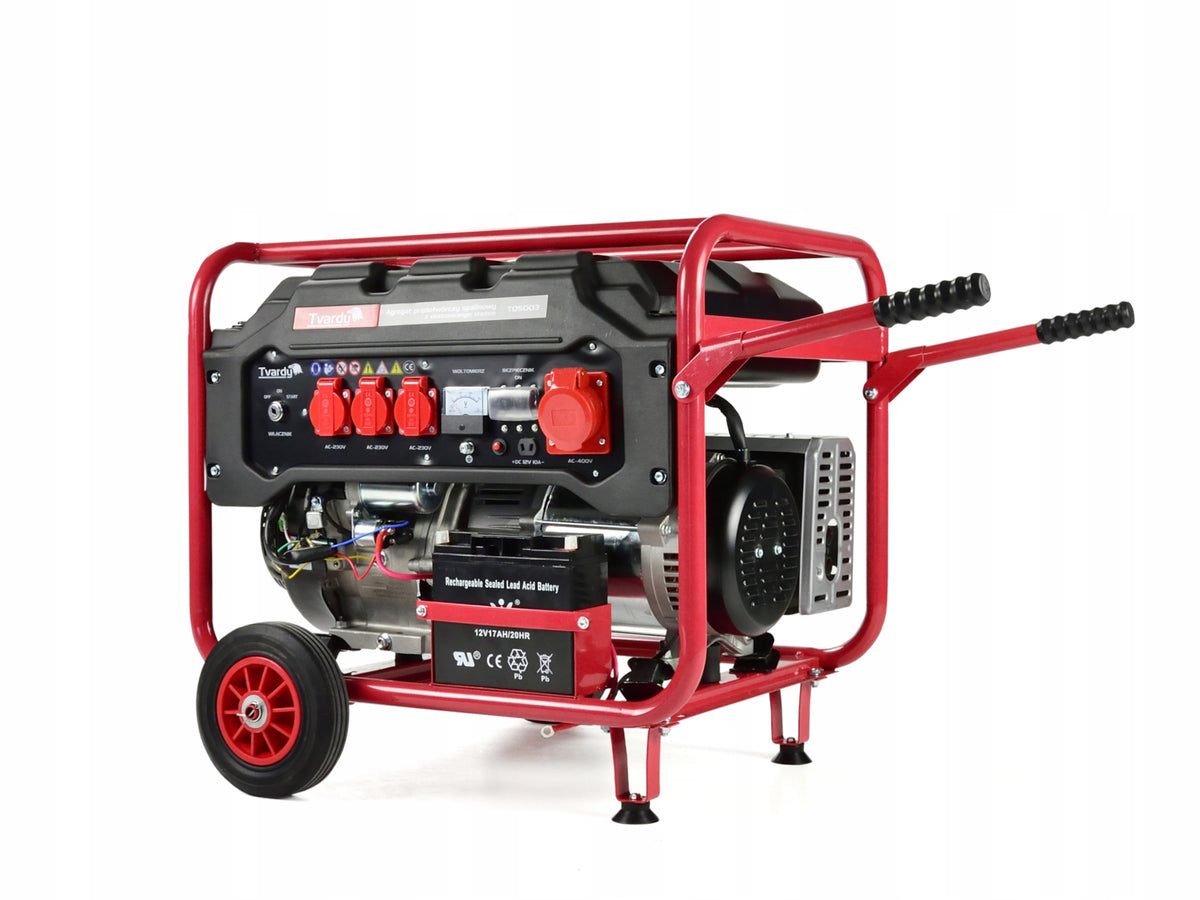

⭐ GENERATOR SET TVARDY FY6500 – 6600W, 3-PHASE, AVR, COPPER WINDING

The Tvardy FY6500 combustion generator is a portable source of electricity with a maximum power of 6600 W, equipped with a 4-stroke OHV engine with a power of 15 HP. With a three-phase output of 400V and three 230V sockets, it provides power to both home appliances and construction equipment. The copper winding of the stator and rotor guarantees excellent current conduction and long life of the generator.

✅ Extended generator – the power increases in proportion to the length of the stator core, reaching a maximum of 6,6 kW.

✅ AVR voltage stabilizer – keeps the voltage constant, protecting connected devices.

✅ Electric and manual start – the 17 Ah battery charges automatically during operation; in the event of a failure, a possible start.

✅ Intelligent throttle – maintains a constant 3000 rpm. /min and 50 Hz frequency; with less load, it goes into ECO mode, reducing fuel consumption.

✅ 25 l tank – working time at medium load up to 7,5 h without refueling.

⭐ KEY ADVANTAGES AND FUNCTIONS

• ✅ Copper stator and rotor winding – excellent current conduction, flexibility and corrosion resistance translate into long-term, trouble-free operation.
• ✅ AVR (automatic voltage regulator) – stable power supply at 99%, even in emergency situations; protects sensitive electronic equipment from voltage spikes.
• ✅ 17 Ah battery – large capacity guarantees reliable electrical start-up even in difficult conditions; it charges automatically during the operation of the unit.
• ✅ 400 V socket – ideal for electric motors, hydrophore pumps, welding machines and concrete mixers up to 5000 W.
• ✅ 3 sockets 230 V – simultaneous power supply for three devices, each up to 1666 W.
• ✅ 12 V DC socket – powering 12 V devices or charging car batteries.
• ✅ Electrovalve in the carburetor – automatically cuts off the fuel supply after turning off the unit, preventing engine flooding.
• ✅ Overload and thermal fuse – protects the unit from damage during overload or overheating.
• ✅ Voltmeter on panel – current control of output voltage without additional instruments.
• ✅ Bearing wheels and folding handles – full puncture-resistant castings, with the addition of rubber for quiet and comfortable handling.
• ✅ Sitko in the fuel tank – captures particulate matter, protecting the fuel system and extending the life of the engine.
• ✅ Chrome fuel cap and level indicator – easy control of fuel status without opening the tank.

⭐ 15KM OHV MOTOR AND INTELLIGENT THROTTLE

The four-stroke OHV engine with a capacity of 420 cc and a power of 15 hp is characterized by low fuel and oil consumption and flexibility in various conditions. It does not require the preparation of a fuel mixture – 95 or 98 petrol is enough, which greatly simplifies operation.

✅ Intelligent throttle – automatically adjusts the amount of fuel fed depending on the load, maintaining a constant 3000 rpm. /min and frequency 50 Hz. With less power demand, it goes into ECO mode – fuel consumption drops by up to 20% compared to previous models.

✅ Electronic ignition – reliable start-up in all weather conditions, without the need for manual adjustment.

✅ Shock-absorbing cushions – the motor mounted on rubber cushions dampens vibrations, reducing noise and vibration transmitted to the structure. The noise level is 95 dB from a distance of 4 m.

✅ Oil tank 1,1 l – recommended oil 10W40 or SAE30; low oil consumption thanks to OHV design.

⭐ APPLICATION AND CONTENTS OF THE SET

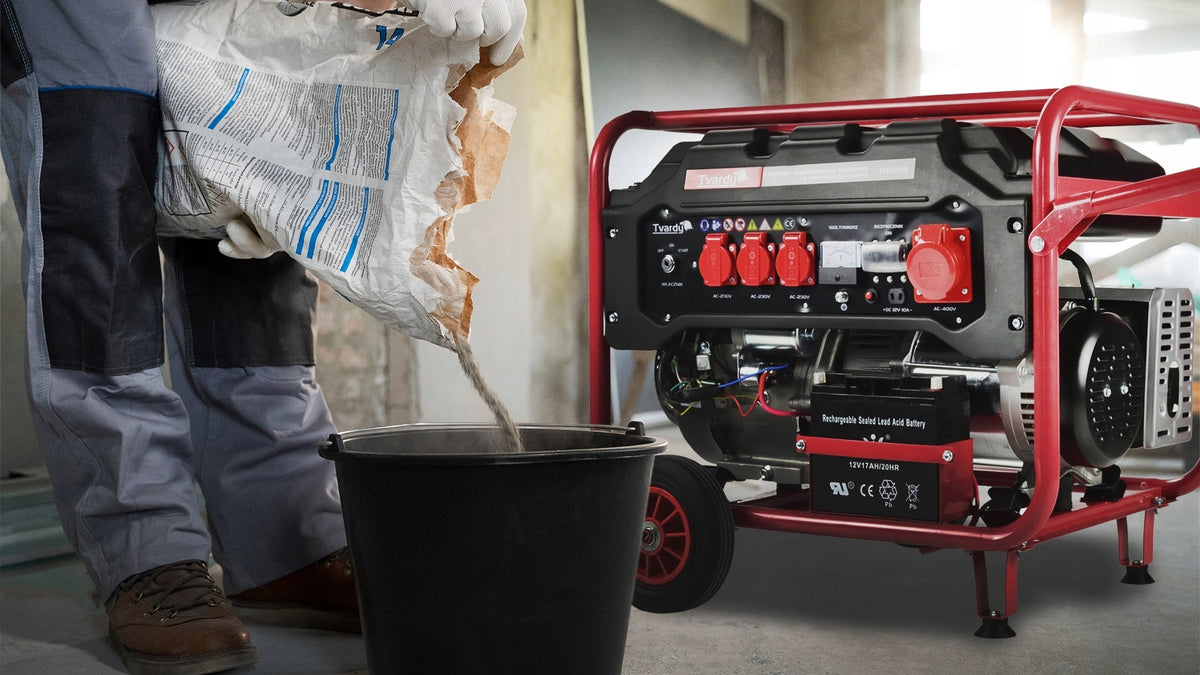

The Tvardy FY6500 is suitable wherever a reliable, portable source of electricity is needed.

▶ Single-family house – protection against power outages.

▶ Construction – power supply for power tools, welding machines, concrete mixers and pumps.

▶ Camping and camping – a convenient power source away from the power grid.

▶ Plot and workshop – power supply for devices requiring 400 V or 230 V voltage.

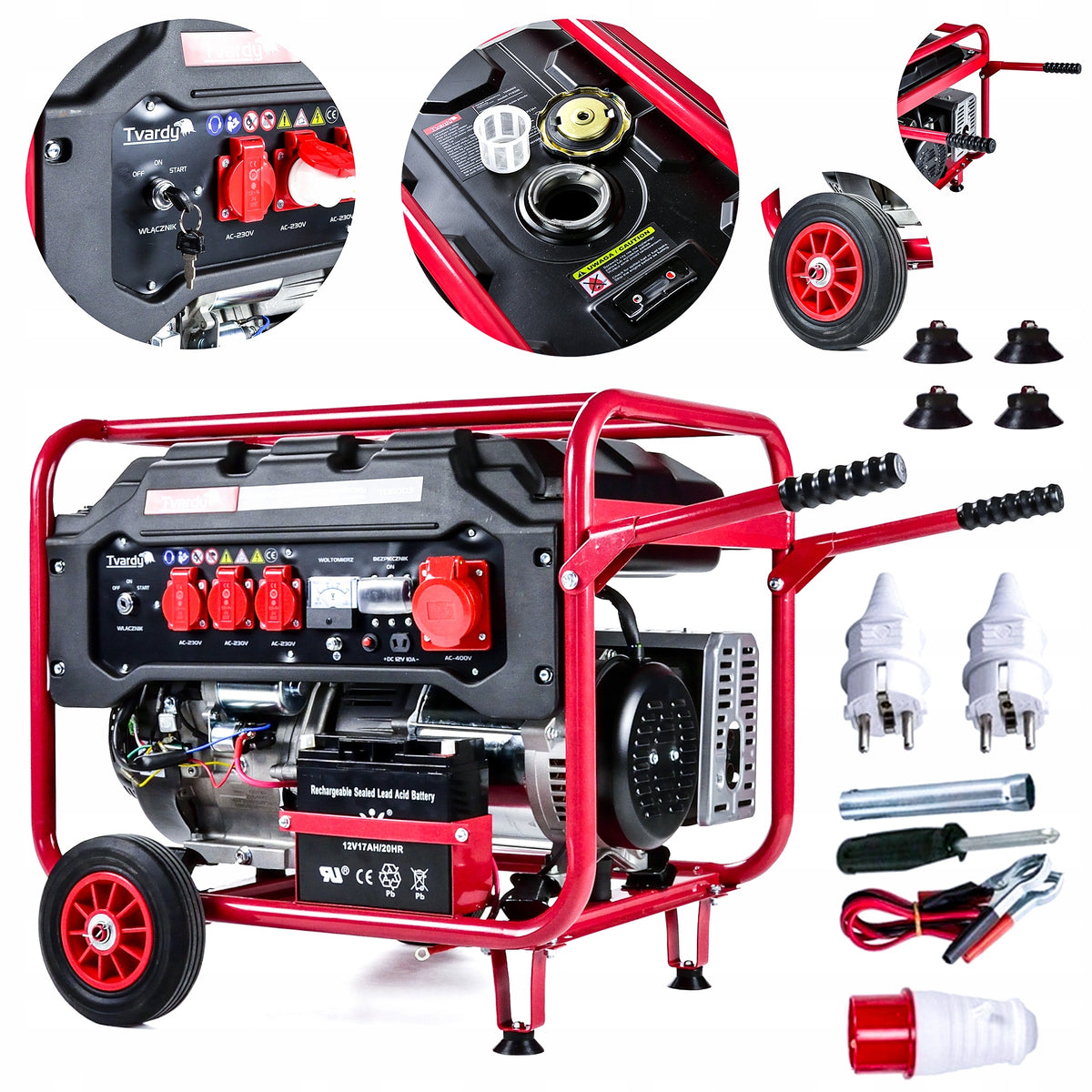

Included:

• ✅ Generator set Tvardy FY6500
• ✅ 2 plugs 230 V
• ✅ 1 plug 400 V
• ✅ Electric start key
• ✅ Double-sided screwdriver (cross and flat)
• ✅ 4 anti-vibration feet
• ✅ User manual in Polish
• ✅ 2 bearing wheels
• ✅ Key to candles
• ✅ Transport Hands
• ✅ Fuel filter
• ✅ Cables for 12 V power supply

⭐ TECHNICAL PARAMETERS

• Brand: Tvardy
• Model: FY6500
• Engine model: FY-190F
• Maximum power: 6600 W
• Nominal generator power (constant at 50 Hz): 5000 W
• AVR: yes
• Stator winding: copper
• Rotor winding: copper
• Sockets: 3 x 230 V (1666 W each) / 1 x 400 V (5000 W) / 1 x 12 V DC
• Number of 1-phase sockets: 3
• Number of 3-phase sockets: 1
• Supply Voltage: 400 V / 230 V
• Engine power: 15 HP
• Engine Type: 4-stroke OHV
• Engine capacity: 420 cc
• Type of fuel: gasoline PB 95 or 98
• Oil type: 10W40 or SAE30
• Oil tank capacity: 1,1 l
• Ignition: electronic
• Starting: electric / manual
• Fuel tank capacity: 25 l
• Operating time on the tank: up to 7,5 h (with medium load)
• Battery capacity: 17 Ah
• 12 V DC output: yes
• Lc IEC noise level: 95 dB
• Weight of the device: 78,2 kg
• Dimensions: 60 cm x 60 cm x 70 cm
• Type: portable
• Aggregate type: three-phase

Specifications
