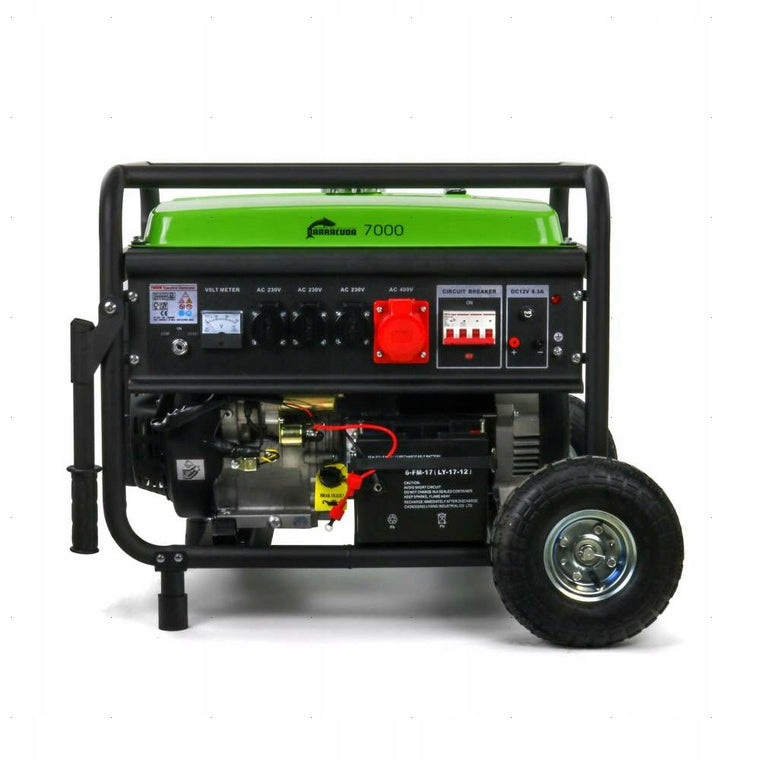

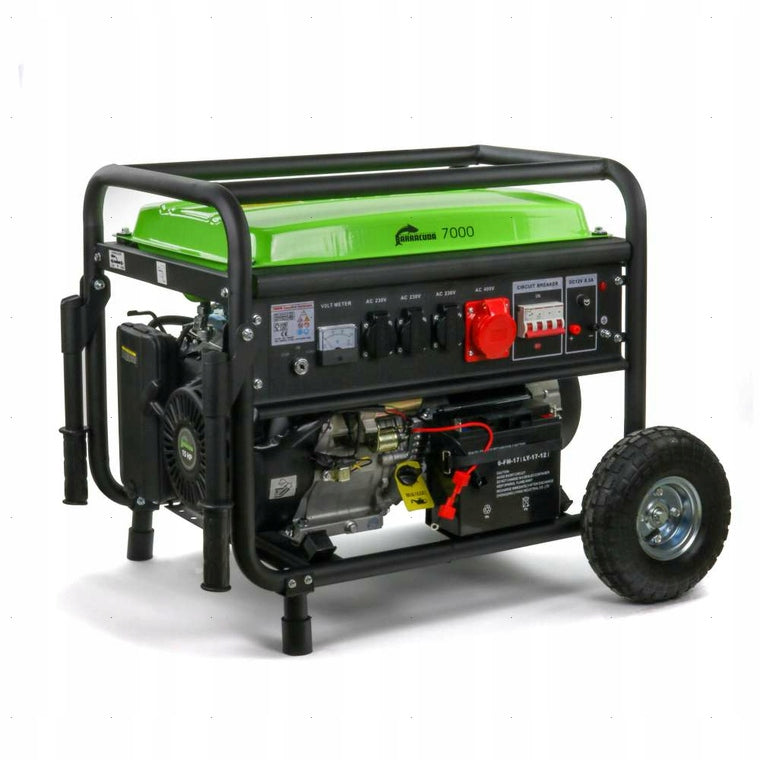

Elektros generatorius 7 kW 9 kVA su įtampos reguliatoriumi, 400V, CURRENT GENERATOR

Trumpai apie prekę

Prekė: Elektros generatorius 7 kW 9 kVA su įtampos reguliatoriumi, 400V, CURRENT GENERATOR. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: 7000 3F RE
• Įtampa: 400 V

______________________________________

Barracuda generators are equipped with generators with =====>COPPER WINDINGS! < ======

The generator is compatible with =====>GASOLINE E5 and E10< =====

Possibility of using an LPG carburettor - powered by E5/E10 fuel or gas from a cylinder

OHV 190F 420 cm3 petrol engine =====>with power of 11 kW< =====

______________________________________

We offer a modern BARRACUDA generator.

The generator is ideal for powering electrical devices in places where there is no constant power supply. The generator is perfect for crafts, construction, allotment gardens, and for working with power tools, pumps, and lighting.

The 190F OHV engine used is widely used around the world in devices such as tillers, motor pumps, compactors and power generators . High overload resistance and increased durability of operating components make the engine reliable in its class.

The generator used is made of 100% copper . Allows for a maximum generator load of up to 7kW. Additionally, it has a rectifier output for charging, e.g. battery. The built-in AVR voltage regulator allows the connection of electronic receivers such as a computer, refrigerator, etc.

IMPORTANT!

When supplying single-phase receivers, a Three-Phase Generator can receive power no greater than 1/3 of its rated power. For a three-phase generator with a power of 7kW, a single-phase power of no more than 2.33 kW can be accepted

______________________________________

• Engine Power (HP): 15 HP
• Engine Power (kW): 11 kW
• Maximum Power: 9kVA (7kW)
• Rated Power: 7.5kVA (6 kW)
• Engine Noise Level: 97dB (A)/7m
• Output Voltage: 400V, 230V, 50 Hz, 12v
• Fuel Tank Capacity: 25 L
• Fuel: 95 octane E5/E10 gasoline
• Weight: 93 kg
• Starting System: Electric/Manual
• Weight: 93 kg
• Alternator Winding: Copper
• Battery: 17 Ah
• Engine Oil Capacity: 1.1 liters (10W 40 oil)
• Automatic shutdown in case of low oil level
• Generator has an electronic AVR (Automatic Voltage Regulator)

Dimensions:

• Overall Length: 86 cm
• Overall Width: 73.5 cm
• Overall Height: 65 cm

______________________________________

• low fuel consumption - average 1.5 l/h
• overload protection (time-delayed)
• oil level sensor
• copper generator winding
• solid frame
• easy transport - the unit is equipped with handles and transport wheels
• has an AVR electronic voltage regulator
• capacious fuel tank
• overload protection
• battery

______________________________________

• 3 x 230V Socket
• 400V Socket
• 12V Output
• Voltmeter
• Fuse
• Ignition Switch

______________________________________

The alternator is made of 100% copper, allowing a maximum load of up to 7kW on the 400V socket. It also has a rectifier output for charging batteries. The built-in AVR (Automatic Voltage Regulator) allows you to connect electronic devices such as computers, refrigerators, etc.

IMPORTANT!

When powering single-phase devices from a three-phase generator, you can draw no more than 1/3 of its rated power. For a 7kW three-phase generator, you can draw a single-phase power of no more than 2.33 kW

______________________________________

BARRACUDA generators are one of the few devices of this type equipped with an oil level sensor , which protects the unit against operation without proper lubrication . If the oil level is too low or there is no oil, the sensor will prevent the device from starting and operating.

______________________________________

The 190F OHV 15 HP engine is a reinforced and more efficient version of the commonly used 188F engine in devices such as:

• Tillers,
• Water pumps,
• Compactors,
• Snow blowers,
• Go-karts,
• Generators.

It is characterized by high overload resistance and forgives operational errors such as infrequent oil changes and infrequent maintenance.

______________________________________

Specification:

• Brand: Venol
• Engine Type: Gasoline
• Oil Type: Semi-Synthetic
• Viscosity Winter Class: 10W
• Viscosity Summer Class: 40
• Capacity: 1 l

Application:

Semi-synthetic engine oil created based on a special composition of base oils using unique ACTIVE POWER technology. Designed for lubricating the latest gasoline and diesel engines with turbocharging and pump-injector technology. Thanks to the use of unique ACTIVE POWER technology, it ensures maximum engine power. Facilitates cold engine starting and also perfectly protects it against wear at both low and high temperatures. Maintains ideal engine cleanliness, extends the period between oil changes and significantly reduces fuel consumption. It is miscible with other branded engine oils.

______________________________________

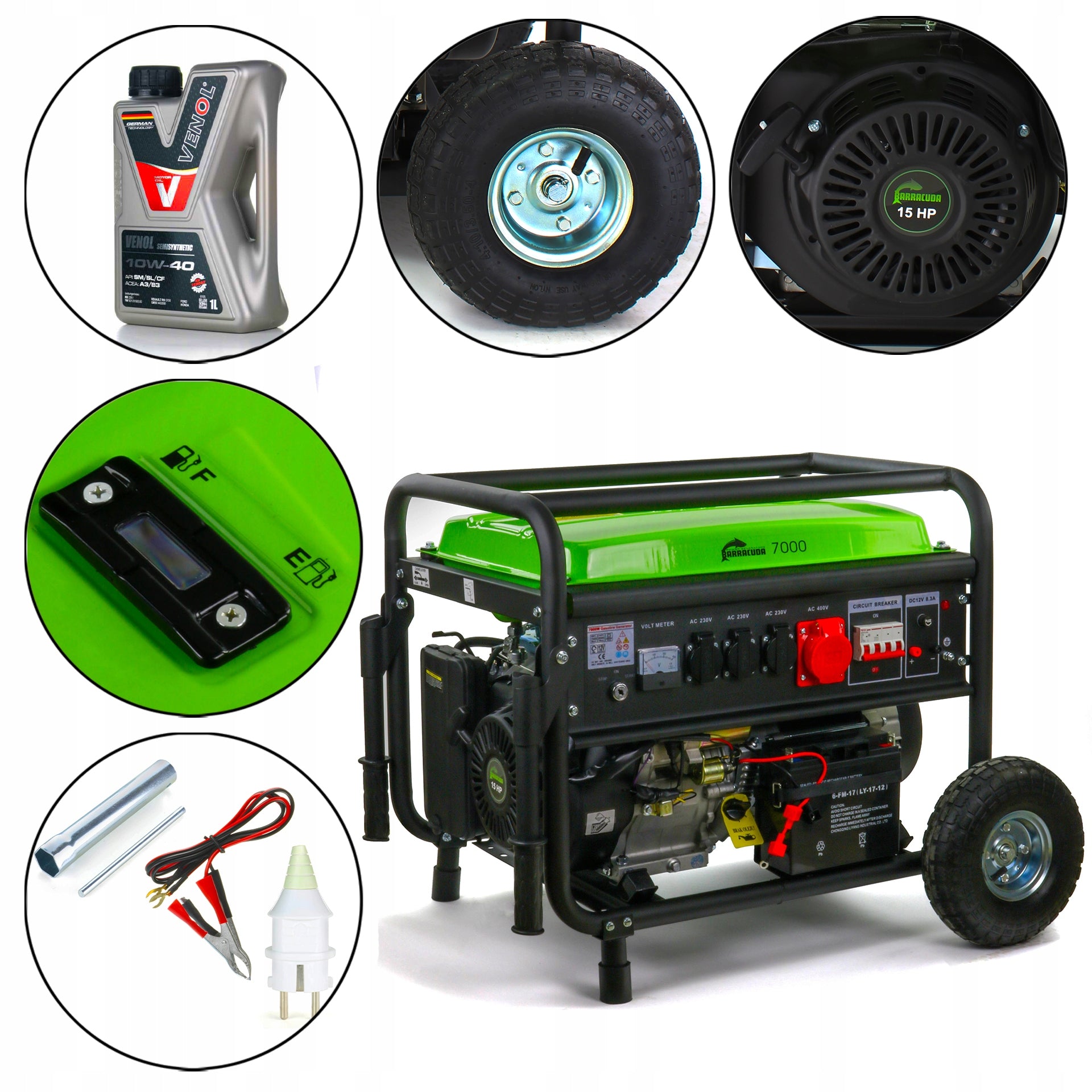

• Barracuda 7000 3F RE generator
• 3 x 230V plug
• 1 x 400V plug
• 12V power cables
• candle wrench
• 10W40 oil 1 Litre FREE!
