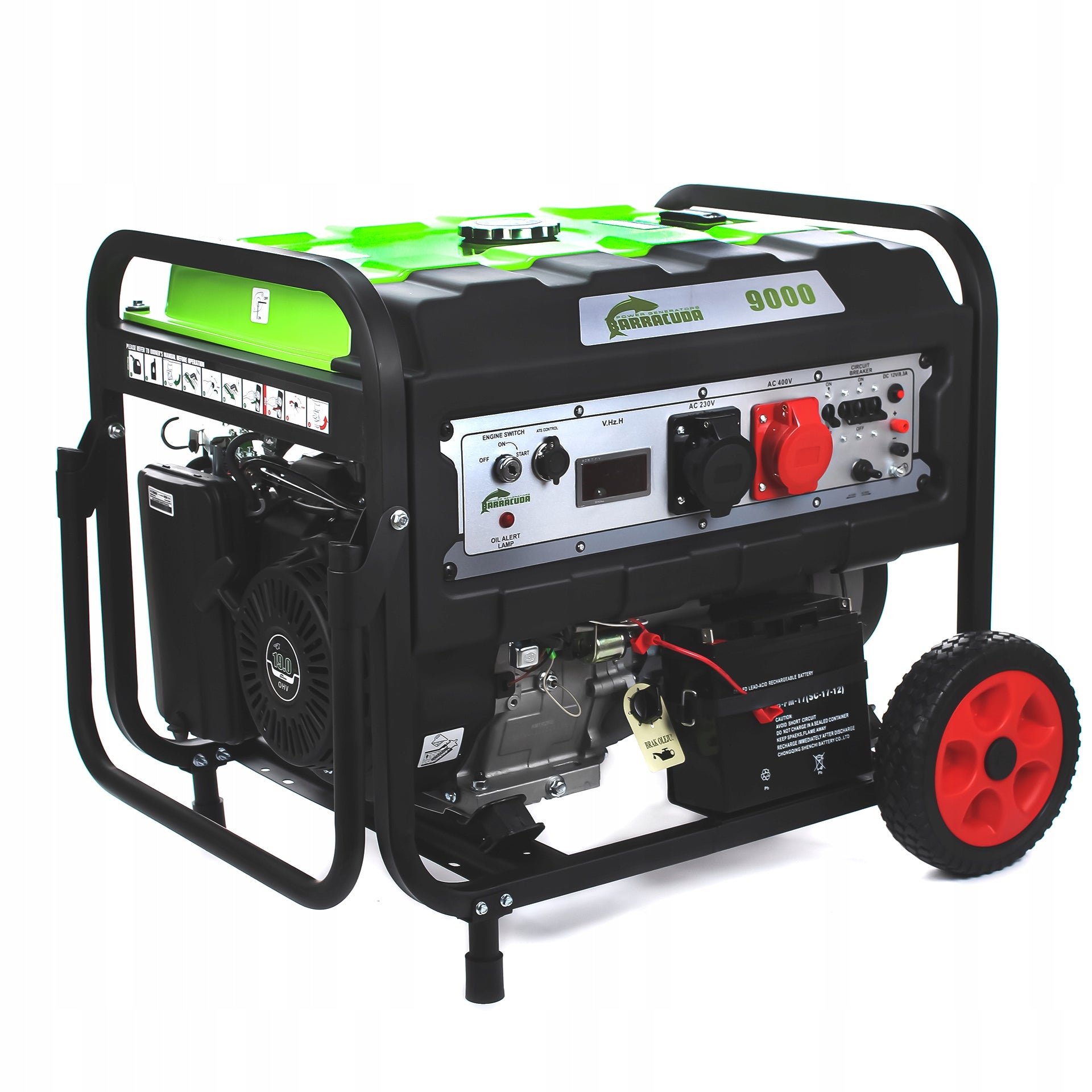

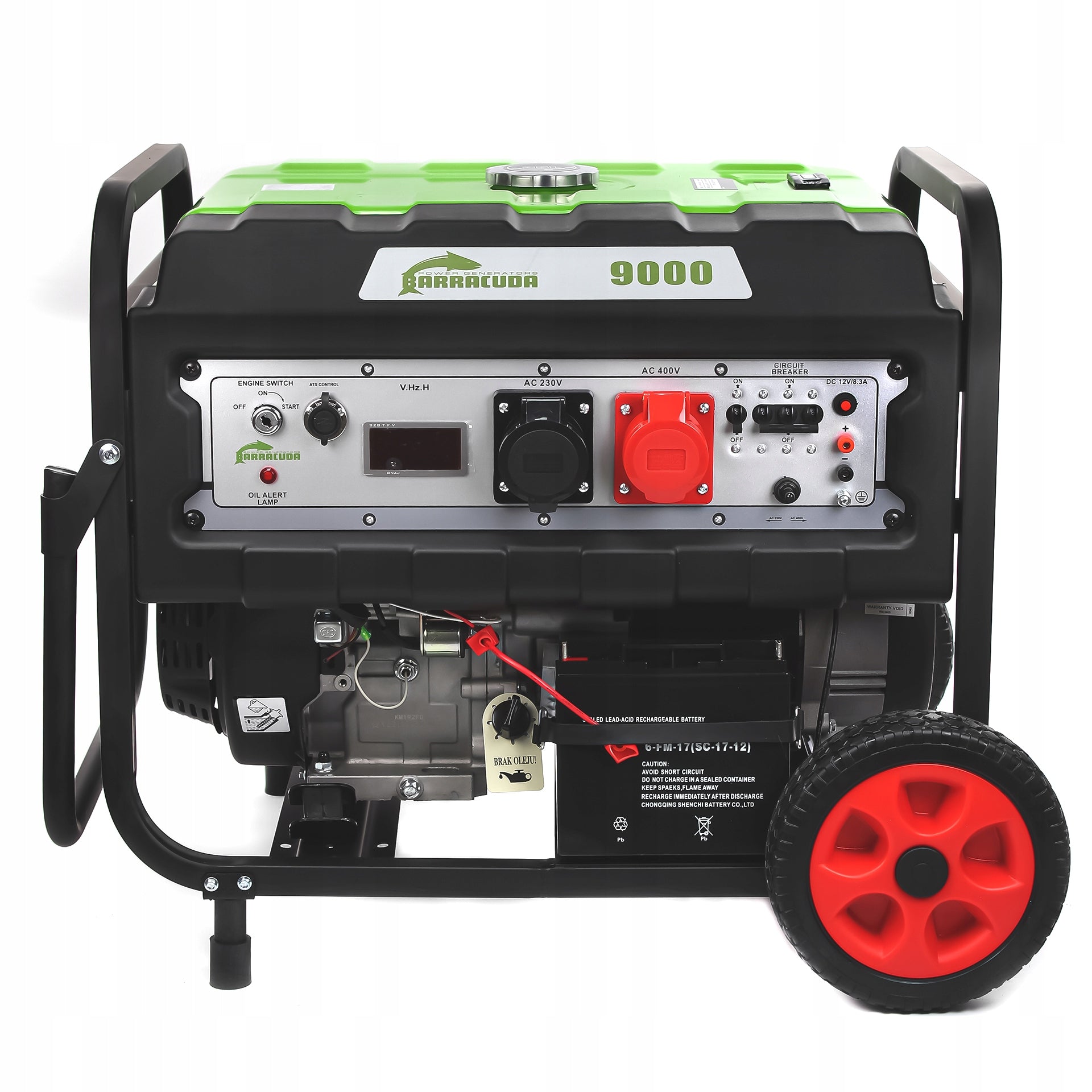

Elektros generatorius 9kW 11kVA su įtampos reguliatoriumi, 400V

Trumpai apie prekę

Prekė: Elektros generatorius 9kW 11kVA su įtampos reguliatoriumi, 400V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: PG9000WF
• Įtampa: 400 V

Barracuda brand generators feature alternators with **COPPER WINDINGS!**

The generator is compatible with **GASOLINE E5 and E10**

400V Power Generator With Enhanced 230V Phase

DOUBLE POWER technology (enhanced phase 230V) - allows you to obtain 100% of power on the socket 400V and 80% on the socket 230V - the solution used allows you to use the unit both on the construction site and in the household. DOUBLE POWER technology enables connection of high-power (400V) and single-phase (230V) power devices.

The unit is ideal for powering electrical devices in places where there is no constant power supply. Generator works great in crafts, construction, plots and gardens, for work with power tools, pumps and lighting.

The strong and durable 192F OHV (19HP) motor is widely used in the world in devices such as soilers, motor pumps, compactors and generator sets. High overload strength and increased durability of consumables make the engine reliable in its class.

The generator used is made of 100% copper. It allows continuous load of the unit up to 9,0 kW. In addition, has a boost rectifier output, e.g. battery. Built-in AVR voltage regulator provides connection of electronic receivers such as: computer, refrigerator, etc.

• Maximum power - 400V socket: 9kW (11kVA)
• Rated power - 400V socket: 8kW (10kVA)
• Maximum power - 230V socket - after switching to phase gain: 7,2kW (8,8kVA)
• Rated power - socket 230V - after switching to phase amplification: 6,4kW (8kVA)
• Engine power: 19HP
• Engine volume only 97dB (A)/7m
• Output voltage: 230V, 50 Hz, 12v
• Tank capacity: 25 L
• Fuel: petrol => 95 octanes
• Weight: 97 kg
• Generator winding: copper
• Battery: 17 Ah
• Engine oil sump capacity : 1,1 liters (10 W 40 oil)
• Automatic shutdown of the device in case of a small amount of oil
• The unit has an electronic voltage regulator AVR
• Includes 12V/17AH battery.

• 1 x 230V socket
• 1 x 400V socket
• Additional output for 12V (rectifier function)
• Built-in digital meter (Voltage, Frequency, Operating hours)
• 230V phase gain switch
• The unit is equipped with a connector adapted to connect the SZR - ATS system. This system allows automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.
• *ATS module is not included with the unit
• Electric start-up with additional manual start function.

In the absence of an adequate amount of oil in the engine, the unit will be switched off.

Increased fuel tank capacity up to 25 liters, ensures even longer operation on one refueling.

The generator used is made of copper.

It allows continuous load of the unit up to 9,0kW. In addition, it has a recharge rectifier output e.g. battery. Built-in AVR voltage regulator allows you to connect electronic receivers such as: computer, refrigerator, etc.

The enhanced OHV 192F (19kM) engine is characterized by extremely low combustion and a very good working culture. Used in the world in devices such as tillers, motor pumps, rammers and generator sets. It is characterized by high resistance to overload and forgives operational errors such as rare oil changes and rare operational inspections.

Specification:

• Brand: Venol
• Engine Type: Gasoline
• Type of oil: Semi-synthetic
• Winter viscosity grade: 10W
• Summer viscosity class: 40
• Capacity: 1 l

Application:

Semi-synthetic engine oil created on the basis of a special composition of oil bases using the unique ACTIVE POWER technology. Designed for lubrication of state-of-the-art gasoline and diesel engines with turbocharging and pump - injection technology. Thanks to the unique ACTIVE POWER technology, it ensures maximum engine power. It facilitates the start of a cold engine, as well as perfectly protects it from wear both at low and high temperatures. Maintains perfect engine cleanliness, extends the period between oil changes and significantly reduces fuel consumption. It is mixed with other branded engine oils.
