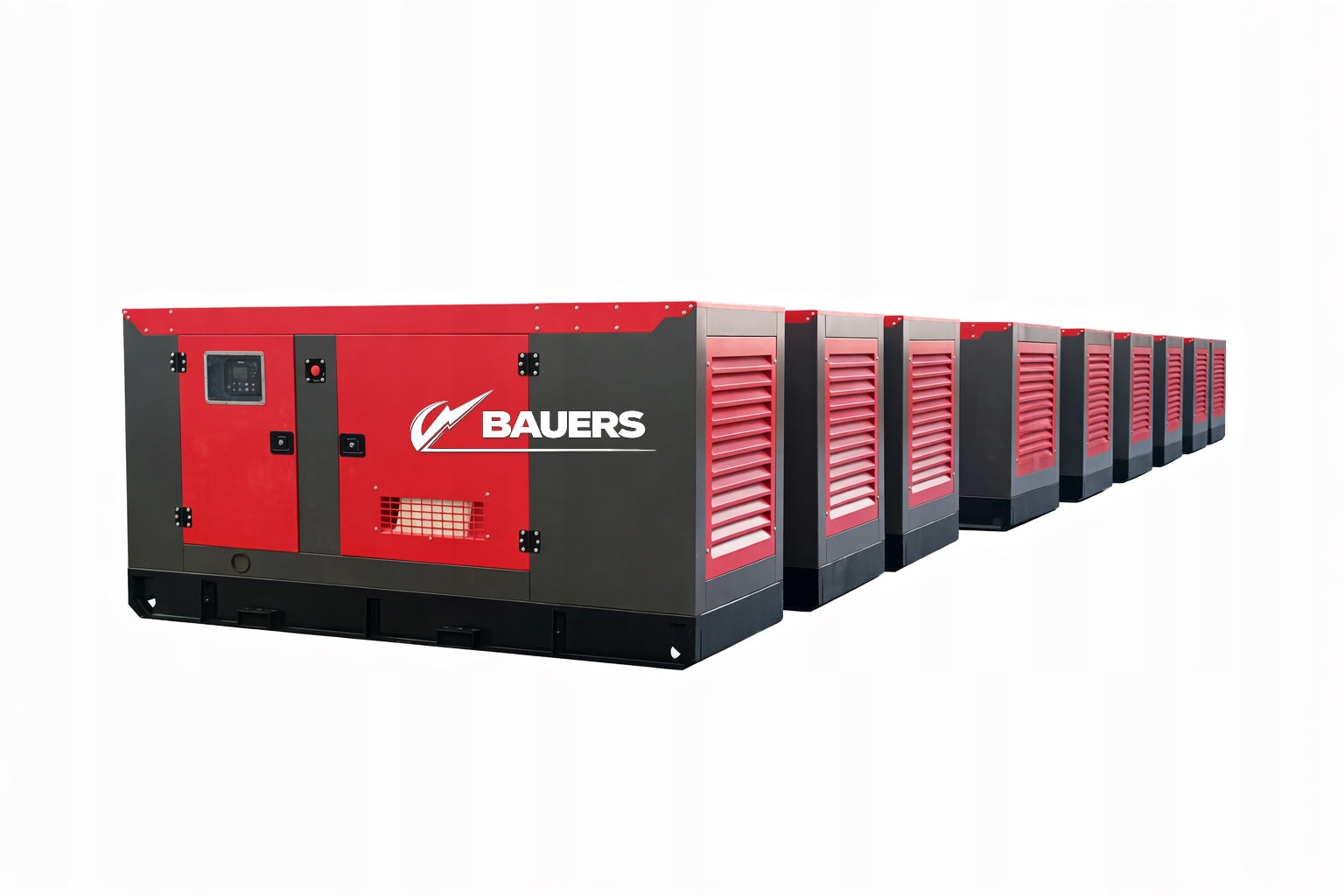

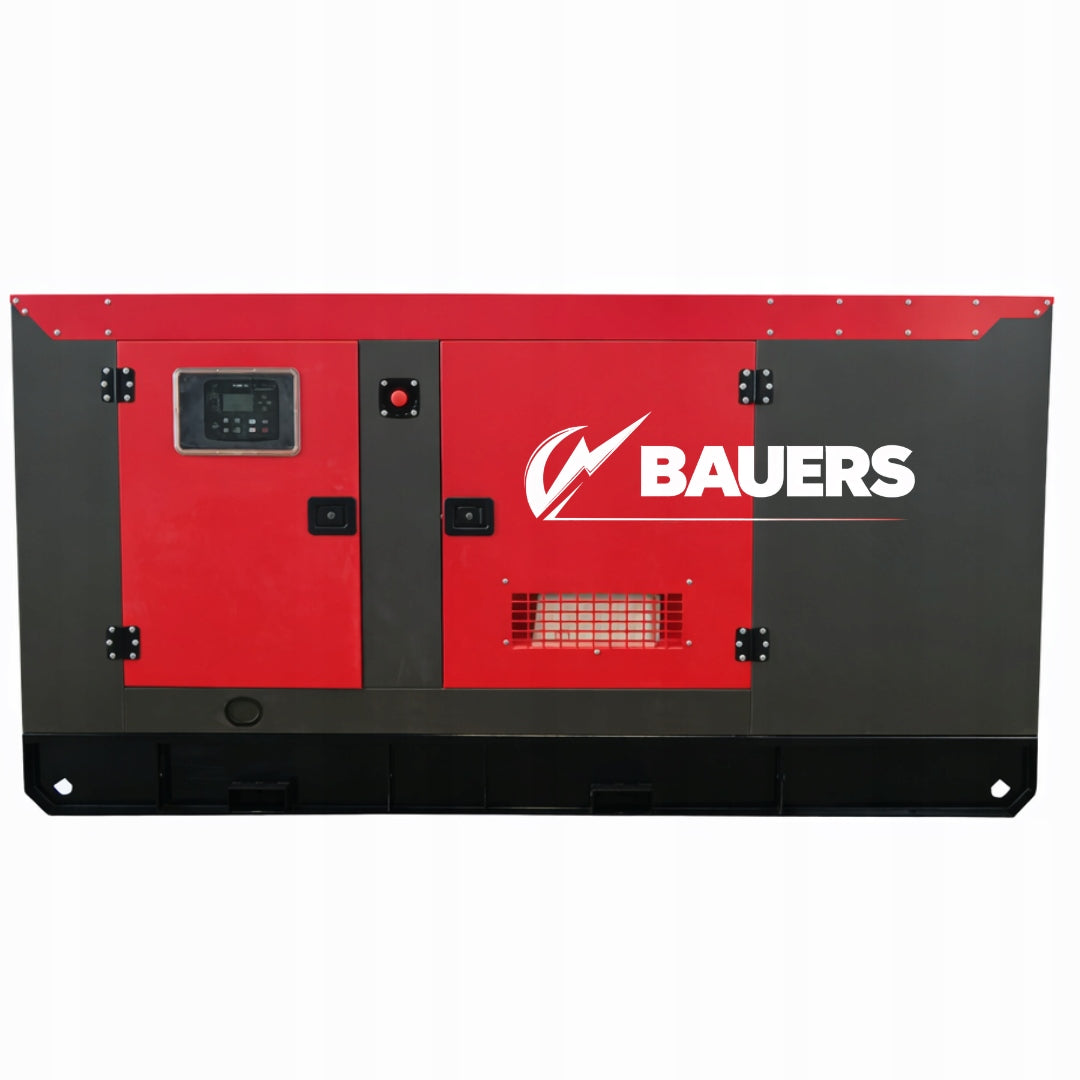

Elektros generatorius AGGREGATE 30 kW su ATS, AVR, Ricardo varikliu, tylus

Trumpai apie prekę

Prekė: Elektros generatorius AGGREGATE 30 kW su ATS, AVR, Ricardo varikliu, tylus. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: BAUERS RICARDO

30KW muted generator set controlled by a computer with ATS + AVR system

Base power: 37,5 kVA/30 kW

Reserve power: 41,25 kVA/33 kW

Voltage: 400 V, 50 Hz, 3 phases

Engine Ricardo

ATS: AISIKAI

• High corrosion resistance housing

• Vibration insulators between motor/alternator and base frame

• Integrated wiring design

• Basic fuel tank for at least 8 hours of operation

• Equipped with an industrial silencer

• Steel base frame with lifting holes *type of housing depending on availability

• Fuel tank drain

SmartGen control system

1- Engine: water cooled diesel engine, stable, durable, low fuel consumption.

2- AC brushless generator, stable output voltage, 230/400 V, 3 phases, 50 Hz, 1500 rpm /min,

3- Control System: Automatic Control System, Automatic Power Switch (ATS) Aisikai

ATS detects mains power supply when the main power supply is completely cut off, power failure, ATS can automatically switch the load circuit to backup power supply (generating set); when the main power source is re-powered, ATS will automatically switch the power supply load to the main power source...

Equipment: built-in ATS Aisikai, AVR, coolant heater, built-in battery charger, brushless generator copper winding, manual fuel indicator. Aggregate output terminated with ATS Aisikai.

Specifications
