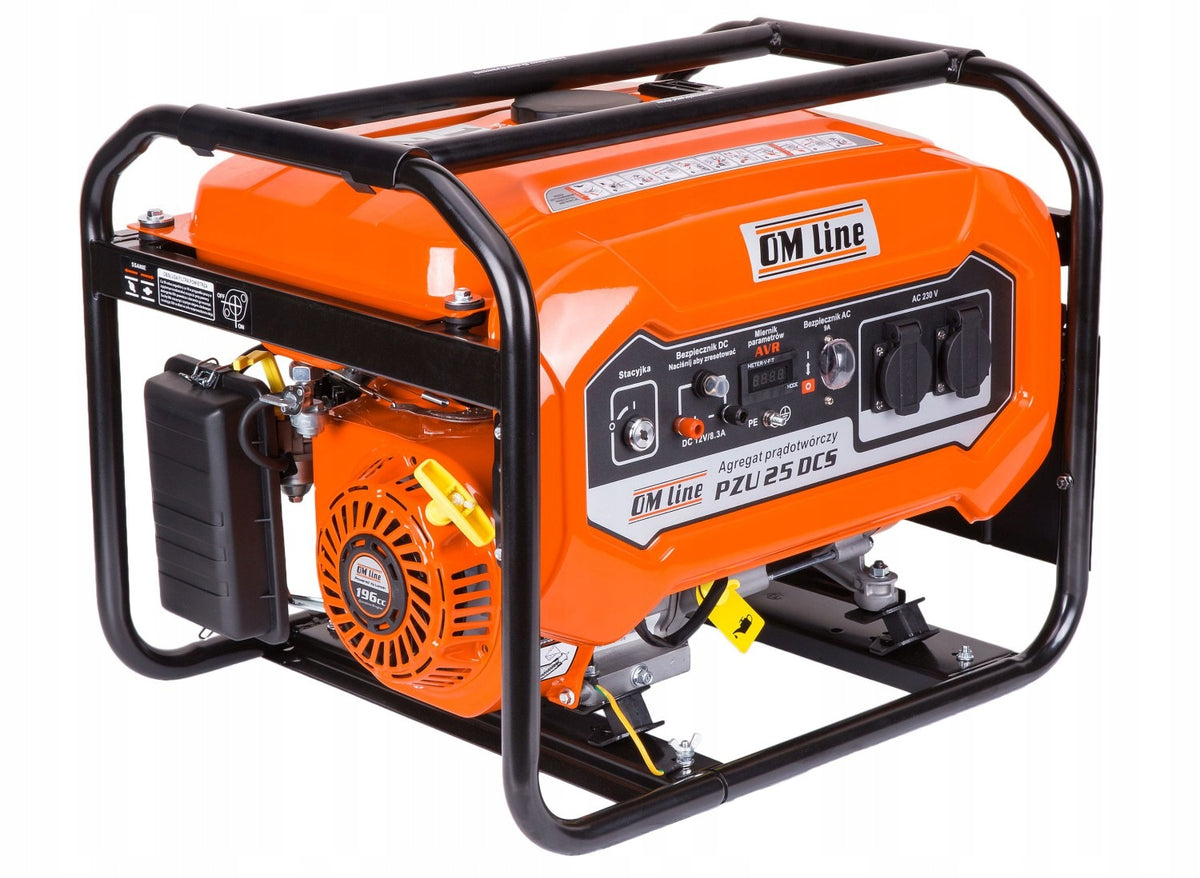

Elektros generatorius AGGREGATE OM LINE PZU 25 DCS

Trumpai apie prekę

Prekė: Elektros generatorius AGGREGATE OM LINE PZU 25 DCS. Kategorija: Elektros generatoriai.

• Gamintojas: Oleo-Mac
• Modelis: PZU25 DCS
• Įtampa: 230 V

RATED POWER 2000 W | MAXIMUM POWER 2200 W | LONCIN MOTOR 196 CM³ | AVR | 230 V

INDEPENDENT SOURCE OF ENERGY FOR HOME, WORKSHOP AND PLOT

OM Line PZU 25 DCS is a single-phase generator set equipped with a four-stroke Loncin LC168F-2 petrol engine with a capacity of 196 cm³.

The device will work well during renovation works, on plots, on farms and as an emergency power source for properly selected electrical receivers.

THE MOST IMPORTANT ADVANTAGES

• Maximum power 2200 W – power reserve for short-term loads.

• Rated power 2000 W – the possibility of continuous power supply to devices within the limits of permissible power.

• Loncin engine 196 cm³ – four-stroke petrol unit.

• AVR system – automatic voltage regulation.

• Two 230 V sockets – possibility of connecting two receivers.

• Fuel tank 15 l – reduces the frequency of refueling.

• Manual start – simple operation without a starter battery.

• Steel frame – stable construction of the device.

• Weight 42 kg – the possibility of transporting the unit after proper protection.

2200 WATT POWER – SINGLE-PHASE POWER SUPPLY 230 V

The unit offers:

• Nominal power: 2000 W

• Maximum power: 2200 W

• Output voltage: 230 V

• Frequency: 50 Hz

The device enables power supply to receivers whose total power demand, together with inrush currents, does not exceed the capabilities of the unit.

LONCIN ENGINE LC168F-2 – 196 CM³

The unit is powered by a four-stroke Loncin gasoline engine.

• Engine model: LC168F-2

• Capacity: 196 cm³

• Engine power: 4,1 kW at 3600 rpm /min

• Fuel: Gasoline

• Cooling: air

AVR – AUTOMATIC VOLTAGE REGULATION

The built-in AVR regulator helps reduce voltage fluctuations during load changes.

This solution is useful when powering typical electrical devices whose parameters are compatible with the capabilities of the unit.

AVR is not an inverter technology. Before connecting sensitive electronics, check its power quality requirements.

FUEL TANK 15 LITRES

The unit is equipped with a gasoline tank with a capacity of 15 liters.

The large capacity of the tank allows you to reduce the frequency of fuel replenishment. Actual operating time depends on load and operating conditions.

TWO 230 V SOCKETS

The device has two 230 V power sockets.

They allow you to connect two receivers, provided that you comply with the permissible total power and limitations of individual sockets.

MANUAL START-UP

The unit is started with a manual starter.

No starter battery required.

COMPACT DESIGN

The dimensions of the device are 590 × 475 × 462 mm.

The steel frame ensures a stable positioning of the unit. The model does not have transport wheels in standard equipment.

TECHNICAL SPECIFICATION

• Brand: OM Line

• Model: PZU 25 DCS

• Manufacturer code: OO-OTHPZU25

• EAN: 5903383018752

• Type of device: single-phase generator set

• Rated power: 2000 W / 2,0 kW

• Maximum power: 2200 W / 2,2 kW

• Output voltage: 230 V

• Frequency: 50 Hz

• Voltage regulation: AVR

• Engine: Loncin LC168F-2

• Engine capacity: 196 cm³

• Engine power: 4,1 kW at 3600 rpm. /min

• Engine type: four-stroke, gasoline

• Cooling: air

• Startup: manual

• Power sockets: 2 × 230 V / 16 A

• Fuel tank capacity: 15 l

• Capacity of engine oil: 0,6 l

• Execution class: G1

• Transport wheels: none

• Dimensions: 590 × 475 × 462 mm

• Weight: 42 kg

APPLICATION OF OM LINE PZU 25 DCS

The unit can be used as an energy source during:

• Renovation and construction works.

• Power supply of properly selected power tools.

• Work on plots and in gardens.

• Power supply for lighting and utility devices.

• Interruption in the supply of electricity, after providing a secure way of connection.

OM LINE PZU 25 DCS – PRACTICAL UNIT WITH AVR

The combination of the Loncin 196 cm³ engine, maximum power of 2200 W, AVR stabilization and fuel tank 15 l makes the PZU 25 DCS a functional source of independent power supply of 230 V.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Oleo-Mac
Parametry	Model	PZU25 DCS
Parametry	Kind	portable
Parametry	Generator type	single-phase
Parametry	Engine	4-stroke
Parametry	Startup	manual
Parametry	Maximum power	2200 W
Parametry	Nominal power of the alternator	2800 W
Parametry	Engine power	5 KM
Parametry	Gasoline tank capacity	15 l
Parametry	Device weight	49 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	5 h
Parametry	Lc IEC noise level	95 dB
Parametry	Product height	47 cm
Parametry	Product width	48 cm
Parametry	Product depth	59 cm
Parametry	Additional information	voltage regulation (AVR)
Parametry	Number of 1-phase outlets	2
Parametry	Number of 3-phase outlets	none
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	OO-OTHPZU25x
Parametry	Product weight with unit packaging	42 kg
