Elektros generatorius Atlas Copco P2500i, 2,5 kW, 230 V, inverterinis

Trumpai apie prekę

Prekė: Elektros generatorius Atlas Copco P2500i, 2,5 kW, 230 V, inverterinis. Kategorija: Elektros generatoriai.

• Gamintojas: Oleo-Mac
• Modelis: OM LINE PZU 30I
• Įtampa: 230 V

PZU30i generator set by OM Line, part of Oleo-Mac and EMAK brands

Generator set 2,5 kW

The PZU 30i inverter unit has an automatic speed control system depending on the load. With its sinusoidal voltage chart, it is ideal for powering devices sensitive to voltage fluctuations. Thanks to its high power and compact size, it will be the best companion for camping and outdoor events where portable power is needed. This inverter is equipped with one 230V socket and a 12V socket.

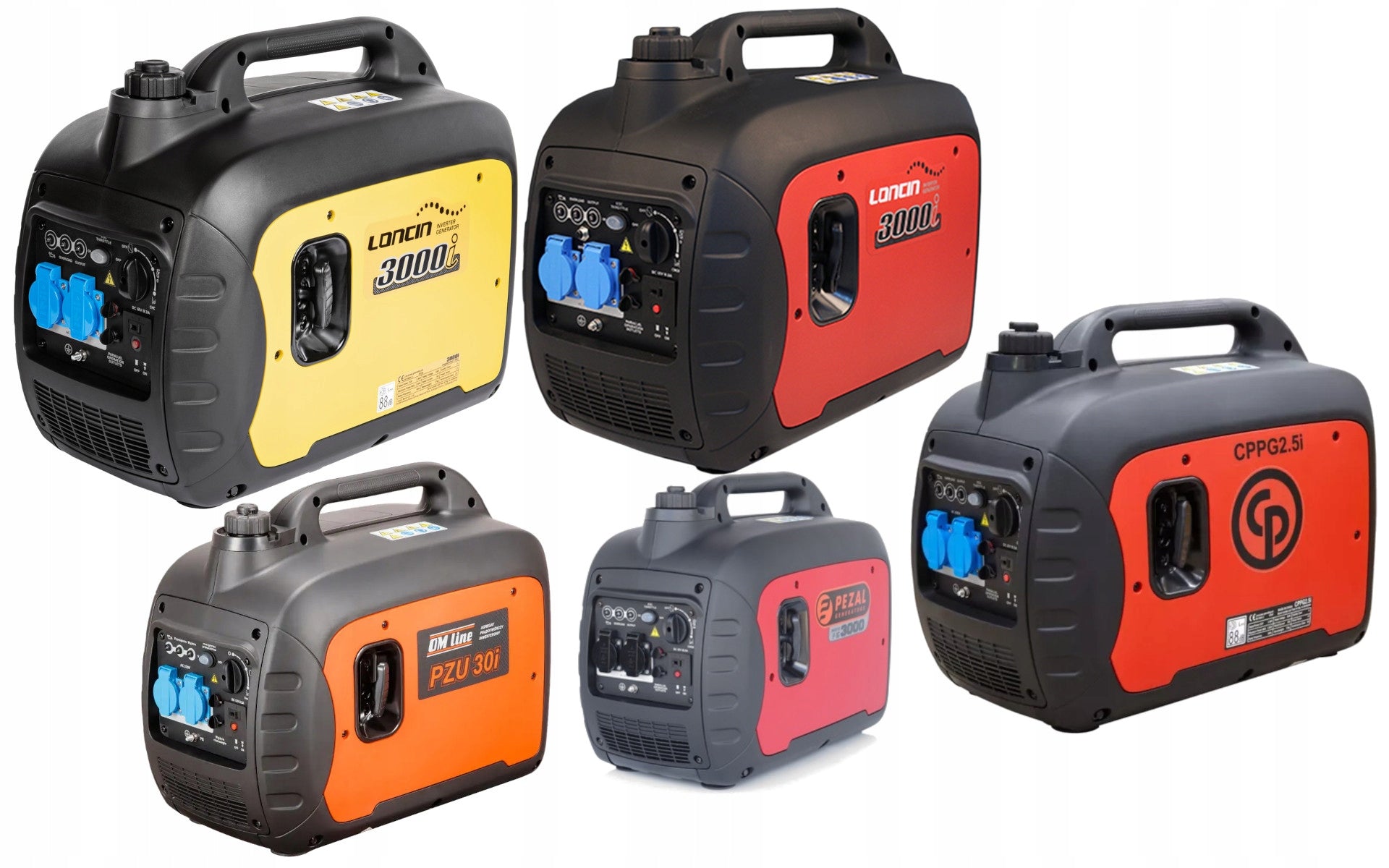

The quality of this product is evidenced by the fact that Loncin produces this unit in different color versions under different models for various global companies and brands, e.g.:

• LC3000i under its own brand LONCIN, but available in different color versions, depending on the importer's disposal, from yellow, to red, through blue and many others.
• PZU30i for OM LINE brand owned by VICTUS-EMAK which includes OLEO-MAC, EMAK, OM LINE, LAVOR and many others
• P-IG3000 for PEZAL brand known in Poland and Europe manufacturer and importer of power generators
• P2500i for ATLAS COPCO, a world-renowned manufacturer of power generators and construction machinery.
• CPPG 2.5i for CHICAGO PNEUMATIC brand American manufacturer of construction machinery

These are exactly the same generator sets, most often differ only in the color of the side panels, sockets, depending on the country of destination and of course stickers

• OM Line / Loncin
• Single cylinder engine type; 4-stroke; air-cooled; OHV
• Power factor 1
• AC Output Class ISO8528 G2
• THD ≤5 %
• Continuous operation time (with rated power) 2,7 h
• Oil Bowl Capacity 0,6 l
• Dimensions (L. x W x H ) 565 x 339 x 467 mm
• Nominal power - 1F 2500 W
• Starting power - 1F 2300 W
• Engine capacity 149 cm³
• Engine manufacturer Lonicn
• Engine model 165F-4
• Battery charging socket Yes
• Power sockets 2 x - 230V
• Automatic shut-off at low oil level Yes
• Manual starter
• Voltage/Frequency 230V/50Hz
• Type of fuel Petrol
• Fuel tank capacity 4,0 l
• Combustion (eco mode / eco mode off): 1,1 / 1,5 L/h
• Maximum working time on full tank (eco mode / eco mode off): 3,5h / 2,7h
• dB/LpA/LwA/K noise: 88 dB(A) / at a distance of 4 meters from the unit, at 3/4 load this value drops to 64,7dB(A)
• Net weight 27 kg

VERY IMPORTANT:In generator sets, it is not possible to obtain high power of the generator without powering the generator set with a sufficiently powerful motor. So if the manufacturer at the same engine capacity gives the power of the generator set higher than 5-10%, then we suggest to approach such an offer with caution. A unit configured in this way can stop working very quickly.

Standard equipment:

1. Low oil level lamp
2. Overload protection lamp
3. AC power supply light
4. Low RPM Switch
5. Battery charging socket
6. DC fuse
7. Socket for synchronization of 2 aggregates
8. Clamp for connecting the ground wire
9. 2 x 230V 16A socket

And in the upper right corner not marked in the figure

Function switch (start/stop, fuel valve, suction)

Engine technical data:

Intelligent speed control technology automatically adjusts the engine speed according to the load, which saves users 11% of fuel.

Compact design, small size.

Easy start, start within 3 attempts.

• Engine manufacturer: Loncin
• Engine model: LC165F-4
• Engine Type: Single Cylinder, Air Cooled, Four Stroke, OHV
• Capacity: 149 cm³
• Max engine power old conversion standard*: 3.7kW(5.0HP)/3600rpm
• Max engine power new conversion standard*: 3.3kW(4.5HP)/3600rpm
• Diameter x stroke: 65 mm x 45 mm
• Net torque: 8,9/3200 Nm / rpm
• Starting system: Manual reverse cable
• Lubrication System: Splash
• Air filter: Foam filter
• Oil bowl capacity: 0,6 l
• Net weight: 17 kg
• Dimension: 440 mm × 310 mm × 333 mm

*The current standard for converting engine power is carried out with a silencer and an air filter installed,

Therefore, the currently reported engine powers are lower than previously reported, the engines have not changed.

NOTE! The truth about engine power – how not to be misled.

"Creative" sellers use the so-called in the descriptions of their products. “pseudotechnical gibberish” to overstate the power of engines in your combustion machines and mislead you about their actual parameters. They use m.in. The term “EPS – Effective Power Solution” refers to “maximum starting power”, “the power of convergent force” or even “perceptible maximum power” – pure nonsense that has no justification in mechanics, physics or any recognized field of technology. These are simply terms invented by them that are supposed to give the impression of “professional”, but in reality they mean nothing and have only one goal: to mislead customers about the actual power of the engine.

In our machines, we provide engine power in accordance with the SAE J1349 standard, which is used by renowned manufacturers such as Honda or Loncin, so you can be sure that the values we declare reflect the actual performance of the engine. Don’t be fooled by fairy tales about “EPS” or “maximum starting power”. These machines have simple, carburetor engines without turbines or intercoolers, and their power depends almost exclusively on capacity. Therefore, the easiest way to compare engine power is to simply check their capacity.

Due to the relatively low weight and at the same time high power, and very low volume, these models of aggregates are great for caravanning and more.

Optional equipment:

• Cables for connecting two aggregates

It can be purchased in a BUY TOGETHER set, provided we have them in stock

Thanks to this combination with 2 of the same generator sets, we get double the power.

That is, 2 generator sets connected by such a synchronization cable with a power of e.g. 3.0 kW give us a total power of 6,0 kW, etc.

NOTE 3 pin industrial plug 230V is required

The delivery includes:

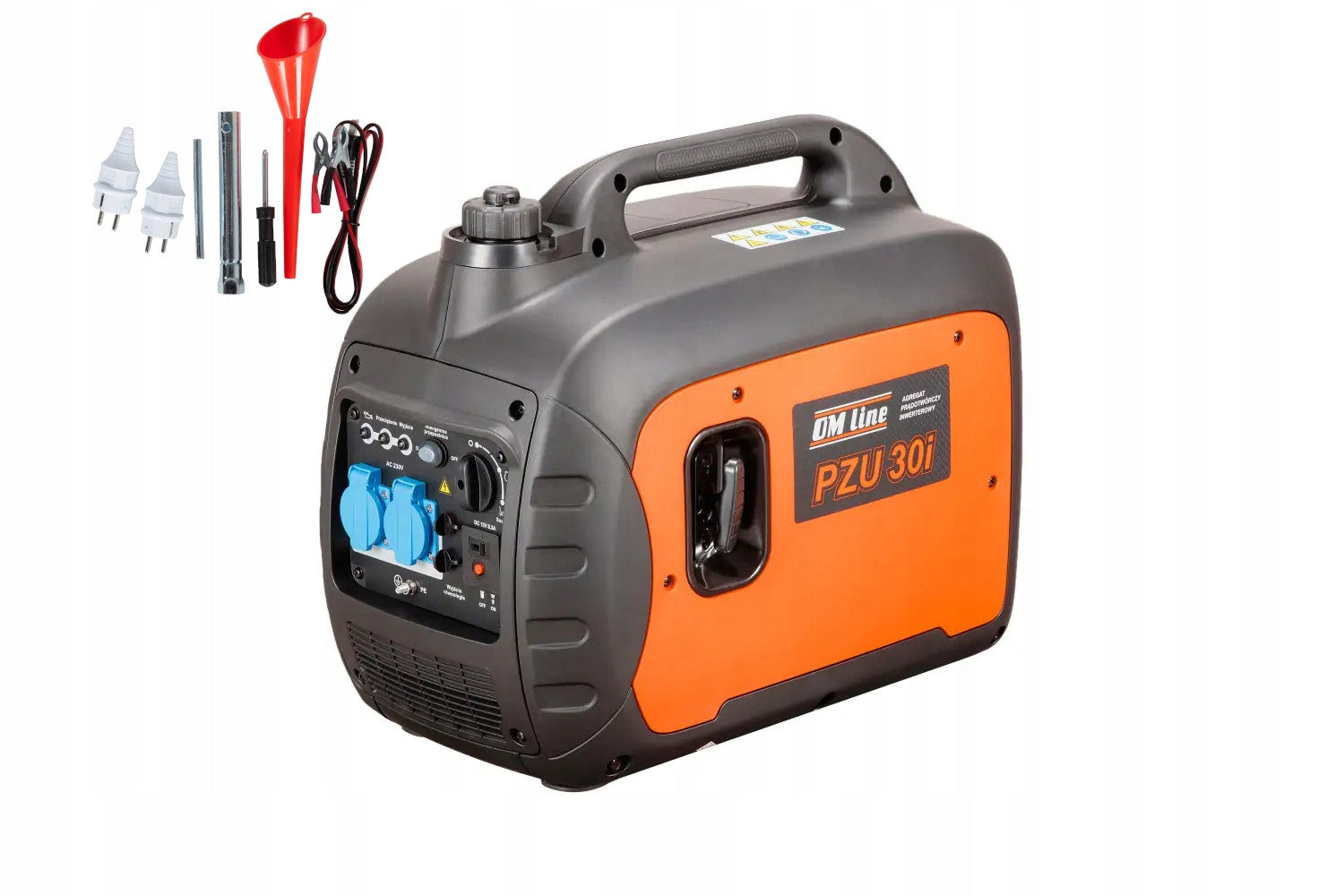

1 x Complete unit (with accessories shown in the photo)

1 x Selected sales document

1 x User manual in Polish

1 x Warranty card

The delivery does NOT include the oil necessary for the first flooding of the engine compartment aggregates, (aggregates we send "dry") select the set with oil available above (click show all sets) , and choose the set that suits you best. Any type of oil displayed in these kits can be used for this generator set.

BUY IN "BUY TOGETHER" SETS AND CATCH SAVINGS

Using the Buy together option available above.

You can buy this product in a set with useful accessories.

buy together sets are visible provided that we currently have these accessories in stock, and the offer is not in the Allegro price reduction (then such sets are not visible)

Currently, we have this product in sets to choose from:

• PZU30i + 1 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac
• PZU30i + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac
• PZU30i + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister
• PZU30i + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister + 1 x Nevada oil suction kit
• PZU30i + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister + 1 x Nevada oil suction kit + 1 x Sync cable - connections 2 PZU 30i units
• 2 x PZU30i + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + + 1 x Sync cable - connections 2 PZU 30i aggregates
• ( This set is shown in the picture next to )
