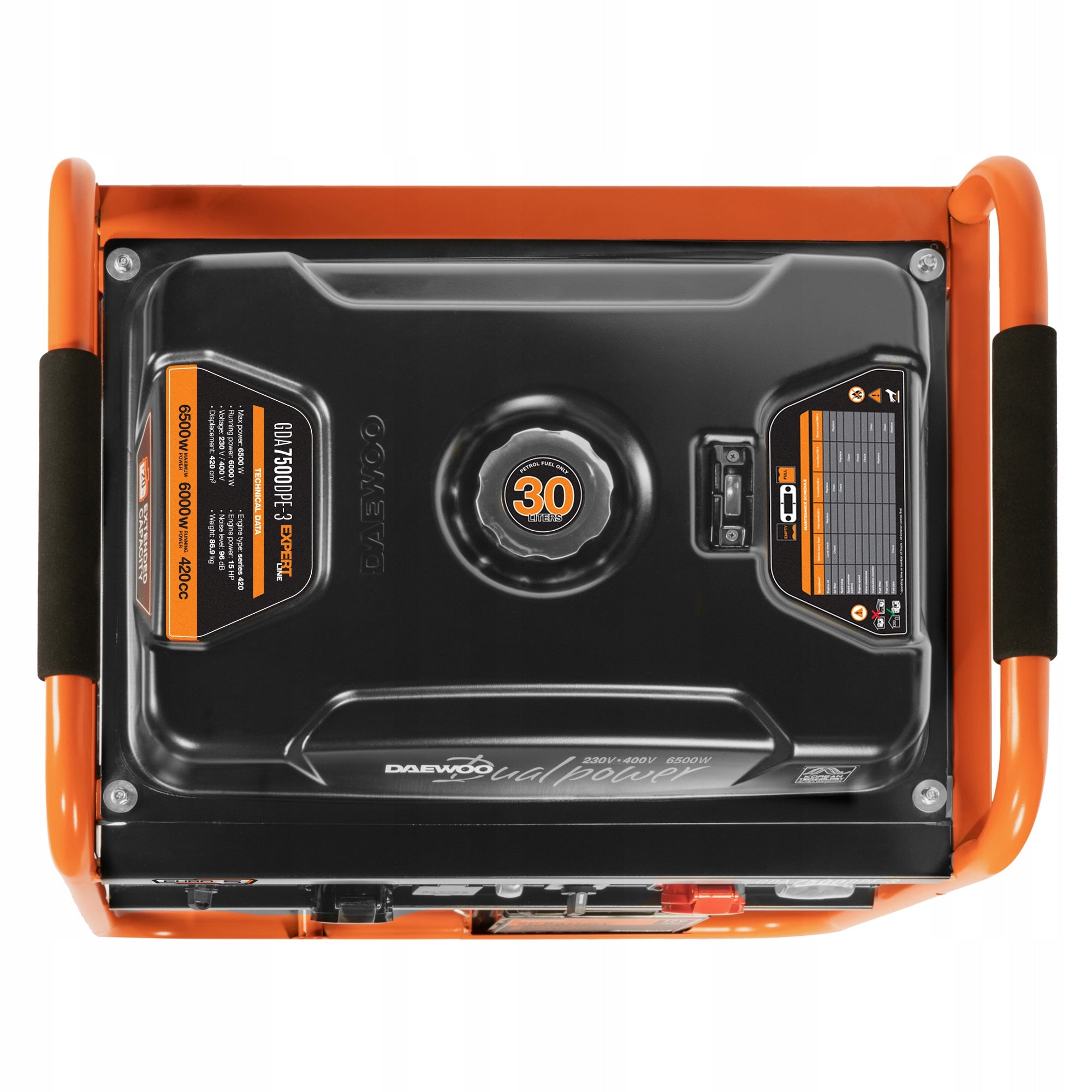

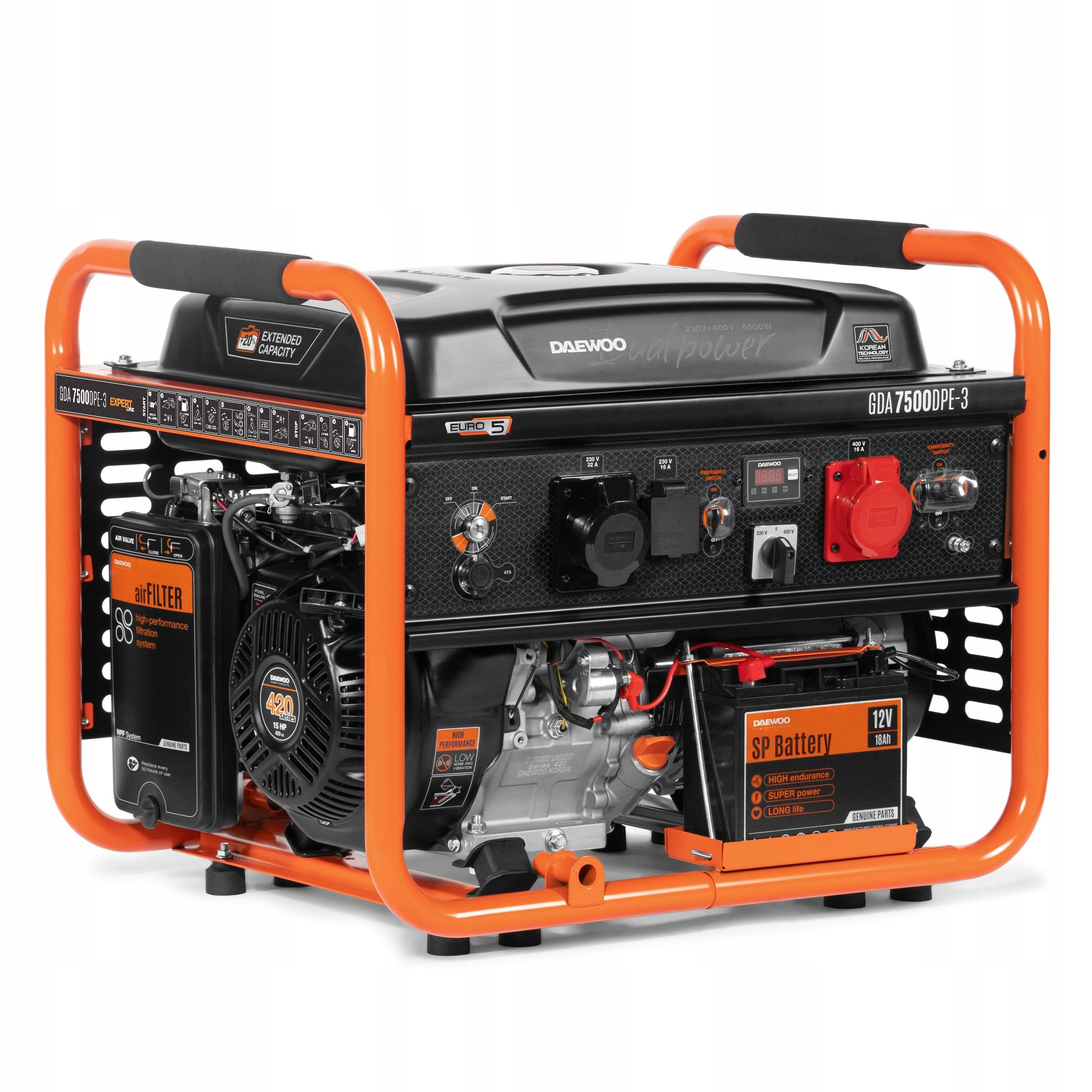

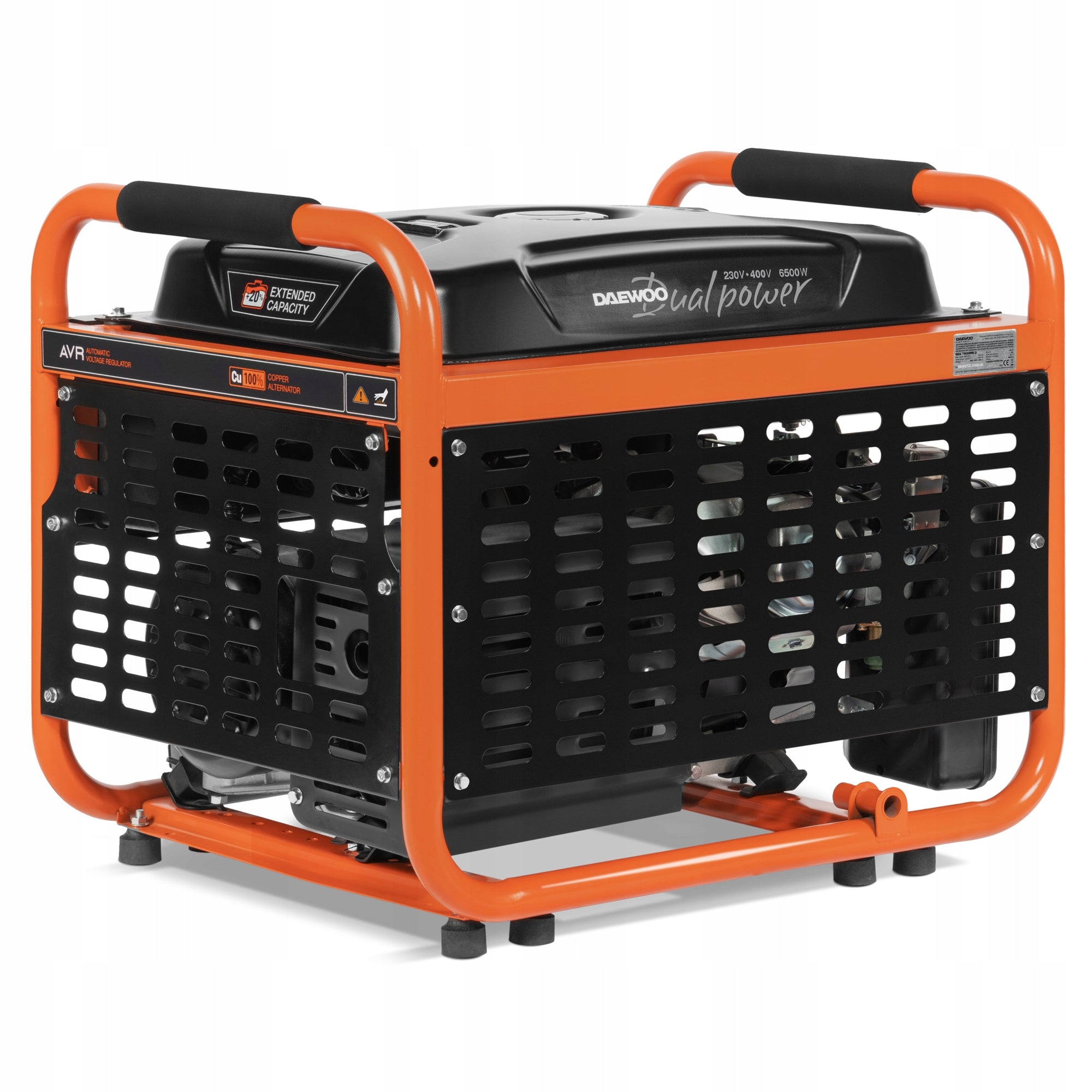

Elektros generatorius DAEWOO GDA 7500DPE-3, 6,5 kW, 230/400V, AVR

Trumpai apie prekę

Prekė: Elektros generatorius DAEWOO GDA 7500DPE-3, 6,5 kW, 230/400V, AVR. Kategorija: Elektros generatoriai.

• Gamintojas: Daewoo
• Modelis: GDA 7500DPE-3
• Įtampa: 400 V

GDA 7500DPE-3

The DAEWOO GDA 7500DPE-3 generator set is equipped with innovative DUAL POWER technology. The new design of the generator allows you to produce identical power in both operating modes (230 V and 400 V), while standard three-phase aggregates provide no more than 30% of the power in a single-phase socket.

The unit is equipped with a display that allows you to control the parameters and quality of the output current, as well as a 12 V battery with a built-in starter, thanks to which the device can be started by turning the key.

The set includes:

• Gasoline generator set GDA 7500DPE-3

✔ Reliable four stroke engine 420 series DAEWOO Euro 5

✔ Innovative DUAL POWER technology

✔ 2 operating modes: 230 V/ 400 V

✔ Enlarged fuel tank 30 l

✔ Electric start-up

✔ Multifunction display

✔ AVR - automatic voltage stabilization

✔ Overload protection

✔ Oil level sensor

✔ Possibility to connect the SZR module (to be purchased at a separate allegro auction)

✔ Low noise and vibration

✔ Strong frame

✔ Copper winding generator

✔ Engine and generator cover

✔ Possibility of mounting a transport kit (to be purchased at a separate allegro auction)

TECHNICAL PARAMETERS

Maximum power (400 V): 6.5 kW

Rated Power (400 V): 6 kW

Maximum power (230 V): 6.5 kW

Rated Power (230 V): 6 kW

Engine Type: 4-stroke gasoline engine

Voltage: 400/230 V

Engine manufacturer: DAEWOO

Engine model: series 420

Engine power: 15 HP

Engine displacement: 420 cm³

European emission standard: Euro 5

Starting: manual/electric

Fuel Type: Gasoline

Fuel tank capacity: 30 l

Operating time at 50% load: 17 h

Display: 3 in 1

Voltage Stabilizer: AVR

Power factor: 1 Cosφ

Sockets: 1х16А (230 V) / 1х32 А (230 V) / 1х16 А (400 V)

Battery: yes

Possibility to connect the SZR module (ATS): yes

Dimensions D/S/W: 680х520х540 mm

Weight: 86.9 kg

RELIABLE 4-STROKE ENGINE DAEWOO

DAEWOO units are equipped with 4-stroke OHV engines. They are characterized by a long service life (over 1500 hours), which is evidenced by an extended warranty, and thus a longer period of stable operation without a decrease in power

The engine meets the EURO 5 standard, thanks to which the exhaust emissions are much lower and the use of the unit becomes more comfortable.

ELECTRIC START-UP

With a built-in electric starter and battery, the unit can be started by turning the key, without having to pull the cord.

ENLARGED FUEL TANK 30 L

It allows you to extend the time of continuous operation on one refueling to 18 hours. The tank was covered with a special matte paint resistant to corrosion and chemical influences. The built-in indicator allows you to control the fuel level.

DUAL POWER

The innovative Dual Power technology guarantees identical power output in both phases (230 V/400 V). The switch located on the control panel allows you to easily change the operating mode.

MULTIFUNCTION DISPLAY

It indicates the most important current measurement parameters of the generator: voltage, current and frequency, as well as the load and operating time of the motor.

ENGINE AND GENERATOR COVER

Additional metal covers protect important unit assemblies from mechanical damage.

POSSIBILITY OF CONNECTING THE SZR MODULE (ATS)

The unit is compatible with the automatic reserve switching module. SZR starts the unit in the event of a power failure or voltage drop in the primary network. The module can be ordered at a separate allegro auction.

POSSIBILITY OF MOUNTING A TRANSPORT KIT

The GDA 7500DPE-3 is compatible with the DAWK 30 transport kit, which will greatly facilitate the handling of the machine, as well as allow you to further reduce vibrations during operation. The set can be ordered at a separate allegro auction.
