Elektros generatorius Fogo F3001, 3 kW, 230 V

Trumpai apie prekę

Prekė: Elektros generatorius Fogo F3001, 3 kW, 230 V. Kategorija: Elektros generatoriai.

• Gamintojas: Fogo
• Modelis: FOGO-F3001
• Įtampa: 18 V

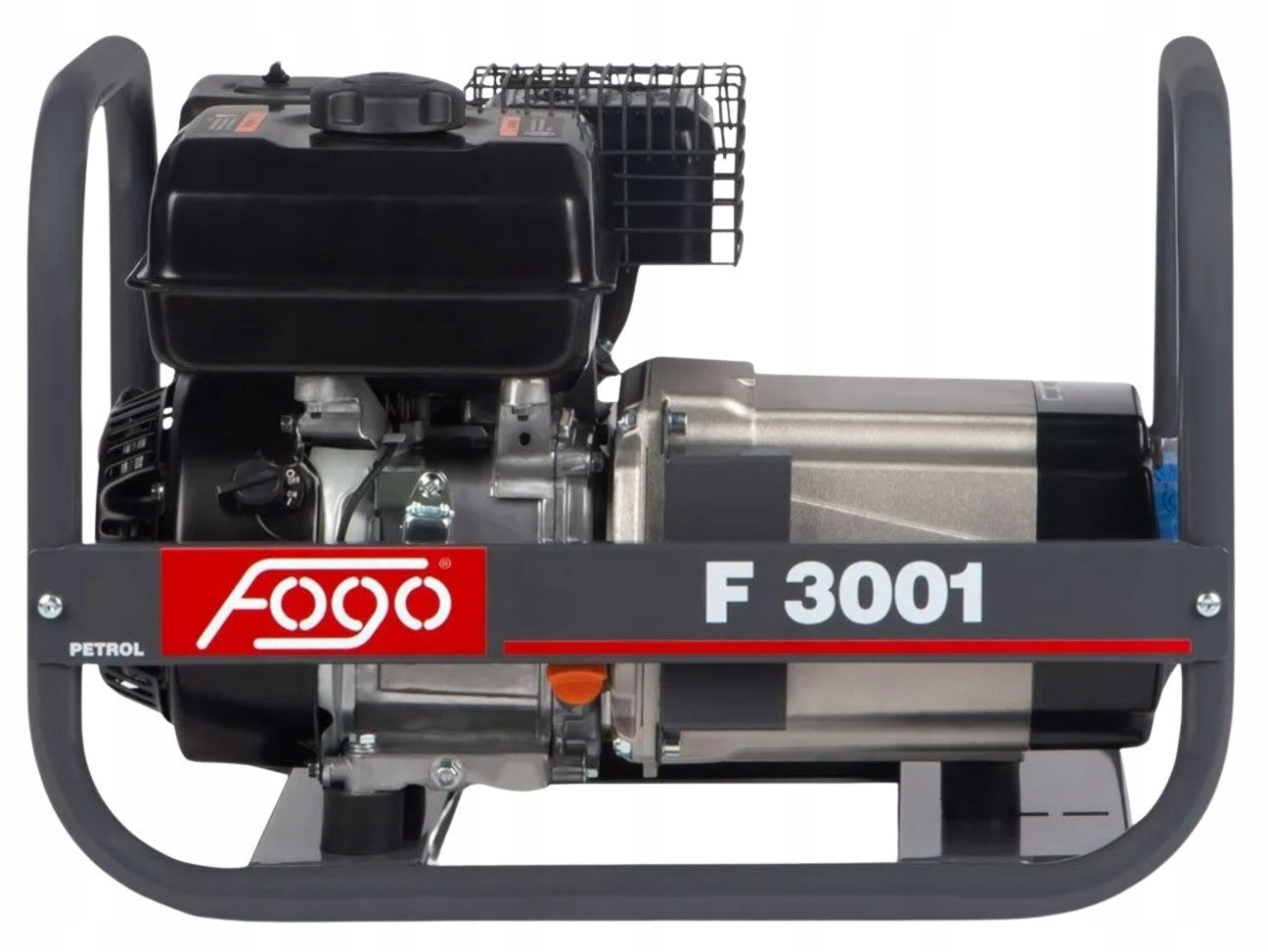

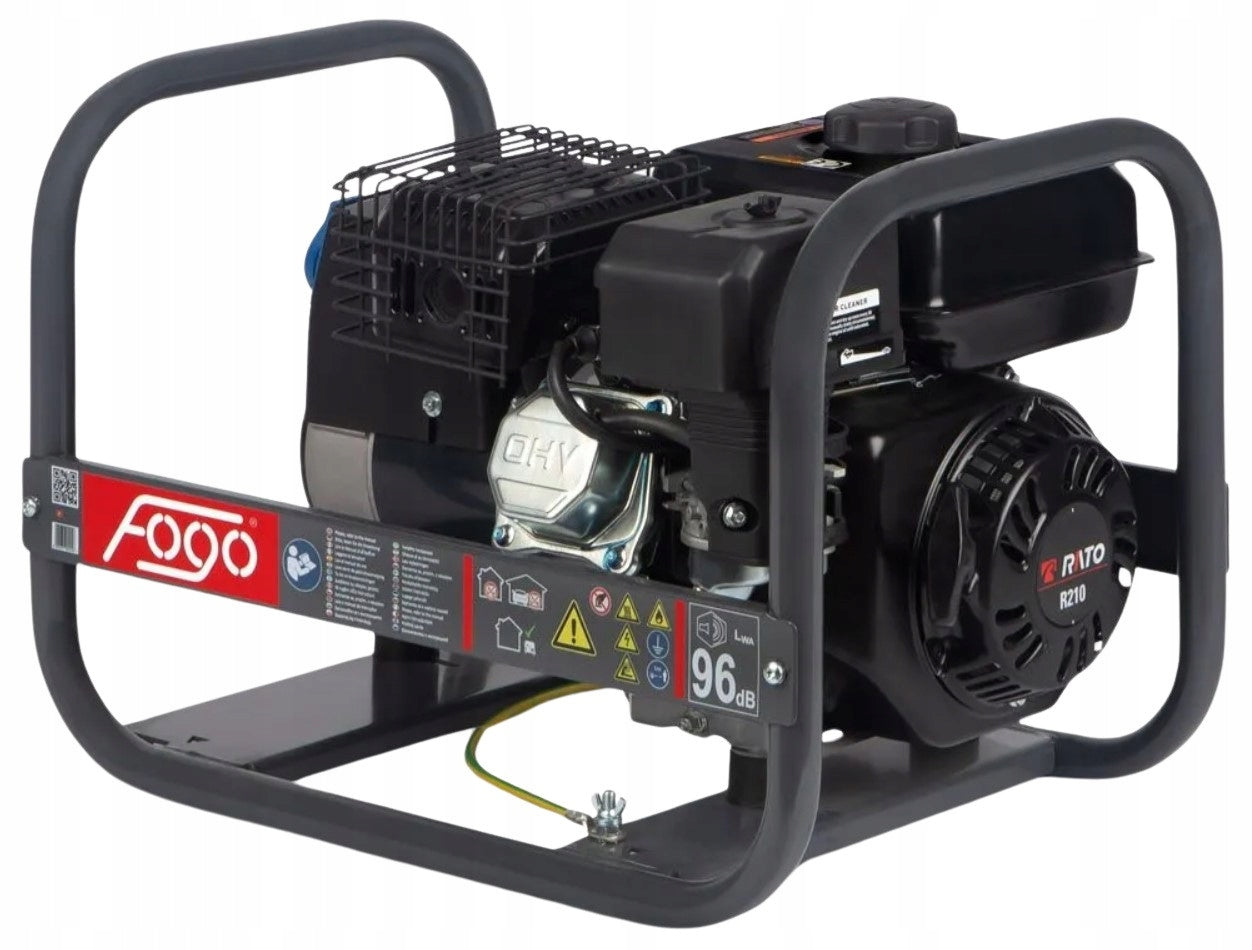

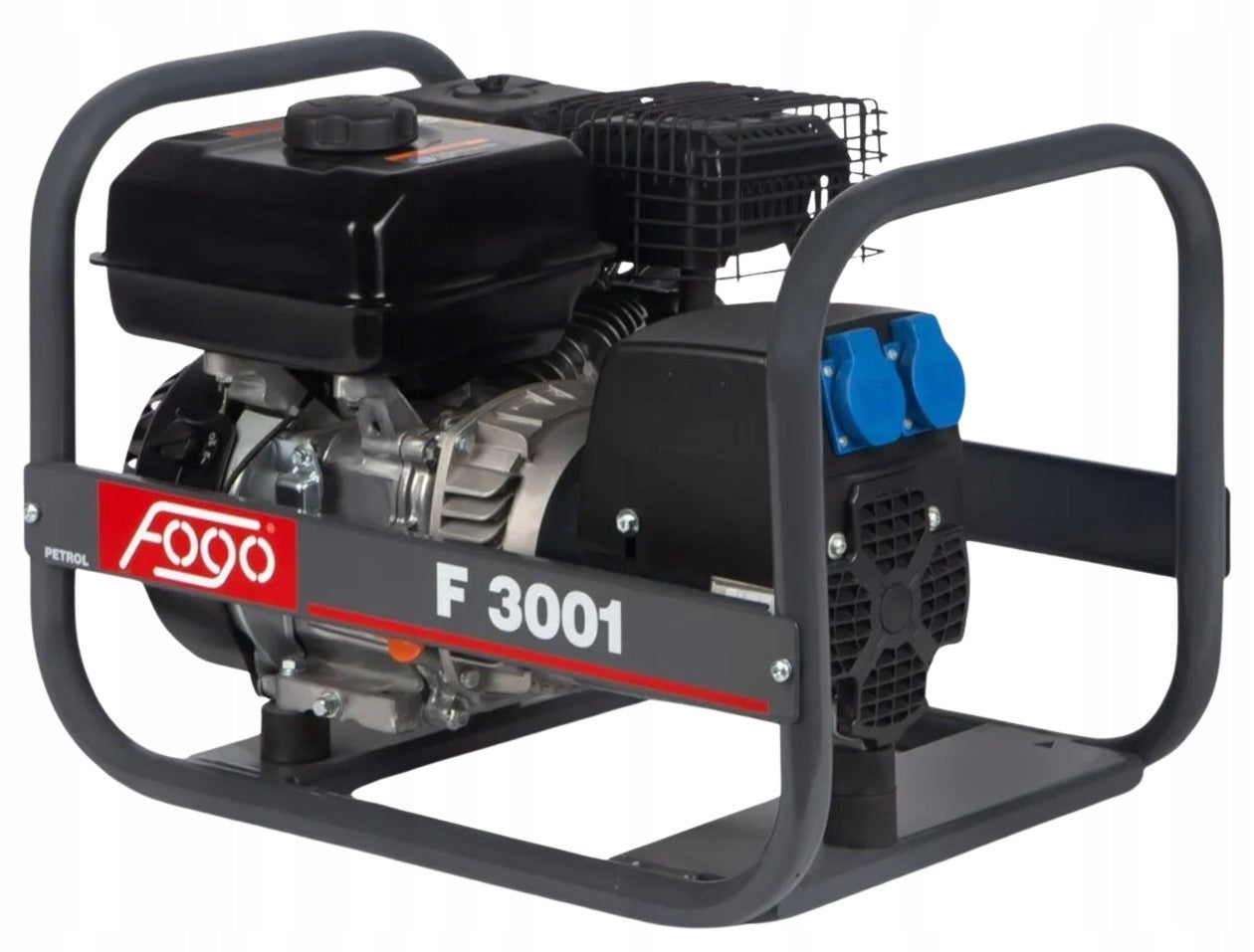

Generator set Fogo F 3001

STANDARD LINE

Purpose: services, crafts, industry, construction.

Recommended for: power tools, electric machines, pumps, lighting, electric furnaces.

Generator set Fogo F 3001 is a portable single-phase generator, which is used both on plots, in construction and in gardens, for work with power tools, radiators, pumps, lighting, etc. This unit is popular among paving companies, it also works perfectly with concrete mixers. The Fogo F 3001 portable generator set is a device with a compact and ergonomic design. In addition to the fact that the Fogo F 3001 unit is convenient during its use, it has also been equipped with all the functions that are necessary for efficient and professional operation of the generator set.

The generator set from Fogo F 3001 has an engine of the well-known brand FOGO. The Fogo F 3001 generator weighs little 37kg . The F 3001 aggregate uses synchronous generators with a degree of protection IP 23 , i.e. the degree of protection of the generator against undesirable factors: water, moisture, dust and dust.

The Fogo F 3001 generator set has an oil alarm and 2 sockets 1~ 16 A. In order to protect the generator, a thermal protection system was used. Generator set Fogo F 3001 with synchronous generator with starting current, which allows you to connect devices with starting current up to 10,9A. This unit can be used both for heavy-duty work as well as for domestic applications, while guaranteeing high efficiency and service life.

A generator with copper windings and a power of max 3,2kVA was used - an oversized generator ensures safety and very long life of the unit.

Specification of aggregate F 3001

• Maximum power: 3,0 kW
• Rated Power: 2,7 kW
• Rated current:11,7 A
• Voltage: 230 V
• Frequency: 50 Hz
• Lion Acoustic Power: 96 dB (A)
• Dimensions L. x W x H: 580 x 395 x 455 mm
• Tank capacity: 3,6 l
• Combustion at 75% power: 1,4 l/h
• Weight: 38 kg

Technical specification of the generator:

• Degree of protection: IP 23
• Type: synchronous

Engine technical specification:

• Type FOGO R210
• Type of fuel unleaded petrol 95
• fuel tank capacity 3,6 l
• Fuel consumption 1,2 l/h
• Working time without refueling 2,5 h
• SAE 10W-30 engine oil
• Oil Bowl Capacity 0,6 l
• Reverse start with a link

Standard equipment:

• 2 sockets 230V 16A
• Overload protection
• Oil level sensor
