Elektros generatorius Honda EG4500 CL su d-AVR ir alyva

Trumpai apie prekę

Prekė: Elektros generatorius Honda EG4500 CL su d-AVR ir alyva. Kategorija: Elektros generatoriai.

• Gamintojas: Honda
• Modelis: EG 4500 CL
• Įtampa: 230 V

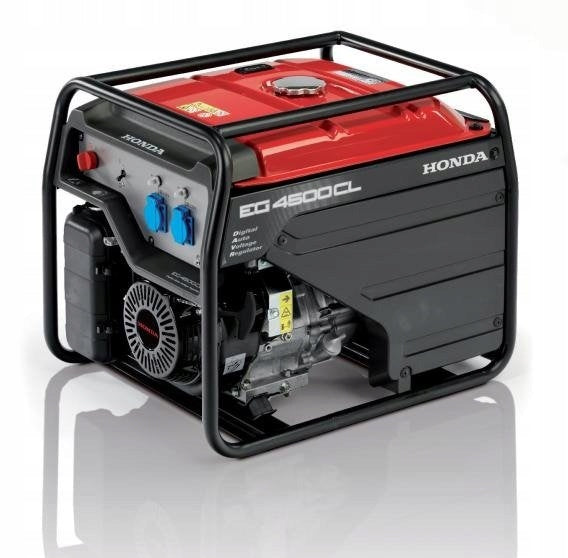

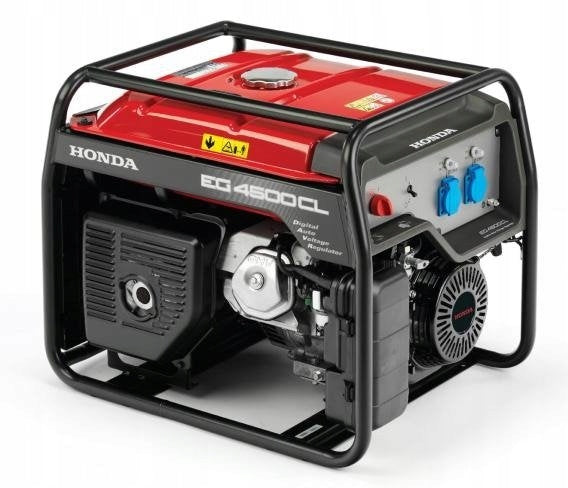

Honda EG4500CL is a power generator designed to power single-phase (230V) electrical receivers. It is equipped with a 24 liter fuel tank, digital voltage stabilization so-called. d-AVR. The EG4500CL is well known to both professionals and private users. It works on construction sites, during renovations, as well as a backup power source for single-family houses, shops, pharmacies, etc. It is a reliable source of power for mobile services. The characteristic features of the EG4500CL Honda include: an enlarged fuel tank equipped with a mechanical fuel gauge, fast d-AVR (digital) voltage stabilization, dual protection system for powered receivers, v-shock absorbers, ergonomic and compact design, strong frame construction, the possibility of mounting a transport kit (additional option). Honda generator sets of the EG series generate actual power in accordance with the information given on the rating plate. They are characterized by perfectly balanced power of the generator and the motor driving it.

Enlarged fuel tank - guarantees uninterrupted operation time exceeding 9 hours. Even during long hours of work, it is enough to refuel the Honda EG4500CL once a day! A professional user can focus on the work they do. A private person will not be surprised by the sudden extinction of the light. You can check the amount of fuel in the tank at any time thanks to the installed fuel indicator. We have time to respond appropriately...

Fast voltage stabilization d-AVR is nothing more than the safety of powered receivers. D-AVR is a digital voltage stabilization used in Honda EG series generator sets. It works effectively. Quickly eliminates voltage fluctuations of the power source that appear when powering electrical receivers. No need to worry about the life of the powered receivers.

The dual protection system of powered receivers will work in two cases - when detecting an incorrect output voltage and when detecting incorrect engine rotation. Both cases can be dangerous because they expose powered electrical receivers to damage. In the EG4500CL aggregate, the avoidance of such a situation has been resolved.

V-shock absorbers (slanted) - on them is embedded the motor and generator. They are set at an angle of 45 degrees. Their characteristic construction is a guarantee of increased breaking strength. The reason for breaking the shock absorbers is usually incorrect transport. Turning the unit to the side in combination with shocks while driving is the most common cause of shock absorbers breaking. The solution used by Honda significantly reduces the risk of damage.

Ergonomic design - all elements of the aggregate control are mounted on one front side of the aggregate. Within reach are: ignition switch, suction lever, reverse cable, fuel filter housing, electrical sockets. This makes it easier for one operator. It does not have to "circumvent" the aggregate to turn it on or off.

Compact shape - frame design, the use of a modern generator, thoughtful arrangement of control elements enabled maximum reduction of the dimensions of EG series aggregates. Their dimensions are really small, and yet they are equipped with 24 liter fuel tanks! The EG4500CL Honda takes up little space in your car or garage!

The strong frame construction precisely welded protects the engine and generator system against damage to which the EG4500CL Honda is exposed, working on construction sites or during improper protection during transport.

Optimally balanced engine and generator power is a feature of all Honda generator sets. Working with the rated parameters of the generator does not affect the engine overload, which has a fundamental impact on the quality of the generated power and the service life of the engine itself. The motor power is selected in a way that allows the generator to operate in the full range of generated power. Long-term operation of the generator with rated power does not exceed the rated engine operating parameters. This solution ensures long-term operation of the EG4500CL Honda. Increases the safety of powered receivers.

Obtaining the actual powers given by this hallmark of all Honda generator sets. The customer always gets what he paid for – he does not pay for the so-called. Empty kilowatts that aren't there! In the names of individual models of Honda aggregates there is information about the generated maximum power, e.g. in EG4500CL Honda the maximum single-phase power is 4,5 kW.

Standard equipment includes: thermal protection of sockets, oil-Alert engine oil protection, fuel level indicator, fuel level indicator.

Additional equipment (optional): motor-hour counter, transport set

The principles of proper operation of the EG4500CL Honda and technical data can be found in the user manual.

NOTE:

The price quoted includes the cost of performing a pre-sale (zero) inspection, which is one of the conditions for receiving a warranty for the device or machine*.

Performing a zero review is the responsibility of the Seller, but it is possible to perform a zero inspection for a fee with another Authorized Dealer or Aries Power Service.

* Performing a pre-sale (zero) inspection is the responsibility of the Seller before sending the device to the Customer, includes m.in. control of the external appearance and equipment - possible damage to the paint, dents, mechanical damage, attachment of the instruction manual, correct filling of the warranty card, commissioning of the device, checking the operation of control devices, preparation of the device for shipment - suction of fuel, oil, re-packaging of the device to the original carton.

TECHNICAL DATA

• Model of generator set: EG4500CL
• Maximum power: 4,5 kW
• Rated current: 17,4 A
• Voltage stabilization: D-AVR
• Voltage: 230 V
• Number of sockets: 2 x 16A, 1 x 32A
• Direct current socket: no

ENGINE

• Engine model: GX390
• Maximum power (SAE standard J1349): 8,2 kW / 11 HP
• Startup: yes
• Fuel tank: 24 l
• Fuel consumption: 2,5 l/h
• Working time: 9h 30min
• Eco Throttle: no

DIMENSIONS AND WEIGHT

• Total length: 681 mm
• Total width: 530 mm
• Total height: 571 mm
• Dry weight: 79,5 kg

VOLUME

• Guaranteed sound power level*: 97 dBA

ADDITIONAL FUNCTIONS

• Economic mode- Eco Throttle: no
• Autosynchronization: no

ACCESSORIES (OPTIONAL)

• Motor hours counter: yes
• Battery charging cable: no
• Exhaust pipe: no
• Auto-synchronization cable: no
• Protective cover: no
• Transport kit (2 wheels + handles): yes

Honda EG4500 CL d-AVR! + Oil

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Honda
Parametry	Model	EG 4500 CL
Parametry	Kind	portable
Parametry	Generator type	single-phase
Parametry	Engine	4-stroke
Parametry	Startup	manual
Parametry	Maximum power	4500 W
Parametry	Nominal power of the alternator	4000 W
Parametry	Engine power	11 KM
Parametry	Gasoline tank capacity	24 l
Parametry	Device weight	82 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	9 h
Parametry	Lc IEC noise level	97 dB
Parametry	Product height	57 cm
Parametry	Product width	53 cm
Parametry	Product depth	68 cm
Parametry	Average combustion	2.5 l/h
Parametry	Additional information	voltage regulation (AVR)
Parametry	Number of 1-phase outlets	2
Parametry	Number of 3-phase outlets	none
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	EG4500CL
Parametry	Product weight with unit packaging	85 kg
Parametry	Packaging status	original
