Elektros generatorius PZU36IE, 3,3 kW, inverterinis, namams

Trumpai apie prekę

Prekė: Elektros generatorius PZU36IE, 3,3 kW, inverterinis, namams. Kategorija: Elektros generatoriai.

• Gamintojas: OM Line
• Modelis: OM LINE PZU 36 IE
• Įtampa: 230 V

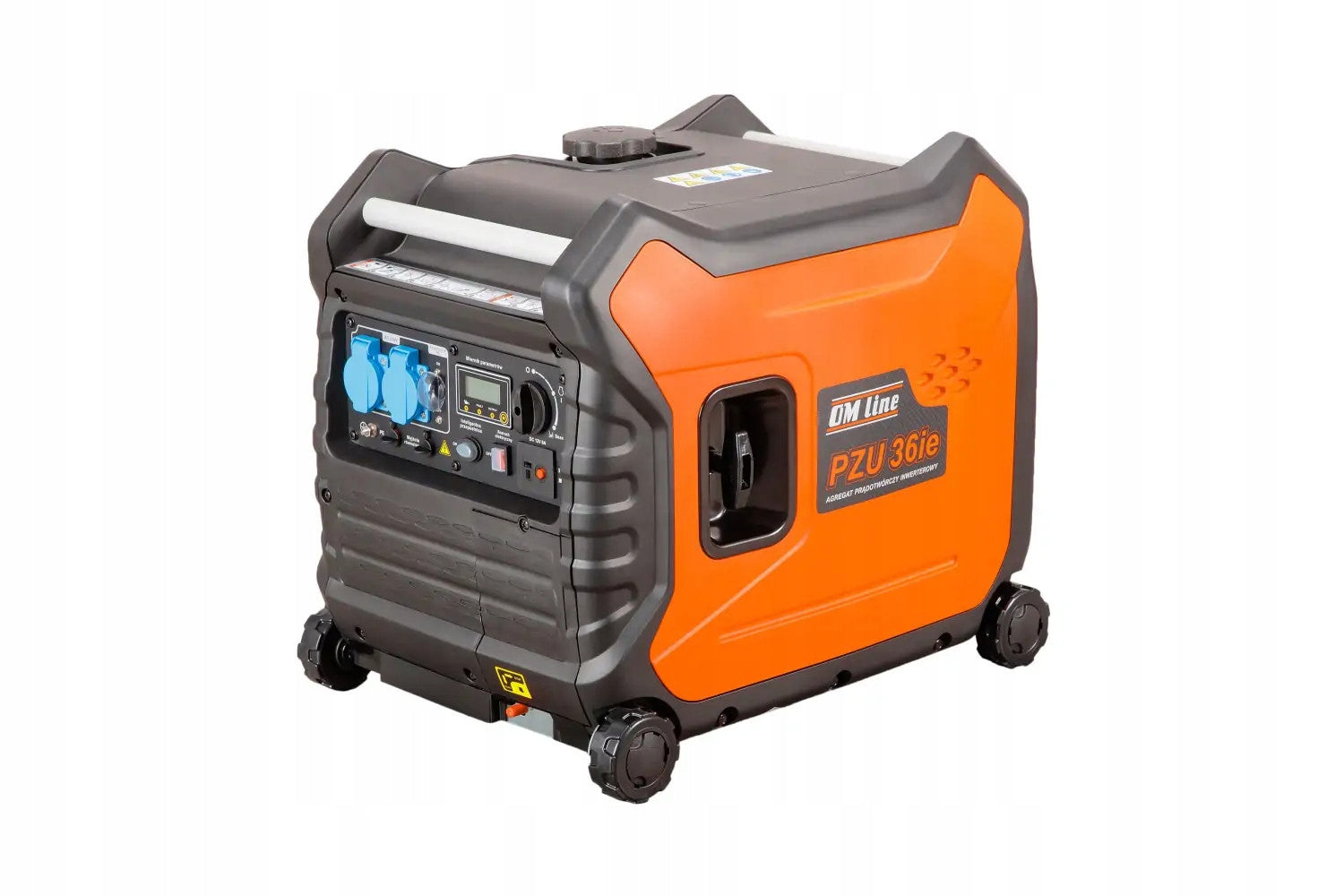

PZU36ie generator set by OM Line belonging to Oleo-Mac and EMAK brands

Generator set Loncin 3,3 kW

The PZU36iE inverter unit has an automatic speed control system depending on the load. With its sinusoidal voltage chart, it is ideal for powering devices sensitive to voltage fluctuations. Thanks to its high power and compact size, it will be the best companion for camping and outdoor events where portable power supply is needed. This inverter is equipped with one 230V socket and a 12V socket.

The quality of this product is evidenced by the fact that Loncin produces this unit in different color versions under different models for various global companies and brands, e.g.:

• LC3500i under its own brand LONCIN, but available in different color versions, depending on the importer's disposal, from yellow to red, through blue and many others.
• PZU36ie for the OM LINE brand owned by VICTUS-EMAK, which includes OLEO-MAC, EMAK, OM LINE, LAVOR and many others
• P-IG3500 for the PEZAL brand known in Poland and Europe manufacturer and importer of power generators
• P3500i for the ATLAS COPCO brand of the world-renowned manufacturer of power generators and construction machinery.
• IG3500E for the BearCat brand of the American manufacturer of forest and garden machinery
• 3500 for the brand POWERHORSE American manufacturer of forest and garden machinery
• CPPG3i for the brand CHICAGO PNEUMATIC American manufacturer of construction machinery
• LC-3500i for CAMPEON brand of Spanish manufacturer of construction and garden machinery
• GS3500Gi for WACKER NEUSON brand of German manufacturer of construction machinery

These are exactly the same generator sets, most often differ only in the color of the side panels, sockets, depending on the country of destination and, of course, stickers.

• OM-Line / Loncin brand
• Single cylinder engine type; 4-stroke; air-cooled; OHV
• Power factor 1
• AC Output Class ISO8528 G2
• THD >5 %
• Continuous operation time (with rated power) 5,5 h
• Oil pan capacity 0,6 l
• Nominal power - 1F 3000 W
• Starting power - 1F 3300 W
• Engine capacity 212 cm³
• Engine manufacturer Loncin
• Engine model 170FD-3
• Battery charging socket Yes
• Power sockets 2 x - 230V
• Automatic shut-off at low oil level Yes
• Manual starter + electric standard with battery which is included
• Voltage/Frequency 230V/50Hz
• Type of fuel Petrol
• Fuel tank capacity 10,0 l
• Combustion (eco mode / eco mode off): 1,2 / 1,8 L/h
• Maximum working time on full tank (eco mode / eco mode off): 8,0h / 5,5h
• dB/LpA/LwA/K noise: 88 dB(A) / at a distance of 7 meters from the unit, at 1/4 load this value drops to 52-64,7dB(A)
• Dimensions (L. x W x H ) 578 x 440 x 510 mm
• Net weight 45 kg

VERY IMPORTANT:In generator sets, it is not possible to obtain high power of the generator without powering the generator set with a sufficiently powerful motor. So if the manufacturer at the same engine capacity gives the power of the generator set higher than 5-10%, then we suggest to approach such an offer with caution. A unit configured in this way can stop working very quickly.

Standard equipment:

1. Low oil level lamp
2. Overload protection lamp
3. AC power supply lamp
4. Low RPM Switch
5. Battery charging socket
6. DC fuse
7. Socket for synchronization of 2 aggregates
8. Clamp for connecting the ground wire
9. 2 x 230V 16A socket
10. Function switch (start/stop, fuel valve, suction)

Intelligent speed control technology automatically adjusts the engine speed according to the load, which saves users 11% of fuel.

Compact design, small size.

Easy start, start within 3 attempts.

• Engine Manufacturer: Loncin
• Engine model: LC170F(D)-3
• Engine Type: Single Cylinder, Air Cooled, Four Stroke, OHV
• Capacity: 212 cm3
• Max engine power old conversion standard*: 5.1kW(7.0HP)/3600rpm
• Max engine power new conversion standard*: 4.5kW(6,0HP)/3600rpm
• Diameter x stroke: 70mm x 55mm
• Net torque: 12,5/2500 Nm / rpm
• Starting system: Manual reverse or electric cable from the battery if equipped
• Lubrication System: Splash
• Air filter: Double (sponge+paper)
• Oil bowl capacity: 0,6 l
• Net weight: 18 kg

*The current standard for converting engine power is carried out with a silencer and an air filter installed,

Therefore, the currently reported engine powers are lower than previously reported, the engines have not changed.

NOTE! The truth about engine power – how not to be misled.

"Creative" sellers use the so-called in the descriptions of their products. “pseudotechnical gibberish” to overstate the power of engines in your combustion machines and mislead you about their actual parameters. They use m.in. The term “EPS – Effective Power Solution” refers to “maximum starting power”, “the power of convergent force” or even “perceptible maximum power” – pure nonsense that has no justification in mechanics, physics or any recognized field of technology. These are simply terms invented by them that are supposed to give the impression of “professional”, but in reality they mean nothing and have only one goal: to mislead customers about the actual power of the engine.

In our machines, we provide engine power in accordance with the SAE J1349 standard, which is used by renowned manufacturers such as Honda or Loncin, so you can be sure that the values we declare reflect the actual performance of the engine. Don’t be fooled by fairy tales about “EPS” or “maximum starting power”. These machines have simple, carburetor engines without turbines or intercoolers, and their power depends almost exclusively on capacity. Therefore, the easiest way to compare engine power is to simply check their capacity.

Optional equipment:

• Cables for connecting two aggregates

It can be purchased in the BUY TOGETHER set, provided we have them in stock

Thanks to this combination with 2 of the same generator sets, we get double the power.

That is, 2 generator sets connected by such a synchronization cable with a power of e.g. 3.0 kW give us a total power of 6,0 kW, etc.

NOTE 3 pin industrial plug 230V is required

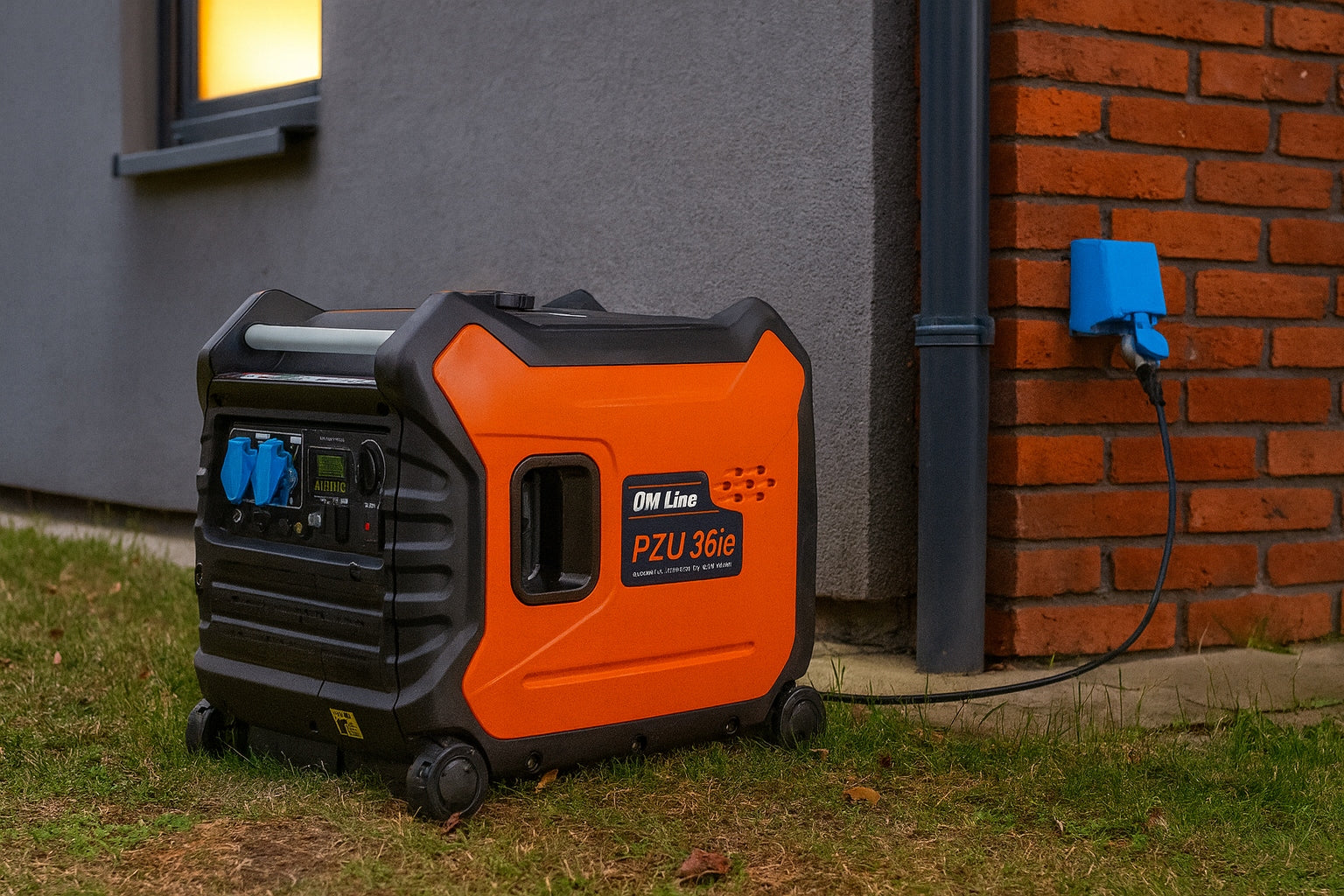

Due to its small size, inverter technology, low combustion and low volume, this unit is perfect as an emergency power supply for your home, for basic protection of lighting power supply, any type of furnace, and electronics.

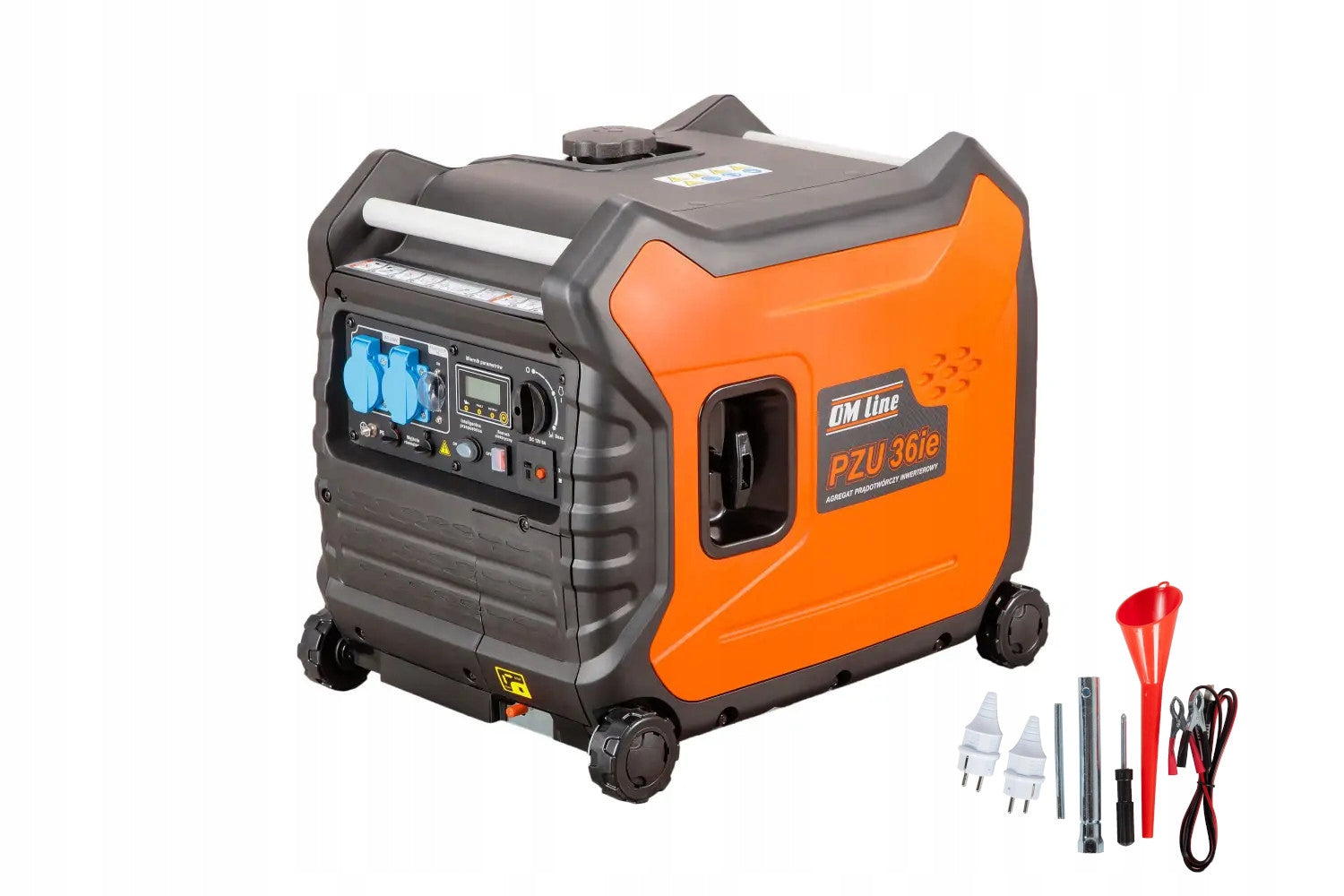

The delivery includes:

1 x Complete unit (with all accessories such as keys, etc., which are included by the manufacturer)

1 x Selected Sales Document

1 x User manual in Polish

1 x Warranty Card

The delivery does NOT include the oil necessary for the first flooding of the engine compartment aggregates, (aggregates we send "dry") select the set with oil available above (click show all sets) , and choose the set that suits you best. Any type of oil displayed in these kits can be used for this generator set.

The amount of oil needed to flood the engine compartment is included in the engine technical data

BUY IN "BUY TOGETHER" SETS AND CATCH SAVINGS

Using the Buy together option available above.

You can buy this product in a set with useful accessories.

buy together sets are visible provided that we currently have these accessories in stock, and the offer is not in the Allegro price reduction (then such sets are not visible)

Currently, we have this product in sets to choose from:

• PZU36ie + 1 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac
• PZU36ie + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac
• PZU36ie + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister
• PZU36ie + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister + 1 x Nevada oil suction kit
• PZU36ie + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + 1 x Al-ko canister + 1 x Nevada oil suction kit + 1 x Sync cable - connections 2 PZU 30i units
• 2 x PZU36ie + 2 x Oil with a capacity of 0,6 liters 10w30 Oleo-Mac + + 1 x Sync cable - connections 2 PZU 36ie aggregates
• ( This set is shown in the picture next to )

Specifications
