Elektros generatorius su AVR, 3,5 kW

Trumpai apie prekę

Prekė: Elektros generatorius su AVR, 3,5 kW. Kategorija: Elektros generatoriai.

• Gamintojas: Mar-Pol
• Modelis: M82482
• Įtampa: 230 V

A new design designed for efficiency and versatility of applications.

The QL3500ig inverter generator set is a powerful device for generating electric current. It will work wherever there is no access to the electricity network or there is a temporary lack of it.

The generator produces electric current with a clean, smoothed sine wave, which makes it an optimal and ne replaced solution for ensuring stable operation of demanding devices, such as: controllers of CO furnaces, gas furnaces, solar controllers, control panels of smart homes.

• Ideally suited for emergency power supply: in motorhomes, trucks, Dutch cottages, boats, yachts as well as households or construction companies

Generator with voltage stabilization system, and traditional generator with AVR:

In a traditional generator, voltage drops may occur - the lights dimmed, after which they again glowed at full power. These energy fluctuations are dangerous for many modern and delicate urządzeń.Nagłe power fluctuations can very often be fatal for many devices. You will not experience voltage fluctuations when using the QL3500ig as in aggregates with regular AVR. Our unit has a converter that checks voltage, current and frequency at a frequency of hundreds of Hz, ensuring the safety and efficiency of powered receivers. The device also has overload and low oil sensors to prevent engine damage.

TECHNICAL DATA:

• Max. power (W): 3500
• Rated frequency ( Hz): 50
• Rated voltage (V): 230
• Harmonic distortion: ~ 3%
• Fuel tank: 13L
• Fuel consumption (g/k*h): 400
• Continuous operation time 70% load ( h ) ± 8
• Continuous operation time 50% load ( h ) ± 12
• Power factor: 1 Cosφ
• Noise db (A) : 69 / 7m
• Engine type: 4-stroke
• Capacity 212 cc
• Engine speed ( r/min): 2600 - 3800
• Starter type: manual
• Fuel: PURE PETROL 95 OR 98
• Regulation of engine speed
• Embedded on cushions
• CURRENT STABILIZATION - VOLTAGE AND Frequency

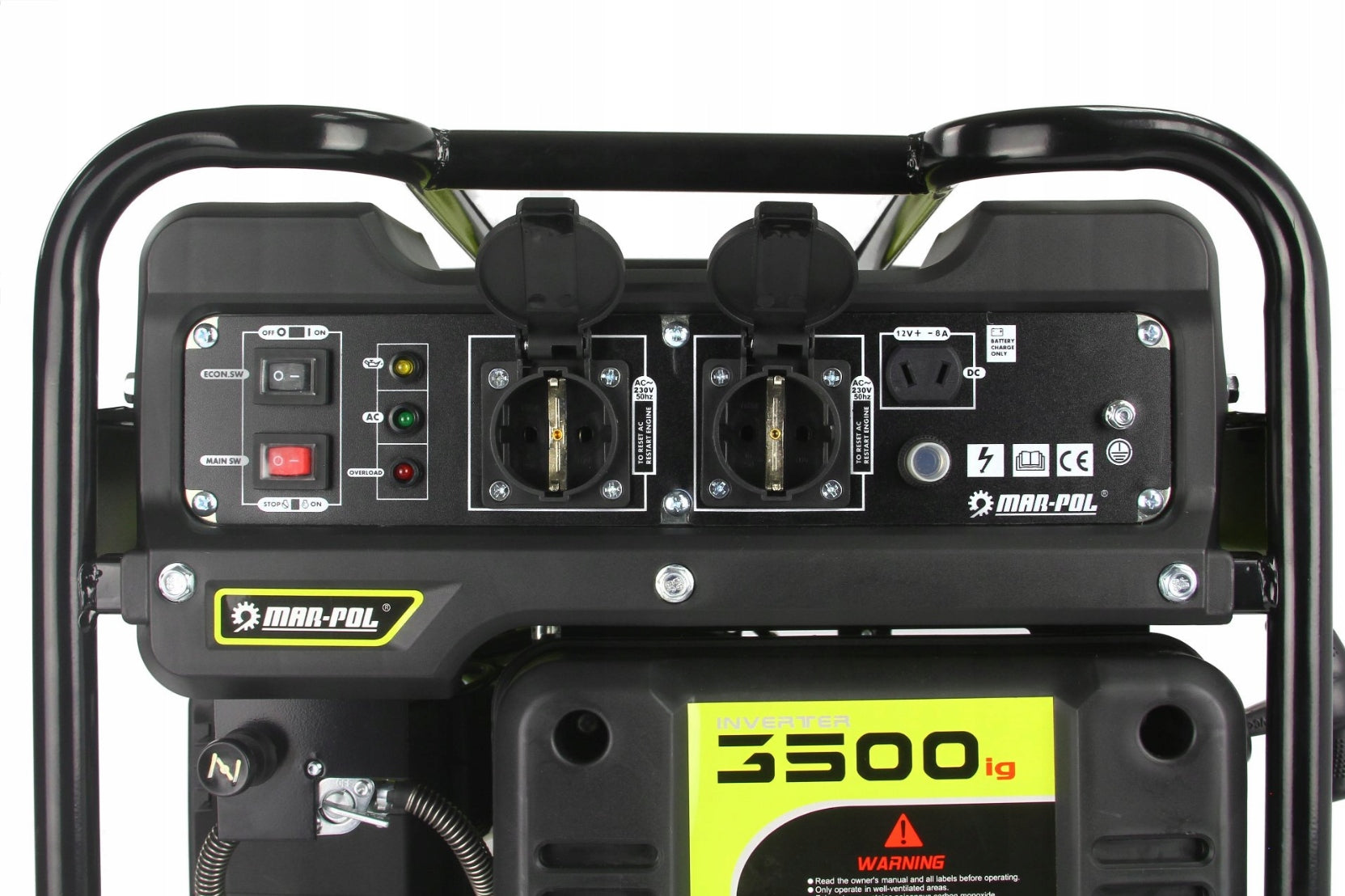

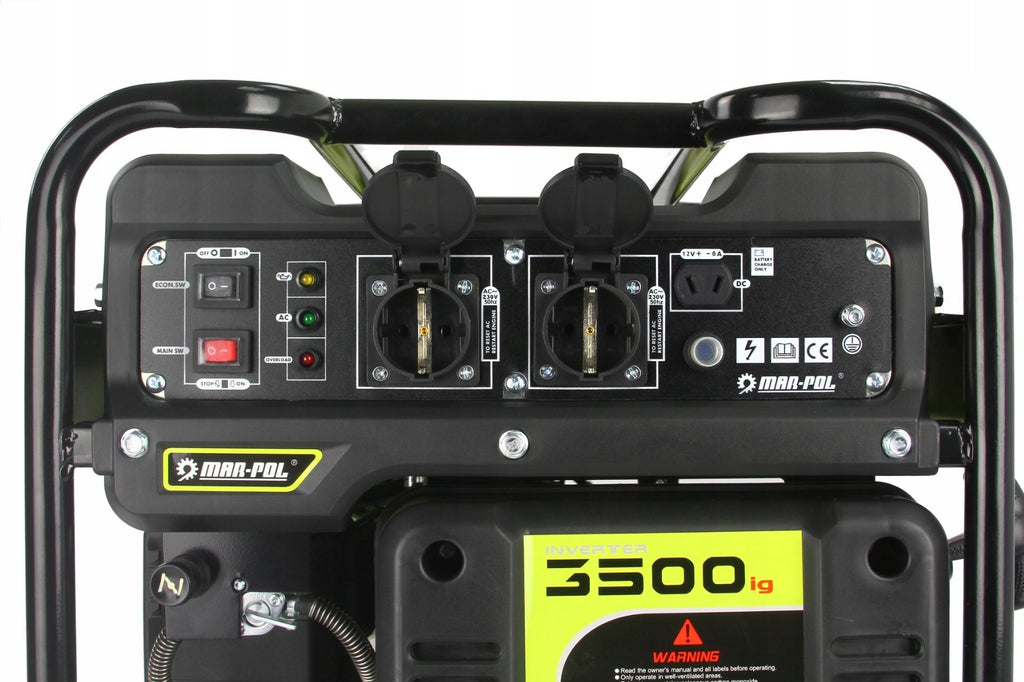

CONVENIENT CONTROL PANEL - The inverter generator is equipped with a voltage indicator, overload indicator and oil level indicator. Thanks to the presence of these indicators as well as a button that turns on the economical mode of operation, the generator is very easy to operate, as well as protected against possible failures and damage.

• 1 x ECO switch
• 1 x ignition switch
• 2 x 230V / 16A socket
• 1 x 12V / 8 A socket (rectifier)
• 1 x 12V thermal

230V sockets protected electronically - after overloading or uncontrolled short circuit, the current disappears (the generator must be extinguished and fired again so that the current appears in the sockets )

The unit is equipped with an efficient gasoline OHV engine. Each engine has a unique serial number, allowing you to control the quality of production and maintenance services. The engines meet all international and European quality standards.

Electrically operated carburetor - The electric carburetor has been introduced to the market, mainly due to its speed of operation. Thanks to the electrical system, it reacts much faster to control than a traditional carburetor for pulls. Thanks to the introduction of electronics into the carburetor, sensors have also been installed to measure engine parameters that affect the operation of the carburetor.
