Elektros generatorius TAGRED 5600W su AVR, ratukais

Trumpai apie prekę

Prekė: Elektros generatorius TAGRED 5600W su AVR, ratukais. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA3500GHWX

The TAGRED TA3500GHWX is a modern and reliable source of energy that will work both at home and in the field. Thanks to its high power, fuel savings and stable voltage, it is the best choice on the market!

➡ Technical data

• Model: TA3500GHX
• Engine: 4-stroke, air-cooled
• Fuel: gasoline PB95
• Oil: SAE30
• Fuel tank capacity: 15 L
• Oil tank capacity: 600 ml
• The unit has a voltmeter
• It has AVR - voltage stabilizer
• Frequency: (Hz) 50
• Voltage: 230V
• Engine power: (7,5hp)5600W
• Maximum generator power: 3,5KW/3500W / 4,38KVA
• Nominal power generator: 3,0KW/3000W / 3,75KVA
• Starting: manual
• Fuel consumption: 0,7 l/h
• Dimensions (L x W x H): 605x430x440 mm
• Weight: 40 kg
• Rectifier: 8,3A
• Oil Level Indicator: YES
• Wheels: YES

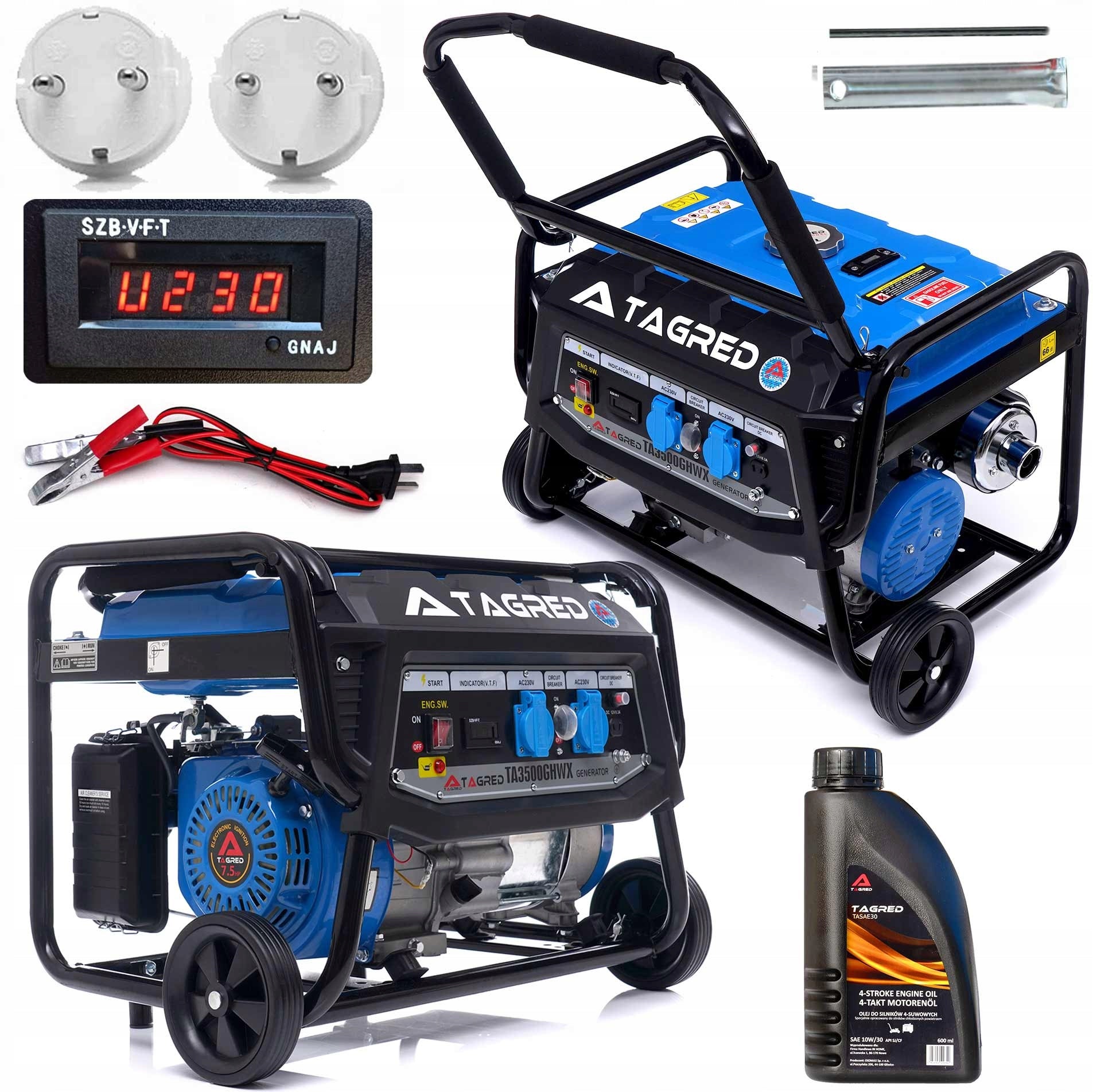

➡ Composition of the set

• Generator set TAGRED TA3500GHX
• Candle Wrench Screwdriver
• Battery Charging Cables
• 2 x Current Plug
• User manual in Polish
• Oil 0,6 L dedicated specifically for engines operating in power generators.

❇ NOTE: ACCESSORIES ARE LOCATED BETWEEN THE ENGINE AND THE FUEL TANK IN THE STRING BAG!

❇ BEFORE STARTING, REPLENISH THE OIL - 600 ML (ONE BOTTLE - is included).

✔ 0,6L oil included!

You will receive a modern oil TAGRED dedicated especially for engines in power generators operating in extreme conditions.

It contains additives that prevent sediment formation inside the engines of devices, which provides them with a much longer service life.

☝ Confirmed increased true power max. generator up to 3500W!

➡ Power and efficiency – up to 3500W!

Thanks to the maximum power of the 3500W generator, the TAGRED TA3500GHX generator will work perfectly in situations requiring power to powerful devices, such as refrigerators, stoves or construction tools.

➡ Ergonomics and fuel economy

Equipped with Intelligent Throttle Technology, the generator automatically adjusts the motor speed to the current load. As a result, it consumes less fuel, generates less exhaust fumes and operates quieter. With an average fuel consumption of 0,7 l/h and a tank capacity of 15 liters, it can run for up to 21 hours on a single refueling.

✔ Easy transport thanks to wheels and handles

The unit is equipped with practical transport wheels and solid handles, which make it easy to carry and move.

Thanks to this, you can easily take it where it is needed – to the plot, construction site or home.

This convenient solution makes transportation fast and hassle-free even with the weight of the device.

➡ Safe and stable power supply thanks to AVR system

Forget about problems with current fluctuations that can damage your delicate devices!

Thanks to the built-in AVR voltage stabilizer, our TAGRED unit provides constant and safe power, ideal for modern equipment such as computers, refrigerators or electronics.

You no longer have to worry about sudden shutdowns, voltage drops or the risk of damage to your equipment.

AVR protects your devices by providing them with longer life and reliable work in any situation. This is the confidence you need in an emergency!

➡️ Smart Throttle Technology (Variable Speed Control)

Unlike traditional generators that operate at a constant speed/RPM, the TAGRED portable generator is equipped with a microprocessor controlled Smart Throttle Technology. This technology adjusts the engine speed to precisely match the load.

When the generator isn't powering many devices, it runs at a slower speed. This reduces fuel consumption, extends engine life, and increases the intervals between refueling. When the load increases, the generator automatically increases speed and RPM, adjusting to the power demand.

➡️ Variable Speed Function

The generator's variable speed function provides several benefits:

• Increases equipment lifespan by reducing engine wear
• Efficiently manages fuel and is economical to operate
• Environmentally friendly

☝ New, stronger, more efficient - reinforced version!

➡ New design - convenience and safety in one!

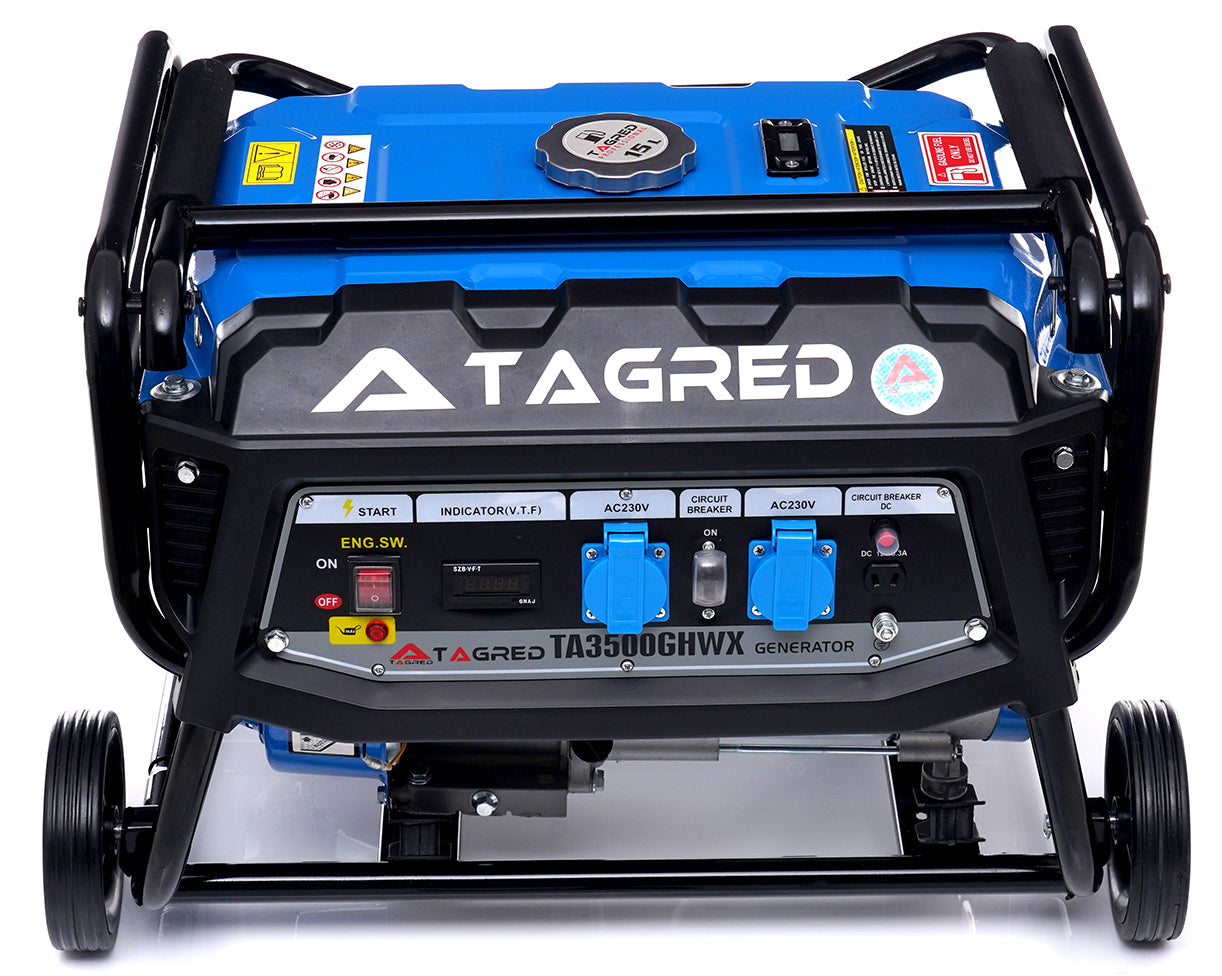

The new panel is equipped with a readable LCD voltmeter, which indicates voltage, current frequency and has a motor-hour meter.

Two solid sockets 230v additionally 12v input for charging batteries.

Fuse which protects generators from overload, additionally covered with a rubber overlay that protects it from various types of dirt (water, sand, etc. ) The battery charging input is also equipped with a fuse.

We will also find oil control and large and convenient ignition switch.

➡️ Copper Alternator!

Features better performance and dissipates heat more effectively, allowing the generator to operate significantly longer than with an aluminum alternator.

Another advantage of the copper alternator is the power output, which is consistent with the device's specifications. In most competing devices with aluminum windings, the power rating is inflated, and achieving the advertised parameters is impossible. Furthermore, aluminum windings are more susceptible to damage and overheating.

The extended alternator core allows for an increased power output of up to 3.5kW starting power.

➡ Versatile use!

High-quality polish generator sets from TAGRED are ideal for emergency power supply:

• home
• offices
• vehicles
• in motorhomes
• trucks, tractors, cars
• at campsites
• on boats, yachts
• in industrial equipment

➡ What devices can you connect?

The unit is perfect for powering:

• Home appliances: refrigerators, freezers, lighting, TVs, electric kettles
• Workshop equipment: angle grinders, drills, jigsaws, paint stirrers
• Construction equipment: water pumps, impact hammers, small concrete mixers.
• Other devices: electric heaters, aprons, industrial vacuum cleaners

Note: When connecting devices with high starting current, such as refrigerators or pumps, remember about the temporary increased demand for power – the unit can handle such a load!

➡️ Japanese-Designed Engine

Characterized by a robust design, high power, and relatively low fuel consumption, typically around 0.7 l/h.

The engine is mounted on rubber cushions that dampen engine operation and reduce vibrations.

The muffler used in this series has been further soundproofed, making the generator significantly quieter than competing generators.

The generator is equipped with CDI ignition combined with a Japanese carburetor, ensuring easy starting and stable operation.

The engine is also equipped with an oil sensor, preventing it from starting without oil. This protects the engine from seizing.

☝ A product that exceeds expectations!

➡ Why choose this unit?

• Stronger, more efficient - reinforced version
• Chrome fuel stopper
• Clear indicator of the level of fuel
• Fuel filter
• Confirmed increased true power max. generator up to 3500W!
• Copper electric generator
• Display LCD
• It is ideal for emergency power supply: home, office, vehicle, in motorhomes, trucks, tractors, cars, in campsites, on boats, yachts, in industrial equipment.
• Reliable and simple in operation.
• Ergonomic and economical.
• Manual start.
• It has a stabilizer AVR.
• CHARGING 12V!
• MUTED muffler chamber
• + Oil 0,6L !

❓ Frequently Asked Questions ❓

1 Where can the TAGRED TA3500GHWX be used?

The TAGRED TA3500GHWX is suitable for use at home, in the office, camping, in motorhomes, on boats, yachts and on construction sites.

2 How does smart throttle technology work?

The microprocessor automatically adjusts the engine speed to the load, reducing fuel consumption and extending the life of the engine.

3 Can I connect sensitive devices such as a computer?

Yes, the AVR voltage stabilizer ensures safe power supply to electronic devices sensitive to current fluctuations.

4 How long can the unit run on one fuel tank?

With a full 15-liter tank, the generator runs up to 21 hours, depending on the load.

5 Is the oil included?

Yes, the set with the unit includes a bottle of oil (with a capacity of 0,6 L). The oil is dedicated specifically to generator motors, which ensures their optimal protection and longer lifespan. One bottle is enough to fully replenish the oil (600 ml) before the first start of the device.

The choice of generator set should depend on your needs regarding the voltage and the type of equipment you want to power. Here are some tips:

➡ How to choose an aggregate for your needs?

First of all, we have to decide what voltage we need 240 v, i.e. a single-phase or 400v unit, i.e. a three-phase unit. If we typically care about single-phase devices, then we should choose such a unit due to the full power on the 230v socket, such a unit will work well with power supply, e.g. Angle grinders, lighting and most rtv devices, agd, so it will be a good choice for emergency power supply to your home. Three-phase aggregates will be an excellent choice for users who need to power devices requiring 400v voltage, such as a table saw, compressor and various construction tools.

Selection of the unit according to demand:

• Single-phase aggregate – maximum power of 3,5 kW, nominal power of 3kW, this power is available both on one socket and on the other. After connecting the device with a power of 1kW to one of the sockets, the power on the second socket is reduced by the given value, i.e. we have to use 2,5kW of starting power and 2kW of nominal power.

• Three-phase aggregate- maximum power 3,5 kW, nominal power 3kW, this power is available on a 400v socket. Most three-phase aggregates on the 230v socket have only 33% of the power because each of the individual phases is transferred to a separate socket and in this case on the 230v socket we would have available only 1000watt of nominal power and 1170 Watt of maximum power, our aggregate is equipped with a power processing system
• "DOUBLE POWER" MEANS ON ONE PHASE WE HAVE 80% OF POWER, AND ON THREE PHASES 100% OF POWER!!!
• It is equipped with a switch that allows you to choose the type of power supply, between 230v and 400v, while obtaining more power on a single-phase socket than competing aggregates, so we have to use 2800Watt of starting power and 2400Watt of nominal power 230V!!!

If we have already chosen the type of aggregate, we should remember that each device draws inrush current of different coefficient.

Devices in relation to inrush current are divided into three types.

1– heat gun, drill, lighting, radio, TV, furnace controllers, in the case of these devices, the power consumed at start-up is equal to the nominal power.

2- angle grinder, fridge, kettle, lawn mower, shears, water pump, for these devices the starting power is twice the nominal power

3- concrete mixer, flow water heaters, compressors, electric motors, pressure washer, air conditioning, in the case of these devices, the starting power is three times the nominal power.

Specifications
