Elektros instaliacijos matuoklis SONEL MPI-507, daugiafunkcis

Trumpai apie prekę

Prekė: Elektros instaliacijos matuoklis SONEL MPI-507, daugiafunkcis. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI507

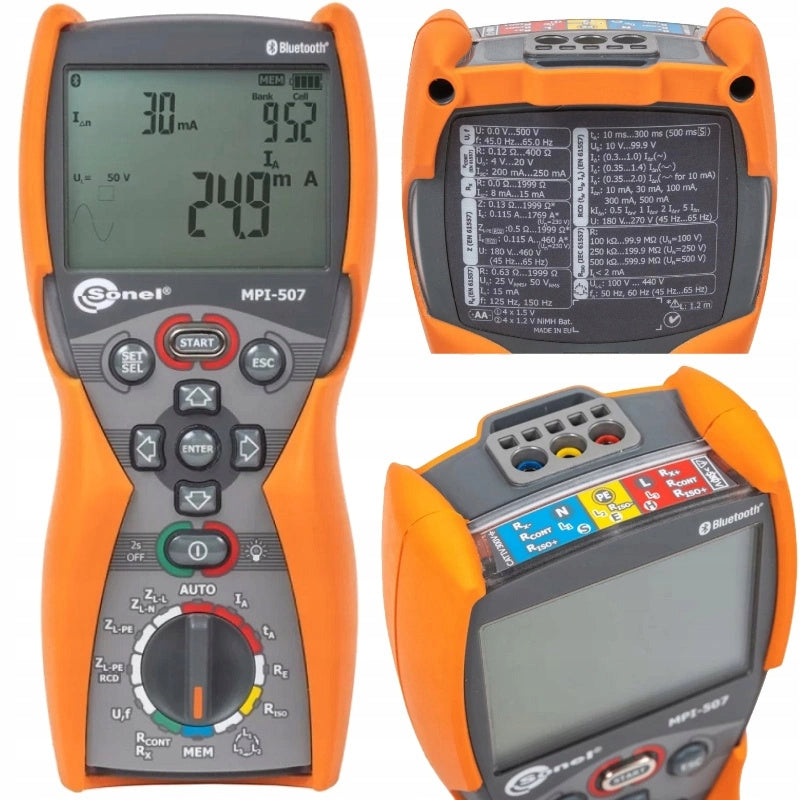

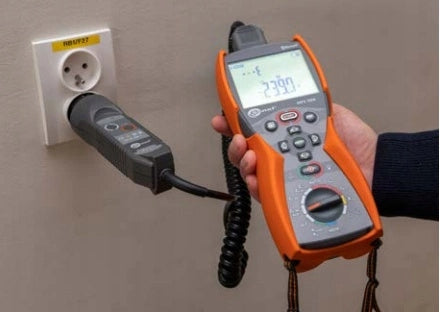

Multifunction Electrical Installation Parameter Meter

SONEL MPI-507

✔️ This device allows you to perform essential measurements of various types, including:

• Short-Circuit Loop Parameter Measurement
• Insulation Resistance Measurement
• Protective and Equipotential Bonding Resistance Measurement
• Earth Resistance Measurement
• Testing of AC and A type Residual Current Devices (RCDs)

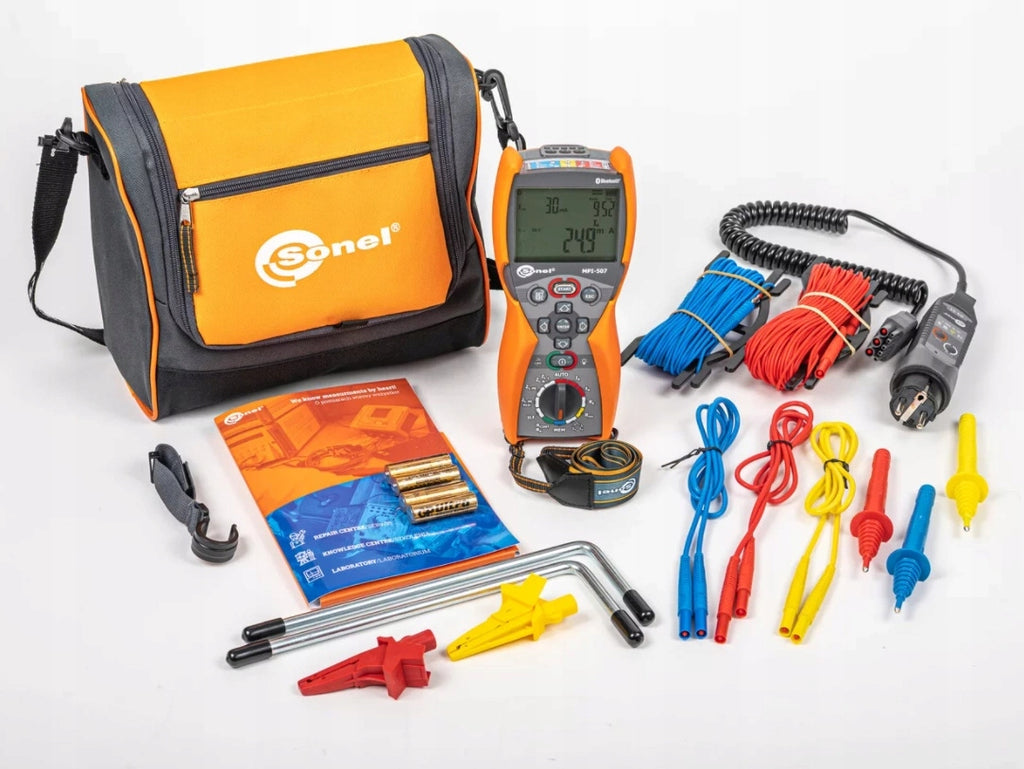

The set includes:

• 1 pc. SONEL MPI-507 Meter
• 1 pc. WS-03 Adapter triggering measurement (UNI-Schuko plug)
• 2 pcs. Crocodile clip 1 kV 20 A red / yellow
• 2 pcs. Ground stake probe 25 cm
• 1 pc. Carrying case
• 1 pc. Meter harness (type M-1)
• 1 pc. 15 m cable on reel for earth resistance measurement, blue
• 3 pcs. 1.2 m cable (banana plugs) red / blue / yellow
• 3 pcs. Test probe 1 kV (banana socket) red / blue / yellow
• 1 pc. 30 m cable on reel for earth resistance measurement, red
• Holder - M-1 housing hanger
• 4 x 1.5 V AA, LR6 alkaline battery
• Calibration certificate
• User manual

The calibration certificate is a document issued free of charge during the meter production process.

It confirms the assignment of metrological properties (calibration) and the maintenance of measurement traceability.

In the calibration certificate, under the date of issue of the document, there is a dotted field: "Date of commissioning". This field is left for the user, in which the purchase date should be entered.

The entered purchase date can be used to determine the next calibration date based on the manufacturer's recommendation below:

The next calibration is recommended up to 12 months from the date of purchase, but no later than 24 months from the date of production or verification.

The next metrological control is carried out by the Research and Calibration Laboratory of Sonel S.A., and the issued document is called - Calibration Certificate.

Features

✔ Measurement of short-circuit loop parameters

• Measurement of short-circuit loop impedance in networks with rated voltages: 220/380 V, 230/400 V, 240/415 V with frequencies 45...65 Hz, operating voltage range: 180...460 V
• Indications of resistance of short-circuit loop R and short-circuit loop reactance X
• Measurement of short-circuit loop impedance with 15 mA current without triggering residual current circuit breakers
• Maximum measuring current: 7,6 A (at 230 V), 13,3 A (at 400 V)

✔ Testing of AC type residual current circuit breakers, A

• Measurement of residual current circuit breakers without delay, short-term and selective with rated differential currents of 10, 15, 30, 100, 300, 500 mA
• Measurement of IA trigger current and tA runtime for 0,5 In, 1 In, 2 In, 5 In currents
• Measurement of RE and UB without triggering RCD
• Extended AUTO function of RCD measurement, with the possibility of measuring ZL-PE with low current
• Measurement of IA and tA with one RCD action

CHARACTERISTICS

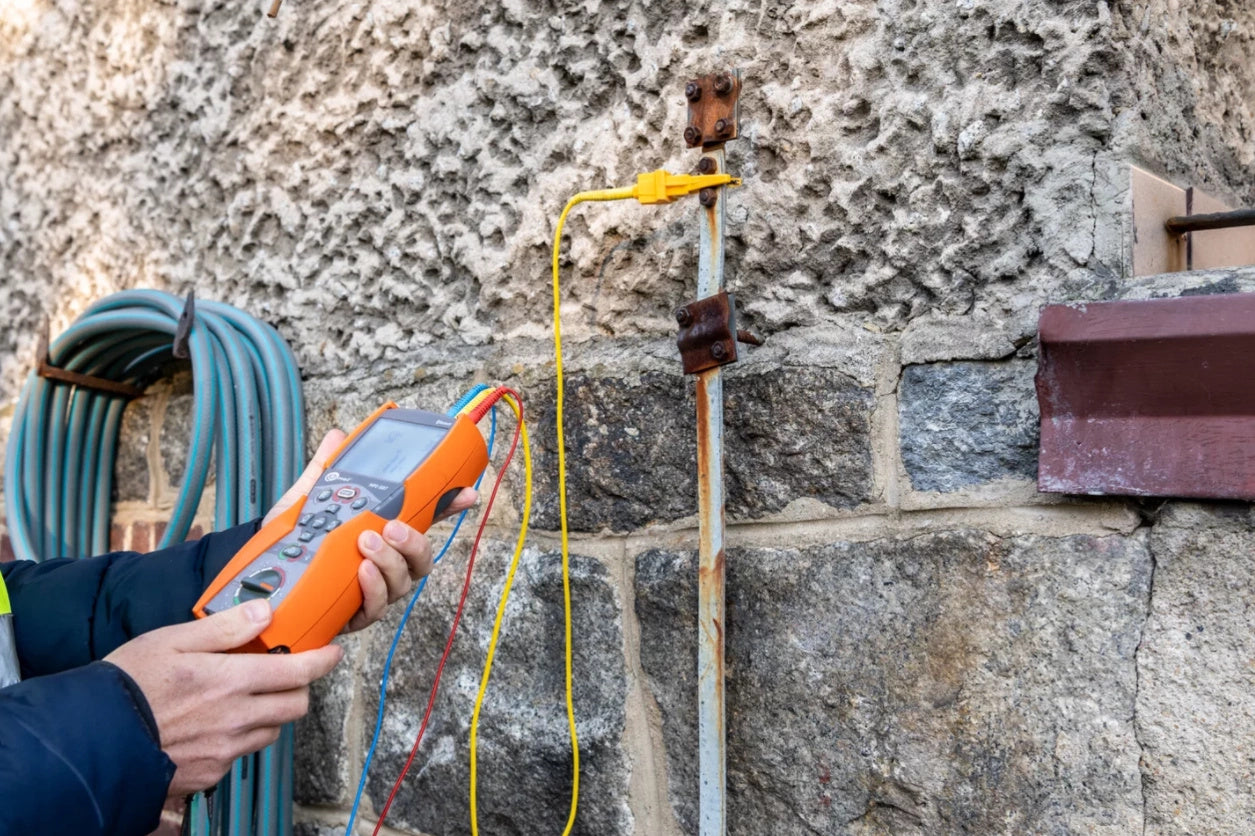

✔ Measurement of ground resistance

• Measurement by 3-wire

✔ Measurement of insulation resistance

• Test voltages 100 V, 250 V, 500 V

✔ Measurement of resistance of protective and compensatory connections

• Measurement of continuity of protective connections with current ±200 mA in accordance with PN-EN 61557-4
• Autocalibration of measuring cables - the possibility of using any wires
• Measurement of resistance small current with sound signaling

✔ Indication of the order of phases

Additional functions

✔️ Checking the correctness of the PE conductor connection using a touch electrode.

✔️ Measurement of voltage (0...500 V) and mains frequency.

✔️ Memory for 990 results.

✔️ Wireless data transmission to a computer.

✔️ Backlit buttons.

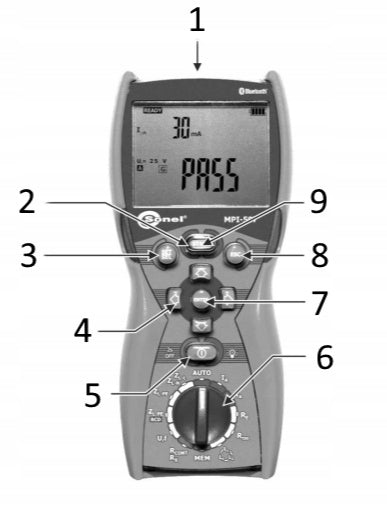

Description of the meter function

1- Measuring socket

2- touch electrode

3- SET/SEL

• input to meter settings
• choosing a number to change

4- Move/select

• right/left, up/down

5- Turning on the meter (press briefly)

• Turn off the meter (press and hold)
• Screen backlight (press briefly)

6- Rotary switch measuring functions

7- Approval of selection

8- ESC-

• Back to previous screen
• Exit from function

9- Starting the measurement procedure

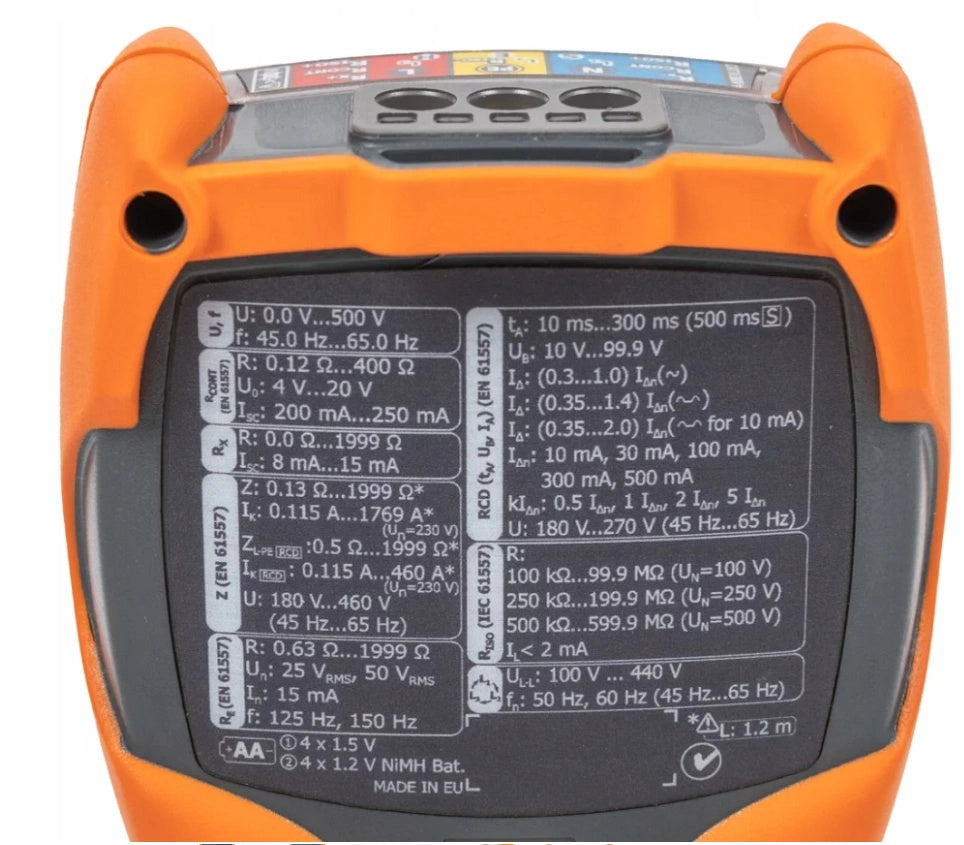

Technical data:

✔ Safety and conditions of use:

• Measuring category according to PN-EN 61010: IV 300 V, III 600 V
• Degree of protection: IP67
• Type of insulation according to PN-EN 61010-1 and IEC 61557: double
• Dimensions: 220 x 98 x 58 mm

✔ Memory and communication:

• Results memory: 990 cells, 10 000 records
• Results transmission: Bluetooth

✔ Other information:

• The product meets the requirements of EMC (emission for the industrial environment) according to the following standards: PN-EN 61326-1 PN-EN 61326-2-2

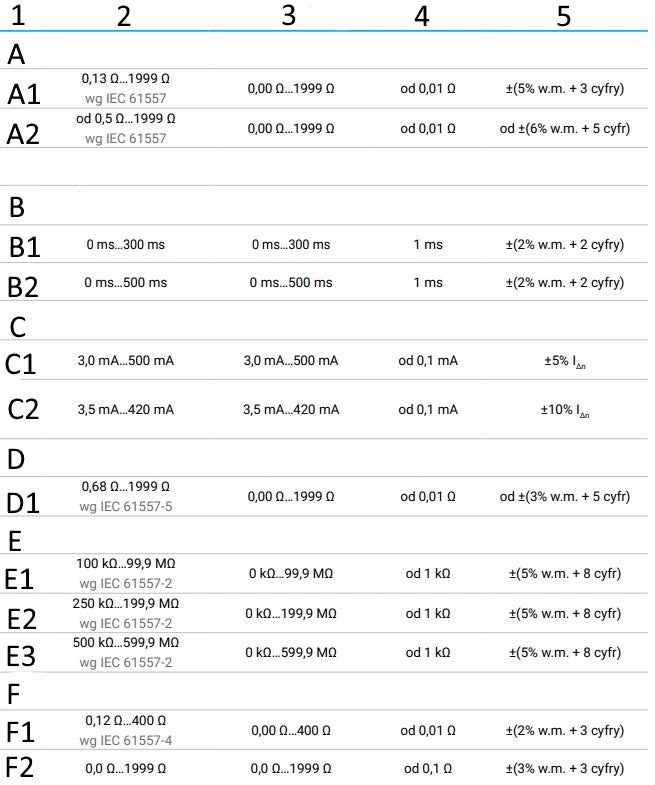

SPECIFICATION

Indications in the table:

• 1- Measurement functions
• 2- Measuring range
• 3- Display range
• 4- Resolution
• 5- Accuracy

A- Short-circuit loop impedance

• A1- Short-circuit loop ZL-PE, ZL-N, ZL-L
• A2- ZL-PE short-circuit loop in RCD mode

B- RCD circuit breaker parameter measurements, RCD shutdown test and tA activation time measurement current 0,5 In, 1 In, 2 In, 5 In

• B1- RCD general type and short term
• B2- RCD selective

C - Measurement of activation current RCD IA measuring current 0,3 In...2,0 In

• C1- for sinusoidal differential current (AC type)
• C2- for 1-way and 1-way differential current with 6 mA DC primer (type A)

D- Grounding resistance

• D1- 3-pole method

E- Insulation resistance

• E1- Measuring voltage 100 V
• E2- Measuring voltage 250 V
• E3- Measuring voltage 500 V

F- Resistance of protective and compensating conductors

• F1- Measurement of continuity of protective and compensatory connections with current ±200 mA
• F2- Measurement of resistance with low current

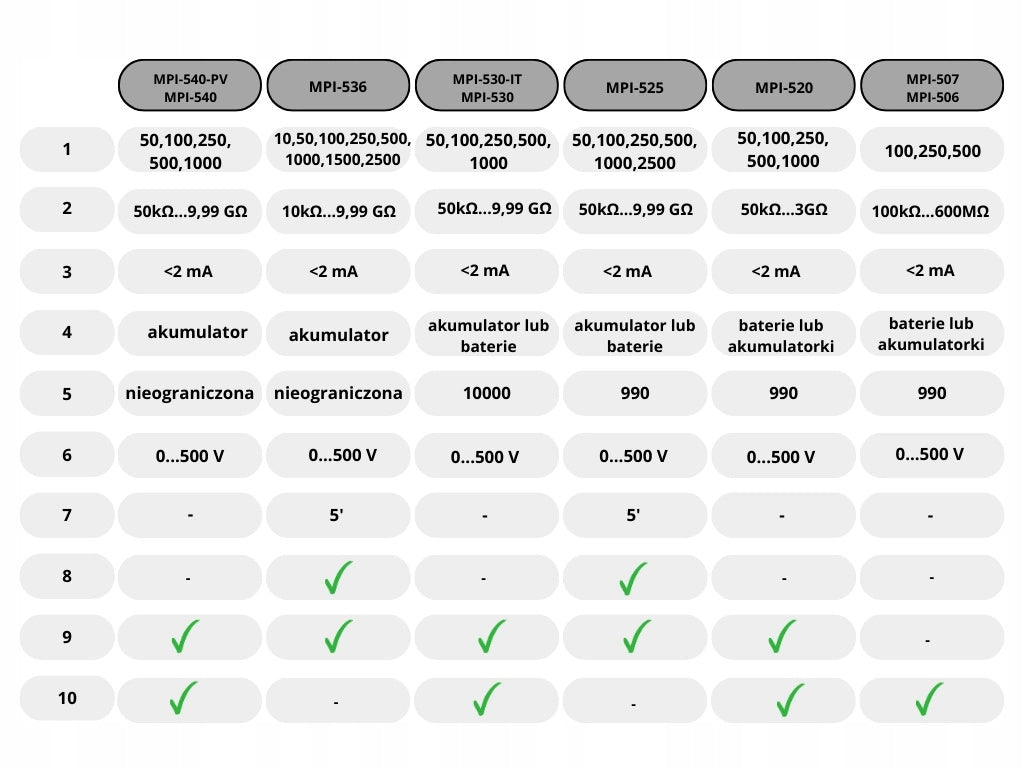

Comparison of MPI measures

Signs in Table

1. Measuring voltage [V]
2. Measuring range
3. Circuit current I sc
4. Power supply
5. Memory (number of records)
6. Voltage measurement
7. Maximum measurement time set
8. Measurement of 2 absorption coefficients
9. Built-in fast charger
10. Automatic measurement in the slot

Specifications
