Elektros skaitiklis NOARK Ex9EMS, 3 fazių, 4 moduliai, 100A, MO 2T, 107297

Trumpai apie prekę

Prekė: Elektros skaitiklis NOARK Ex9EMS, 3 fazių, 4 moduliai, 100A, MO 2T, 107297. Kategorija: Išoriniai moduliai.

• Gamintojas: Noark
• Modelis: 107297

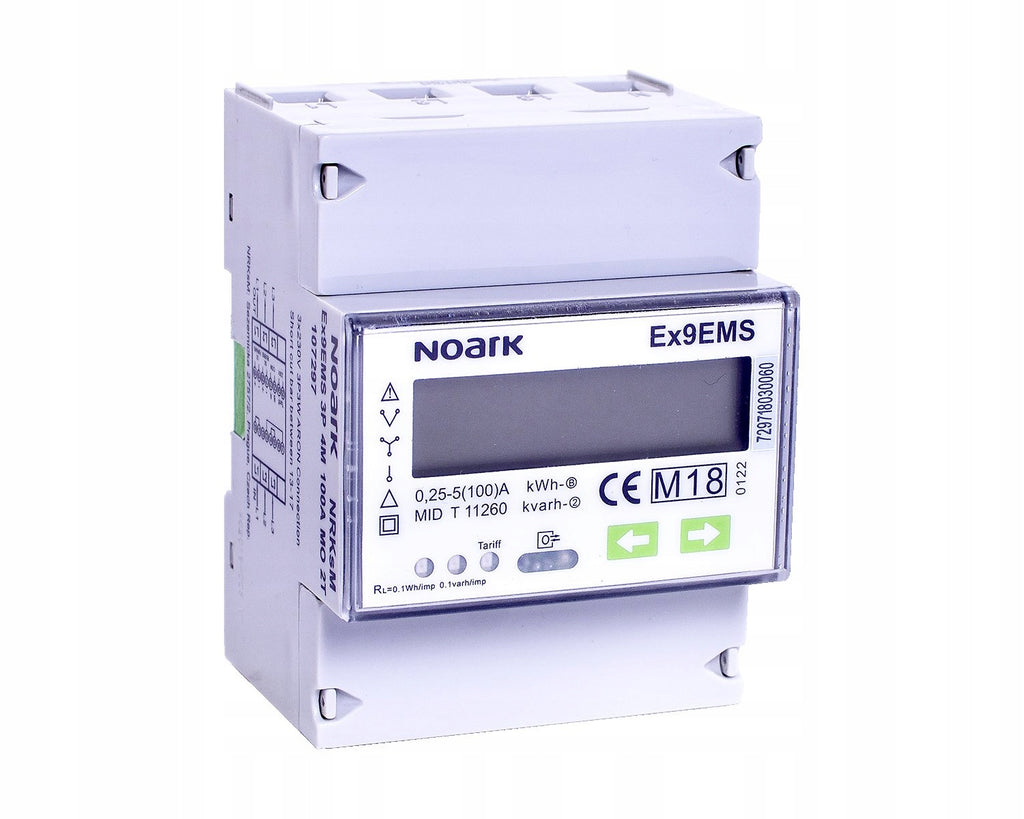

The Ex9EMS 4-module energy meter is a smart device used to measure and read electricity, which is equipped with a bright and easy-to-read LCD display with an infrared eye.

The communication protocol of the presented sub-meter is MODBUS. A very big advantage of the smart meter is the possibility of mounting on the TH35 rail inside the installation enclosures.

It is an excellent electricity meter that will find its application both in industry and in households.

• Producer: Noark
• Type: energy counter
• Counter Type: Electronic
• Accuracy Class: B
• Rated voltage (Un) N-L: 400
• Type of energy measured: Active power
• Number of pulses: 1000
• Mounting method: DRA (DIN rail adapter)
• Interface Type: Modbus
• Number of phases: Three-phase
• Tariff control: External
• Legalized: YES
• Number of counter positions: 3
• Degree of protection (IP): IP50
• Maximum current (Imax): 100
• Rated voltage (Un) L-L: 400
• Counter reversing lock:NOT
• Approval: MID (Measuring Instruments Directive)
• Pulse Output: Electric
• Width expressed as number of modules: 3
• Rated Current (In): 100
• Model:Direct measurement
• Suitable for: Collection/Return
• Number of counter tariffs: Dual-tariff
• Load profile measurement: NOT
• With lock code: YES
• Type of impulse output: S0

• L1 (IN) Phase 1 input - L1 (OUT) Phase 1 output
• L2 (IN) Phase 2 input - L2 (OUT) Phase 2 output
• L3 (IN) Phase 3 input - L3 (OUT) Phase 3 output
• N (IN) neutral line input - N (OUT) neutral line output
• 18 and 19 - Pulse output contact (S0), energy consumed
• 20 and 21 - Pulse output contact (S0), energy output
• 22 and 23 - Modbus communication contact
• 24 and 25 - External tariff output (230V)

Version 100A:

• 10 and 11, 12 and 13, 14 and 15, 16 and 17 - unused

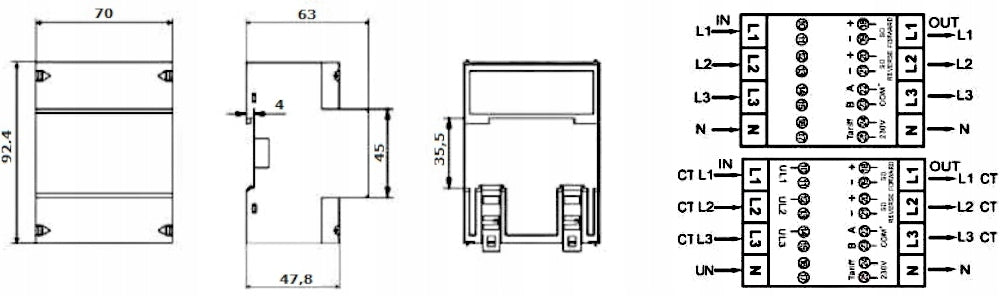

Dimensions:

• Height: 92,4mm
• Width: 70mm
• Depth: 63mm
• Maximum diameter of power connection terminals: 25mm2 (flexible core); 35mm2 (solid core)
• Weight: 0,39 kg
