Elektros skaitiklis su Wi-Fi, 3 fazės, ZAMEL SUPLA

Trumpai apie prekę

Prekė: Elektros skaitiklis su Wi-Fi, 3 fazės, ZAMEL SUPLA. Kategorija: Jutikliai.

• Gamintojas: Supla

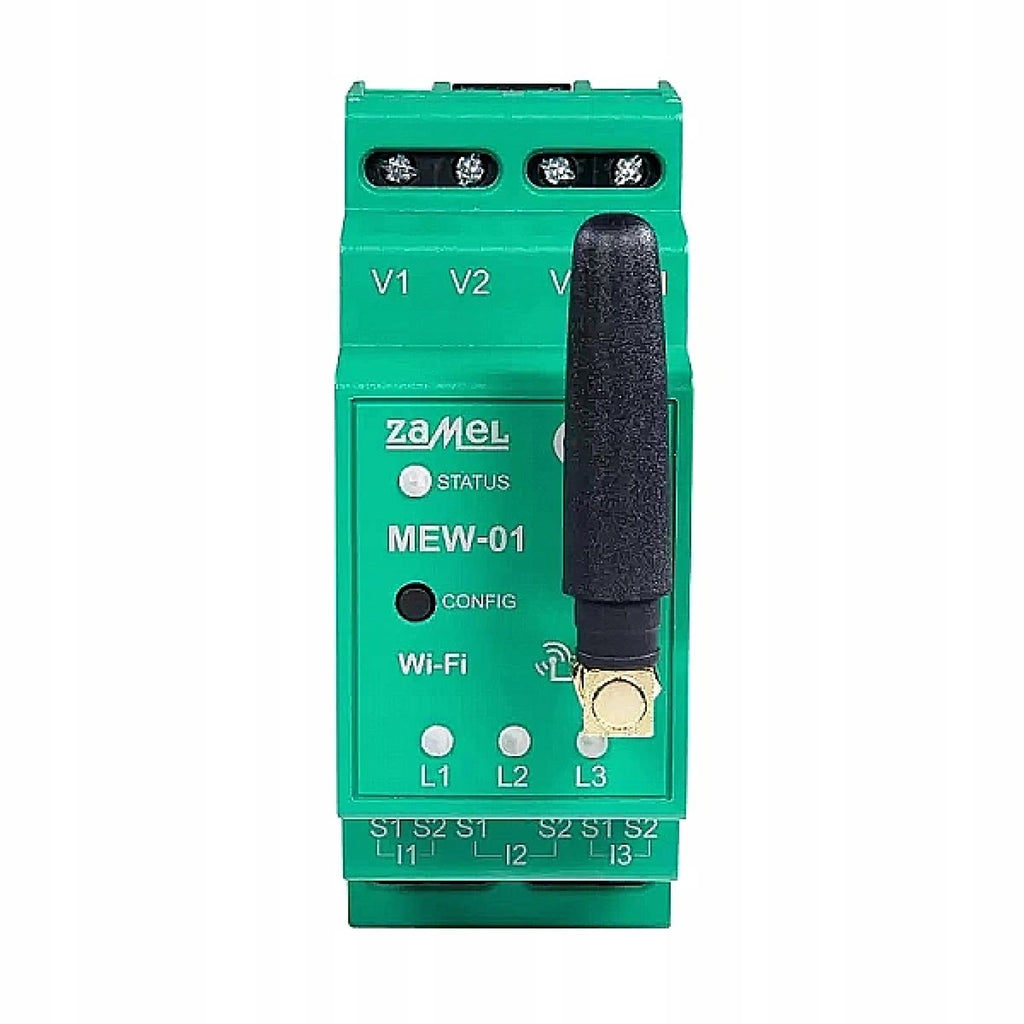

MEW-01 Electricity Monitor with 100A Transformers

ZAMEL MEW-01

✔ Allows you to control energy consumption on your Smartphone or web browser on the SUPLA platform.

✔ Consumption information can be displayed anywhere in the world, just an Internet connection.

✔ Works great for wear control e.g. in apartments and houses for rent.

✔ It does not require additional costs resulting from the creation of a special electrical and telecommunications installation.

✔ The MEW-01 monitor is a 3-phase device, which is easily installed in the electrical switchboard, allows measurement of energy consumption also on 1 phase.

✔ Also used in photovoltaic systems.

✔ An important element is the connection of current transformers 100A and antennas (included in the set).

➡ In many cases, energy monitors require installation already at the construction stage of the facility.

➡ SUPLA devices are easy to install and configure and do not need additional wiring.

➡ The MEW-01 monitor is designed for installation in distribution cabinets on the TH35 (DIN) rail.

➡ If the antenna must be installed outside the distribution cabinet (mainly for metal switchgear), an external antenna (not included) should be used for this purpose.

➡ The device occupies two modules on the rail.

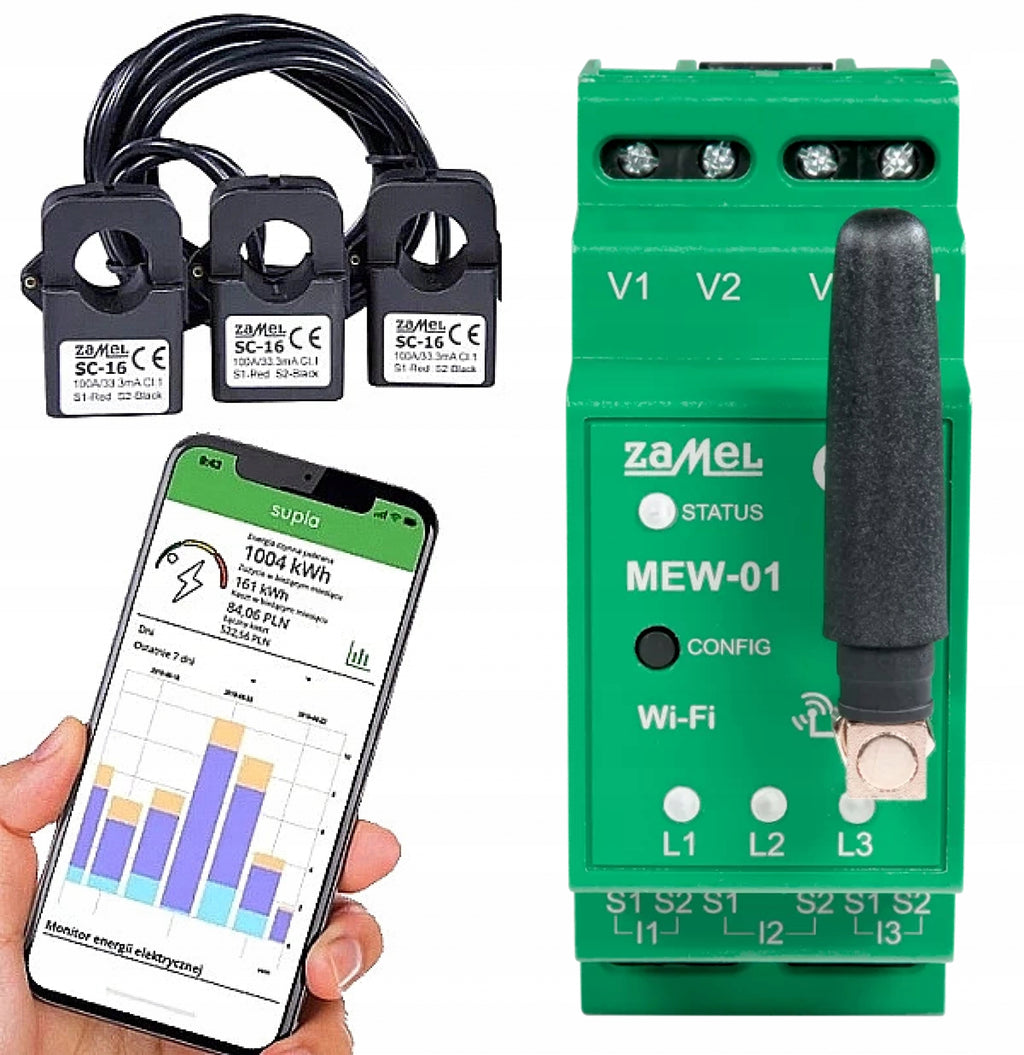

The set includes:

• Electricity monitor SUPLA MEW-01
• 3 Current Transformers with a power of 100A
• Small SMA antenna for use in switchgears
• Operating and commissioning instructions

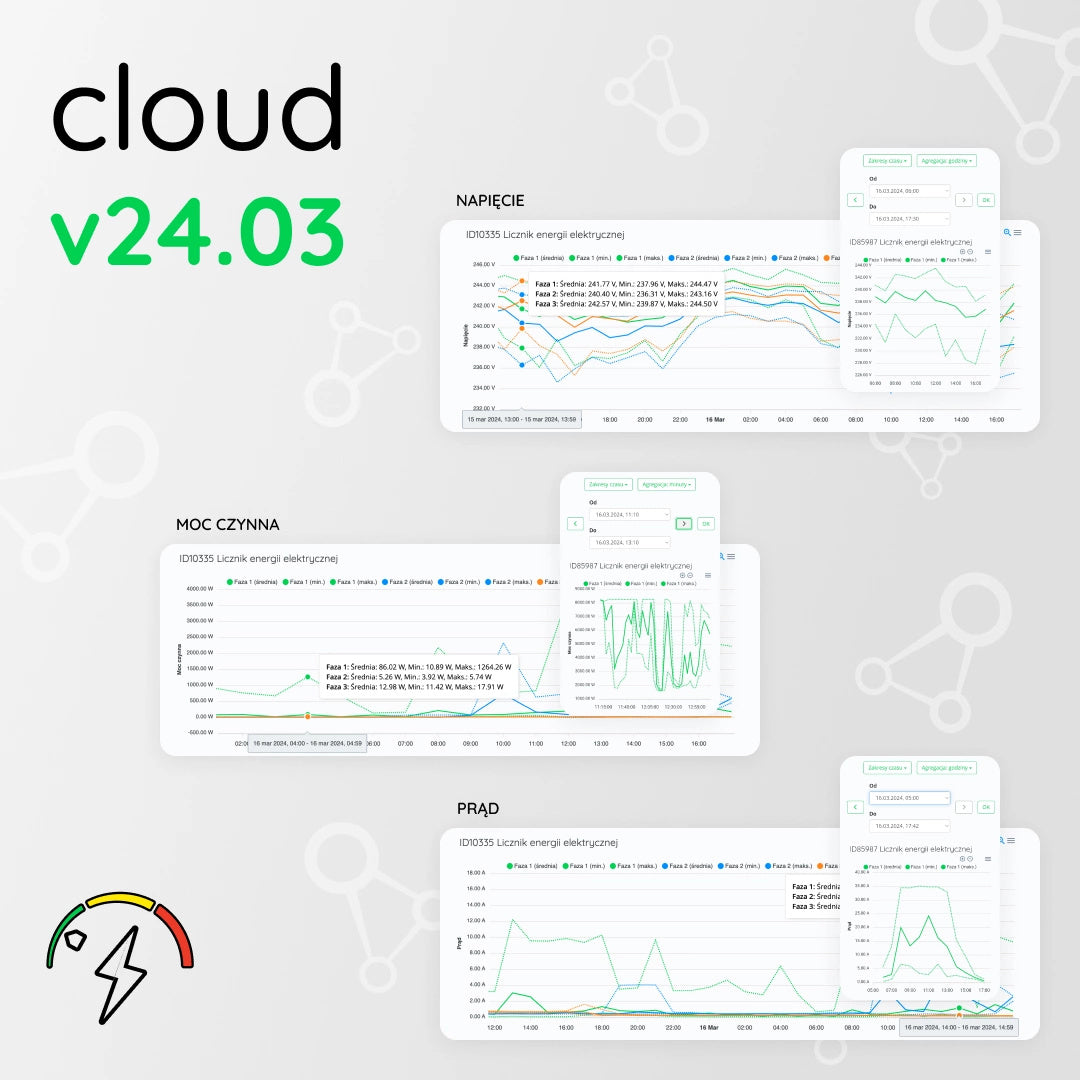

Novelty! History of Measurements

The new update provides measurement history saved on the cloud, soon this functionality will also be available from the application available on Android or iOS

What measurements are saved?

• Tension
• Active power
• Current

This is the perfect solution for owners of photovoltaic installations!

Are you planning or owning a photovoltaic installation?

☀ Using MEW-01 you will get clear measurements that you can check at any time

☀ Counter jest bidirectional thanks to which it presents information about the amount of energy consumed and given away in the application

☀ For MEW-01 to work properly, it must be connected between the inverter and the switchgear a voltage of the Counter should come from the protection of the inverter

Possibilities of SUPLA - control almost every electrical device in your home:

• You can manage your entire home from a single application that gives you access to:
• Settings of roller shutters, opening gates and wickets, controlling lighting, setting LED lighting, monitoring power consumption.
• With schedules you can e.g. set the lighting in front of the house to turn on after sunset or to rollers open in the morning when you usually wake up.

SUPLA communicate over a wireless network.

• This way, you don’t have to invest in expensive building automation controllers.
• Through Wi-Fi you can connect to devices from anywhere in the world.
• No need to worry about bringing additional communication wires to your devices.
• Measurement of electricity consumption and current, voltage, power on 3 phases.
• Ability to measure electricity consumption on 1 phase.

Everything at hand – each of us sometimes wonders whether he turned off the light, stove or kettle after leaving the house.

• Today you don't have to worry about it anymore.
• All you have to do is mount the SUPLA devices and you can immediately check whether everything that should have been turned off.
• Transferring and accessing measurement data in the cloud.
• Download electricity consumption reports to Excel file.
• Data on electricity consumption and measured network parameters (also in the form of charts) presented in the Supla application.

SUPLA community – SUPLA products have a developed community.

• You can share comments and ideas with other users of the system, you can look for support and inspiration in the community forum.
• Join thousands of satisfied users!

Technical data

• Rated voltage: 3 x 230 / 400 V AC
• Voltage tolerance: – 20 % to 15 %
• Rated power consumption: 1,5 W
• Frequency: 50 / 60 Hz
• Measurement accuracy: Class 2 (±2%)
• Transformer parameters: 0,1 – 33,3 mA / 100 A
• Operating temperature range: from -10°C to 55°C
• Power supply optical signaling: LED for each of the power supply phases
• Environmental resistance: IP20
• Maximum wire cross-section: 16mm2
• Housing mounting: TH-35 rail, 2-modules
• Transmission: Wi-Fi 2.4GHz 802.11 b/g/n
• Range of operation: Wi-Fi coverage
• Dimensions: 90 x 35 x 66 mm
• Weight: 0,4 kg
• Compliance with the following standards: EN 61010-1, EN 50470-1, EN 50470-3, EN 301 489-17, ETSI EN 300 328, ETSI EN 301 489-1
• Voltage supply terminals: V1; V2; V3; N
• Current transformer terminals: S1 S2 – I1; S1 S2 – I2; S1 S2 – I3

SUPLA - Your smart home

Building automation systems available on the market are usually very complex, closed and expensive.

In many cases, require installation already at the construction stage of the facility.

SUPLA is simple, open and free.

With SUPLI you can, among other things, control lighting, turn on and off household appliances and electronics, open and close gates and doors, or control the temperature in rooms.

You can do all this with a single swipe.

SUPLA is available wherever you have access to the Internet and have a smartphone or tablet at hand.

Everything is at hand. Anywhere, anytime.

Each of us sometimes wonders whether he turned off the light, stove or kettle after leaving the house.

Today you don’t have to worry about it anymore.

All you have to do is run SUPLA on your smartphone and immediately you can check whether everything that should have been turned off.

If not, you can turn off the lighting/household appliances, close the blinds or close the entrance gate with one swipe of your finger.

Download the app to your smartphone and start your adventure with SUPLA today.

The software is free.
