Energijos matavimo rinkinys ZAMEL MEW-01MRP monitorius su MRP-400 moduliu, 400A

Trumpai apie prekę

Prekė: Energijos matavimo rinkinys ZAMEL MEW-01MRP monitorius su MRP-400 moduliu, 400A. Kategorija: Rinkiniai.

• Gamintojas: Zamel
• Modelis: MEW01MRP+MRP400

DESCRIPTION OF THE DEVICE:

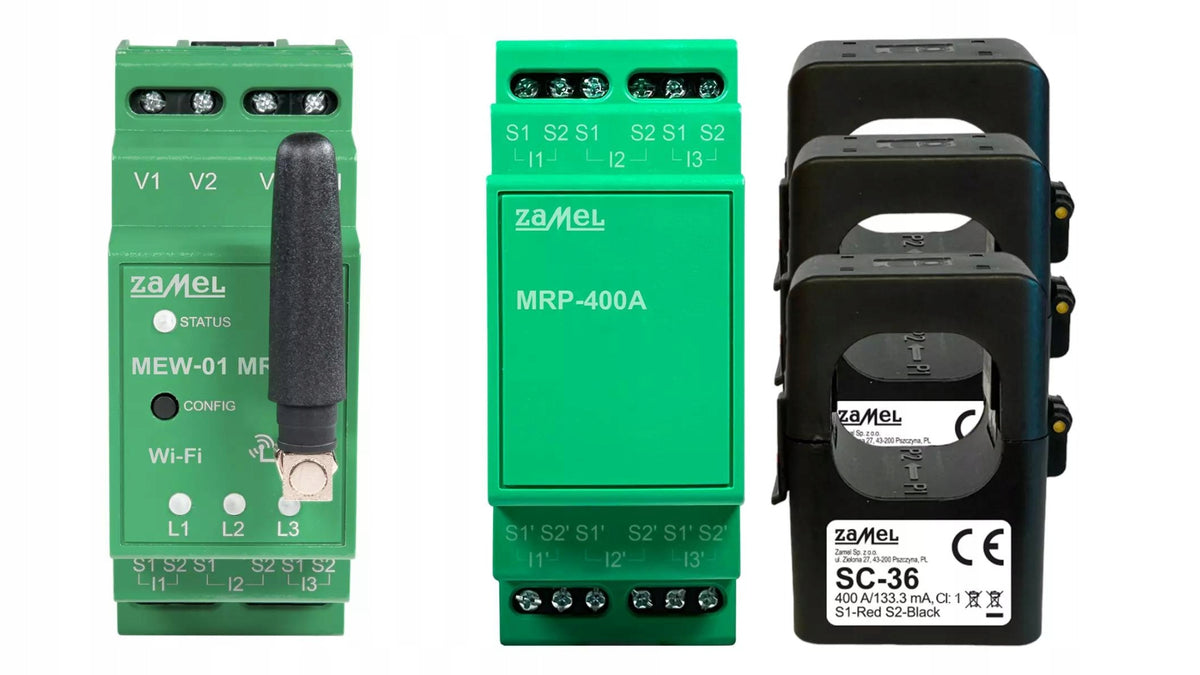

SET consisting of MEW-01 monitor and expansion module with transformers for current measurement 400A SUPLA ZAMEL.

MRP-400A Transformer Extension Modules and

MRP-400A are used to extend the measurement capabilities of the MEW-01 MRP Electricity Monitor.

These devices are manufactured and sold in two

current versions. MRP-200A gives you the opportunity

monitoring of the electrical network where the current

is up to 200 A, MRP-400A up to 400 A. Both devices

are sold complete with current transformers

SC-24 (200A) and SC-36 (400A).

FEATURES OF THE DEVICE:

• extension of the measuring range

MEW-01 MRP Electricity Monitor,

MEW-01, MEW-01 LITE

• easy installation

• three transformers per pack

• maximum cable diameter for

Transformer: 24 mm for MRP-200A;

36 mm for MRP-400A

WHAT YOU NEED TO GET STARTED

• access to the electrical switchgear

• screwdriver / pliers

• cable with a maximum diameter of 2,5

Note!!!

Shipping takes place within two business days/48 hours. from the moment of placing the order. It is made depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If a longer time than the one specified (2 days) is given, i.e. that the product is sold out and we are expecting delivery, usually within 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Returns!!!

Returned products should be without signs of use or assembly, and with unprogrammed functions, i.e. in the condition it was sent (new). In any other case, the refund will be reduced!

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.

TECHNICAL DATA OF MODULES

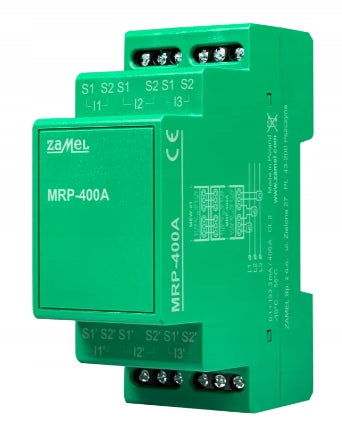

MRP-400A

Input terminals: I1, I2, I3 – monitor connection

electricity

Output terminals: I1’, I2’, I3’ – connection of current transformers

Number of terminals

Connections: 12

Wire cross-section

connection: 0,2 - 2,5 mm2

Tightening torque: 0,4 Nm

Operating temperature: -25 - +50°C

Working Position: Any

Housing Mount: TH35 Rail

Degree of protection of the housing: IP20

Dimensions: 90 x 35 x 66 mm

Weight: MRP-400A: 0,068 kg

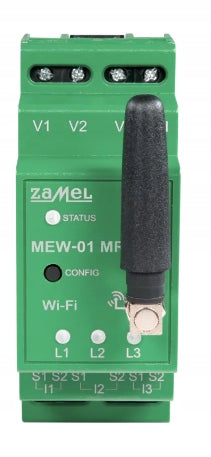

MEW-01 MRP is a version of the Wi-Fi 3F+N electricity monitor, which is designed for use with MRP-200A and MRP-400A accessory transformers. It is used wherever it is necessary to extend the measurement range compared to the standard 3x 100 A.

TECHNICAL DATA OF TRANSFORMERS

SC-36

Maximum continuous

Primary current: 400A

Secondary Current: 133,3 mA

Accuracy: Class 1 Class 1

Insulation Voltage: 0,66 kV

Phase angle: less than 2 degrees at 50% of rated current

less than 2 degrees at 50% of rated current

Frequency: 50 Hz to 60 Hz

Operating temperature: -15°C to 60°C -15°C to 60°C

Wire hole diameter: 24 mm 36 mm

Dimensions: 87 x 43 x 68 mm

Weight: 0,401 kg

Leads: two-core cable:

S1 – red

S2 – black

two-core cable:

S1 – red

S2 – black
