Energijos matuoklis Shelly Pro 3EM 120A V2, WiFi, LAN

Trumpai apie prekę

Prekė: Energijos matuoklis Shelly Pro 3EM 120A V2, WiFi, LAN. Kategorija: Jutikliai.

• Gamintojas: Shelly
• Modelis: 3800238073862

Shelly Pro 3EM – Professional 3-phase DIN rail energy meter with Wi-Fi, LAN, Bluetooth, for advanced energy monitoring and analysis

Shelly Pro 3EM is a three-phase energy meter with DIN mounting, dedicated for professional applications in homes, offices, industry, renewable energy and commercial facilities. It offers precise measurement of energy parameters and network quality in 1- and 3-phase installations, 4-quadrant register and extensive data archiving, integration and export capabilities (LAN, Wi-Fi, Bluetooth, MQTT, Modbus TCP, webhooks).

Applications:

Advanced energy monitoring in residential, commercial and industrial buildings, analyzing energy production/consumption, controlling PV self-consumption, integration with automation, energy cost management.

Key features of the product:

• Measurement of 3-phase network values (or 3 single-phase lines): voltage, current, active and apparent power, power factor, energy consumed and rendered
• 4-quadrant measurement, accuracy class B (IEC 62053-21)
• Registration of historical data – every 1 minute for at least 60 days

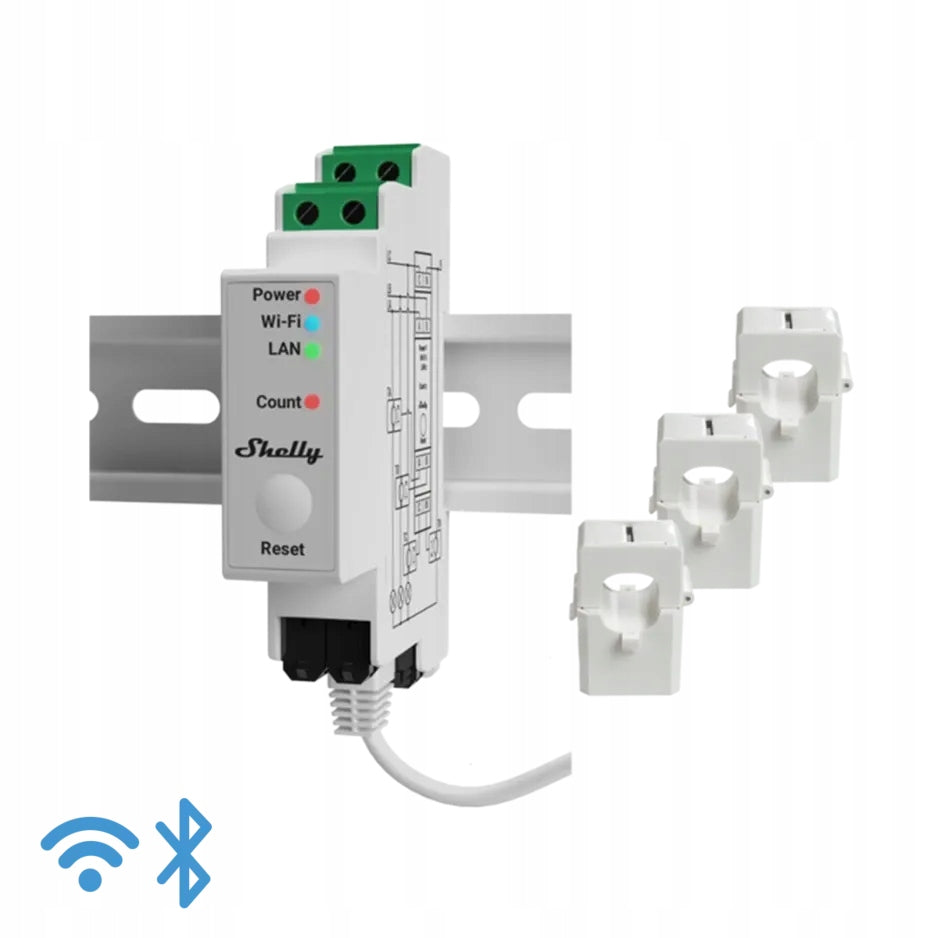

• Support current transformers (CT, up to 120 A) included
• Cooperation with automation via LAN (RJ45), 2,4 GHz Wi-Fi, Bluetooth 4.2, MQTT support, Modbus, RPC, HTTP, webhooks, scripting
• Time synchronization by RTC clock (works even when the network goes down)
• Signal output and programming button, LED indicator
• Detection of wrong phase sequence, channel calibration, alarms
• Expandable with Shelly Pro 3EM Switch Add-on (contactor control)
• DIN mounting, solid, small housing

Technical specification of Shelly Pro 3EM:

• Mounting: DIN rail (94 × 19 × 69 mm), weight 62 g
• Material/Color: White Plastic
• Power supply: 100 – 260 V AC, 50/60 Hz
• Own consumption: < 3 W
• External fuse: characteristics B/C, 16A/6 kA
• Measuring voltage range: 100 – 260 V per phase
• Voltage accuracy: ±1%
• Current measurement: 0 – 120 A/phase (via CT 120A transformers), current accuracy ±1% (2 – 120A), ±2% (1 – 2A), ±5% (0 – 1A)

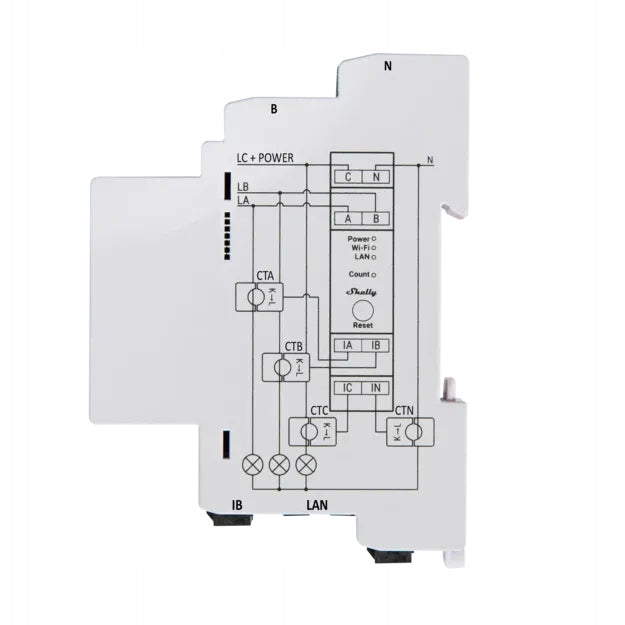

• Support 4 current channels (3 phases + N)
• Minimum calibration threshold: 500 W/phase, minimum detection: 30 VA/phase
• Memory: record a minimum of 60 days of minute data
• Data export: CSV/JSON by RPC
• Outputs/signaling: optical LED (measurement, Wi-Fi/LAN status), programming button
• Operating temperature: -20°C to +40°C
• Humidity: 30 to 70% RH
• Max. installation height: 2000 m above sea level.
• Connectors/wires: 0,5 – 2,5 mm², isolation length 6 – 7 mm, torque 0,4 Nm
• Wi-Fi: 802.11 b/g/n, max. 20 dBm, 30 m indoor/50 m outdoor range
• Bluetooth 4.2: 10 m/30 m range
• LAN: RJ45 port
• CPU: ESP32-D0WDQ6, 16 MB flash
• Features: 20 webhooks (5 URL/hook), scripting, MQTT, alarms, phase state, remote update
• Certificates: Class B, CE, EU and AU/NZ compliance
