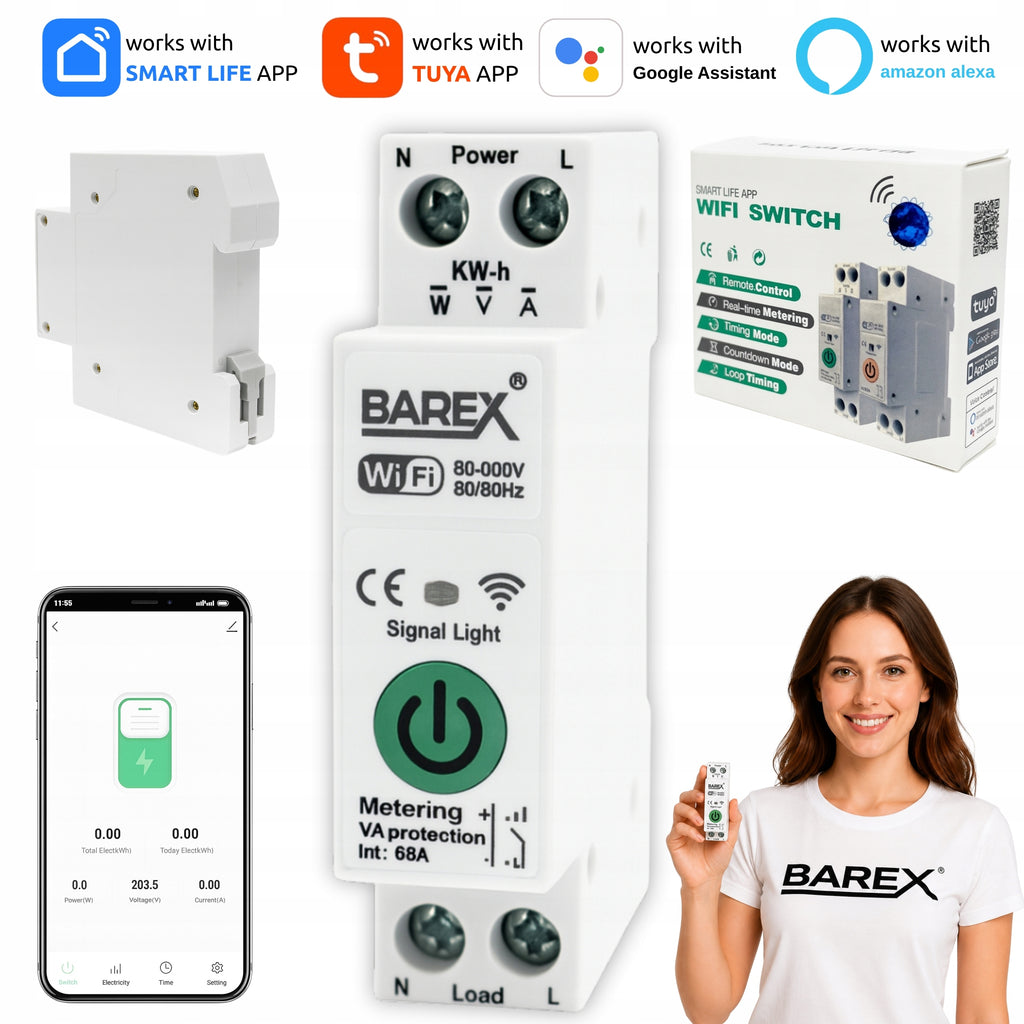

Energijos matuoklis Tuya 63A, vienfazis, WiFi, DIN bėgelio relė

Trumpai apie prekę

Prekė: Energijos matuoklis Tuya 63A, vienfazis, WiFi, DIN bėgelio relė. Kategorija: Automatizavimo moduliai.

• Gamintojas: BAREX
• Modelis: Przekaźnik WiFi 63A

⭐Intelligent energy management

The BAREX / Tuya smart WiFi relay allows you to manage power directly from your phone — remote on and off, work schedules and an ongoing view of power consumption.

Works with Smart Life / Tuya Smart app (Android, iOS) and with Google Assistant and Amazon Alexa. It will work in the home, office, workshop and company.

✅ Application

• Remote control of lighting, radiators, pumps, boilers and air conditioning
• Automation of electrical systems in the home and business
• Real-time monitoring of energy consumption
• Control devices over the Internet from anywhere
• Home, office and workshop applications

✅ Technical specification

• Model: BAREX / Tuya — WiFi smart relay with energy meter
• Working voltage range: 90 – 300 V AC
• Frequency: 50 / 60 Hz
• Contact current (max. instantaneous): to 63 A
• Recommended continuous load: to approx. 40 A (with safety stock)
• Connectivity: WiFi 2.4 GHz (no 5 GHz support), support hidden networks
• Gateway: not required — direct connection to router
• Control: Smart Life / Tuya Smart app (Android / iOS)
• Voice Assistants: Google Assistant, Amazon Alexa
• Functions: remote on. /off, schedules, countdown time, energy measurement, optional disconnection threshold, state memory after power outage
• Measurement range: power (W), voltage (V), current (A), energy (kWh)
• Assembly: on DIN rail
• Material: plastic + copper components Certificates: CE, RoHS

⚙ Activation instructions

• Download the Smart Life app or Tuya Smart (Google Play/App Store).
• Turn on the device and hold the Power button approx. 5 to 10 s until the LED flashes blue (pairing mode).
• Enable 2.4 GHz WiFi and Bluetooth on your phone.
• In the app select "+" → Add device → WiFi switch (Switch).
• Select a WiFi network, enter your password and wait for the connection.
• After pairing, the diode will stop flashing and light up with continuous light.
• Ready — you can control remotely, set schedules and monitor power consumption.

⚙ Contents of the set

• WiFi relay BAREX / Tuya 90 – 300 V
• Operating instructions (EN)
• Original manufacturer's packaging

❗Why is it worth it?

Thanks to the built-in energy meter, you can check the voltage, power and total current consumption of the circuit connected by the relay at any time. You can remotely control the power supply, create schedules and set an optional notification or disconnection when the set threshold is exceeded. It is a convenient way to control wear and comfort of daily use.

⚠ Important technical information. The device is a control relay with a measurement function, and not overcurrent protection within the meaning of the standard. The software disconnect function operates with a delay and does not replace the overcurrent circuit breaker (S) or fuse – these components must remain in the installation. The value of 63 A applies to the instantaneous current of contacts; for continuous operation, the recommended load is approx. 40 A.

❓ Can the device cut off the power itself?

✅ Yes, if the auto-disconnect threshold is set. For remote objects (lot), we recommend disabling this function or a high threshold. It is also worth enabling the option "state memory after power failure".

❓ What to do if the device "suspends"?

⚠ The most common cause is a weak WiFi signal in the switchgear (metal doors dampen 2.4 GHz).

✅ Solutions: router/repeater closer to the switchgear, automatic restart in the application, one-time power reset. In the event of a repeated fault, the device is covered by a warranty – replacement or return as part of the standard Allegro complaint procedure.

❓ I only connect to 2.4 GHz — is that a mistake?

❌ No. The device operates only in the 2.4 GHz band. If the router broadcasts 2.4 and 5 GHz under one name, split the networks or turn off 5 GHz for the duration of pairing. Supports hidden networks.

❓ Do I need a gateway?

❌ No. The WiFi version connects directly to the router. All you need is the Smart Life app or Tuya Smart.

❓ How to fix the clamps so that the cable does not loosen?

✅ It is recommended to clamp sleeve (ferula) on the cable and tighten with moderate torque (without crossing – there is a risk of damage to the thread). After the first week, it is worth checking the clamps. Assembly must be done by a person with permissions.

❓ Can I do the assembly myself?

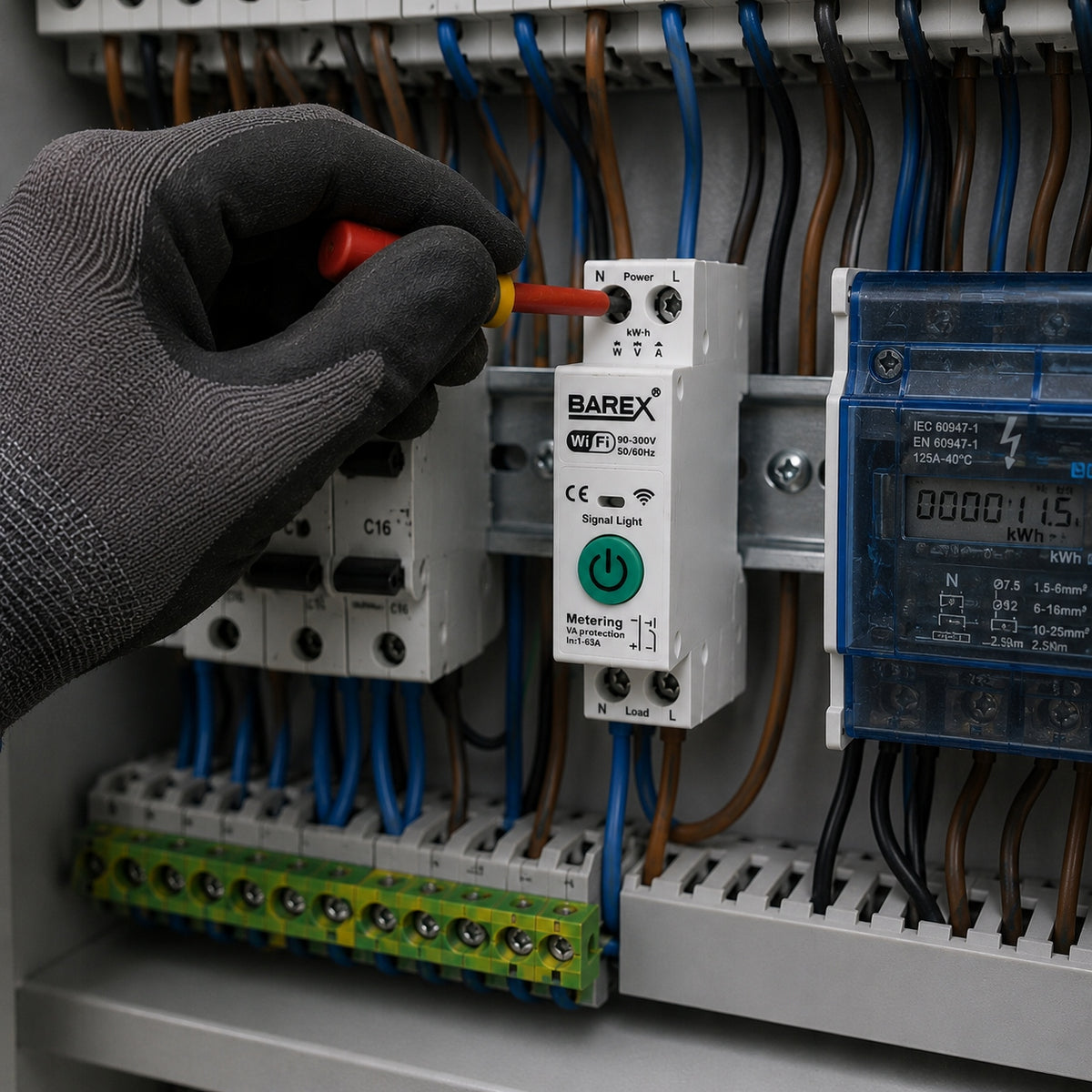

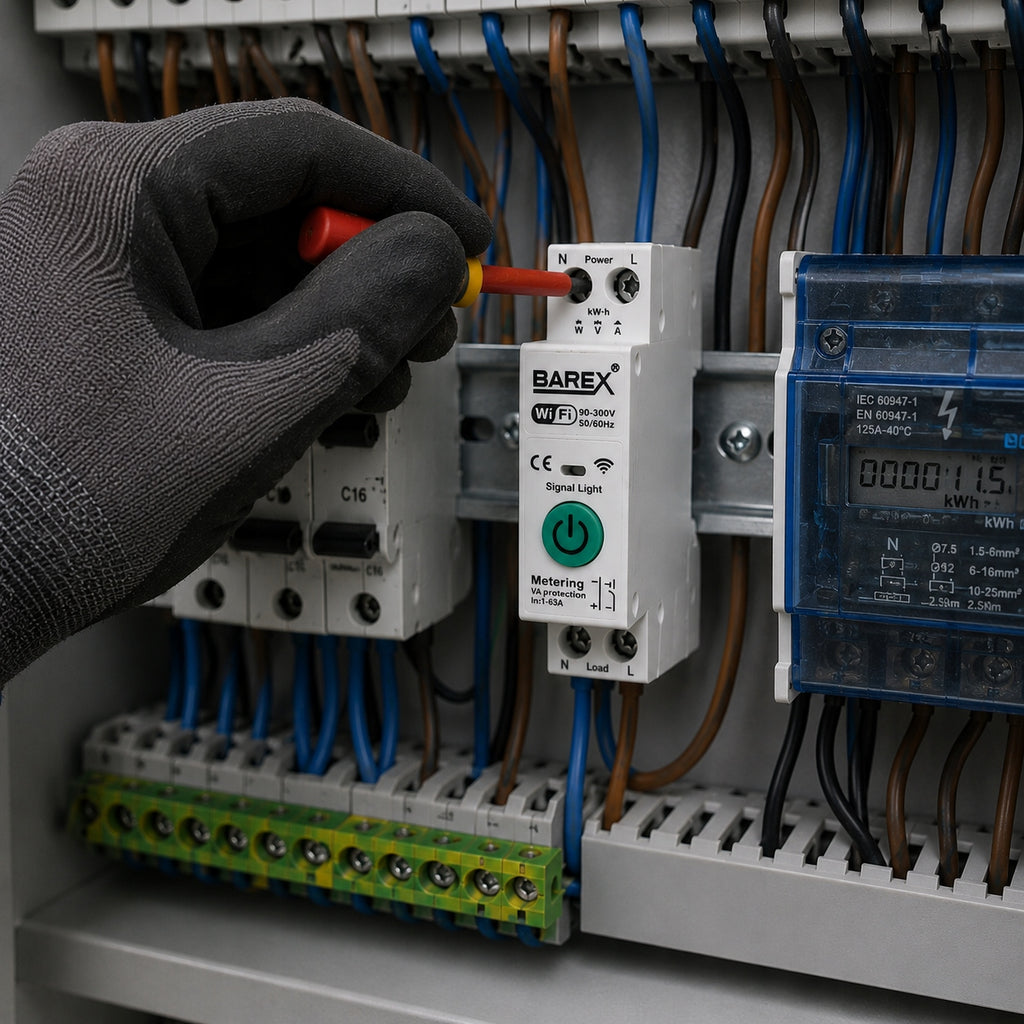

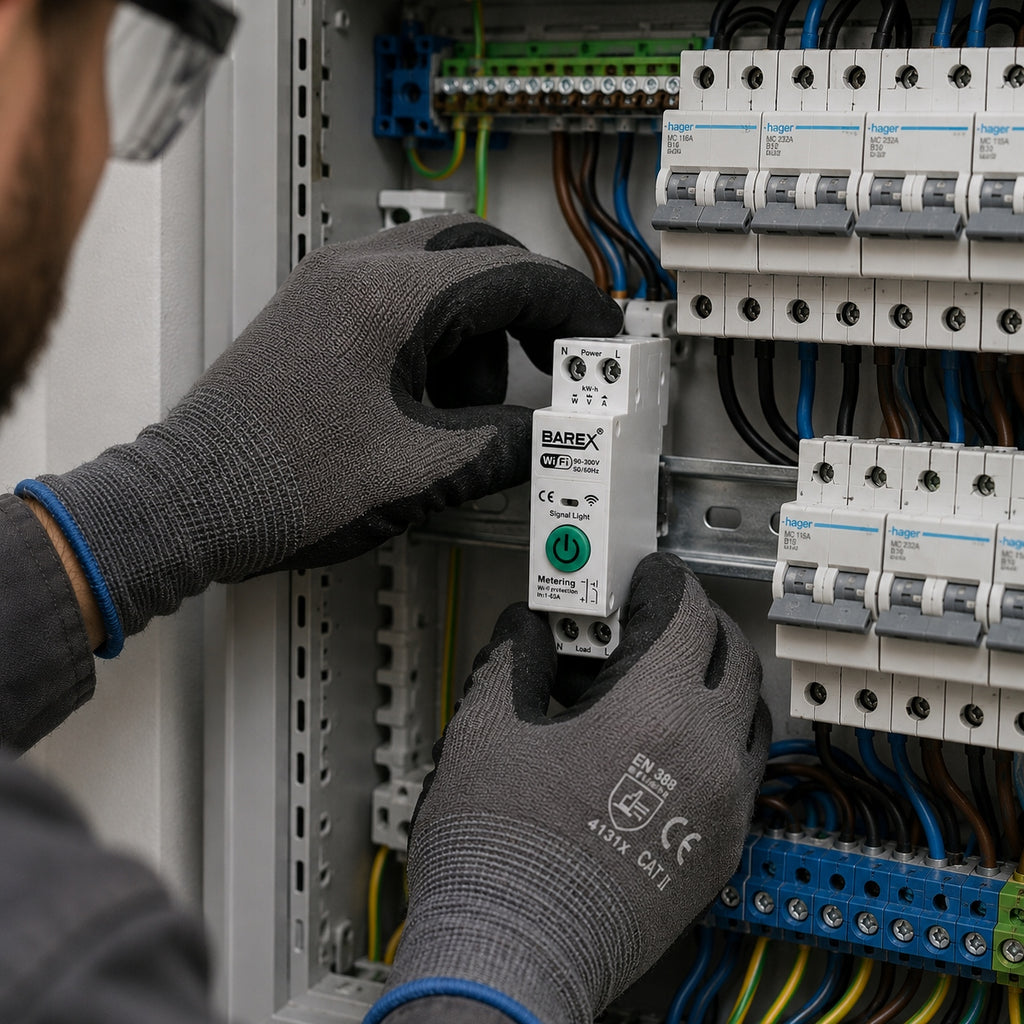

✅ The device operates at a voltage of 230 V and is mounted on a DIN rail.

⚠ The installation should be done by a qualified electrician. Disconnect the power before work.
