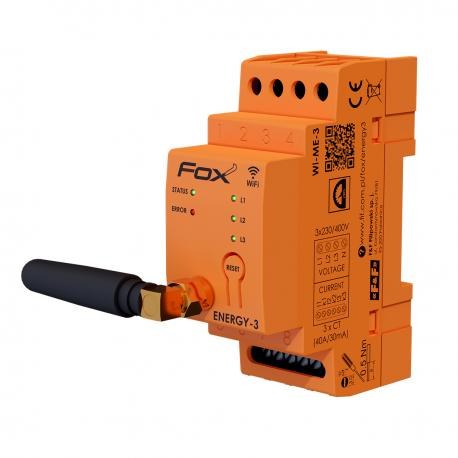

Energijos matuoklis WiFi, trifazis, 200A, WI-MEF-3-200, FOX F&F

Trumpai apie prekę

Prekė: Energijos matuoklis WiFi, trifazis, 200A, WI-MEF-3-200, FOX F&F. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: Wi-MEF-3-200

ATTENTION!

3-phase wi-fi power consumption monitor - ENERGY 3 200A FOX with fuse socket

ENERGY-3-200 - wireless (works in wi-fi network) electricity consumption meter. It records electricity consumption and monitors important network parameters - voltage, current, power, energy consumption. Access to data is possible directly from the application or via a web browser. Communication is seamless via Wi-Fi and the F&F cloud.

Application of Energy-3-200 Monitor (WI-MEF-3-200A)

• Monitoring energy consumption in domestic installations;
• Current measurement of power consumption and values of currents and voltages;
• The use of recorded measurements to detect voltage overruns or power consumption;
• Control of energy production in photovoltaic installations;
• Measurement of heat pumps.

Properties of Energy-3-200 wireless home energy meter (WI-MEF-3-200A)

• 3 phase, 2 way, 4 quadrant electricity consumption monitor, excellent m.in. for the supervision of photovoltaic installations and metering of heat pumps;
• Monitors all relevant parameters of the electrical network;
• Records average, minimum and maximum values;
• Non-invasive installation on measured wires using miniature (40,5×34,5×65,5 mm) current transformers;
• Measuring range up to 200 A, adapted for domestic installations;
• High measurement accuracy;
• Access to measurement history through an application or web browser;
• Communication via home Wi-Fi network. Remote access is guaranteed by Poland F&F cloud;
• Fully polish solution focused on security and protection of user privacy;
• No hidden operating costs and guarantee long-term product support;
• Installation of a wifi monitor-counter in the distribution box (DIN rail);

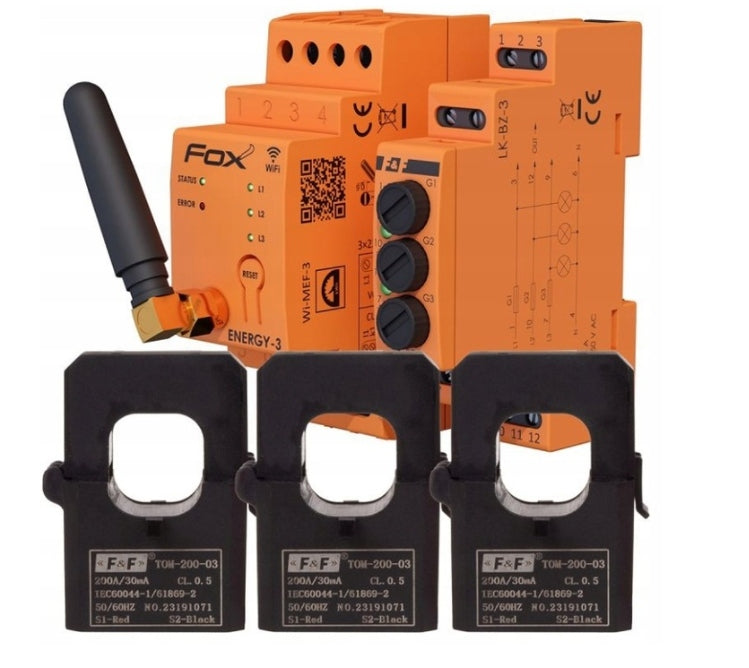

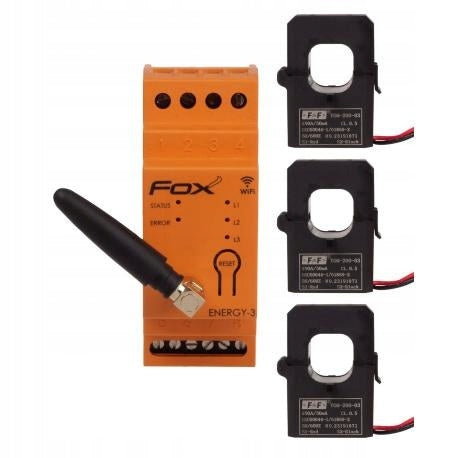

• Comes with 3 current transformers and antenna.

The set together with the device are supplied miniature, openable current transformers. No interference with current wires is required to fasten them on the measured wires. However, special attention should be paid to the way the cable is transferred through the transformer and the connection of the secondary side of the transformer to the device.

Supply Voltage 3× 230/400 V AC (-25%÷15%) Frequency 50÷60 Hz 3-phase installation,4-wire accuracy meter 1% Accuracy - measuring transformers 0,5% Transformers -Primary Current 200 A Transformers - Secondary Current 30 mA Transformers -Cable diameter ≤10 mm Fixed meter 1000 imp/kWh Humidity (non-condensing) ≤ 90% Radio frequency 2,4 GHz WI-FI transmission Radio power (IEEE 802.11n) ≤ 20 dBm Receiver sensitivity -98 dBm Connection screw terminals 2,5 mm² (link);Screw terminals 4,0 mm² (wire) Tightening torque 0,5 Nm Power consumption ≤ 2 W Operating temperature -20÷50°C Dimensions 2 modules (35 mm) Rail mounting 35 mm Protection rating IP20
