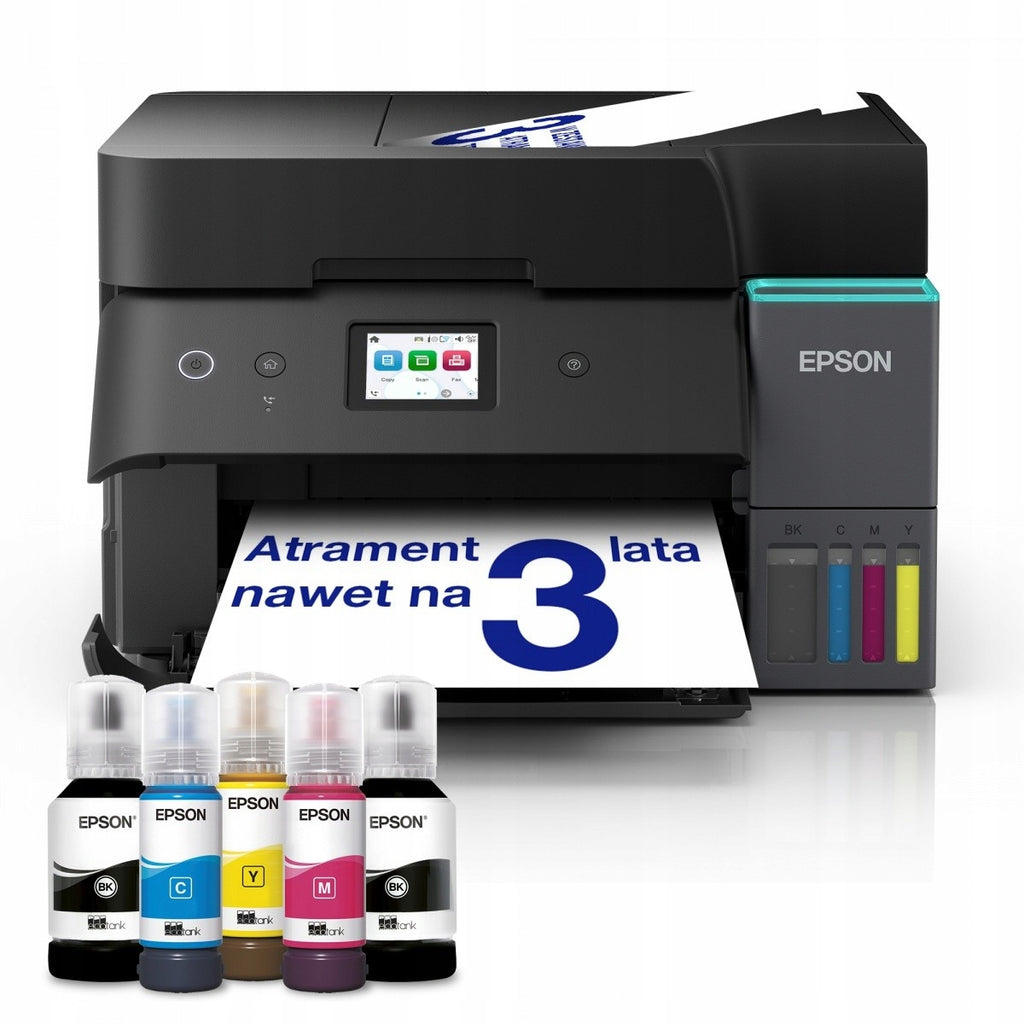

EPSON EcoTank L6390 naudotojo vadovas

Trumpai apie prekę

Prekė: EPSON EcoTank L6390 naudotojo vadovas. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: Epson
• Modelis: EcoTank L6390

EPSON EcoTank L6390 user manual

P/N : C11CL40405

Key Features :

• Save up to 95% on printing costs* with refillable ink tanks Seamless and convenient printing with 63 cartridges in one set of replacement bottles*
• A4 multifunction printer with touch screen, double-sided scanning function and automatic document feeder High-quality double-sided printing and copying, scanning and faxing in one
• Simple, hassle-free permanent ink supply system allows you to refill bottle tanks EcoTank locking bottle system ensures cleanliness
• Reliable wireless printing from anywhere The Smart Panel app from Epson allows you to set up, monitor, print and much more with your mobile device*

Technology

Printing method

PrecisionCore™ Print Head

Nozzle configuration

400 black nozzles, 128 nozzles per colour

Minimum droplet size

3,3 pl

Ink technology

Black pigment ink and colored water inks

Printing resolution

4.800 x 1.200 DPI

Performance

Home Office

Multifunctional

Printing, Scanning, Copy, Fax

Printing

Number of colours

4 colors

Print speed ISO/IEC 24734

18 Str. /min. Monochrome, 9 Str. /min. Colour

Print speed

35 Str. /min. Monochrome (Plain Paper), 23 Str. /min. Colour (plain paper)

Double-sided printing speed ISO/IEC

7 p. A4/min Monochrome, 5 p. A4/min Colour

Time until the first page is received

Black and white8,5 seconds, Colour13,5 seconds

Colors

Black [Pigment], Cyan [Dye], Yellow [Dye], Magenta [Dye]

Colours Capacity

Black [127ml], Cyan [70ml], Yellow [70ml], Magenta [70ml]

Scanning

Double-sided scanning

Yes

Single-sided scanning speed (A4 black)

5 rpm. /min with automatic document feeder and 9 sec fax. with flatbed scan

Double-sided scanning speed (A4 black)

3,5 rpm /min with automatic document feeder and fax

Single-sided scanning speed (A4 color)

5 rpm. /min with automatic document feeder and 21 sec fax. with flatbed scan

Double-sided scanning speed (A4 color)

3,5 rpm /min with automatic document feeder and fax

Scanning resolution

1.200 DPI x 2.400 DPI (Horizontal x Vertical)

Editing formats

BMP, JPEG, PICT, TIFF, Scan to multi-TIFF, PDF, PNG

Scanner type

Image contact sensor (CIS)

Faxing

Type of fax

Ability to send black and white and color faxes

Fax transmission speed

up to 33,6 kb per s/approx. 3 s per page

Quick dial (max. )

100 names and numbers

Page memory

up to 100 pages (Table 1 ITU-T)

Fax functions

Computer Faxing, Automatic Re-dial, Address Book, Multi-Recipient Fax, Fax Preview, Polling Reception

Support for paper/carriers

Paper formats

A4 (21.0x29,7 cm), A5 (14,8x21,0 cm), A6 (10,5x14,8 cm), Letter, B5, B6, No. 10 (envelope), DL (envelope), C6 (envelope), 10 x 15 cm, 13 x 18 cm

Double-sided

Yes (A4, plain paper)

Printing margin

0 mm upper, 0 mm right, 0 mm lower, 0 mm left (If margin is defined. Otherwise, 3 mm upper, left, right, lower).

Automatic document feeder

30 pages

Capacity of paper feeder

30 Sheets

Capacity of paper tray

250 Sheets As standard

Appropriate paper weight

64 - 300g/m²

Paper compatibility may vary from printer to printer. Third-party substrates may not be compatible. Information about the relevant Epson paper can be found in the online printer manual. Please note that, where applicable, 300 g/m² is based on glossy Epson Ultra Glossy Photo Paper

Print media processing

Double-sided automatic document feeder (A4, plain paper), Double-sided automatic document feeder for scanning (A4, plain paper), Automatic double-sided printing (A4, plain paper), Marginless printing

General information

Recommended number of users

From:1 This:4

Energy consumption

15 W (autonomous copying, standard ISO/IEC 24712), 0,7 W (sleep mode), 7,4 W Ready, 0,1 W (off), TEC 0,1 kWh/week

Power supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

375 x 347 x 240 mm (Width x Depth x Height)

Product weight

7,3 kg

Compatible operating systems

Mac OS X 10.9.5 or later, Windows 10 (32/64 bit), Windows 11, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2008 (32/64 bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Connections

USB, Ethernet, Wi-Fi Direct, IEEE 802.11a/b/g/n/ac Wireless LAN

Security in the WLAN

WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES), WPA3-SAE(AES)

Printing services from mobile devices and in the cloud

Apple AirPrint, Mopria, Epson Smart Panel App, Epson Connect (Email Print, Remote Print Driver), Epson Connect (Email Print, Scan-to-Cloud)

Power supply

220 V, 240V

Colour

Black

Other functions

LCD display

Type: Color, Touch screen, Diagonal:6,1 cm

Printing languages

ESC/P-R

Performance of the included container

Black ink yield

15.100 pages

Color ink yield

5.500 pages

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	C11CL40405
Parametry	Brand	Epson
Parametry	Model	EcoTank L6390
Parametry	Type	multifunction printer
Parametry	EAN (GTIN)	8715946733265
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Customs tariff code	84433100
Parametry	Product weight with unit packaging	10 kg
Parametry	Device color	black
Parametry	Product width	37.5 cm
Parametry	Product depth	34.7 cm
Parametry	Product height	24 cm
Parametry	Printing technology	inkjet (color)
Parametry	Maximum paper format	A4
Parametry	Ports	USB typ B
Parametry	Paper tray capacity (sheets)	30
Parametry	Paper receiver capacity (sheets)	30
Parametry	Black print speed	35 str./min
Parametry	Color print speed	23 str./min
Parametry	Black print resolution (dpi)	4800 x 1200
Parametry	Color print resolution (dpi)	4800 x 1200
Parametry	Paper grammage	64–300 g/m²
Parametry	Included consumables	ink (starter)
Parametry	Scanner sensor type	CIS
Parametry	Scan resolution (dpi)	1200 x 2400
Parametry	Scanner format	A4
Parametry	Communications	LAN,USB,Wi-Fi
Parametry	Print functions	auto duplex print,borderless printing
Parametry	Additional features	continuous ink supply,display
