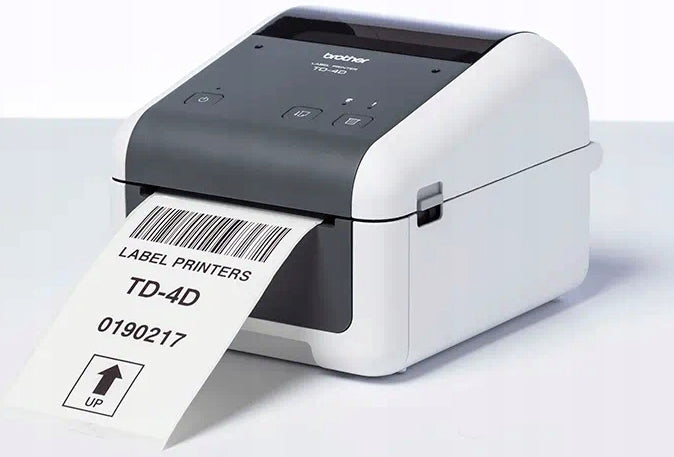

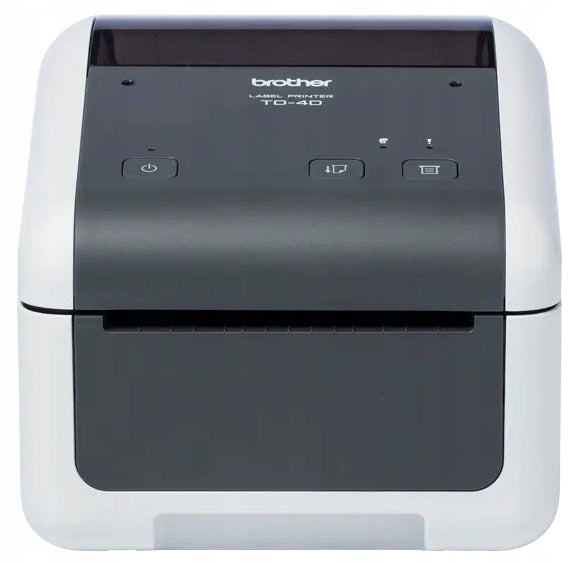

Etikečių spausdintuvas BROTHER TD-4210D, terminis

Trumpai apie prekę

Prekė: Etikečių spausdintuvas BROTHER TD-4210D, terminis. Kategorija: Kiti spausdintuvai.

• Gamintojas: Brother
• Modelis: TD4210D

High Quality Thermal Printer Labels For Printing:

labels, barcodes, courier labels, etc.

+

P-Touch Editor LABEL PRINTING SOFTWARE

High print quality at resolutions up to 203 dpi

Printing speed up to 5 inches per second (127 mm/s)

Print width up to 4,09 inches / 104 mm

Thermal printing technology

Built-in 1D and 2D barcodes

Easy to set up, thanks to automatic media configuration

Popular printer command languages are supported, including ZPL2, EPL2, and DPL emulations.

The TD-4210D desktop label printer is ideal for printing clear and easy-to-scan labels.

This cost-effective Brother TD-4D series printer, also designed for continuous tape label printing, is an excellent choice for efficient labeling.

The printer can print courier labels of all courier carriers, e.g. ALLEGRO ONE, DHL, DPD, FEDEX, GLS, INPOST, ORLEN PACZKA, POCZTEX, UPS and others.

Print from a Windows computer

Custom labels can be easily created using the Brother P-touch editor. Add company logos and built-in image symbols to your labels. Not to mention downloading data from Excel when printing large batches of labels.

Effortless integration

Multiple printer command languages are supported for ease of integration, including ZPL2, CPCL, ESC/P, EPL2, and DPL2 emulations, which enables integration with legacy systems.

Software support

Brother provides developers with tools to integrate print applications. Printer drivers are available for Windows operating systems. You can get developer toolkits to put labels into existing programs. A set of tools for developers to purchase here: brother. eu/developer

Self-expansion

TD4210D allows you to expand the printer yourself with optional accessories such as a peeler or cutter. We will also replace the interchangeable elements ourselves, such as a pressure roller or a print head.

TECHNICAL SPECIFICATION

General

• Buttons: Power supply, Serve
• LED: Printer status
• FRAME: 256 MB
• Technology: Direct thermal printing

Printing

• Bitmap fonts: Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels, Gothic
• Label detection sensor: Yes
• Maximum width of label carrier: 118 mm
• Minimum width of label carrier: 19mm
• Maximum printing width: 104 mm
• Maximum printing length: 3000 mm
• Minimum print length: continuous mode 6,4mm, peel-off mode 17mm, peel-off mode 18mm, clipping mode 20mm
• Maximum roll diameter: 127mm
• Minimum diameter of roller core: 12,7mm
• Resolution (dpi): 203
• Standard printing speed: 127 mm per second
• Supported commands: Raster, ESC/P, Ptouch templates, emulationZPL2, EPL2, DPL & CPCL

Connection

• Serial: RS-232C Series (DB9 male)
• USB interface: USB Ver. 2.0 (Full Speed) Type B

Embedded barcodes

• 1D: CODE 39, ITF (I-2/5), EAN-8 (JAN8), EAN13 (JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128 (UCC/EAN 128), GS1 Databar, CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
• 2D: QR code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Cut, MicroPDF417) Data Matrix (ECC200 Square, ECC200 Rectangle), Aztec

Environment

• Working temperature: 5ºC - 40ºC
• Working humidity: 20% - 85% non-condensing
• Storage temperature: -20ºC - 60ºC
• Humidity during storage: 10% - 90% non-condensing

Dimensions and weight

• Dimensions: 180 x 155 x 224 mm
• Weight: 2.08 kg

Operating systems and software

• Operating systems: Linux, Windows 7, 8, 8.1, 10, 11
• Label design software: P-touch Editor

Solutions

• SDK (software expansion kit): Yes
