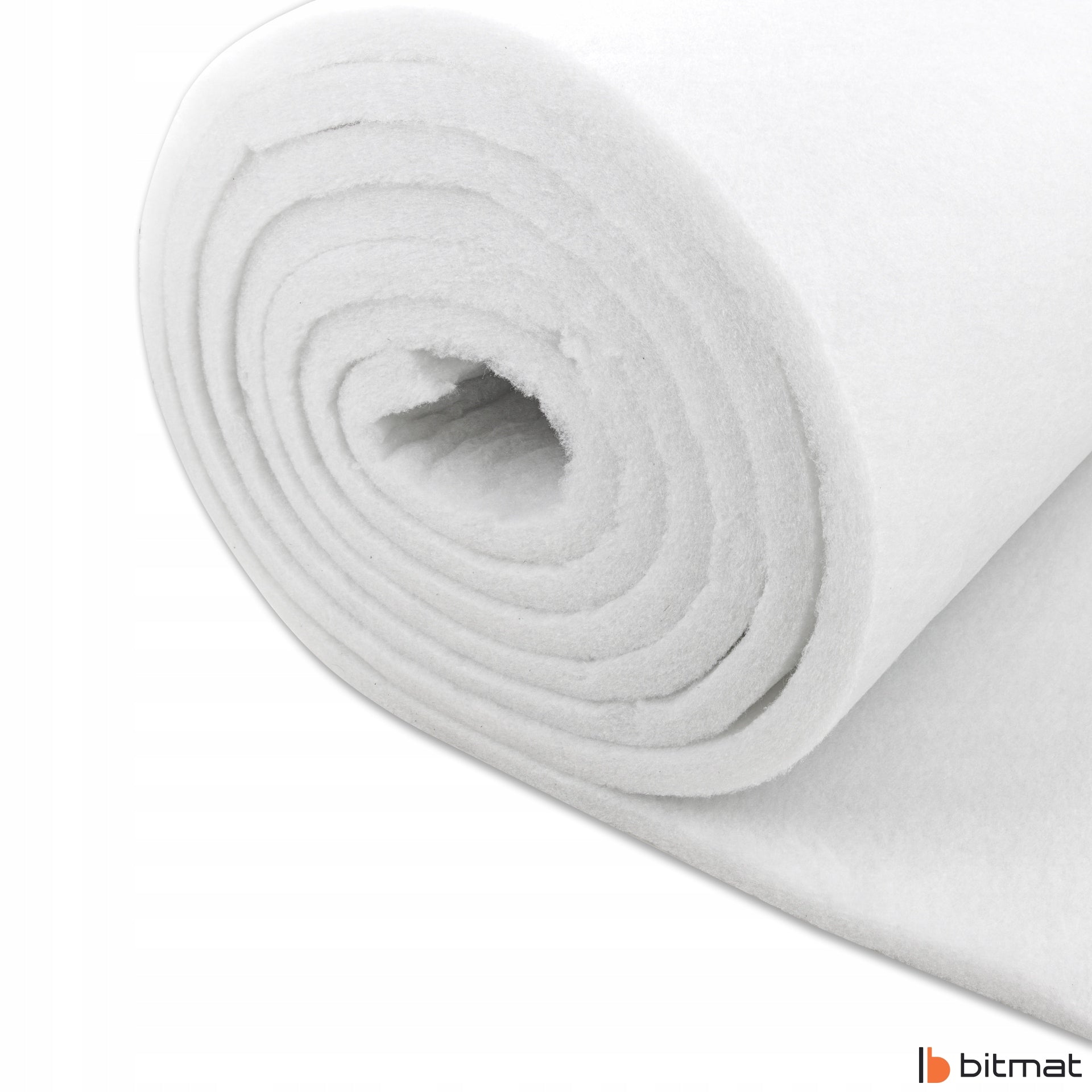

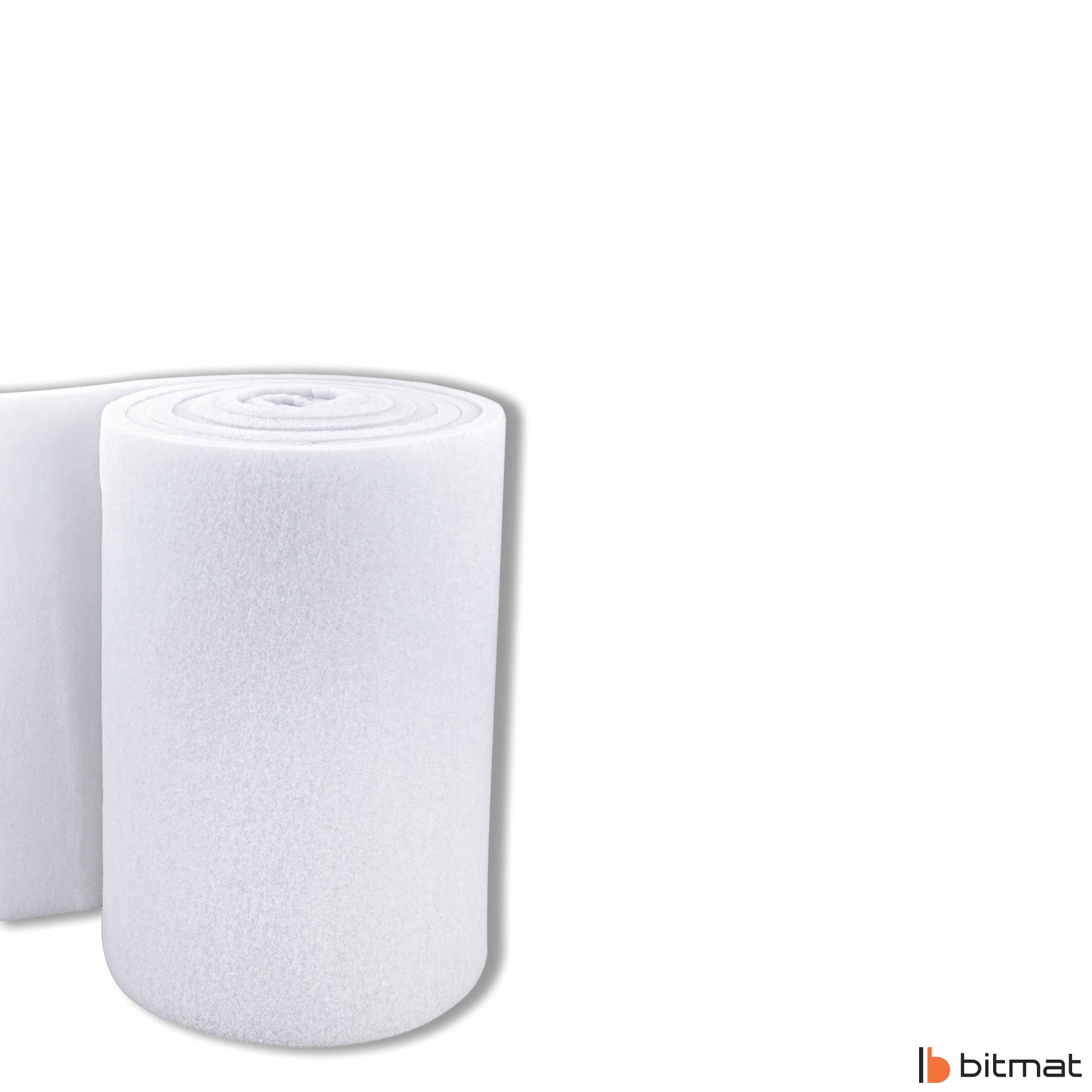

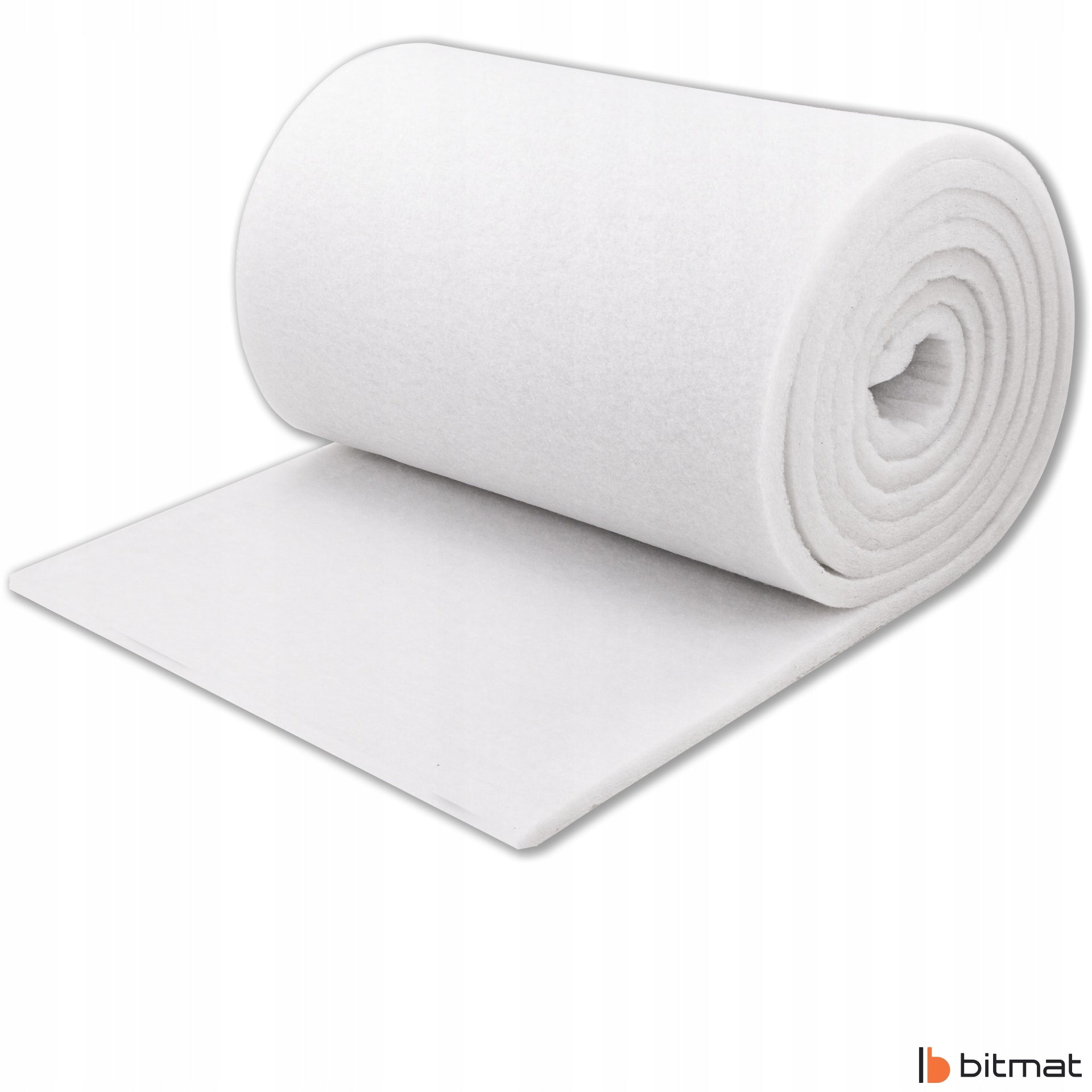

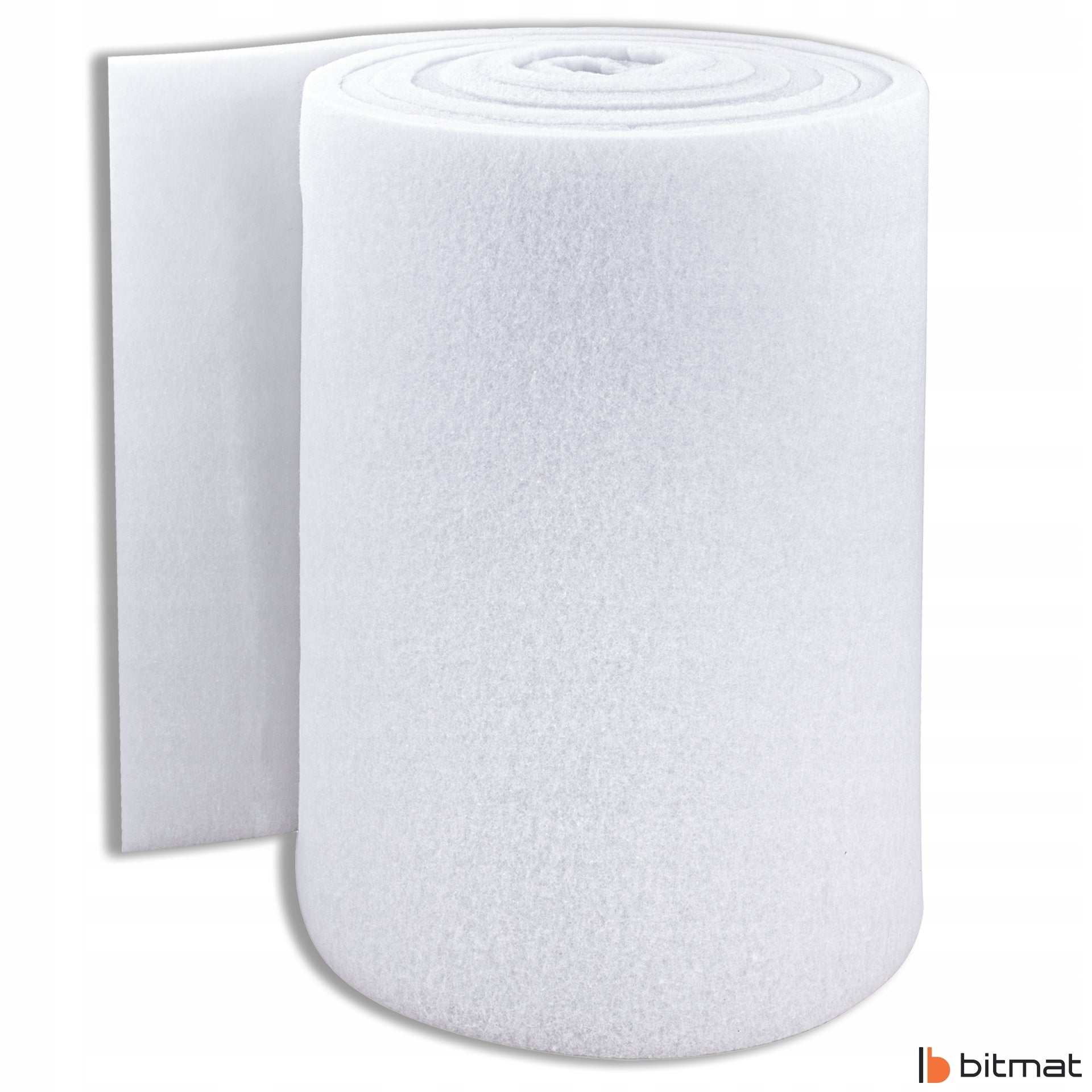

Filtro audinys M5 rekuperatoriaus ventiliatoriui, 500x100x5 cm

Trumpai apie prekę

Prekė: Filtro audinys M5 rekuperatoriaus ventiliatoriui, 500x100x5 cm. Kategorija: Dalys.

• Gamintojas: Bitmat
• Modelis: Mata włóknina filtracyjna M5 1mx1m 5cm

Bitmat filter fabric for M5 recuperators is a nonwoven fabric for pre-filter, designed to protect the recuperator heat exchanger from larger contaminants. Thanks to its construction, it works well both in recuperators and in air handling units, as well as other HVAC devices.

Bitmat is a manufacturer and distributor of the highest quality technical materials.

1 piece = 500 x 100 cm = 5m2

2 pieces = 1000 x 100 cm = 10m2

3 pieces = 1500 x 100 cm = 15m2

4 pieces = 2000 x 100 cm = 20m2

5 pieces = 2500 x 100 cm = 25m2

6 pieces = 3000 x 100 cm = 30m2

Nonwoven fabric made from 100% polyester fibres. Thanks to the use of an appropriate blend of fibers, it is characterized by high elasticity and resistance to deformation. Compliant with PN-EN ISO 16890. ISO COARSE 40%.

Key advantages of the filter mat:

• excellent pre-filtration
• waterproof
• versatility: compatible with all air handling units
• ease of processing: simple cutting to the desired size

The tests were carried out in accordance with the requirements of the PN-EN ISO 16890 series of standards.

1. PN-EN ISO 16890-2:2023-01 Dust-proof air filters for general ventilation:
2. Measurement of filtration efficiency as a function of particle dimension and air flow resistance.
3. EN ISO 16890-3:2017-01 Dust-proof air filters for general ventilation.
4. Determination of filtration efficiency by gravimetric method and air flow resistance depending on the mass of dust retained
5. EN ISO 16890-4:2023-01 Dust-proof air filters for general ventilation.
6. Seasoning method to determine minimum fractional efficacy.

The filter classification was based on the standard:

1. EN ISO 16890-1:2017-01 Dust-proof air filters for general ventilation.
2. Technical specifications, requirements and performance classification system based on dust particle size (ePM).
3. The filter performance study was conducted for electrically neutralized solid potassium chloride (KCI) particles and test dust A2 according to ISO 12103-1.

Technical specification:

• thickness: 50 mm
• grammage 500 g/m2
• dimensions: 500x100 cm
• resistance to moisture
• self-extinguishing and flame retardant
• Meets the requirements of OEKO-TEX Standard 100, hygienic according to PZH and Intertek

The filter mat is made of high quality polyester fabric, which guarantees the right density and ensures optimal airflow through the ventilation unit. In addition, the polyester fibers used make the filter waterproof, does not absorb moisture and is resistant to various environmental factors.

The frequency of pre-filter replacement depends on various factors such as the level of air pollution or its humidity, but a significant proportion of manufacturers of ventilation devices recommend replacing the pre-filter every 3 months.

Fibre intended for industry, where the pre-filtration process is very important. The spatial structure of the nonwoven fabric provides excellent dust absorption. The main application is

• pre-filtration in ventilation systems, air conditioning, control cabinets
• paint shops

The price is for 1-piece filter nonwoven fabric M5 (WF-500) with dimensions:

length 500cm x width 100cm, thickness 50mm (5cm) in white
