FPV dronas BETAFPV Pavo20 Pro II 3S, PNP, SBUS, nauja versija

Trumpai apie prekę

Prekė: FPV dronas BETAFPV Pavo20 Pro II 3S, PNP, SBUS, nauja versija. Kategorija: Dronai.

• Gamintojas: BetaFPV
• Modelis: BETAFPV Pavo20 Pro II 3S PNP SBUS

THE MOST IMPORTANT FEATURES

• BETAFPV Pavo20 Pro II version 3S PNPSBUS
• Lightweight Brushless Whoop FPV drone.
• Design designed for freestyle and cinematic FPV.
• Wheelbase 93,9 mm.
• Brushless motors LAVA 1104 7200KV.
• F4 2–3S 20A AIO flight controller.
• Serial ExpressLRS 2.4 GHz receiver.
• GF D2.2 3-Blade propellers.
• Supports DJI O4 Air Unit and DJI O4 Air Unit Pro.
• Dedicated holder for DJI O4 Air Unit Pro.
• Integrated NightFire RGB LED strip.
• Built-in buzzer.
• GPS mounts for 12 × 12 mm and 18 × 18 mm modules.
• Battery connector XT30.
• Flight time up to approximately 9 minutes with 3S 680 mAh battery.
• PNP version – without control equipment.
• Factory tuned flight parameters for DJI O4.

The product offered at this auction is original, factory packed and comes from the official distribution

BETAFPV PAVO20 PRO II BRUSHLESS WHOOP QUADCOPTER – 3S PNP SBUS

BETAFPV Pavo20 Pro II is a modern, lightweight Brushless Whoop FPV drone, designed for dynamic freestyle and recording impressive shots from the air. The 3S PNP SBUS version combines high flight dynamics with low weight and efficient drive based on LAVA 1104 7200KV engines.

The model has been prepared to work with digital video systems DJI O4 Air Unit and DJI O4 Air Unit Pro, thanks to which it can be the basis for both dynamic freestyle and lightweight cinematic FPV constructions.

LIGHT DESIGN FOR FREESTYLE

The Pavo20 Pro II uses a new generation of 93,9 mm wheelbase frame, which is designed to combine low weight, durability and easy assembly of components.

The design has been optimized for DJI O4 systems, providing adequate space for the digital video transmitter and its secure attachment.

3S DRIVE – LAVA 1104 7200KV

The 3S version is equipped with four brushless LAVA Series 1104 7200KV motors. The high KV value has been selected specifically for 3S power supply, providing quick responses to rod movements and the right amount of thrust during dynamic flying.

Combined with the Gemfan D2.2 3-Blade propellers, the drive provides smooth and responsive flight characteristics that work well during freestyle.

CONTROLLER F4 2–3S 20A

The drone is controlled by a dedicated flight controller F4 2–3S 20A AIO. The design has been specially developed to work with HD VTX digital systems.

The controller uses two independent BEC chips, ensuring stable power supply to additional devices – 9V 2A for DJI O4 system and 5V 3A for external devices.

The 20A ESC provides adequate power reserve for 3S configurations while maintaining the compact dimensions of the entire system.

SBUS – PRECISE CONTROL

The PNP variant does not include control apparatus, so the user can use their own transmitter compatible with SBUS.

READY FOR DJI O4 AND O4 PRO

The Pavo20 Pro II is designed for DJI digital video systems. The design supports both DJI O4 Air Unit and DJI O4 Air Unit Pro.

The dedicated O4 Air Unit Pro Bracket is designed to reduce the impact of vibration on your video system. Thanks to this, the drone can be equipped with a modern digital HD system without the need to design the mount yourself.

SMOOTH AND STABLE SHOTS

The design of the Pavo20 Pro II has been optimized for recording FPV materials. Proper placement of components and a rigid frame help reduce unwanted vibrations, which is important when using a DJI digital camera.

The drone can be used for both dynamic freestyle and creating more fluid cinematic shots.

PROPELLERS GEMFAN D2.2 3-BLADE

The Pavo20 Pro II uses GF D2.2 3-Blade propellers, which have been selected for the 3S drive used.

The propellers are additionally fixed with screws, which eliminates the problem of loosening propellers and helps maintain the stability of the drive during intensive use.

UP TO 9 MINUTES FLIGHT

Combined with the LAVA II 3S 680 mAh battery, the Pavo20 Pro II can reach flight times of up to approximately 9 minutes. When using the LAVA II 3S 580 mAh battery, the declared flight time is about 7 minutes 30 seconds.

Actual flight time depends, among other things, on the style of pilotage, weight of equipment and weather conditions.

BUILT-IN BUZZER

The Pavo20 Pro II is equipped with an integrated buzzer, which makes it easy to find the drone after an emergency landing or in case of loss of orientation.

This is especially useful when flying outdoors, where a small drone can easily disappear into grass or other vegetation.

READY FOR GPS

The Pavo20 Pro II design is equipped with new GPS mounts compatible with most GPS modules with sizes 12 × 12 mm and 18 × 18 mm.

This allows you to easily extend the configuration with a GPS module without having to make your own frame modifications.

NIGHTFIRE RGB LED

The drone has an integrated NightFire RGB LED tape, which improves the visibility of the structure during flight and facilitates orientation in space.

The backlight also gives the Pavo20 Pro II a distinctive look when flying after dark.

NEW GENERATION OF PAVO20 PRO II FRAME

The Pavo20 Pro II frame is designed for easier assembly and servicing of components. The design provides convenient access to electronics and has been adapted to install the DJI digital system.

The 3S version uses the same frame platform as the more powerful 4S configuration, but uses a properly selected drive system and flight controller.

PEG – FOR PILOTS WITH THEIR OWN EQUIPMENT

The PNP (Plug and Play) variant is designed for users with their own control system compatible with the SBUS receiver.

Thanks to this, you do not have to buy another apparatus – the Pavo20 Pro II can be configured with your ELRS transmitter.

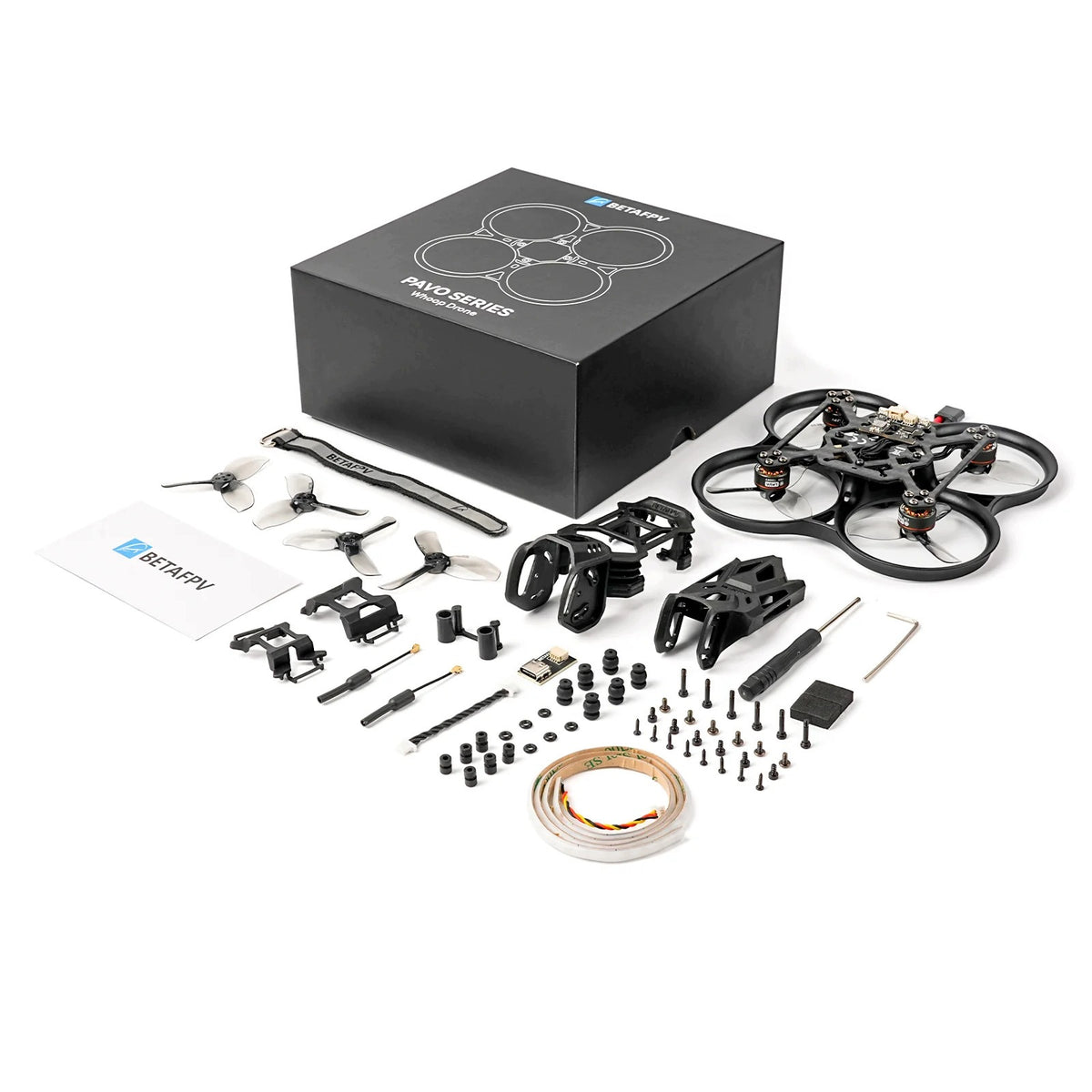

CONTENTS OF THE SET

• 1 * Pavo20 Pro II Brushless Quadrocopter Whoop (PNP)
• 1 * Top plate for O4 Air Unit II handle
• 1 * Bottom plate for O4 Air Unit II holder
• 1 * O4 Air Unit Pro 4 Holder * Gemfan D2.2 3-blade propellers
• 1 * Type-C to SH1.0 Adapter
• 1 * SH1.0-4-pin transition cable
• 1 * RGB LED strip (500mm)
• 6 * Shock-absorbing balls for O4 Air Unit Pro (6,6 mm)
• 6 * Shock-absorbing balls for O4 Air Unit holder (8,8 mm)
• 6 * Shock pads for O4 Air Unit (1,5 mm)
• 6 * M2*10 Allen Screws with Cylindrical Head
• 6 * M2*4 Allen Screws with Lens Head
• 6 * M2*4 Cylindrical Head Self Tapping Screws
• 8 * Phillips M1,4*6 Flat Head Self Tapping Screws
• 2 * VTX 5,8G antennas
• 1 * VTX 5,8G antenna holder
• 1 * 22*22 mm GPS mount
• 1 * 14*17 mm GPS mount
• 2 * sponge pads for GPS
• 1 * Phillips screwdriver
• 1 * H1,5 Allen screwdriver

Note: DJI O4 / DJI O4 Pro camera, control apparatus and battery are not part of this variant and must be purchased separately.

TECHNICAL SPECIFICATION

Model: BETAFPV Pavo20 Pro II Brushless Whoop Quadcopter

Version: 3S PNP ELRS 2.4G

Type: Brushless Whoop / FPV

Axle spacing: 93,9 mm

Flight Controller: F4 2–3S 20A AIO

Receiver: SBUS

Engines: LAVA Series 1104 7200KV

Propellers: GF D2.2 3-Blade

Video system: DJI O4 Air Unit / DJI O4 Air Unit Pro

VTX Mount: O4 Air Unit Pro Bracket / O4 Air Unit Bracket II

Battery connector: XT30

Battery space: 29 mm wide × unlimited height

Flight time: up to 7 min 30 s with 3S 580 mAh battery / up to 9 min with 3S 680 mAh battery

Lighting: NightFire RGB LED Strip

GPS: supported 12× 12 mm and 18 × 18 mm modules

PNP weight: about 72,6 g

Recommended batteries: LAVA II 3S 580 mAh / 680 mAh, LAVA 3S 450 mAh 75C, LAVA 3S 550 mAh 75C
