FPV dronas Flywoo Explorer LR 4 O4 PRO V2 be O4 komplekto

Trumpai apie prekę

Prekė: FPV dronas Flywoo Explorer LR 4 O4 PRO V2 be O4 komplekto. Kategorija: Dronai ir multikopteriai.

• Gamintojas: Avifly
• Modelis: FW19005241

Kit - Without O4

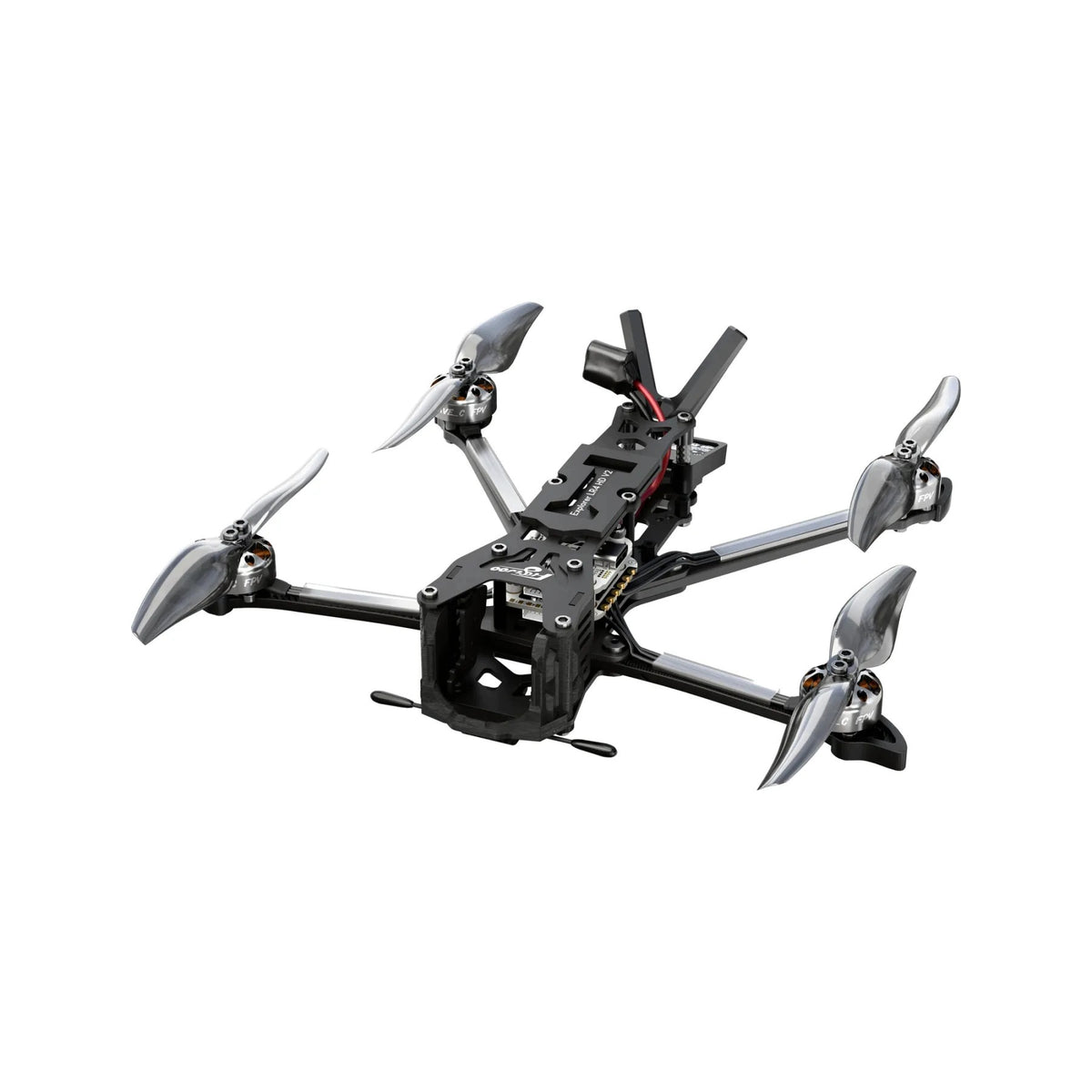

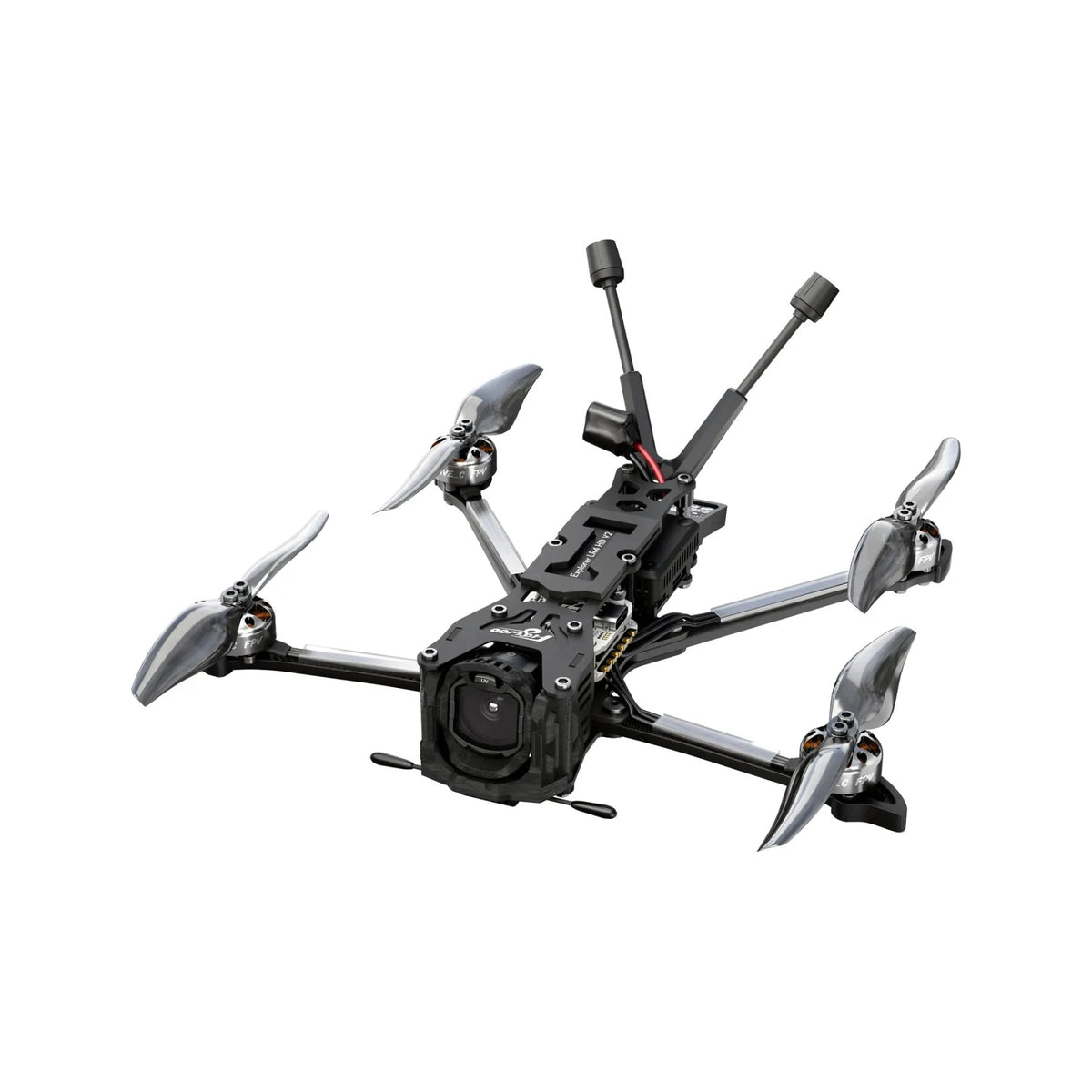

Flywoo Explorer LR 4 V2 Drone Kit - version without DJI O4 Pro

Flywoo Explorer LR 4 V2 Drone Kit is a 4-inch FPV micro long range platform in ELRS 2.4G version, prepared for the installation of your own DJI O4 / O4 Pro system.

This variant is designed for a remote control who already has its own video module or wants to choose an image system on its own. The DJI O4 Pro Air Unit is not included.

The most important features

• Drone Kit without O4 Pro: version prepared for DJI O4 / O4 Pro system.
• ELRS 2.4G: variant with ExpressLRS 2.4G receiver.
• Format 4 inches: lightweight and efficient platform for long range flights.
• Micro long range: design for cruising, exploration and peaceful FPV routes.
• Weight about 179 g without battery: low base weight for light configuration.
• About 246 g with Flywoo 4S 750 mAh: declared configuration of sub250 according to the manufacturer.
• GOKU F722 Pro Mini V2 45A Stack: integrated flight controller and ESC 45A.
• GPS GOKU GM10 Mini V3: GPS module for flights outside the immediate environment.
• Flywoo Finder: buzzer with its own power supply makes it easy to find the model after landing.
• Mounting accessories included: O4/O4 PRO cable, LDS UFL antenna, antenna holders and fiberglass cover.

Version for people who have their own O4 / O4 Pro module

This variant does not include the DJI O4 Pro Air Unit. This is the right choice if the customer already has their own DJI O4 / O4 Pro module or wants to transfer it from another drone.

The set includes mounting hardware needed for setup with the O4/O4 Pro system, including a connection cable, Flywoo LDS UFL antenna, fiberglass cover, and antenna holders.

The V2 version retains the camera mount design with four damping balls that limit the transmission of vibrations from the frame to the camera.

Technical specification

• Brand: Flywoo
• Model: Explorer LR 4 O4 PRO V2 Drone Kit
• SKU: FW19005241
• Variant: Drone Kit without DJI O4 Pro
• Type: FPV drone micro long range
• Size: 4 inches
• Video system: no DJI O4 Pro module included
• Video compatibility: prepared for O4 / O4 Pro installation
• RC system: ELRS 2.4G
• Mass without battery: about 179 g
• Mass with Flywoo 4S 750 mAh: about 246 g
• Flight Controller and ESC: GOKU F722 Pro Mini V2 45A Stack
• Engines: NIN V2 1404 2750KV
• GPS: GOKU GM10 Mini V3 GPS
• GPS weight: about 4.5 g
• Number of GPS satellites: to about 25
• Finder: Flywoo Finder V1.0
• Propellers: 4024-2
• Recommended batteries: 4S LiHV or 4S1P 18650
• Declared cruising flight time: up to approximately 28 minutes on 18650 4S1P 3000 mAh packets

Contents of the set

• Explorer LR 4 O4 PRO V2 Drone Kit
• Hex wrench x 1
• 15x180 mm battery straps x 2
• 4024-2 propellers x 8
• Battery anti-slip pads x 2
• 90 degree USB Type-C data cable x 1
• Hardware pack x 1
• Side plate x 2
• Flywoo LDS UFL antenna x 1
• O4 / O4 PRO connecting cable x 1
• Fiberglass protective plate for O4 Air Unit x 1
• Walksnail Pro Kit Dual Antenna / Flywoo LDS Antenna Mount x 1
• ELRS 2.4G T Antenna Mount x 1
• TBS T Antenna Mount x 1

Specifications
