Frezavimo įrankis Lamello Zeta P2 su deimantiniu pjovikliu

Trumpai apie prekę

Prekė: Frezavimo įrankis Lamello Zeta P2 su deimantiniu pjovikliu. Kategorija: Frezavimo staklės.

• Gamintojas: Lamello
• Modelis: 101402DSOM

The subject of sale is:

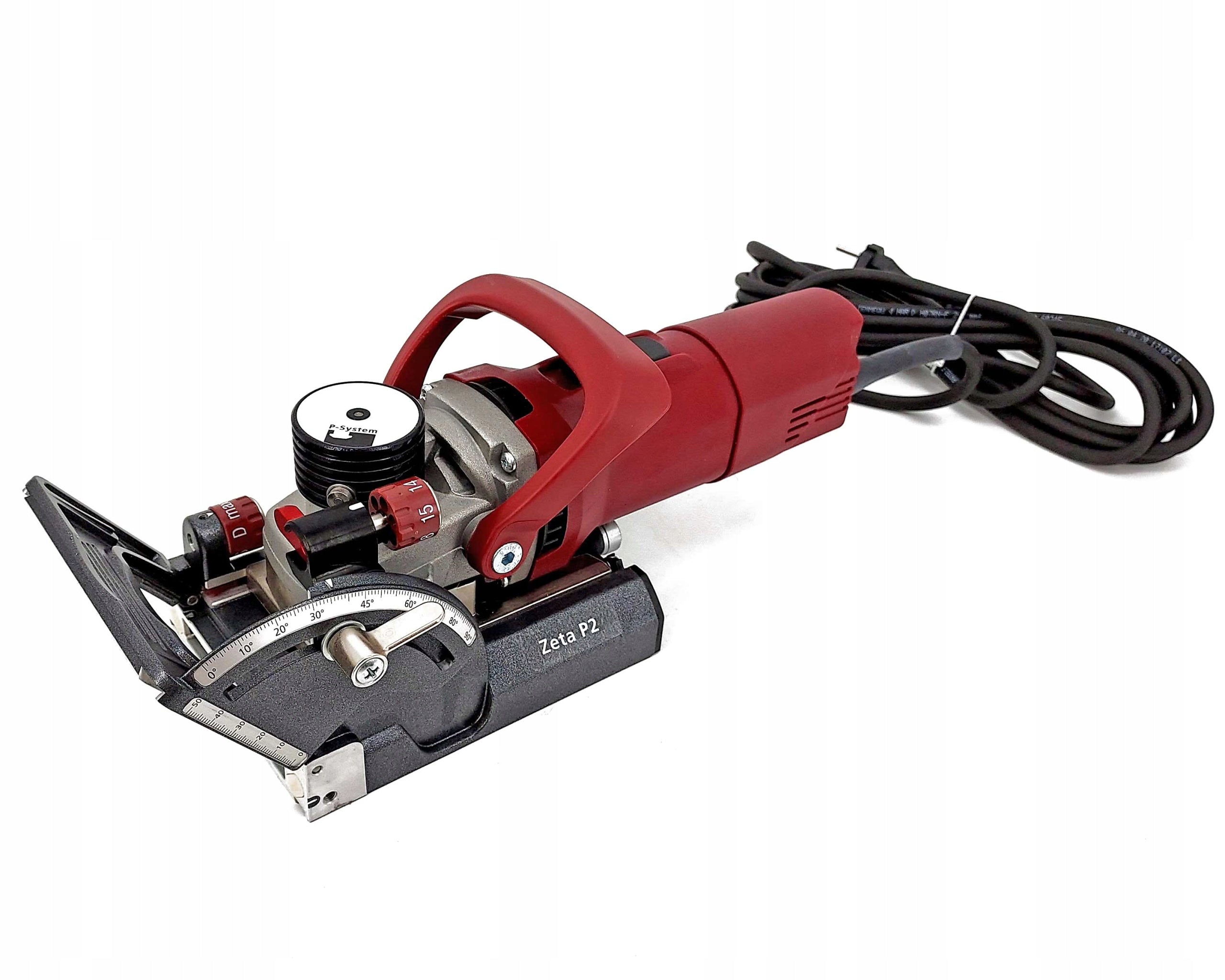

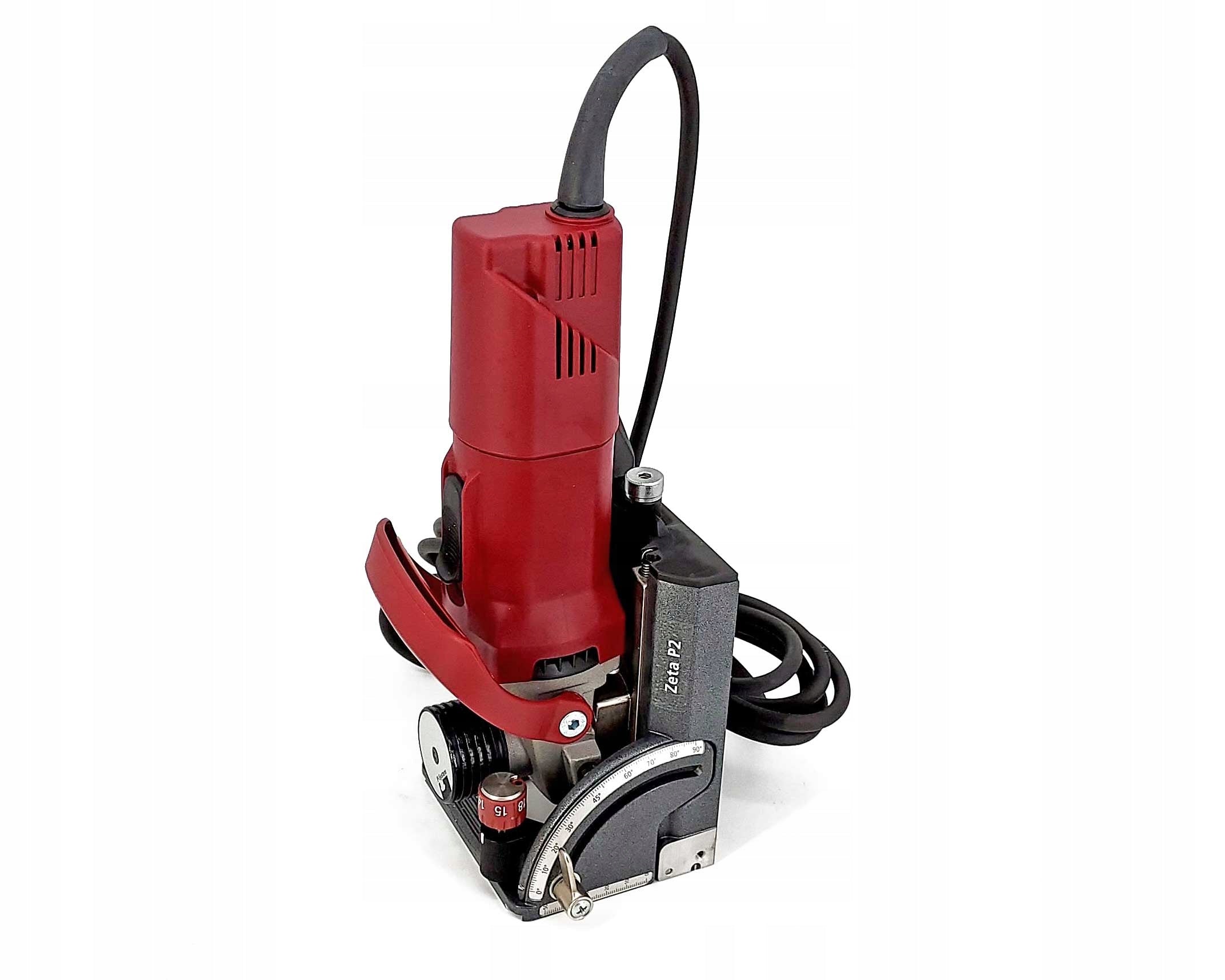

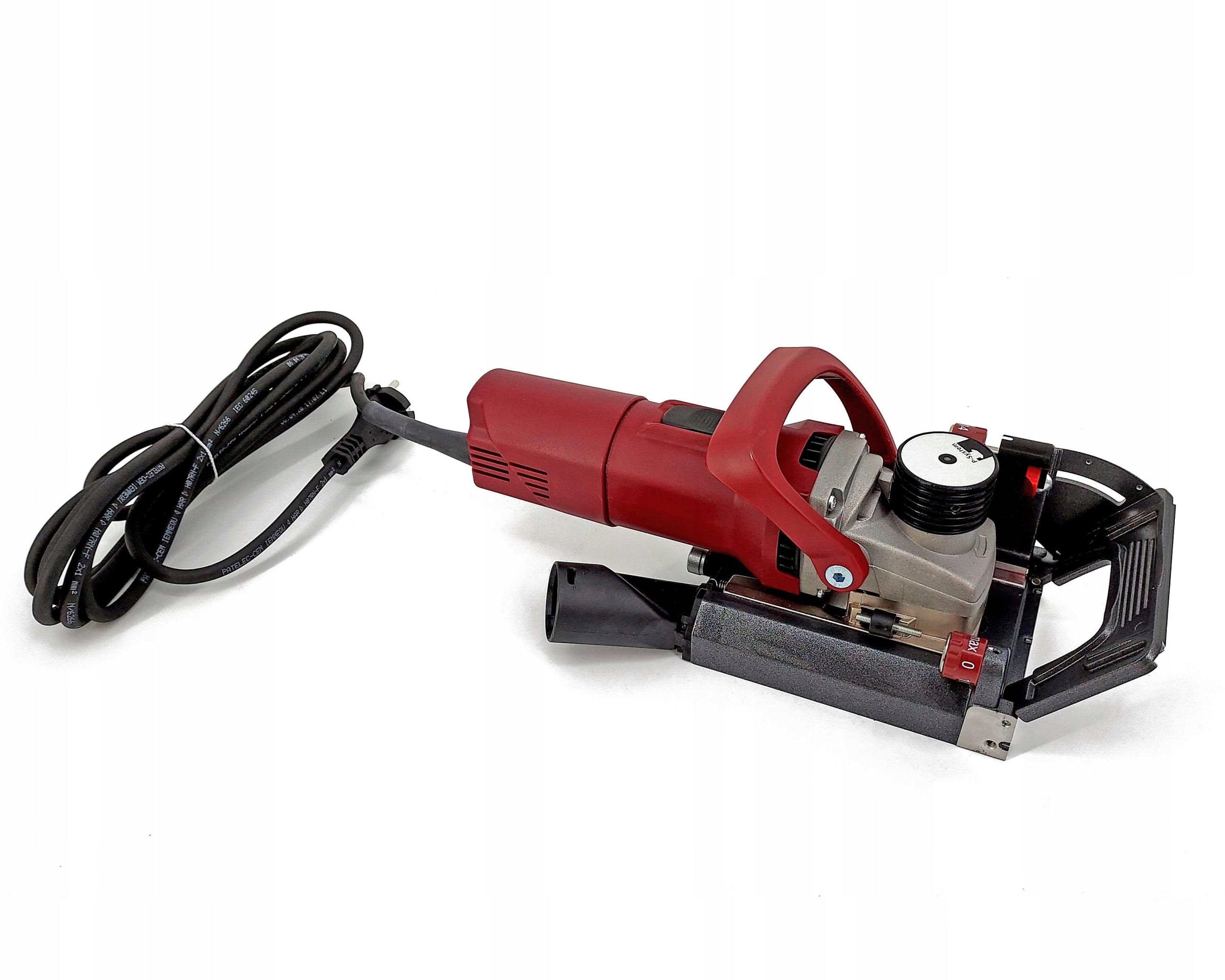

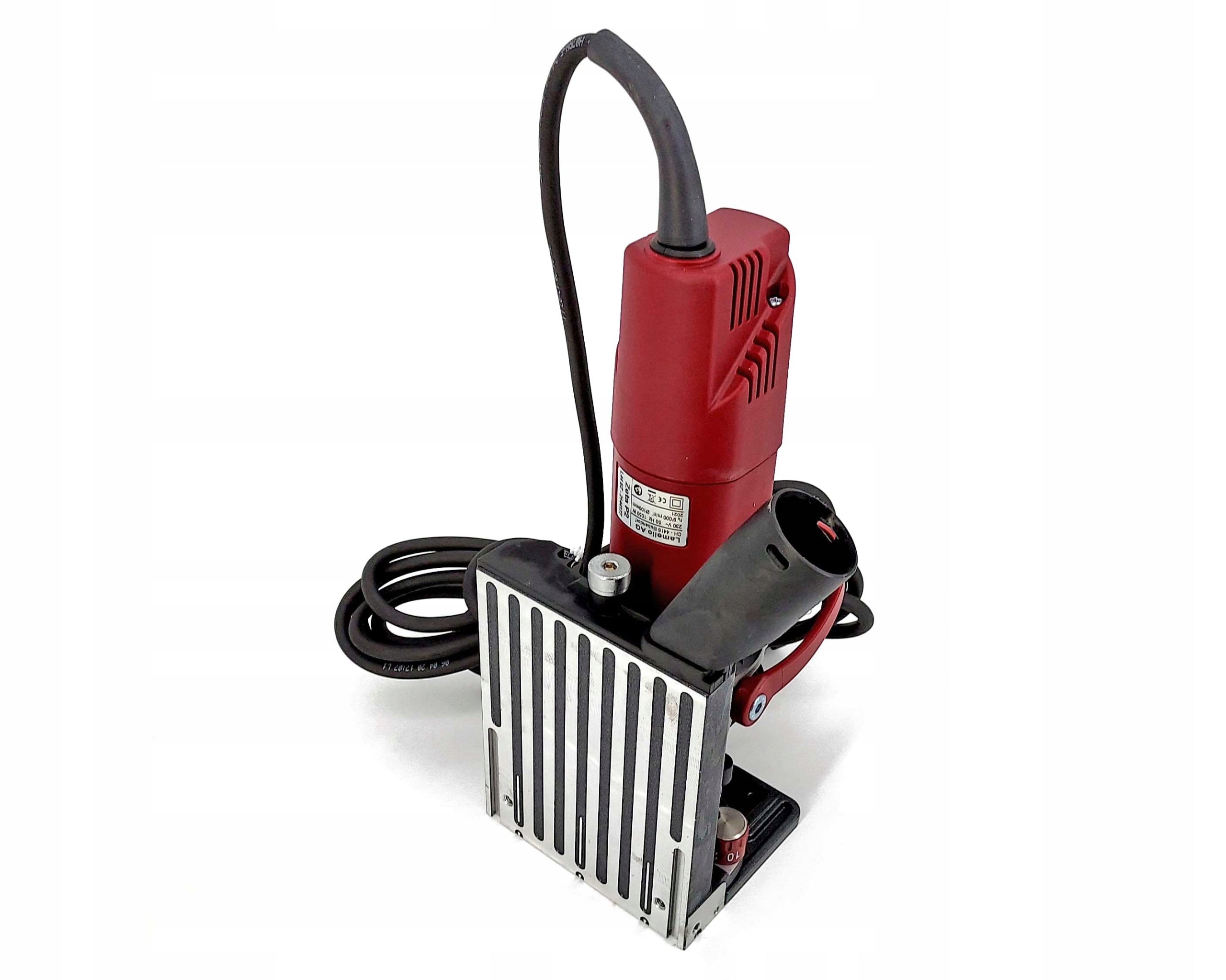

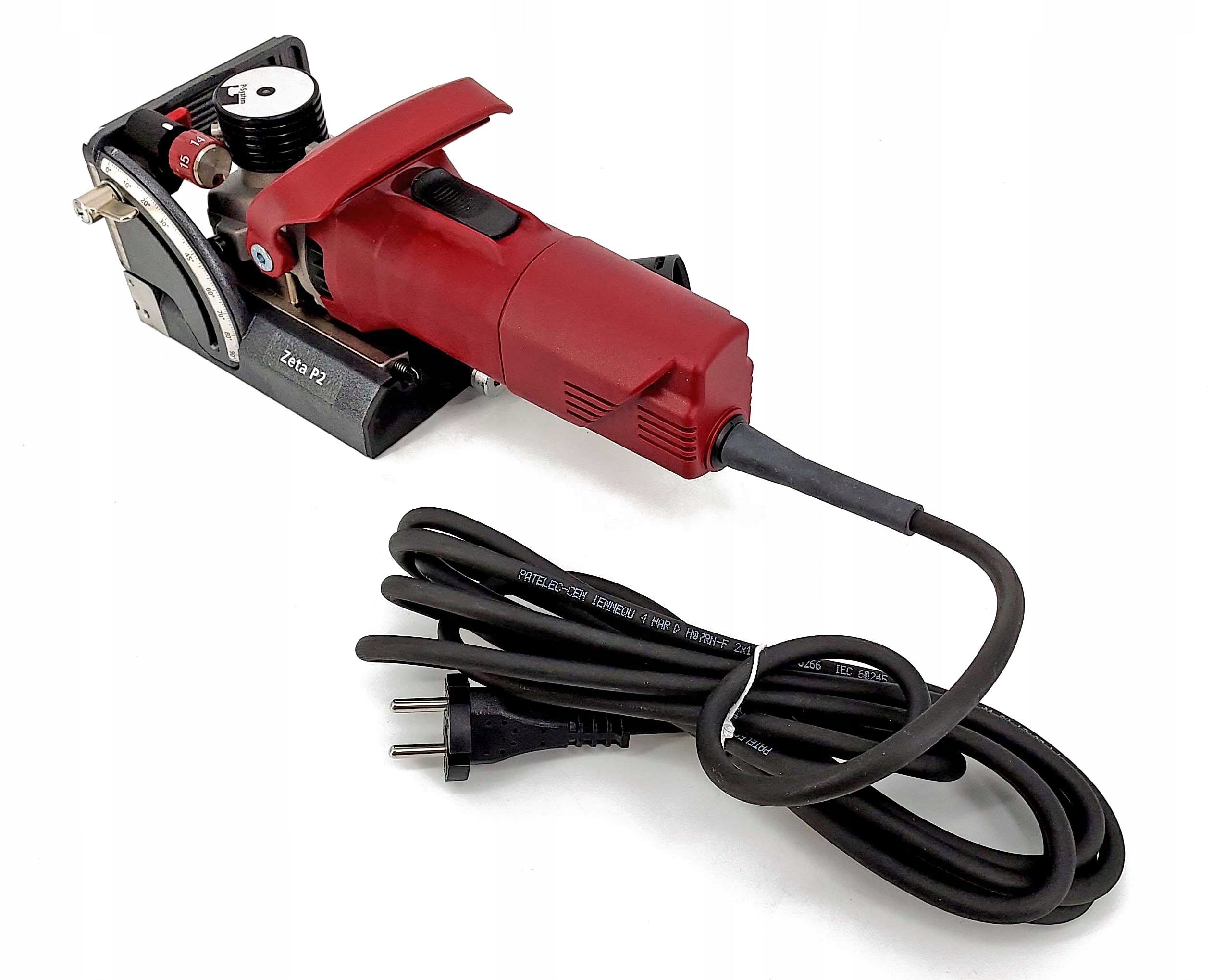

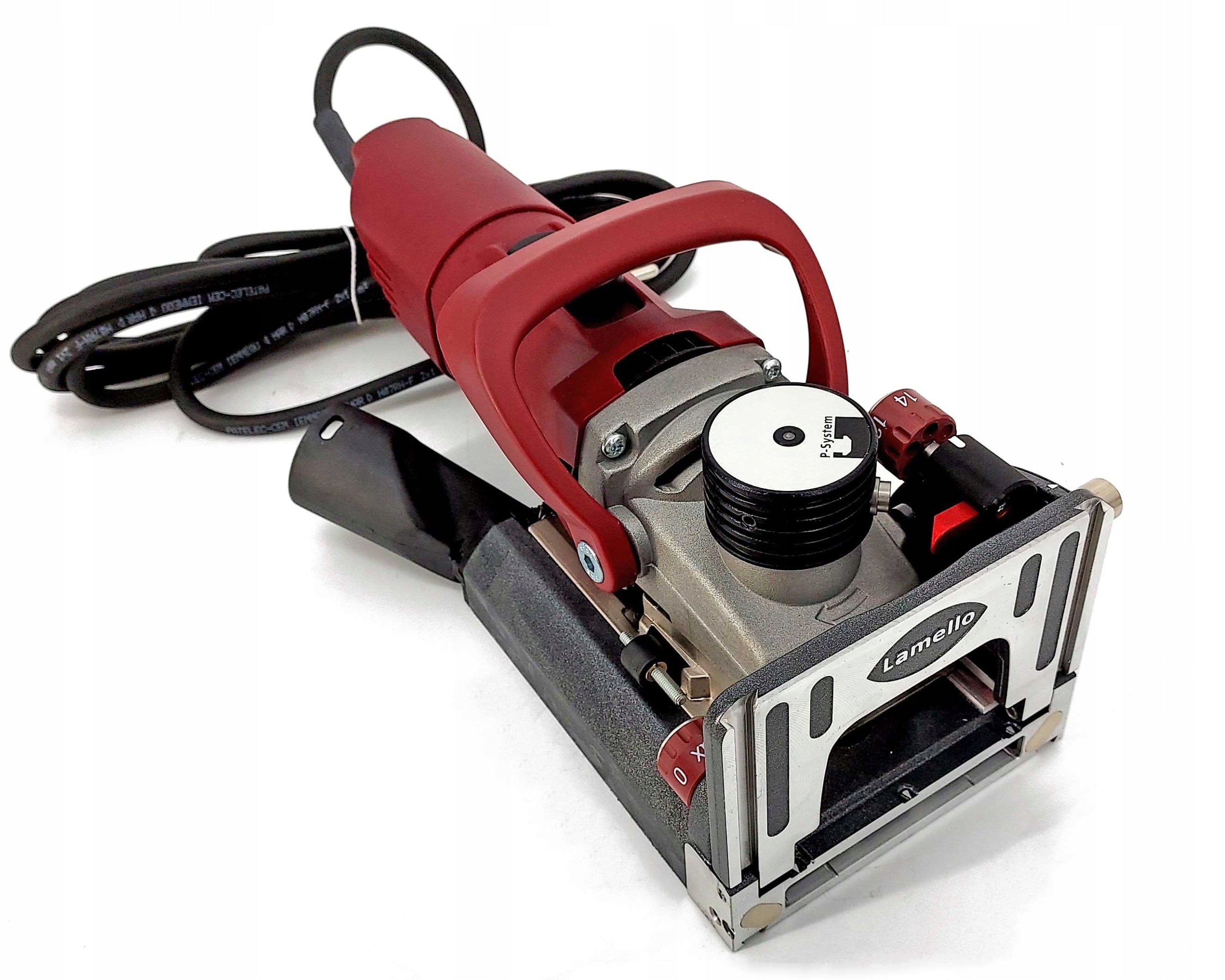

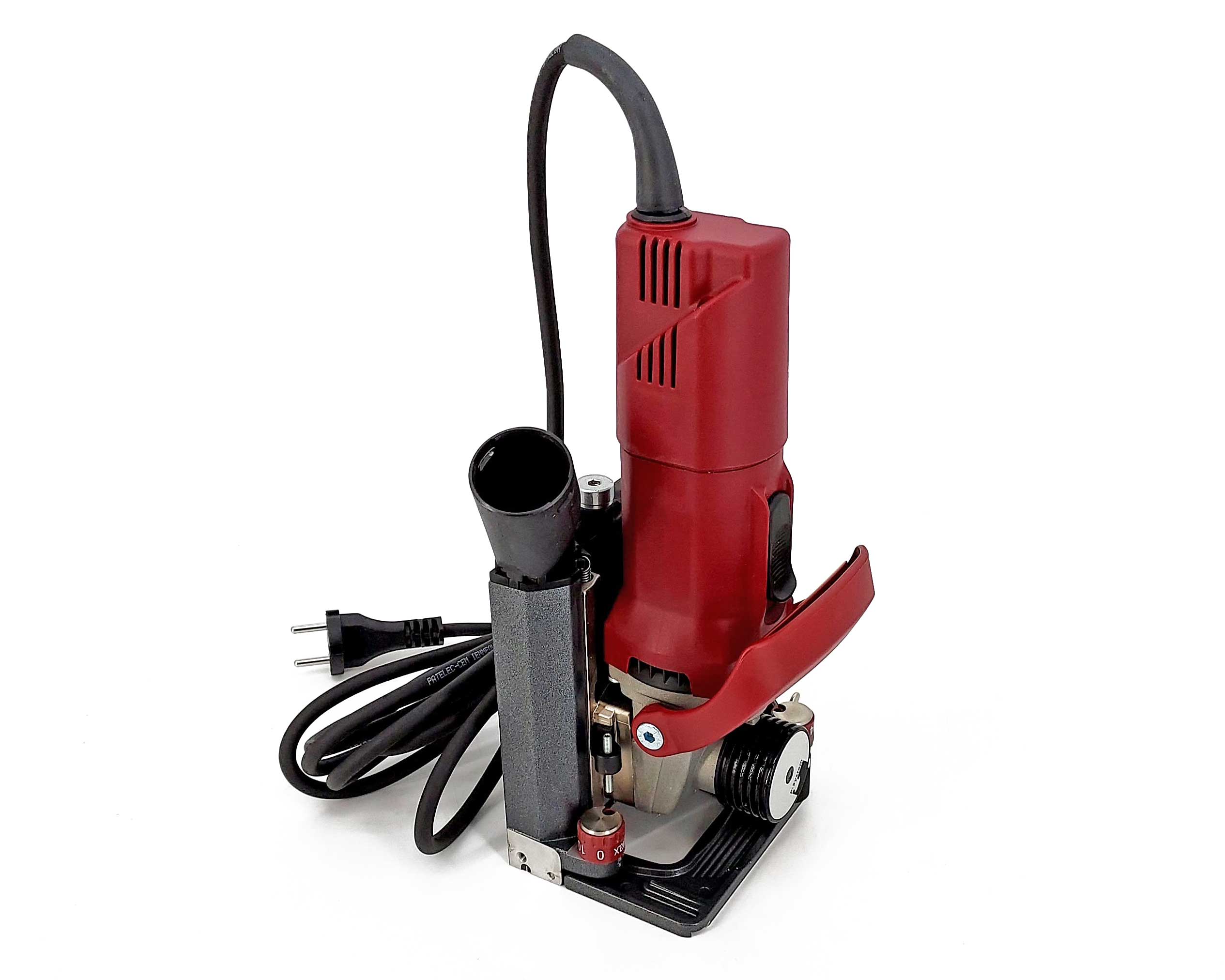

Lamelting machine, milling machine Lamello Zeta P2

ane technical:

• Power: 1050 W
• Rotation: 9000 /min
• Memory clock speed cutter depth: 20 mm
• Weight: 3,7 kg
• Cutter: DP (diamond) P-System, 100x7x22 mm
• Teeth: Z3

relaxing and relaxing massage

Milling machine for connections to a foreign pen.

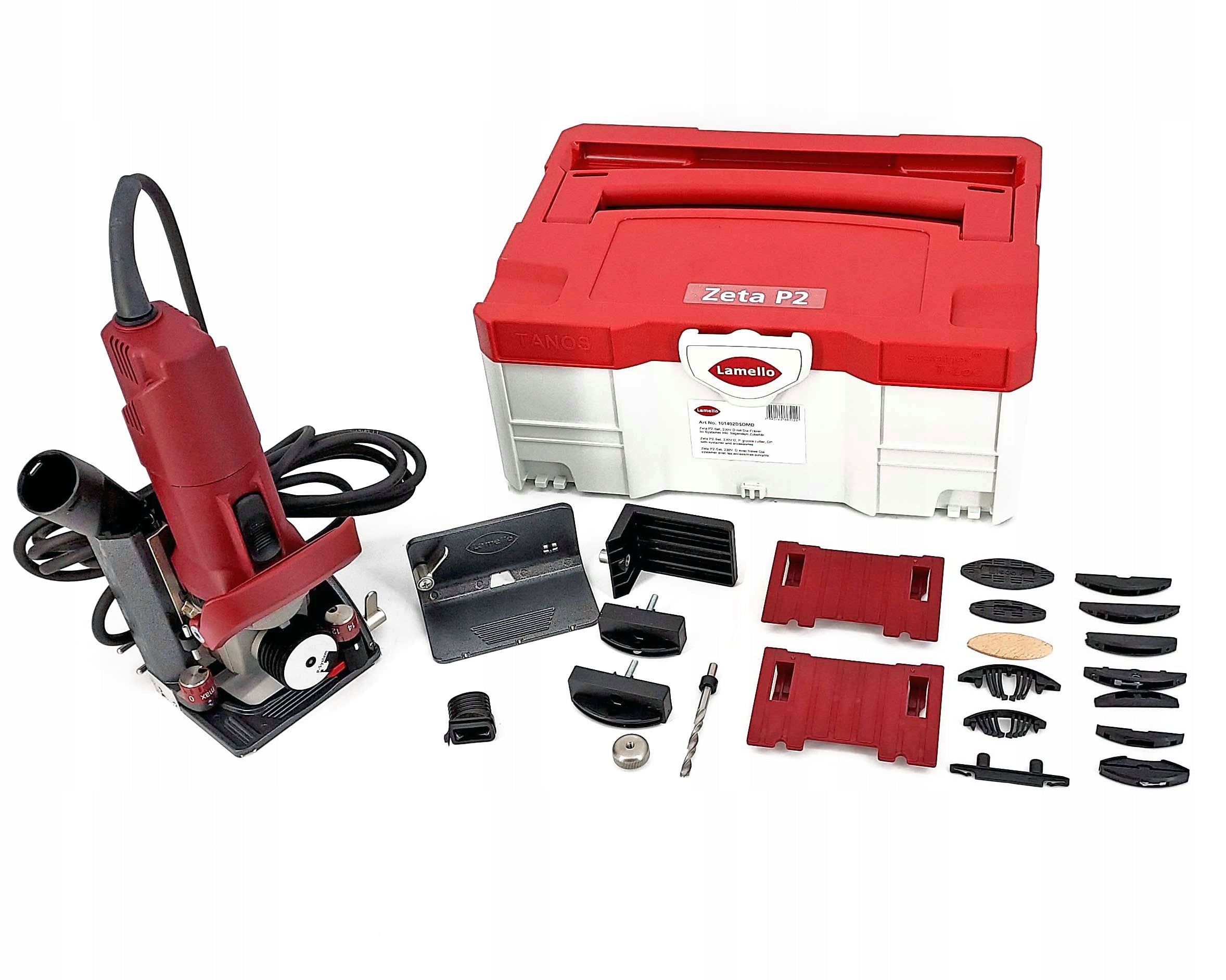

Set Contents:

• Angle sampler (251044)
• template for easy selection of settings, connectors and connection type (369143)
• Drilling template with drill for Clamex P fitting (125344)
• extraction port 23 mm (331006)
• 36 mm extraction adapter, compatible with FESTOOL (331007)
• 4 mm spacer plate (253026)
• 2 mm spacer plate (253023)
• systener II T-LOC empty (331565)
• Internal contribution to the systener (360014)
• anti-slip protection, pair (331050)
• cutter: DP (diamond) P-System, 100x7x22 mm (132140)
• Allen wrenches
• several pieces of different types of fittings
• INSTRUCTION MANUAL

Features of the device:

Vertical movement mechanism of the tool:

The vertical movement mechanism of the tool consists of precise rotating elements supplied by Lamello.

Attachment of fittings in the P-System socket

Fastening of fittings in the socket is carried out without the use of additional tools. The connection does not require the use of glue and screws.

Setting the depth of the P-System socket

The quick turn of the knob allows you to choose different depths of the P-System socket, depending on the type of fitting. Depths are possible: 10,12,14,15 or 18 mm.

Wooden connectors

Zeta P2 also allows milling sockets for traditional wooden fittings. To do this, set the socket depth setting knob in the OFF position, which turns off the mechanism of vertical movement of the cutter. You should also replace the 7 mm cutter supplied with the Zeta P2 milling machine with a 4 mm cutter.

Tilting example with fixed, most commonly used angle values

Precise positioning of the cutter, which is located exactly in the middle between the two joined elements.

Multi-functional angle switch

In addition to greater vertical stability during milling (larger contact area), the angle gauge also allows for smooth adjustment of the socket position in the range of 0-50 mm.
