Frezavimo staklės GRAPHITE 1300W su 12 frezų, antgaliai 6/8/12 mm

Trumpai apie prekę

Prekė: Frezavimo staklės GRAPHITE 1300W su 12 frezų, antgaliai 6/8/12 mm. Kategorija: Frezavimo staklės.

• Gamintojas: GRAPHITE
• Įtampa: 230 V

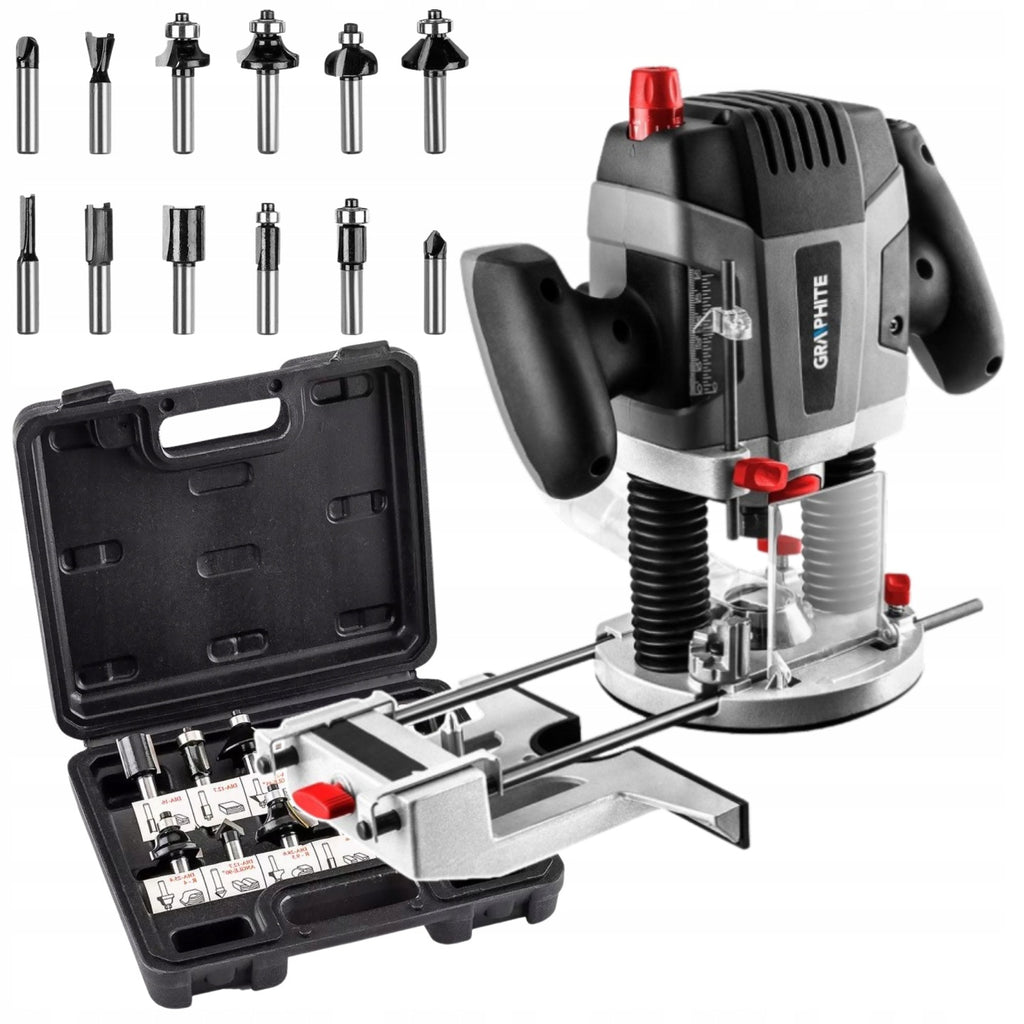

The set consists of:

• Spindle milling machine 1300W, handle 6-12 mm 59G717 Graphite
• View mills, 8 mm shank, set 12 pcs. VERTO
• Parallel guide
• Circle milling skewer
• Guide sleeve
• Dust extraction adapter with reduction
• Screws for attaching the adapter
• 3 x Terminal bushing
• Flat Wrench

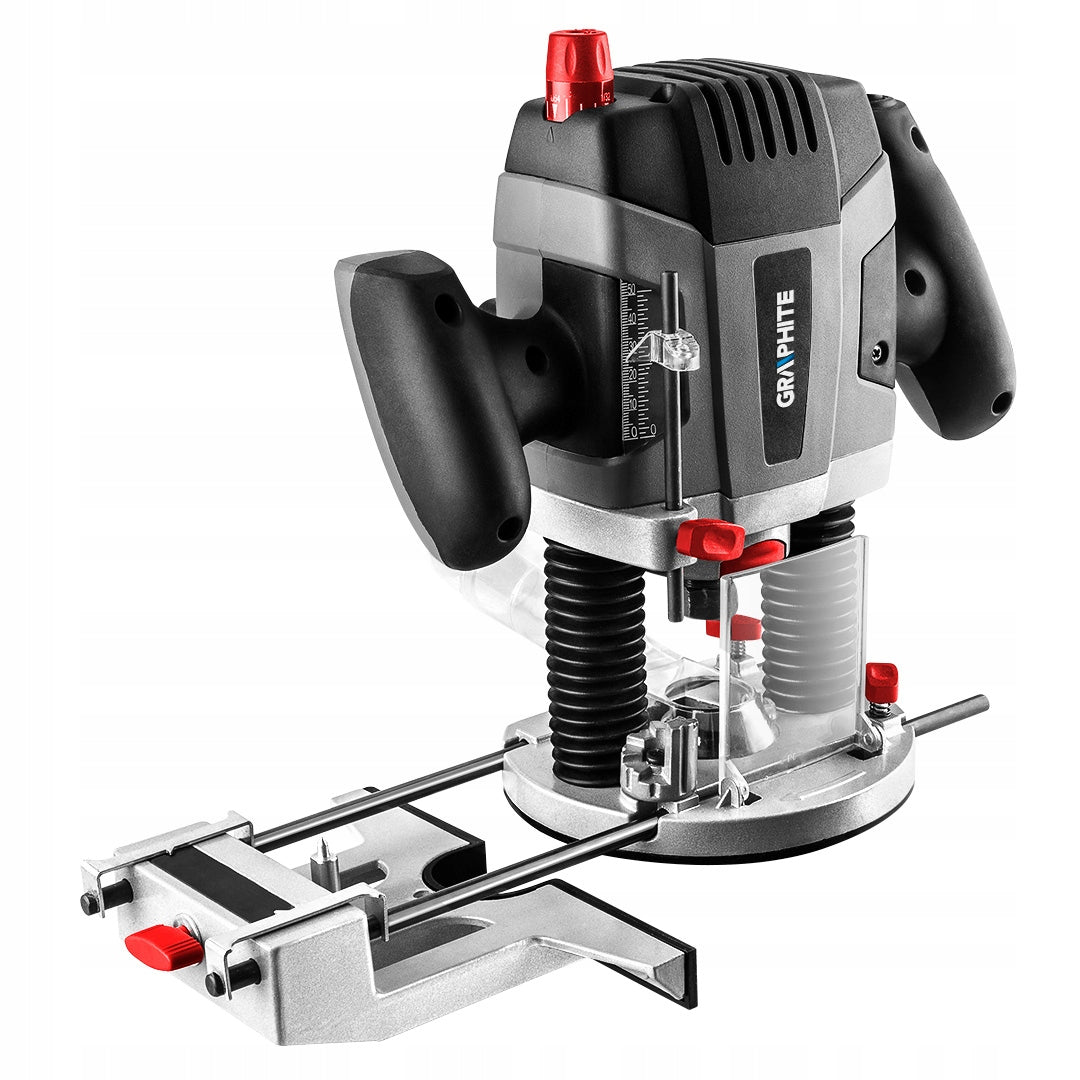

↘ GRAPHITE router with an efficient 1300W motor, designed for milling holes, grooves, edges and profiles in all types of wood and wood-based materials, as well as plastics and aluminum.

↘ The device has the function of smooth regulation of speed and milling depth.

↘ The idle speed range is 11000 to 28000 min-1.

↘ The milling machine has a spindle lock and a milling depth lock.

↘ The milling depth can be adjusted using three devices:

↘ 8-stage depth stop, depth stop with smooth adjustment (range 0-55 mm) and a knob for precise depth adjustment (accuracy 0.1 mm).

↘ The device is equipped with a stable aluminum foot with a plastic cover, ensuring easy guidance of the device on all types of surfaces.

↘ The milling machine's motor guides are mounted in an aluminum body with sockets subjected to specialized surface treatment, thanks to which the device is characterized by increased precision during plunge cutting.

↘ The ergonomic handles of the milling machine are covered with non-slip material, making operating the device comfortable and safe.

↘ The dust cover and dust extraction adapter are made of transparent polycarbonate.

↘ The milling machine is equipped with a large speed control knob, located within reach of the operator's right thumb.

↘ On the left handle of the milling machine there is an arched, ergonomic lever for locking the body guide, which allows you to operate it without taking your hand off.

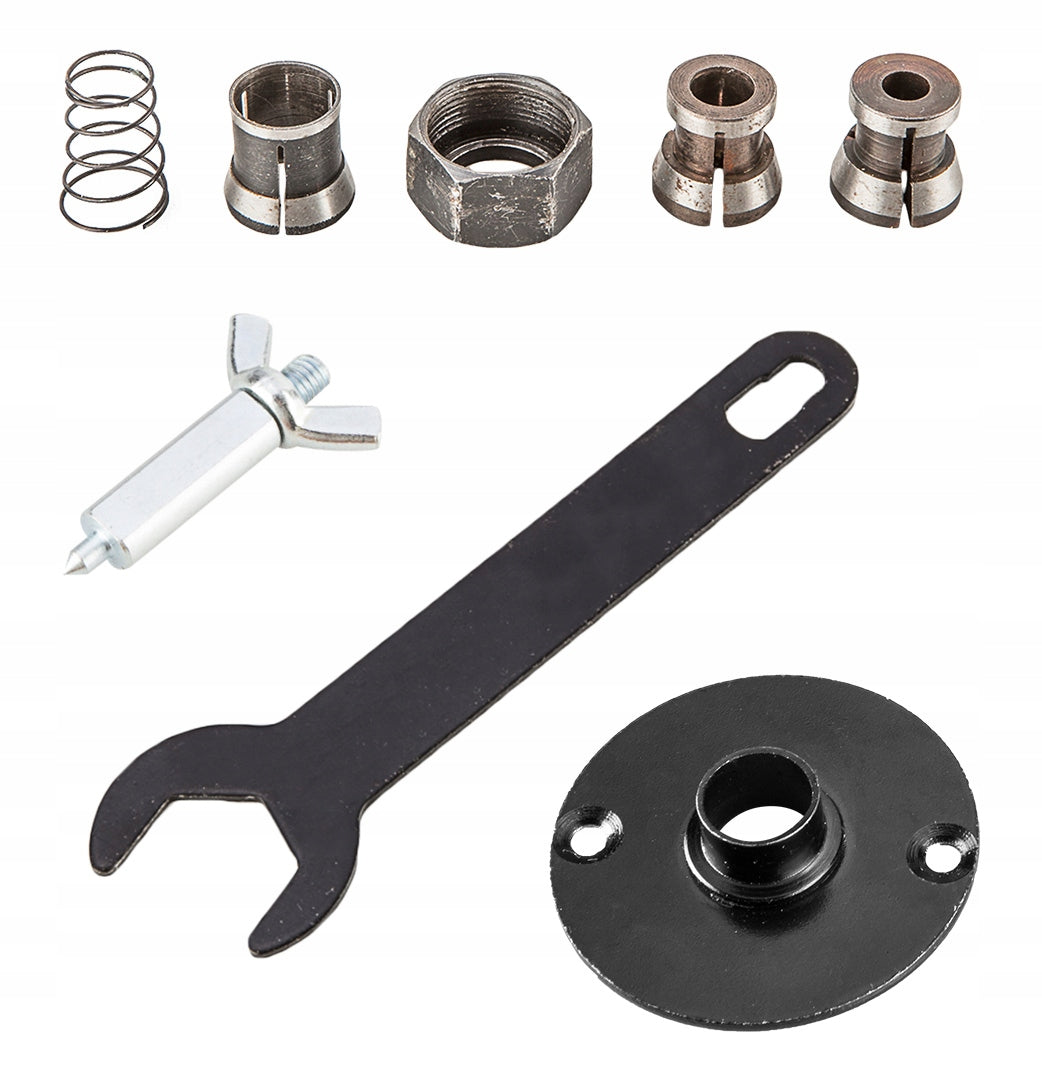

↘ The set with the milling machine includes: a flat wrench, a guide sleeve for copying according to a template, a spike for circular milling, a dust extraction adapter with reduction, three collets with diameters of 6, 8, 12 mm, an aluminum parallel guide equipped with a special plastic cover that protects against scratches and a mechanism enabling precise adjustment of the position of the cutter relative to the edge of the material.

↘ The device is equipped with a flexible and durable 3m rubber-coated power cord, also intended for professional and industrial use both indoors and outdoors.

↘ Power: 1300W

↘ Maximum stroke of milling machine: 55 mm

↘ Tool holder size: 6,8,12 mm

↘ for milling holes, grooves, edges and profiles in wood and wood-based materials, plastics and aluminium

↘ Function of pliquid adjustment of rotation and milling depth

↘ Spindle lock

↘ Block milling depth

↘ Stable aluminium foot with plastic overlay

↘ Ergonomic handles covered with non-slip material

↘ Flexible and durable power cord in a rubber coating with a length of 3m

↘ Included: flat wrench, guide sleeve for copying according to the template, skewer for milling around the circle, adapter for dust extraction with reduction, three collets with diameters of 6, 8, 12 mm, aluminum parallel guide

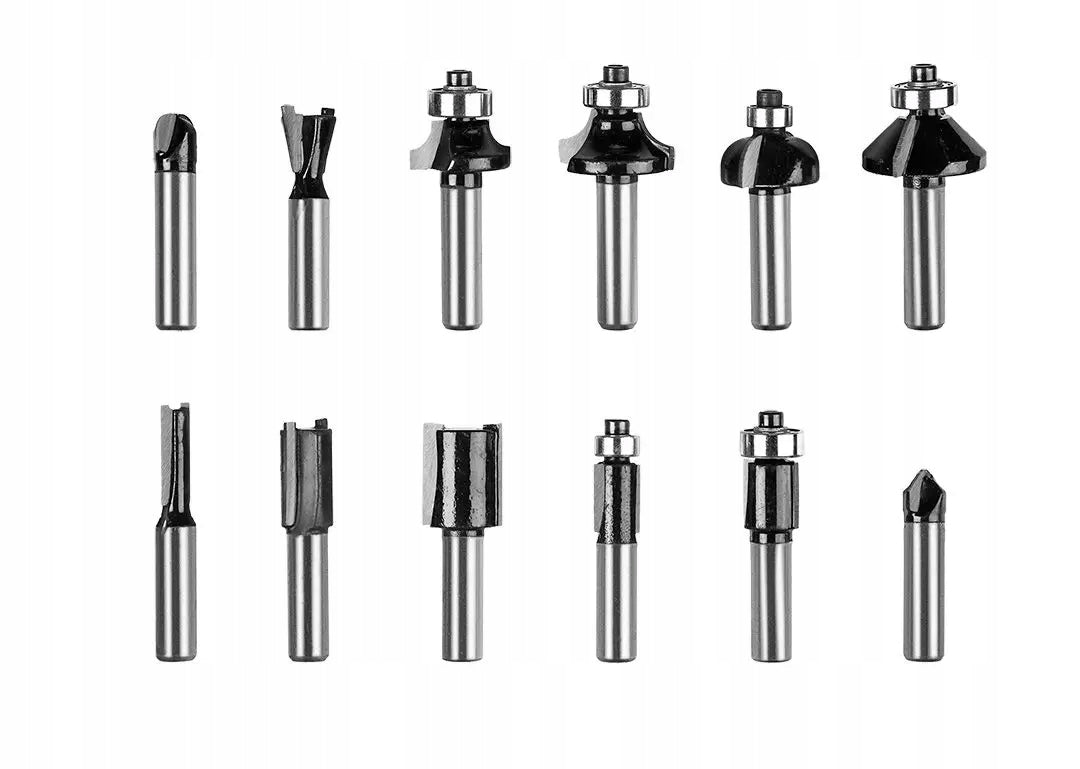

End mills, shank 8 mm, set of 12 pcs. VERTO

The VERTO wood cutter set is 12 tools with fine-grained cemented carbide (TCT) blades, designed to work with high-spindle milling machines. Cutters with 8 mm shank enable effective processing of solid wood, both soft and hard, as well as wood-based materials. The variety of shapes and sizes in the set allows you to perform a wide range of operations – from edge profiling, through grooving, to creating decorative details. Unscrewable bearings increase the comfort of use and facilitate maintenance. This is the perfect set of GRAPHITE brand for DIYers and craftsmen who value precision and durability of tools.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	GRAPHITE
Parametry	Series	T 59G717
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Maximum power	1300 W
Parametry	Supply voltage	230 V
Parametry	Maximum no-load speed	28000 RPM
Parametry	Maximum milling depth	55 mm
Parametry	Pitch of the milling unit	55 mm
Parametry	Power cord length	3 m
Parametry	Device weight	3.5 kg
Parametry	Product weight with unit packaging	5.2 kg
Parametry	EAN (GTIN)	5906692030613
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
Parametry	Tool holder (mm)	6,8,12
Parametry	Additional information	dust removal,speed regulator
