Frezavimo staklės GRAPHITE 1300W su 35 frezų rinkiniu lagamine

Trumpai apie prekę

Prekė: Frezavimo staklės GRAPHITE 1300W su 35 frezų rinkiniu lagamine. Kategorija: Frezavimo staklės.

• Gamintojas: GRAPHITE
• Įtampa: 230 V

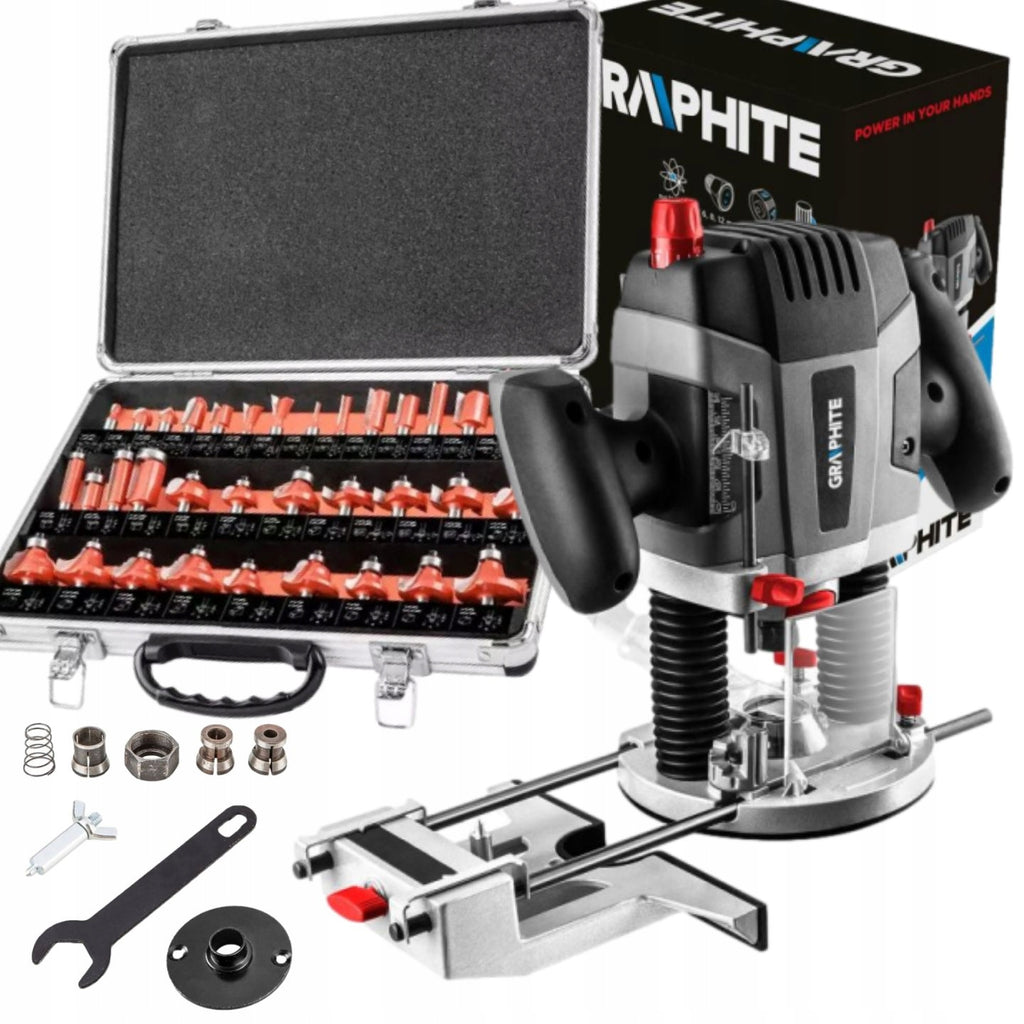

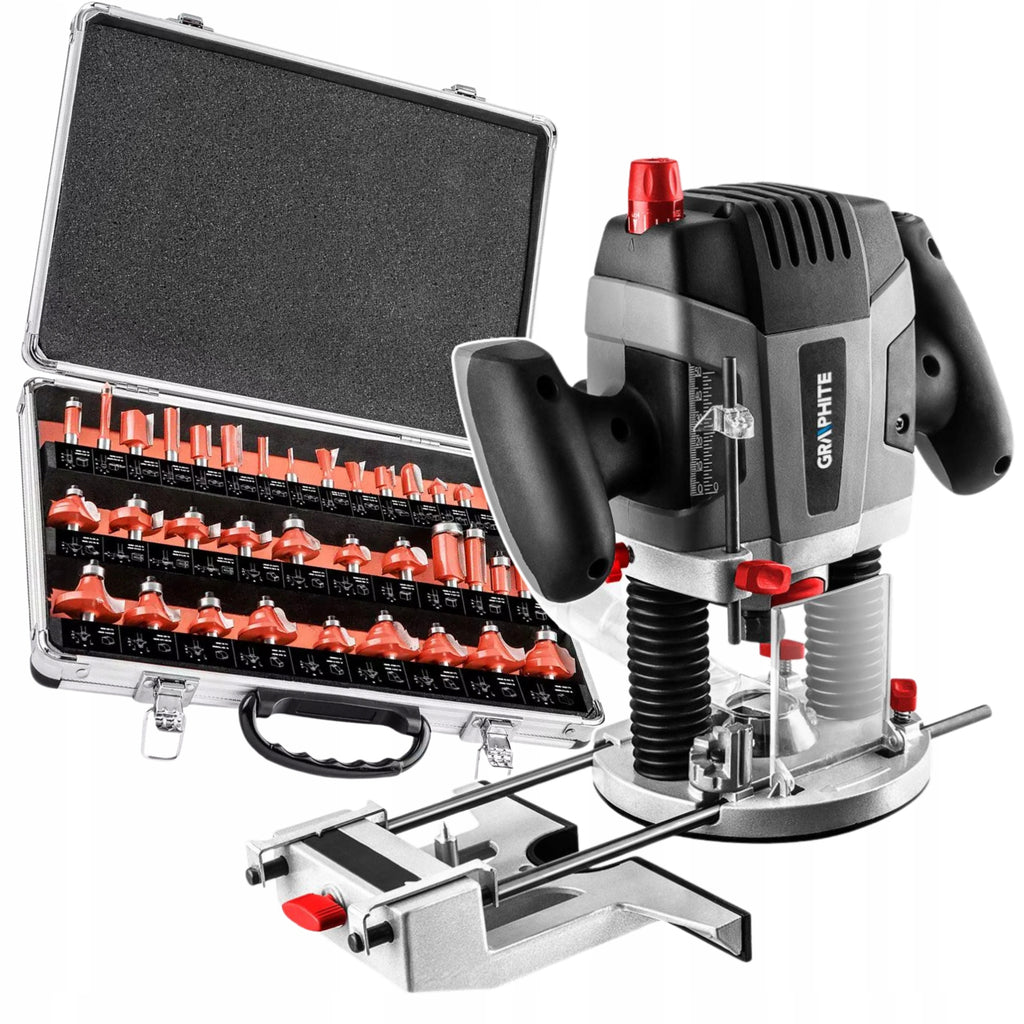

The set consists of:

• Spindle milling machine 1300W, handle 6-12 mm 59G717
• View mills, 8 mm shank, set of 35 pcs.
• Parallel guide
• Circle milling skewer

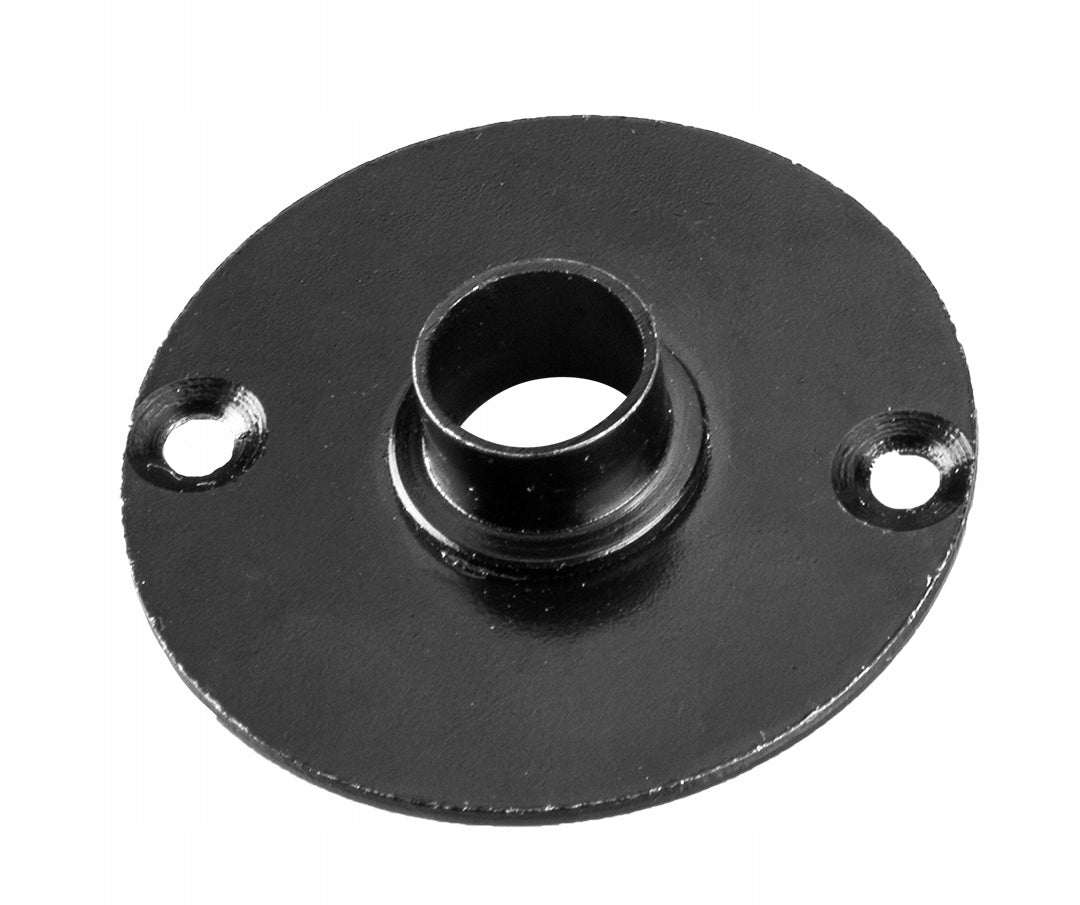

• Guide sleeve
• Dust extraction adapter with reduction
• Screws for attaching the adapter
• 3 x Terminal bushing

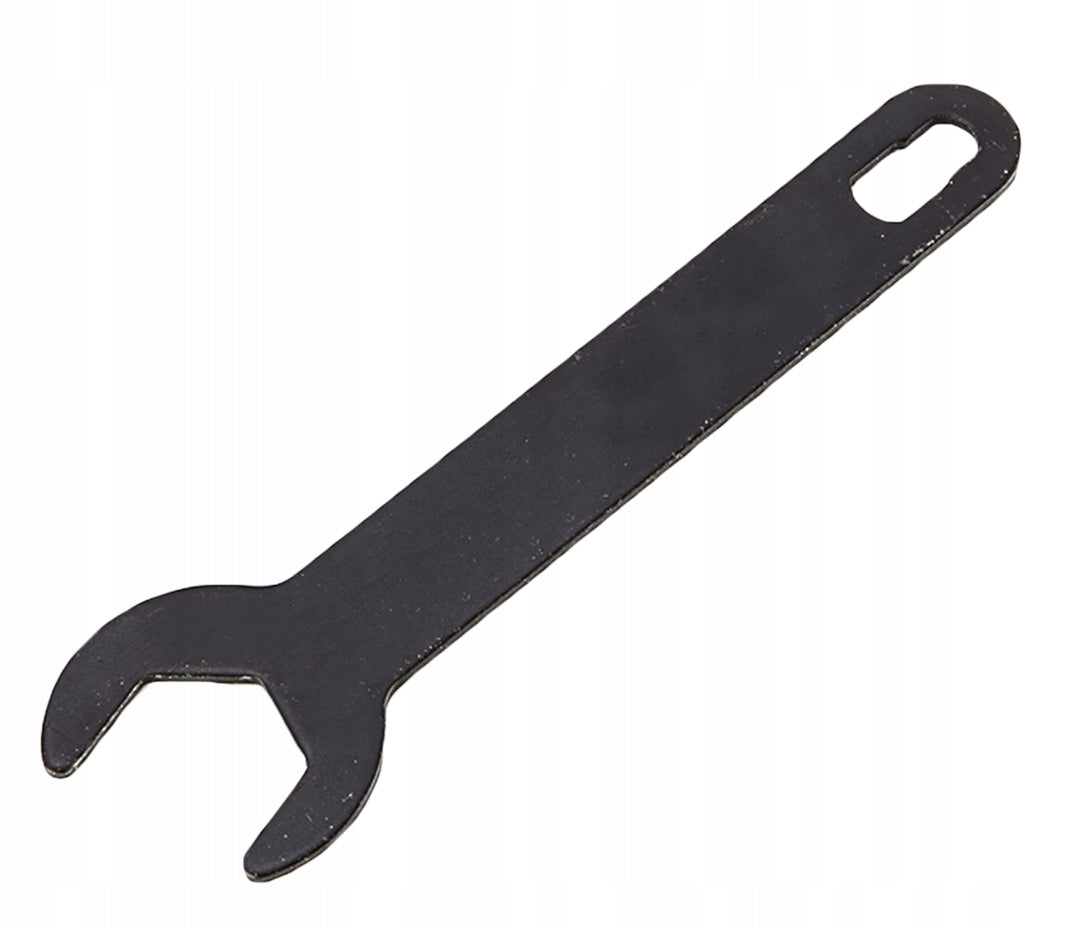

• Flat Wrench

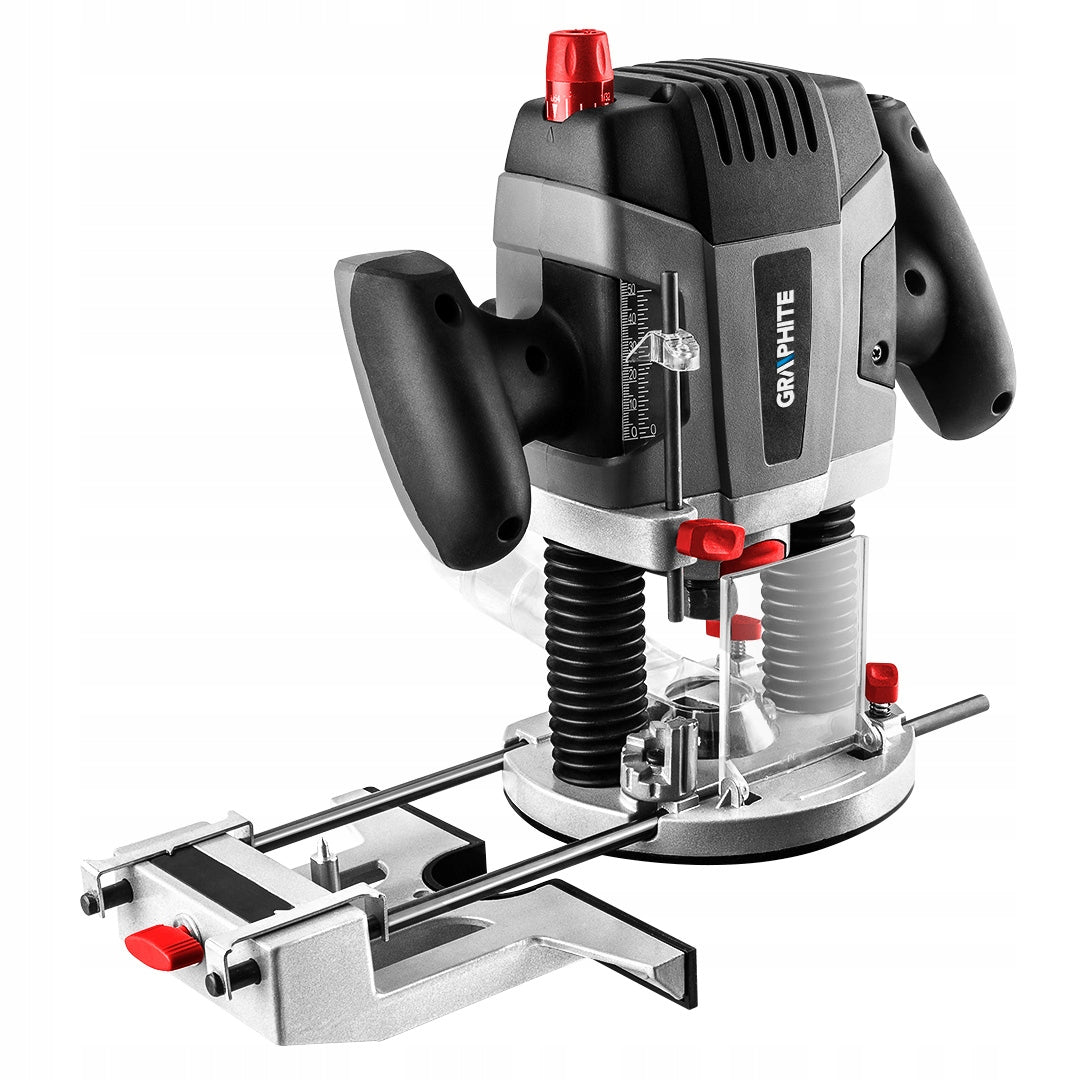

↘ Spindle milling machine GRAPHITE with an efficient 1300W motor, designed for milling holes, grooves, edges and profiles in all kinds of wood and wood-based materials, as well as in plastics and aluminum.

↘ The device has the function of smooth adjustment of rotation and depth of milling.

↘ The idling speed range is from 11000 to 28000 min-1.

↘ The milling machine has a spindle lock and a milling depth lock.

↘ The depth of milling can be adjusted using three instruments:

↘ 8-stage depth limiter fender, depth limiter with smooth setting (range 0-55 mm) and knobs for precise depth adjustment (accuracy 0,1 mm).

↘ The device is equipped with a stable aluminum foot with a plastic overlay, ensuring easy handling of the device on all kinds of surfaces.

↘ The milling machine motor guides are embedded in an aluminum body with sockets subjected to specialized surface treatment, thanks to which the device is characterized by increased precision during recessing.

↘ Ergonomic handles milling machine have been covered with non-slip material, making the operation of the device comfortable and safe.

↘ Dust cover and dust extraction adapter are made of transparent polycarbonate.

↘ The mill is equipped with a large speed control knob, located within the range of the operator's right thumb.

↘ At the left grip of the milling machine there is an arched, ergonomic lever of the body guide lock, allowing you to operate it without taking your hand off.

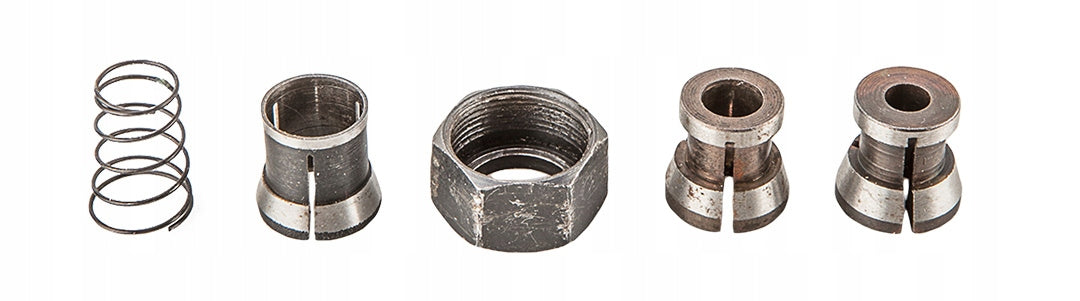

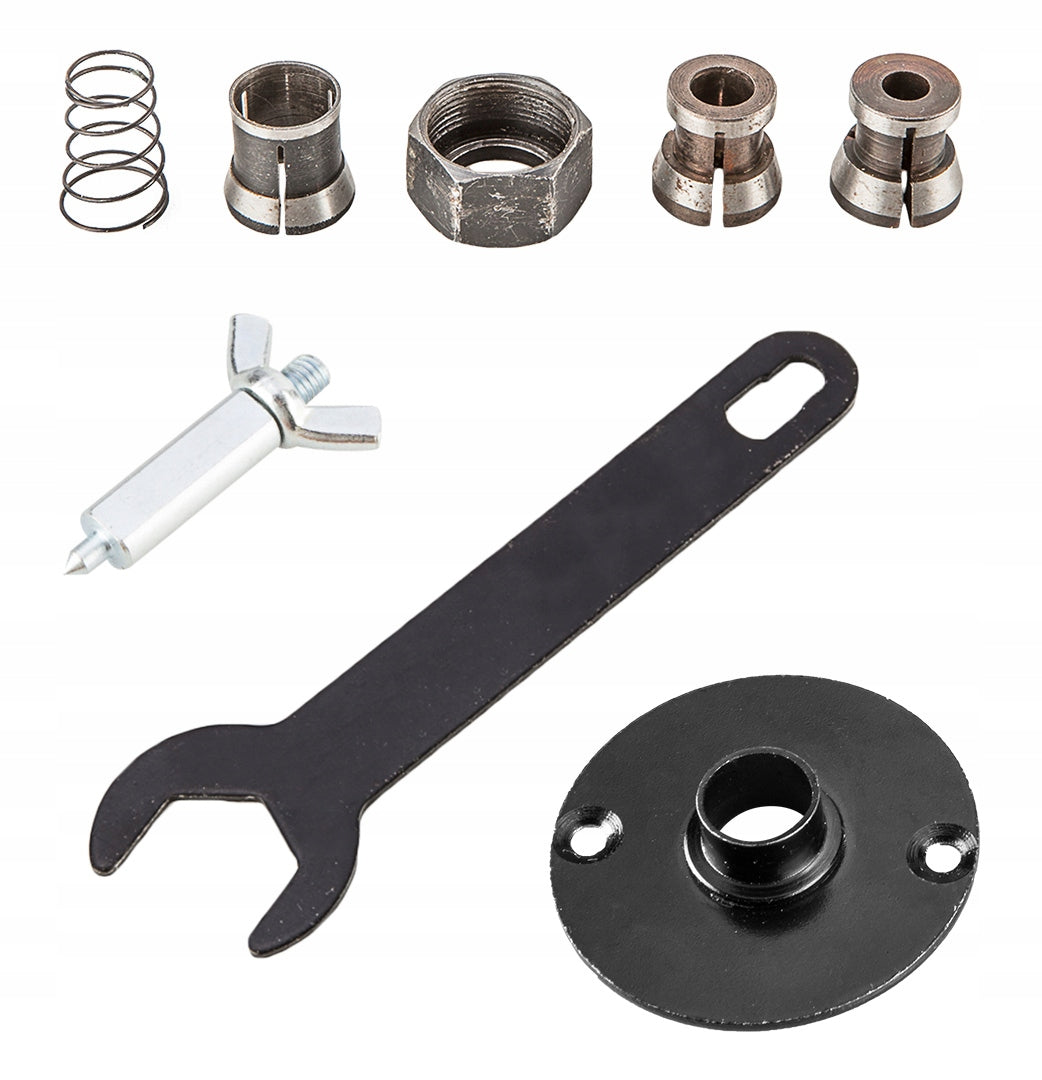

↘ The set with the milling machine includes: a flat wrench, a guide sleeve for copying according to a template, a spike for milling in a circle, a dust extraction adapter with reduction, three clamping sleeves with diameters of 6, 8, 12 mm, an aluminum parallel guide equipped with a special plastic cover that protects against scratches and a mechanism enabling precise adjustment of the position of the milling cutter relative to the edge of the material.

↘ The device is equipped with a flexible and durable power cord in a 3m rubber coating, also dedicated to professional and industrial applications both indoors and outdoors.

↘ Power: 1300W

↘ Maximum stroke of milling machine: 55 mm

↘ Tool holder size: 6,8,12 mm

↘ for milling holes, grooves, edges and profiles in wood and wood-based materials, plastics and aluminium

↘ Function of pliquid adjustment of rotation and milling depth

↘ Spindle lock

↘ Block milling depth

↘ Stable aluminium foot with plastic overlay

↘ Ergonomic handles covered with non-slip material

↘ Flexible and durable power cord in a rubber coating with a length of 3m

↘ Included: flat wrench, guide sleeve for copying according to the template, skewer for milling around the circle, adapter for dust extraction with reduction, three collets with diameters of 6, 8, 12 mm, aluminum parallel guide

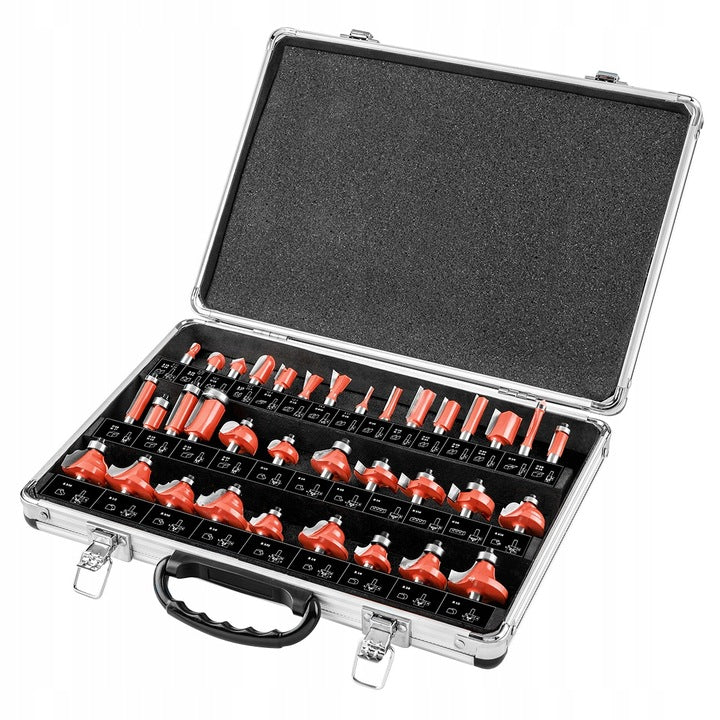

End mills, shank 8 mm, set of 35 pcs. GRAPHITE (ref. 56H240) is a set containing 35 pieces of spectral cutters with a shank diameter of 8mm placed in an aluminum cassette will be useful in wood, PVC and chipboard processing. The set includes cutters of various shapes: 13 U-groove cutters, 6 straight cutters, 3 shape cutters, 3 groove cutters, 10 decorative cutters. The cutter heads are equipped with cutting plates and bearings to facilitate the operation of the milling machine. The blades are made of cemented carbide and allow you to achieve the perfect surface finish.

Product characteristics:

• included: 13 U-groove cutters, 6 straight cutters, 3 shaped cutters, 3 groove cutters, 10 decorative cutters
• cutter heads equipped with cutting plates
• blades made of sintered carbide
• aluminium cassette included
• For wood: Yes
• Number of pieces included: 35 pieces
• Product material: cemented carbide
• Mandrel diameter: 8 mm
• Chuck type: cylindrical
