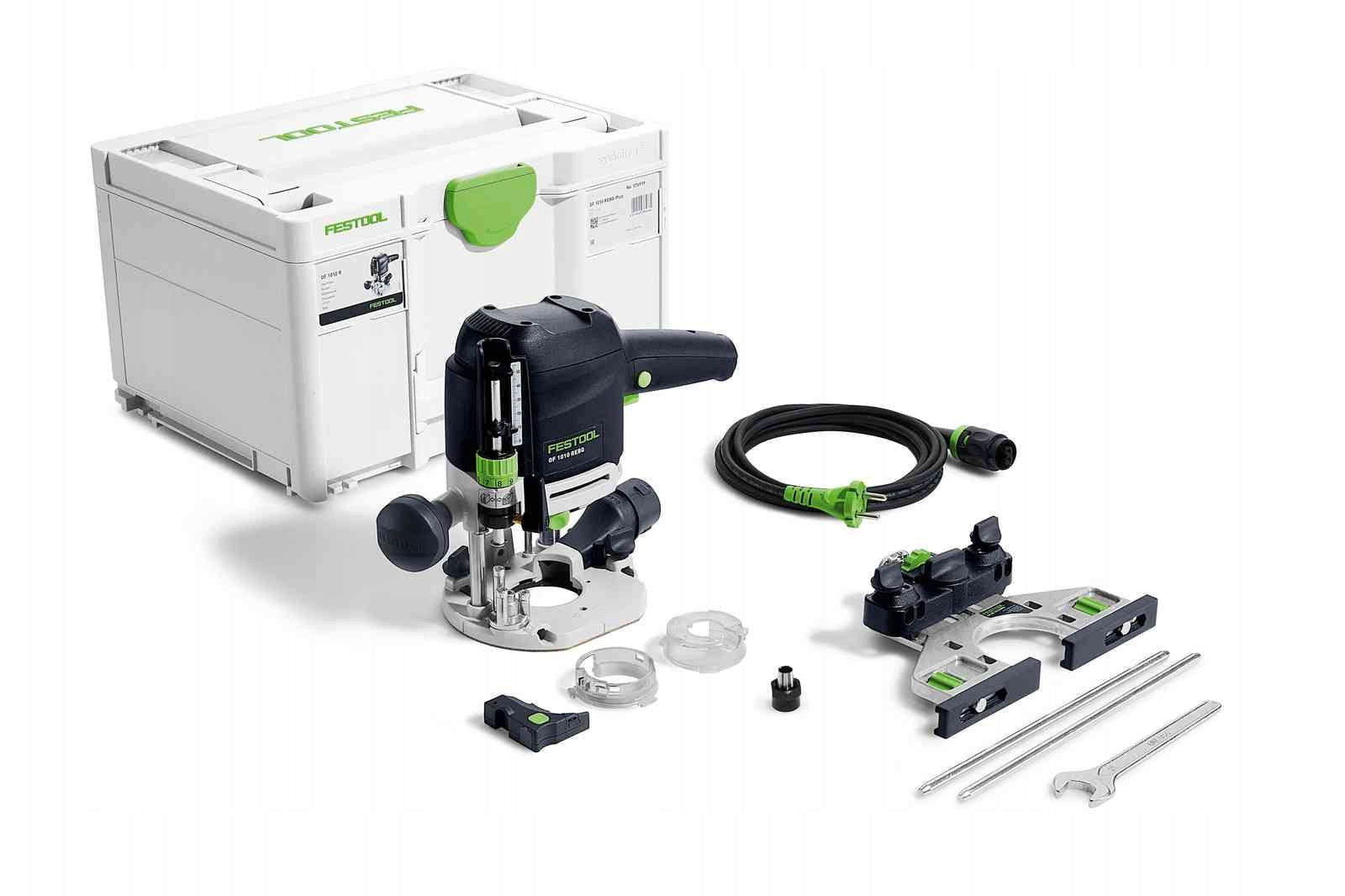

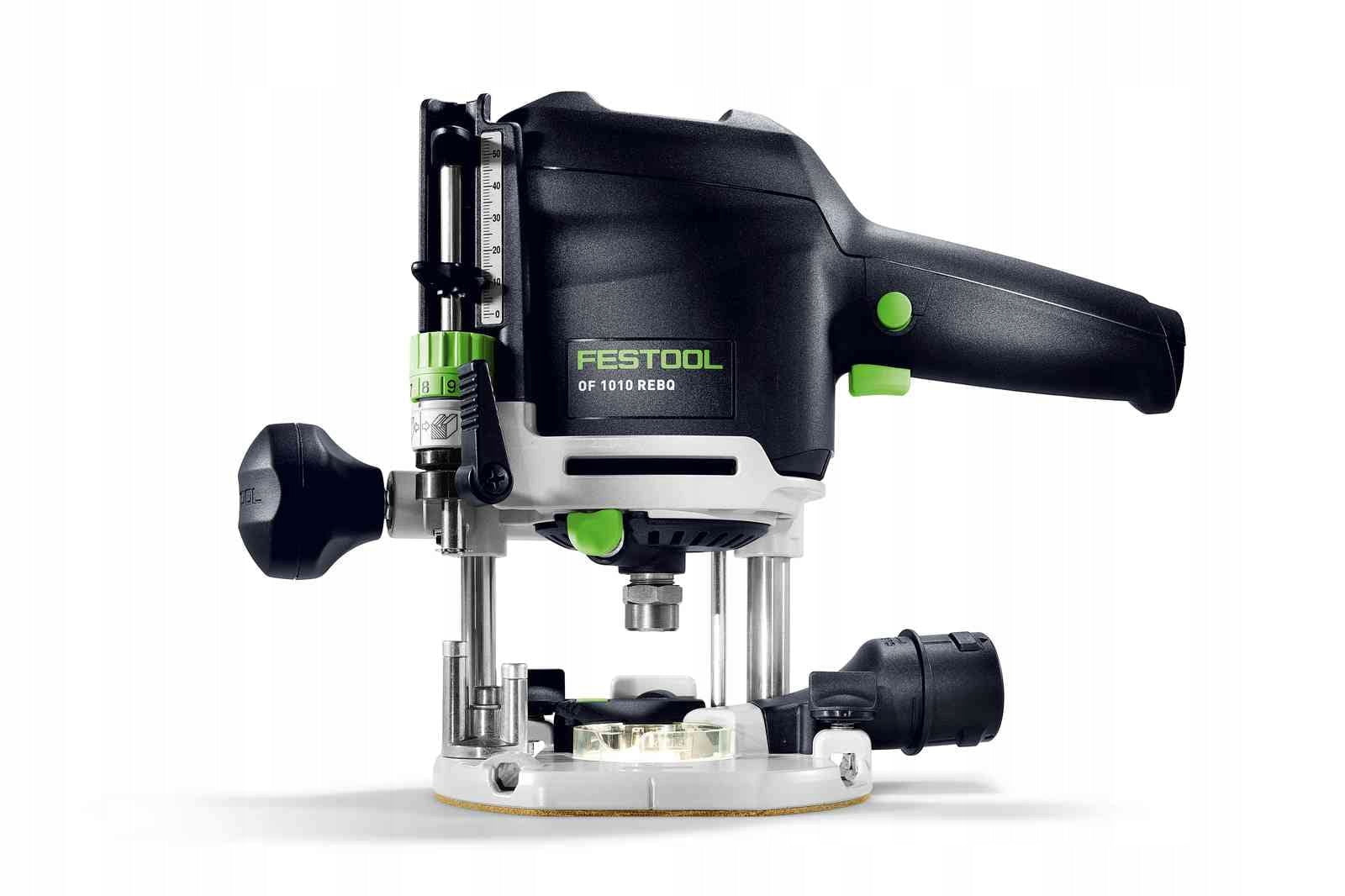

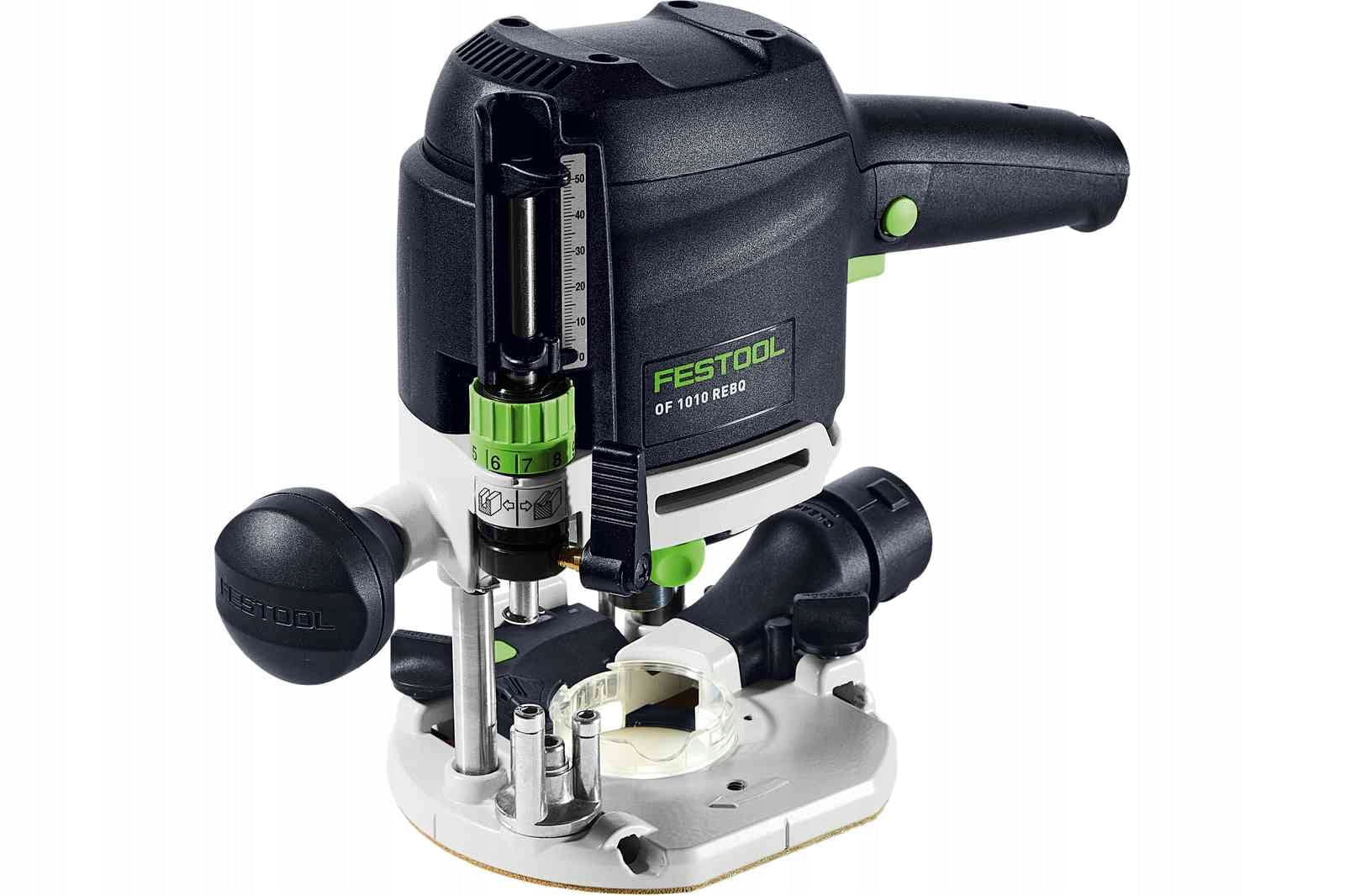

Frezeris Festool OF 1010 REBQ-Plus

Trumpai apie prekę

Prekė: Frezeris Festool OF 1010 REBQ-Plus. Kategorija: Frezavimo staklės.

• Gamintojas: Festool
• Modelis: 578005

Catalogue No. 578005

Lighting ensures maximum precision.

The OF 1010 R spindle milling machine enables maximum precision. The double-sided mounting of the columns makes it extremely resistant to deformation, and the positioning of the side guide is accurate and does not require the use of tools. An easily accessible work area with ring-shaped LED lighting provides excellent visibility of the workpiece. The ring is located directly next to the workpiece, providing illumination without shading effect. All in order to achieve the highest precision milling results. Thanks to a wide range of equipment, the possibilities of using the OF 1010 R milling machine are almost unlimited.

• Handy operation: thanks to its compact design and light weight
• Good visibility: perfectly visible milling area
• Good lighting: thanks to the rechargeable LED work light mounted in the base plate
• In no time: easy and quick cutter replacement
• Precision: Easily and accurately set milling depths with 1/10 mm accuracy
• Stability: non-deformable milling table thanks to double-sided crimped guide columns

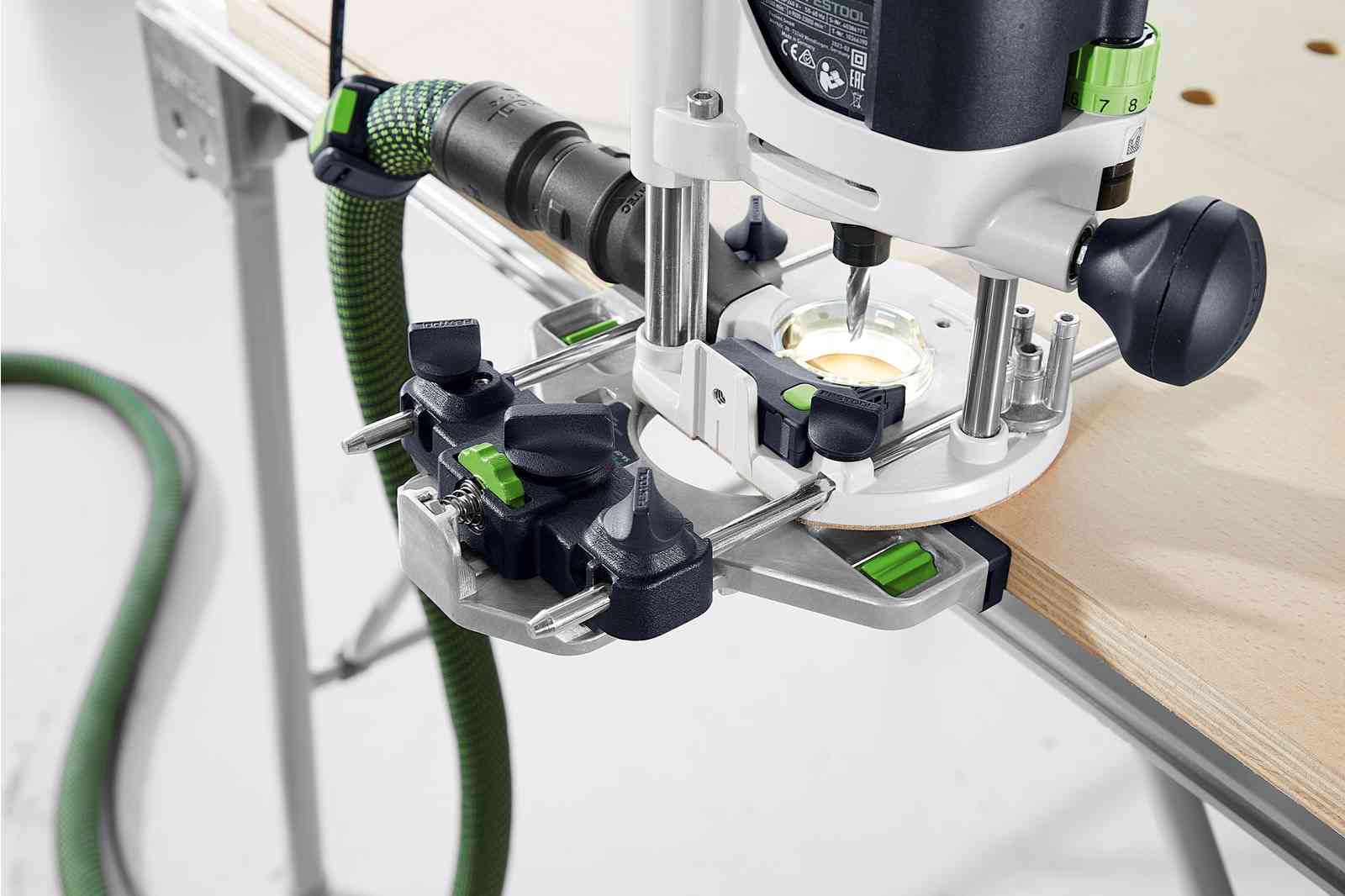

• Side guide: accurate and precise positioning thanks to the central clamp with precise adjustment and tool-free sliding guide jaws
• Increased safety: With its quick brake and reboot protection
• Material Adaptation: MMC Electronic enables optimal operation and temperature control
• Integration: chip extraction built directly into the milling table adapted to hoses with diameters D 27 and D 36

The most important features of the product

Maximum precision during operation.

Thanks to the double-sided mounting of the columns, the spindle milling machine is extremely resistant to deformation, and the milling depth can be set in a few seconds with an accuracy of 1/10 mm. The side guide is durable, and thanks to precise adjustment, it can be precisely positioned without the use of additional tools. All for precise milling results.

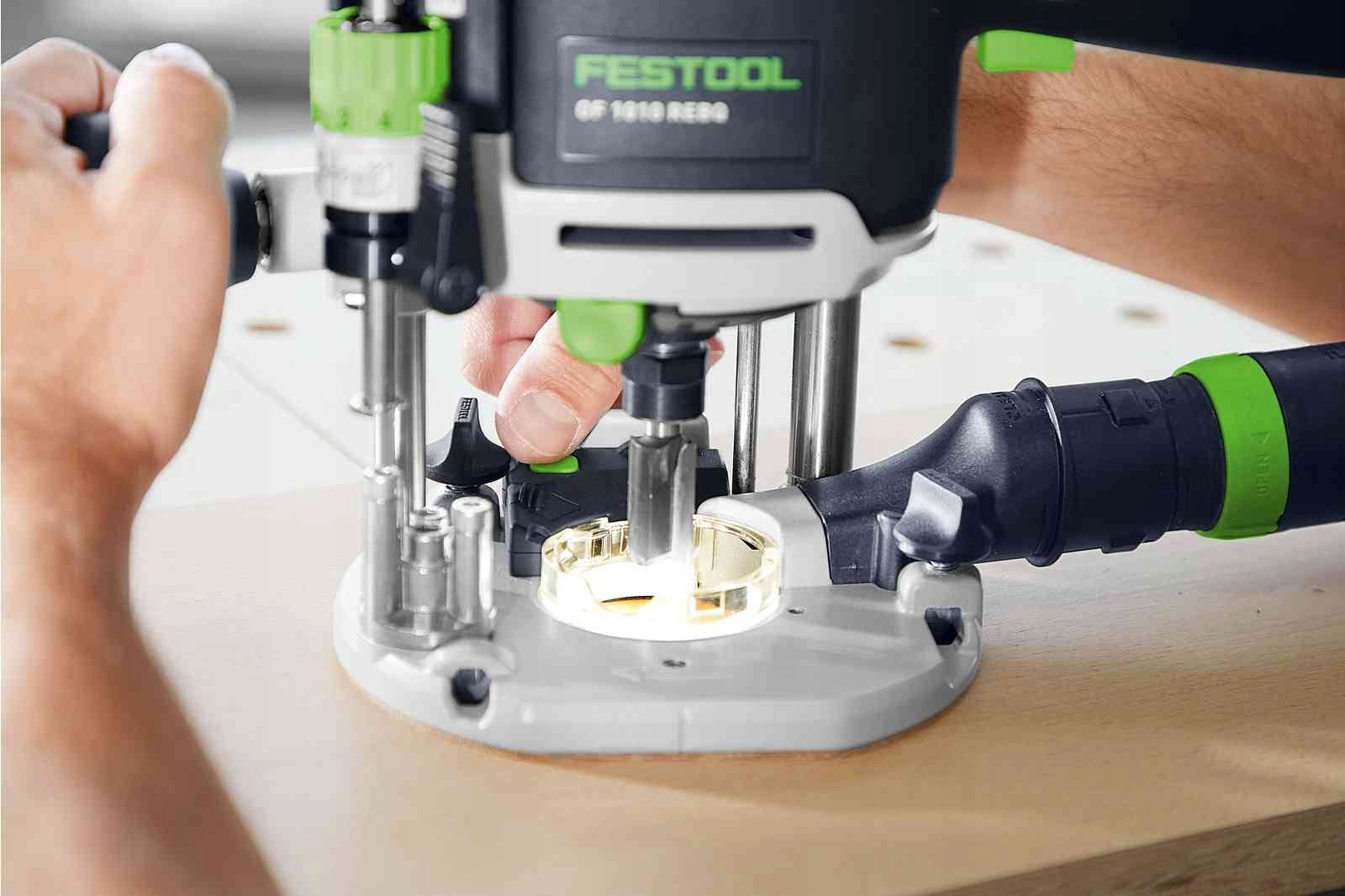

Optimal visibility and lighting.

Thanks to the clearly visible working area, the user can clearly see the cutter and the scratch. Ring-shaped LED lighting provides light from all sides without shading effect, offering two levels of brightness. It is integrated directly into the base plate, so it is close to the workpiece. This means that the user can always see exactly where they are milling.

Versatile equipment to expand the range of applications.

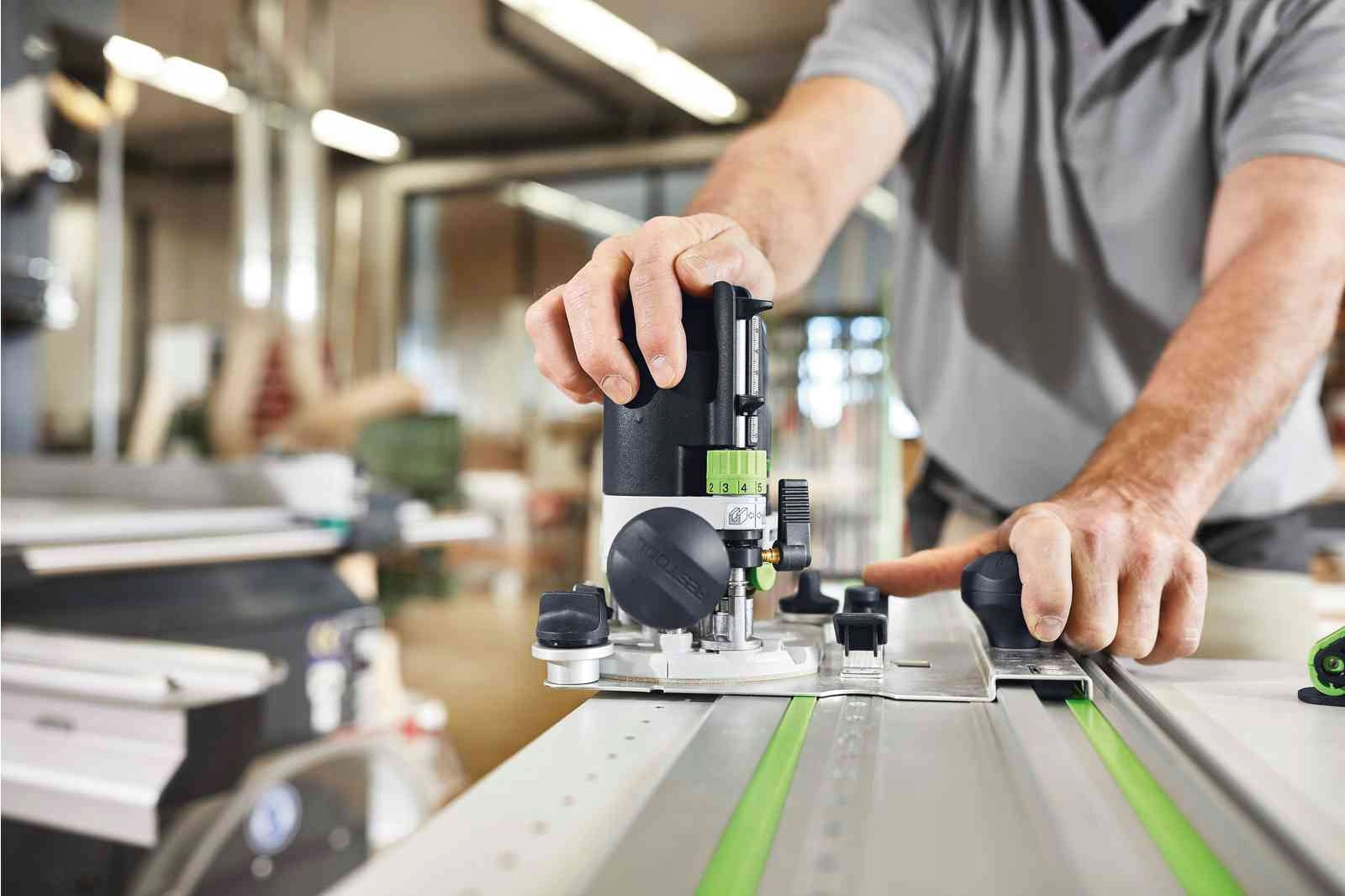

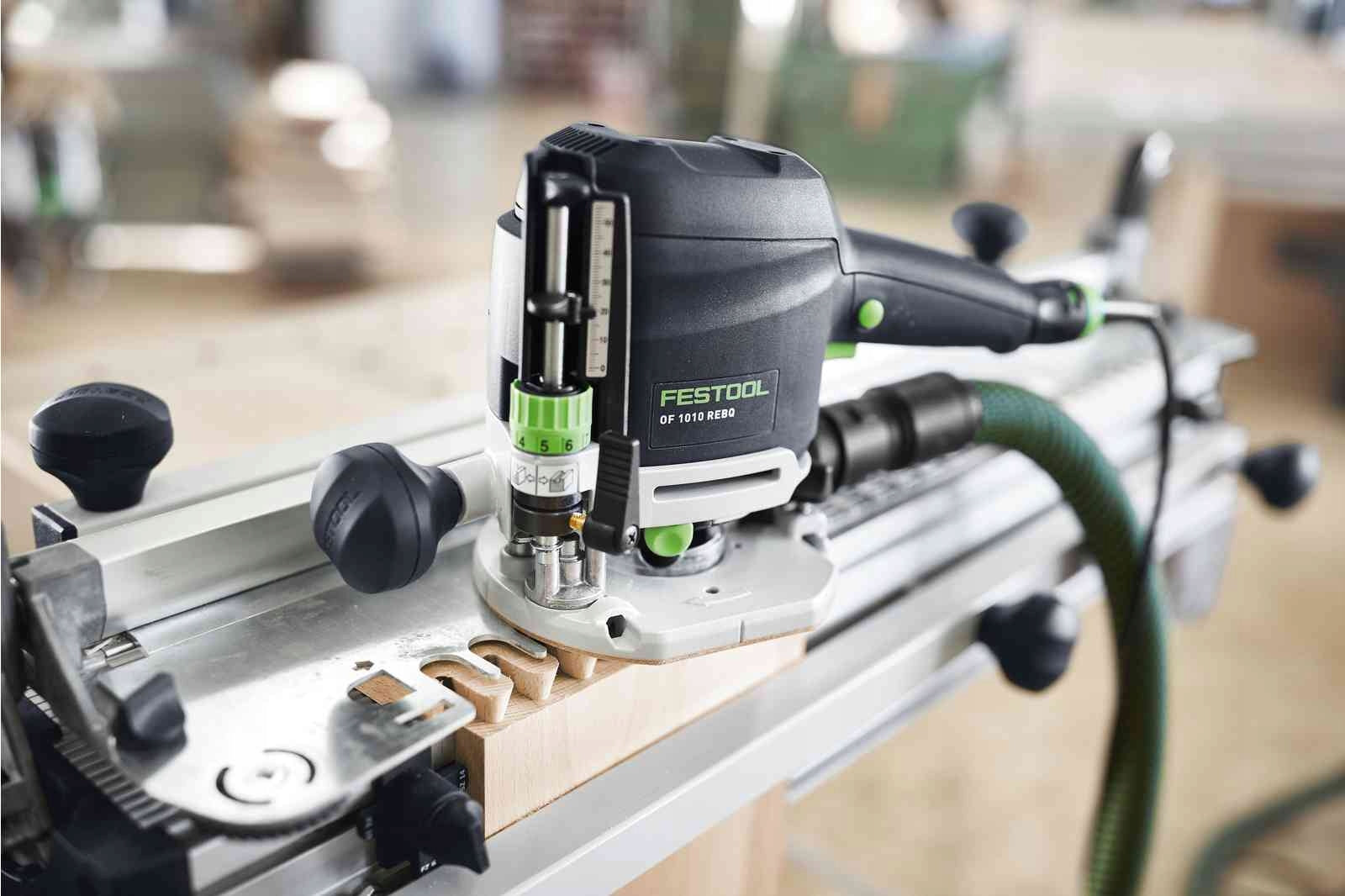

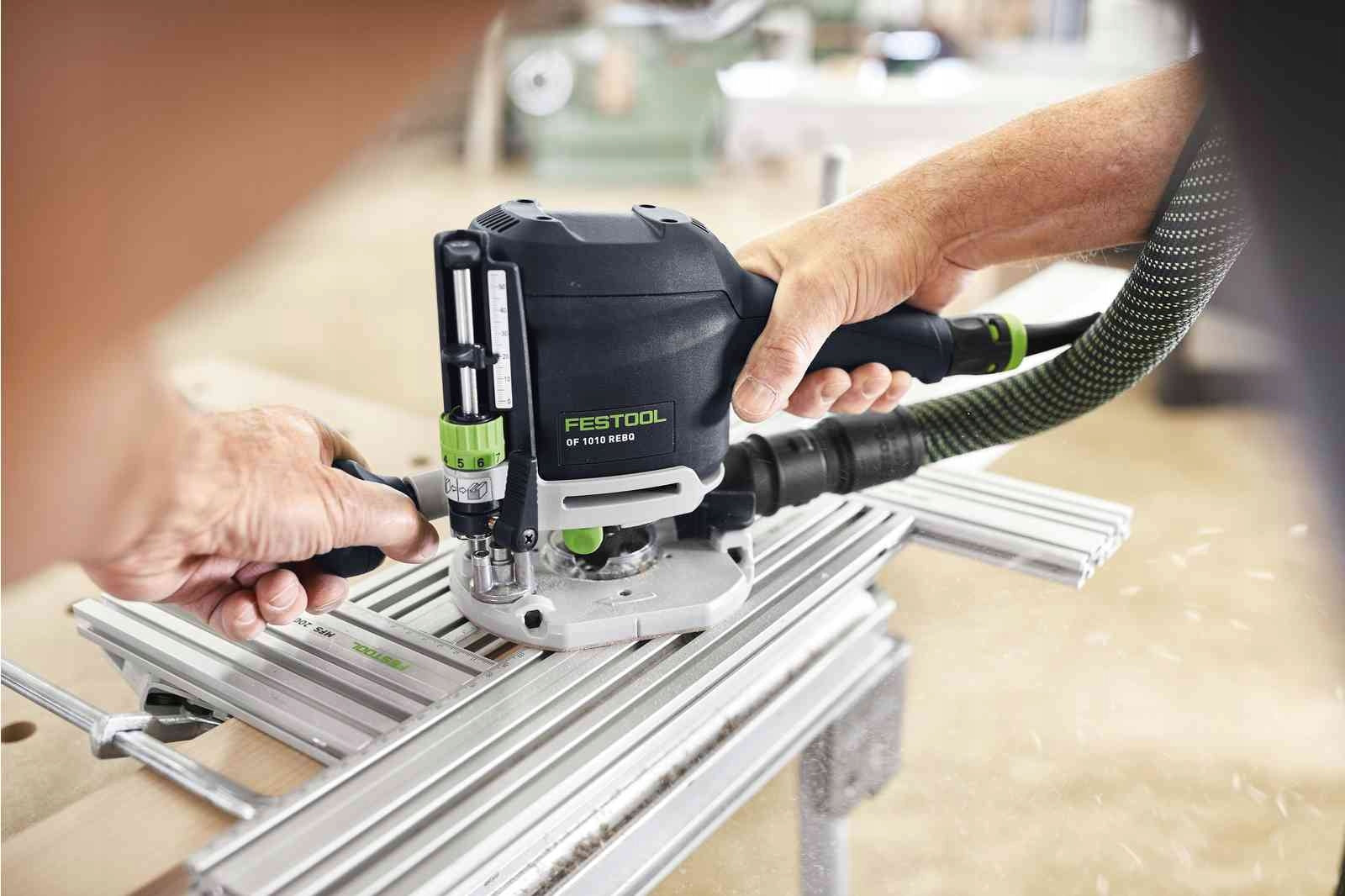

Thanks to a variety of equipment such as cutters, milling templates, guide rails and the VS 600 connection system, the possibilities of using the OF 1010 R are virtually endless.

Key applications

• Edge rounding, chamfering, frame making and profiling
• Recessing fittings
• Drains in the back walls, letting in the slats or milling gypsum boards.-cardboard. - with guide system
• Rows of holes in furniture using the LR 32 hole row system
• Making connections of wooden elements with VS 600

• Power consumption: 1 010 W
• Idle speed: 9 500 - 23 000 min⁻¹
• Clamp holder diameter: 6 - 8 mm
• Quick setting of milling depth: 55,00 mm
• Precise setting of milling depth: 8,00 mm
• Table opening: 50,00 mm
• Dust extraction connection Ø: 27/36 mm
• Cable length: 4,00 m
• Product weight without equipment: 3,20 kg
• Type of drive: Network

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Festool
Parametry	Series	578005
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Tool holder (mm)	8
Parametry	Maximum milling depth	55 mm
Parametry	Power cord length	4 m
Parametry	Additional information	speed regulator
Parametry	Device weight	3.2 kg
Parametry	Product weight with unit packaging	3.2 kg
Parametry	Manufacturer code	578005
Parametry	EAN (GTIN)	4014549436820
Parametry	Batteries included	no
Parametry	Packaging status	original
