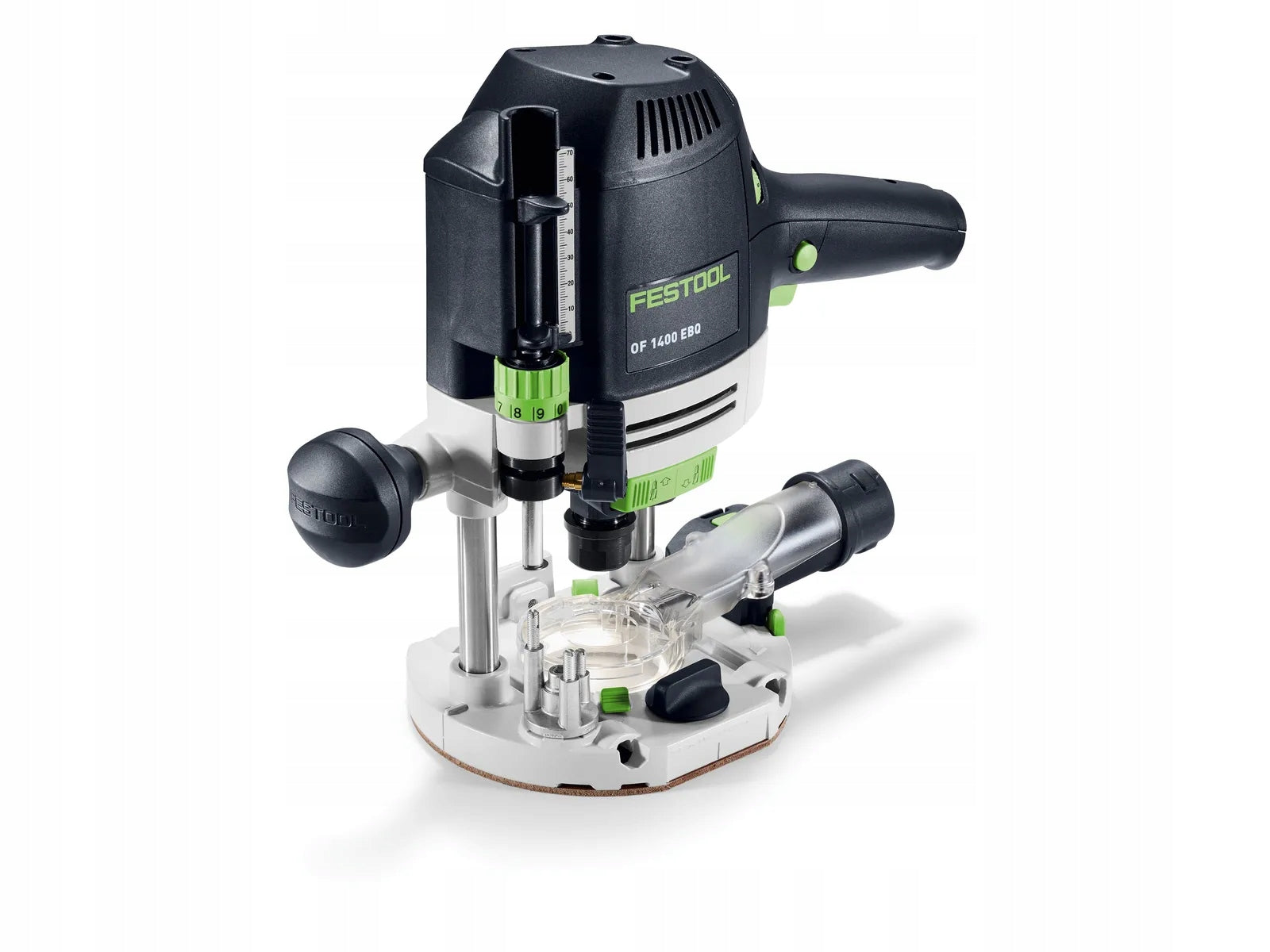

Frezeris FESTOOL OF 1400 EBQ-Plus su siurbimo gaubtu ir LED

Trumpai apie prekę

Prekė: Frezeris FESTOOL OF 1400 EBQ-Plus su siurbimo gaubtu ir LED. Kategorija: Frezavimo staklės.

• Gamintojas: Festool
• Modelis: 578940

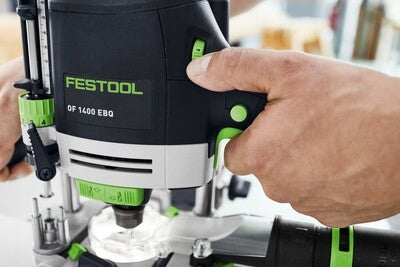

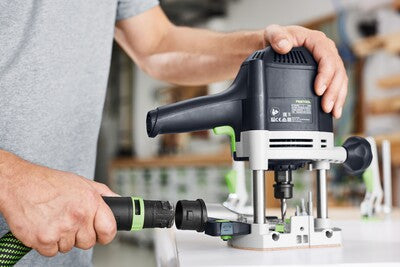

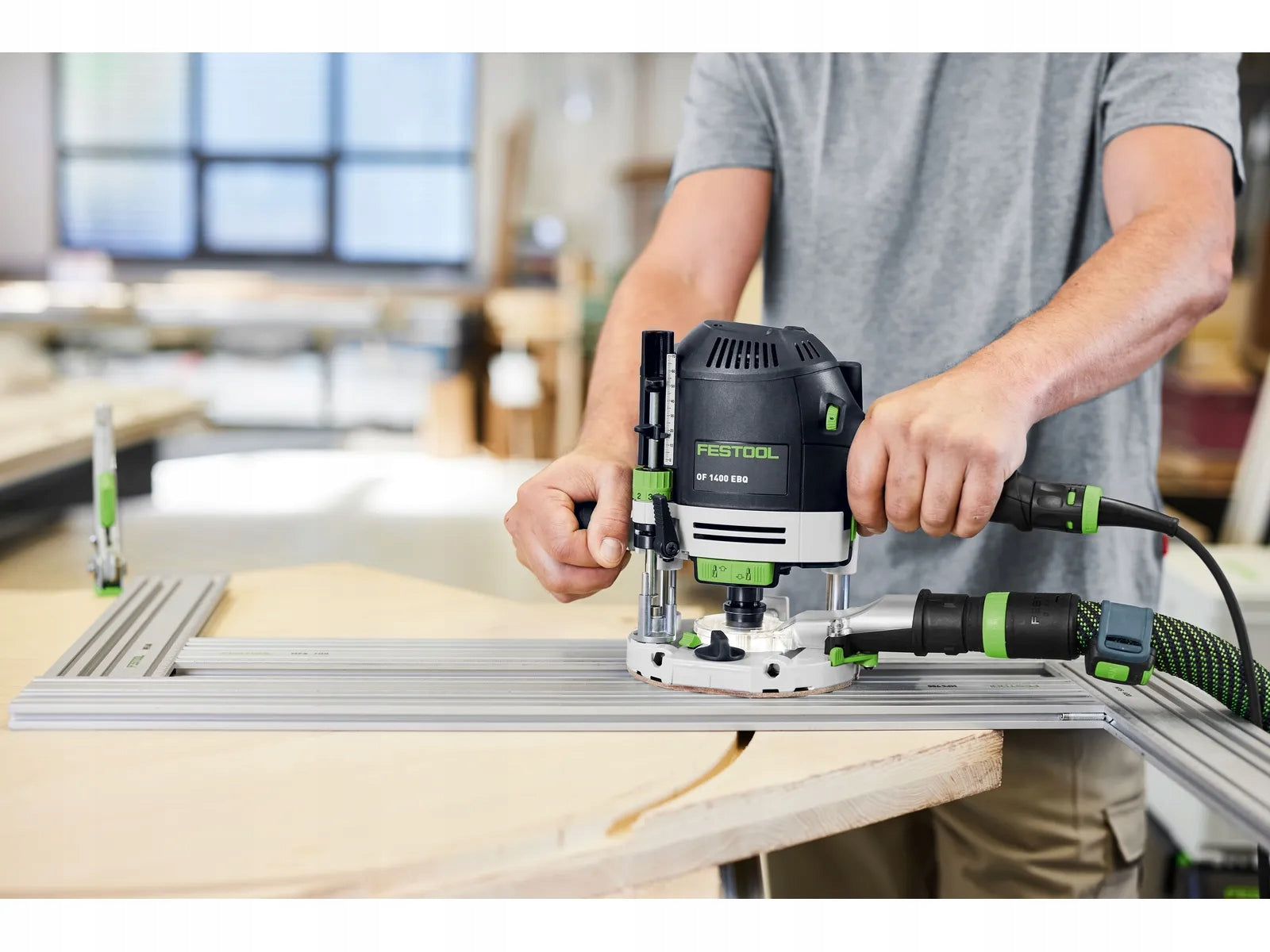

OF 1400 is a handy and versatile spindle milling machine: with a weight of only 4,5 kg and a cutter stroke of 70 mm, it is ideal for letting in fittings and precise work using milling templates. The LED light ring in the suction cover ensures optimal visibility of the workpiece. Thanks to thoughtful details, extensive equipment and versatile accessories, you can perform almost any milling task – accurately and efficiently.

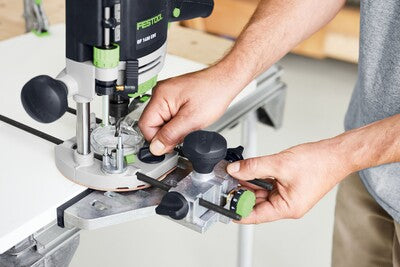

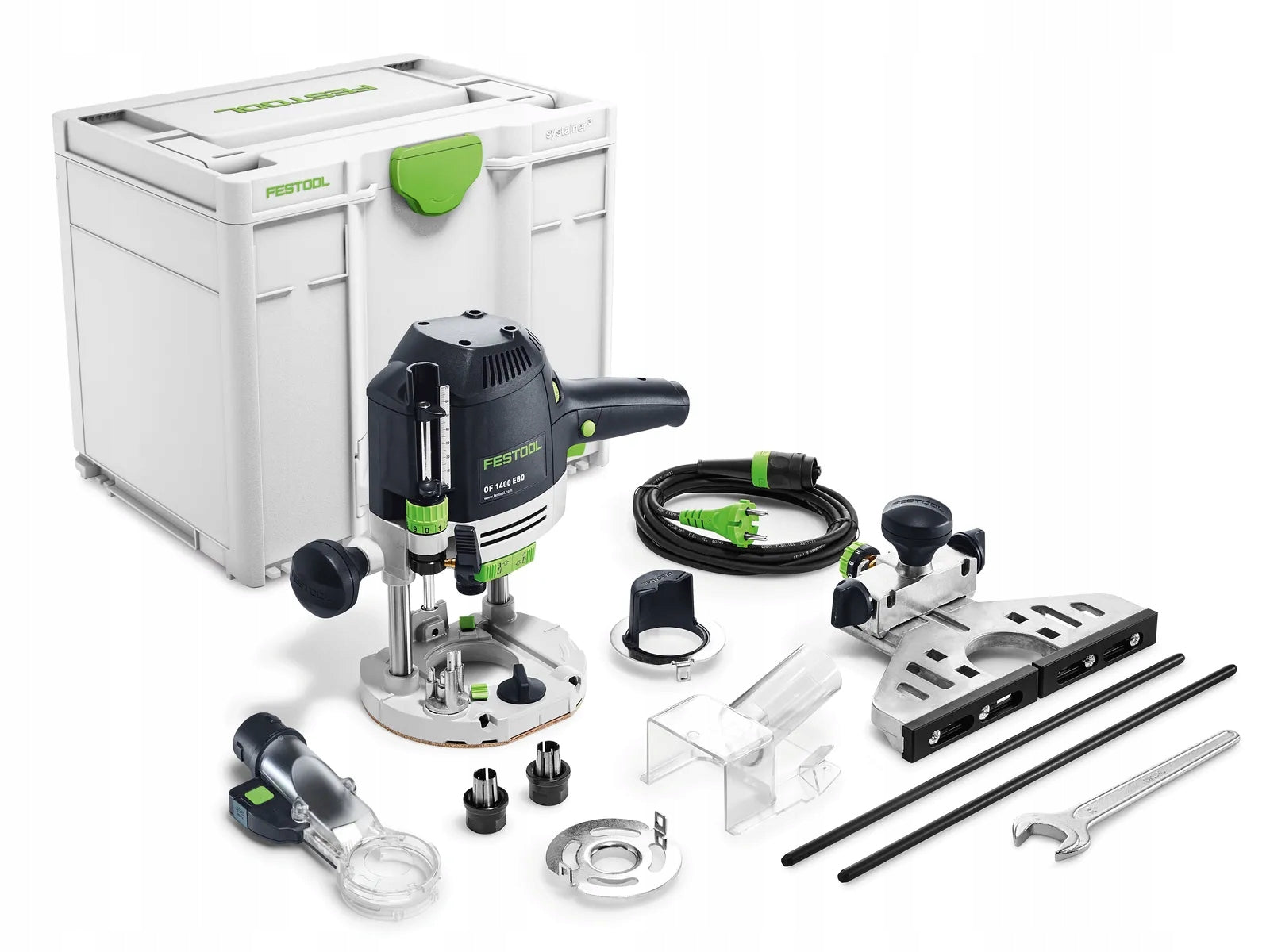

suction guard with lighting module LM-OF 1400, clamping bracket Ø 8 mm, clamping bracket Ø 12 mm, side guide with precise adjustment, copy ring Ø 30 mm, suction cover on top, chip catcher, flat wrench SW 24, plug it power cable (4 m), Systainer SYS3 M 337

Product advantages

• Safety: The high-speed brake and MMC electronics allow you to work with the material properties and adjust the rotational speed
• Cleanliness: suction efficiency up to 99% with chip catcher and suction cover when milling edges
• Comfortable and quick cutter replacement: thanks to the ratchet spindle lock, it is not necessary to move the spade wrench
• Optimal visibility: thanks to the suction cover with integrated LED light ring
• Practical solution: tool-free replacement of copy rings and feet for various applications
• Precision: easy and precise setting of milling depths up to 1/10 mm – with a large adjustment range of 20 mm
• Stability: deformation-resistant design thanks to double-sided crimped guide columns ensures optimal milling results

Technical data

• Power Consumption: 1 400 W
• Idle speed: 10 000 - 22 500 min⁻¹
• Clamp holder diameter: 6 - 12,7 mm
• Quick setting of milling depth: 70 mm
• Precise setting of milling depth: 8 mm
• Table opening: 63 mm
• Dust extraction connection: Ø 27/36 mm
• Cable length: 4 m
• Milling machines: Error tolerance (vibration) K: 1.5 m/s²
• Milling machines: Error tolerance (noise) K: 1.5 dB
• Milling machines: Total vibration average ah: 2.5 m/s²
• Milling machines: A number of EN 62841-2-17 standards
• Milling machines: Pressure level. akust. (A) LpA 98 dB(A)
• Milling machines: Acust power level. (A) LWA 106 dB(A)
• Product weight without equipment: 4.6 kg
• Transport weight with accessories: 9.3 kg
• Type of drive: Network

Scope of delivery:

• FESTOOL High-spindle milling machine OF 1400 EBQ-Plus 578940 with LED lighting ring
