Frezeris YATO YT-82380, 2100 W

Trumpai apie prekę

Prekė: Frezeris YATO YT-82380, 2100 W. Kategorija: Frezavimo staklės.

• Gamintojas: Yato
• Modelis: YT-82380
• Įtampa: 230 V

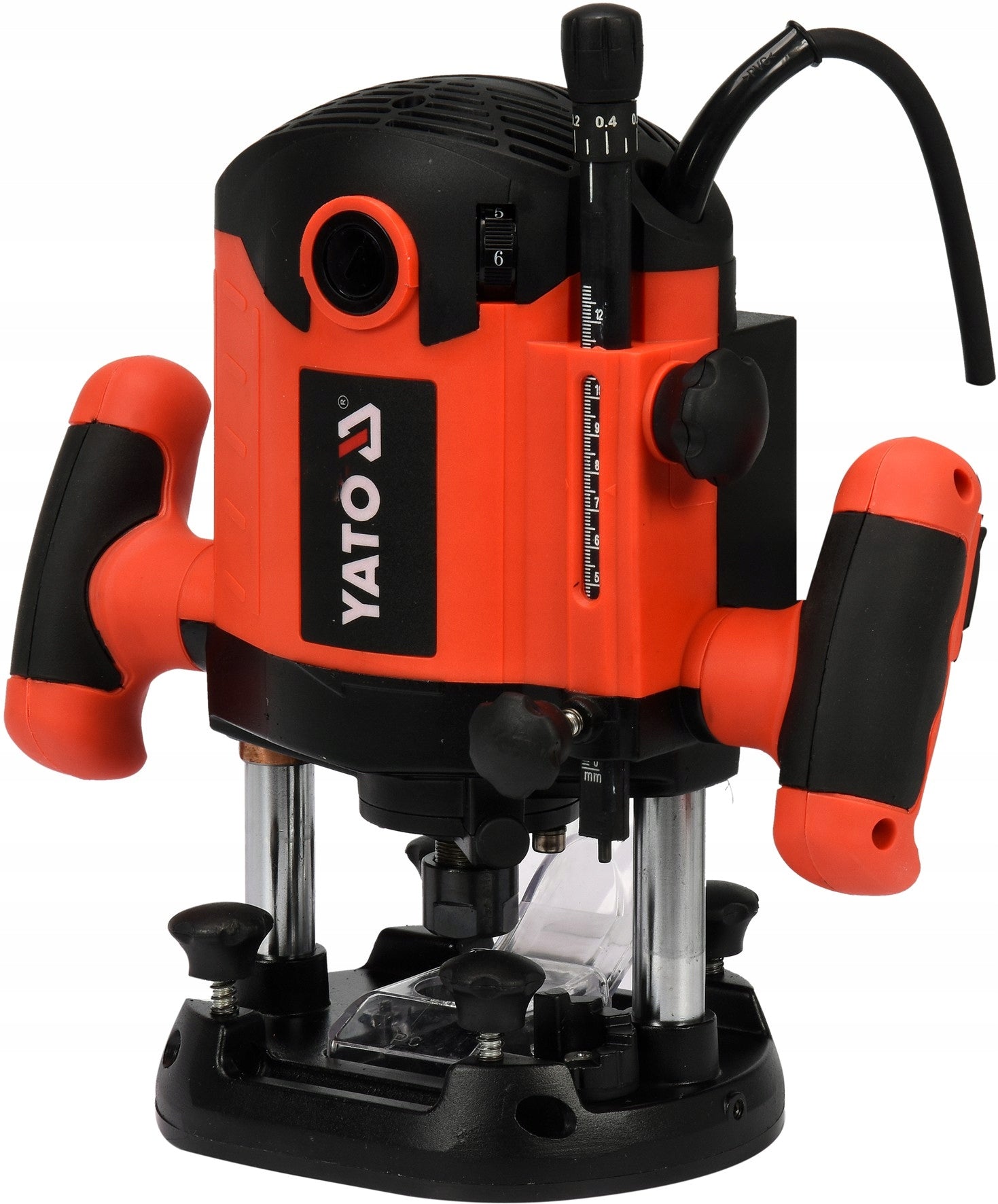

Spindle milling machine 2100W

Strong and durable spindle milling machine designed for edge shaping, milling inlets and joinery joints.

It is characterized by high precision, required in the carpentry industry, and a comfortable handle that allows you to adjust the rotation of the thumb, without the risk of losing control over the tool.

Equipping the milling machine with guides facilitates milling in a straight line and after the arc.

Destiny

The tool is used for woodworking using end mills guided from the top of the material on its surface. You can also process wood-based materials such as MDF, chipboard, plywood, etc.

Dust extraction

An industrial vacuum cleaner can be used as a dust extraction system.

The dust installation adapter consists of two components:

• transparent connection for dust extraction systems
• metal mounting plate

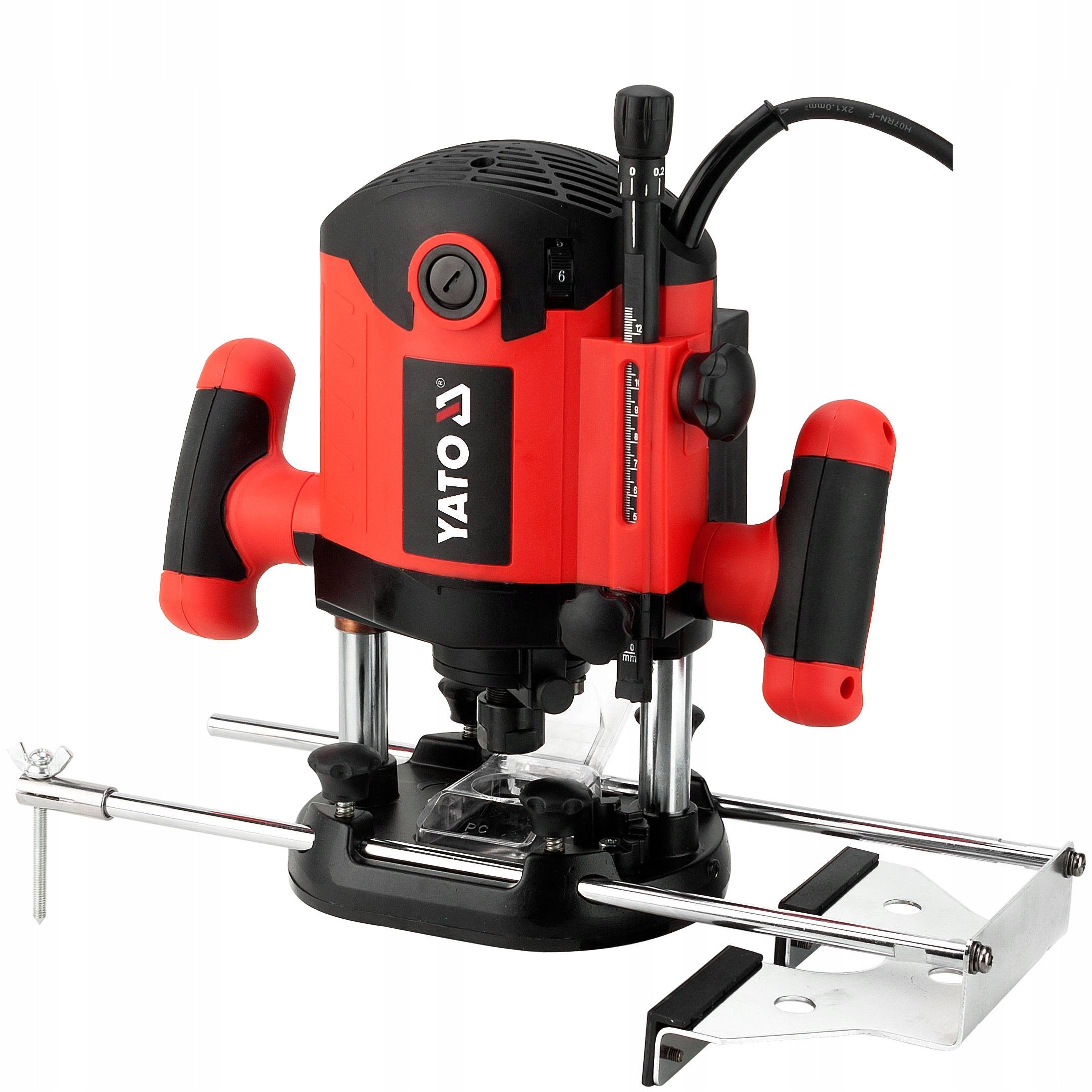

Parallel milling guide

The guide makes it easy to mill straight edges or frames. It consists of a resistance plate and two rods.

Guide for milling circles

The guide makes it easy to mill circles and arches. The guide consists of one rod and a clamp with a needle.

Stroke of the milling unit

The stroke of the milling unit is used to set the milling depth. The value of the settings is visible in the housing window.

Micrometric knob

The depth gauge also features a micrometric knob, which allows you to precisely set the milling depth with an additional rod ejected from the depth gauge. The rotation of the knob is scaled in millimeters of the length of the rod extension.

Speed control

The milling machine enables smooth speed control within the range specified in the table with technical data. The speed is set with a knob.

The higher the visible number, the higher the rotational speed. The rotational speed should be selected depending on the type of material being processed and the diameter of the cutter. The smaller the diameter of the cutter and the harder the wood, the higher the rotation can be set.

Additional information:

• copper, insulated winding
• Parallel guide, made of perfectly fitted elements, facilitates tool handling
• Precise adjustment of milling depth with fixed value lock for ideal machining
• smooth and safe rotation adjustment without taking your hands off the working tool
• protection of the motor and operator when jamming the cutter in the workpiece
• dust extraction connection
• max. number 23500 rpm /min ensures fast and accurate work
• max. stroke of the milling unit: 55 mm
• tool holder: 8, 12 mm
• rubber cable with a length of 3 m
• for use with cutters, e.g. YT-6801, YT-6803

Contents of the set: milling machine, guide x2, dust extraction connection, reducing sleeve

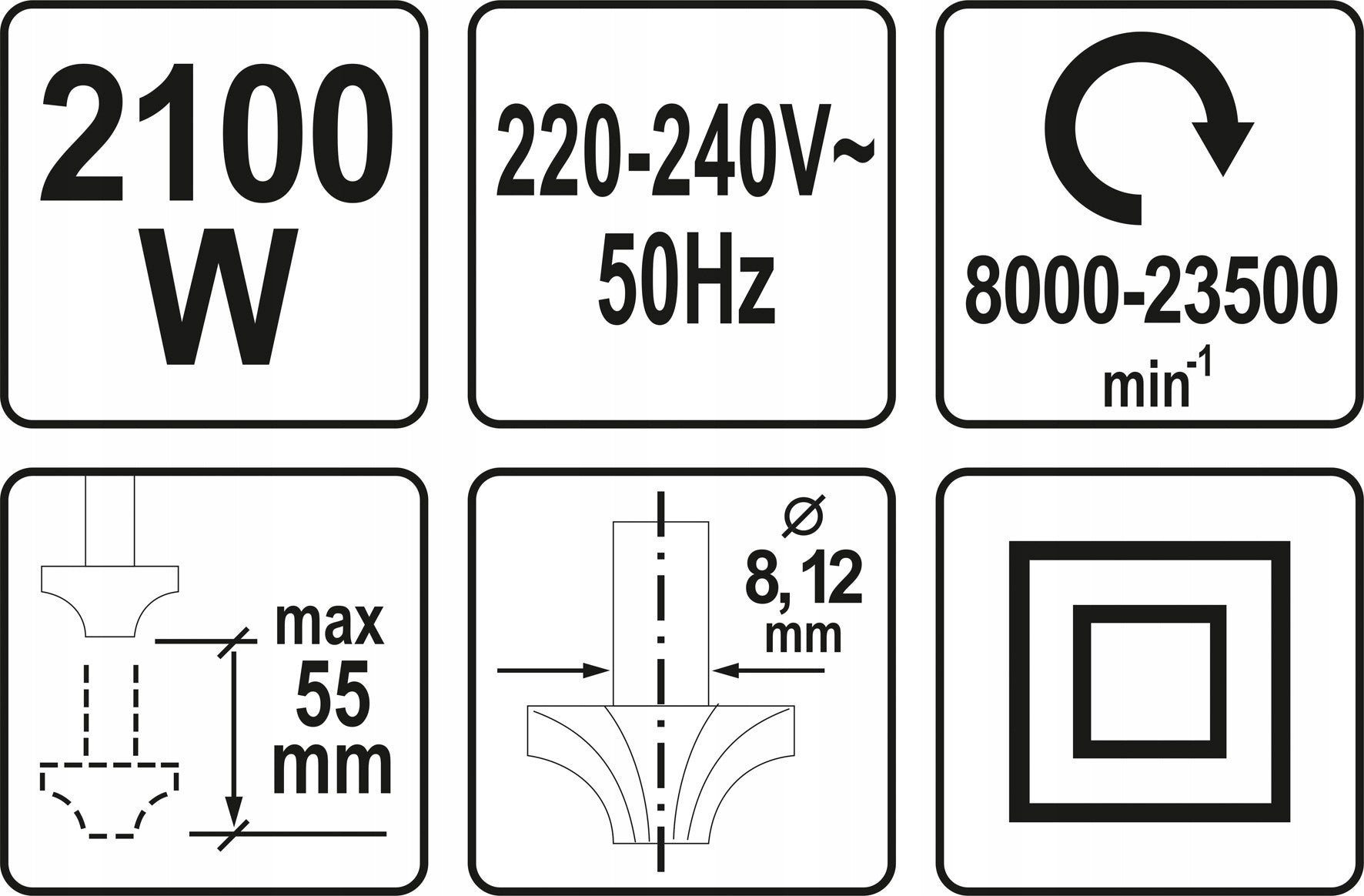

Rotation: 8000-23500 min⁻¹

Compatible with(s): YT-6801, YT-6803, YT-68002, YT-68005

Tool holder size: 8, 12 mm

Weight: 6.6 kg

Voltage: 220-240 V a.c.

Power: 2100 W

Cable length: 3 m

Degree of protection: IP20

Frequency: 50 Hz

Electrical insulation class: II

Acoustic pressure: 94.0 ± 3.0 dB(A)

Acoustic power: 105.0 ± 3.0 dB(A)

Twisting: 3.41 ± 1.5 m/s²

Jump of the milling unit: 55 mm

YT-82380

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Yato
Parametry	Series	GRE
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Maximum power	2100 W
Parametry	Supply voltage	230 V
Parametry	Maximum no-load speed	23500 RPM
Parametry	Maximum milling depth	55 mm
Parametry	Pitch of the milling unit	55 mm
Parametry	Power cord length	3 m
Parametry	Device weight	6.6 kg
Parametry	Product weight with unit packaging	7.55 kg
Parametry	Manufacturer code	YT-82380
Parametry	EAN (GTIN)	5906083057618
Parametry	Tool holder (mm)	8,12
Parametry	Additional information	dust removal,speed regulator
