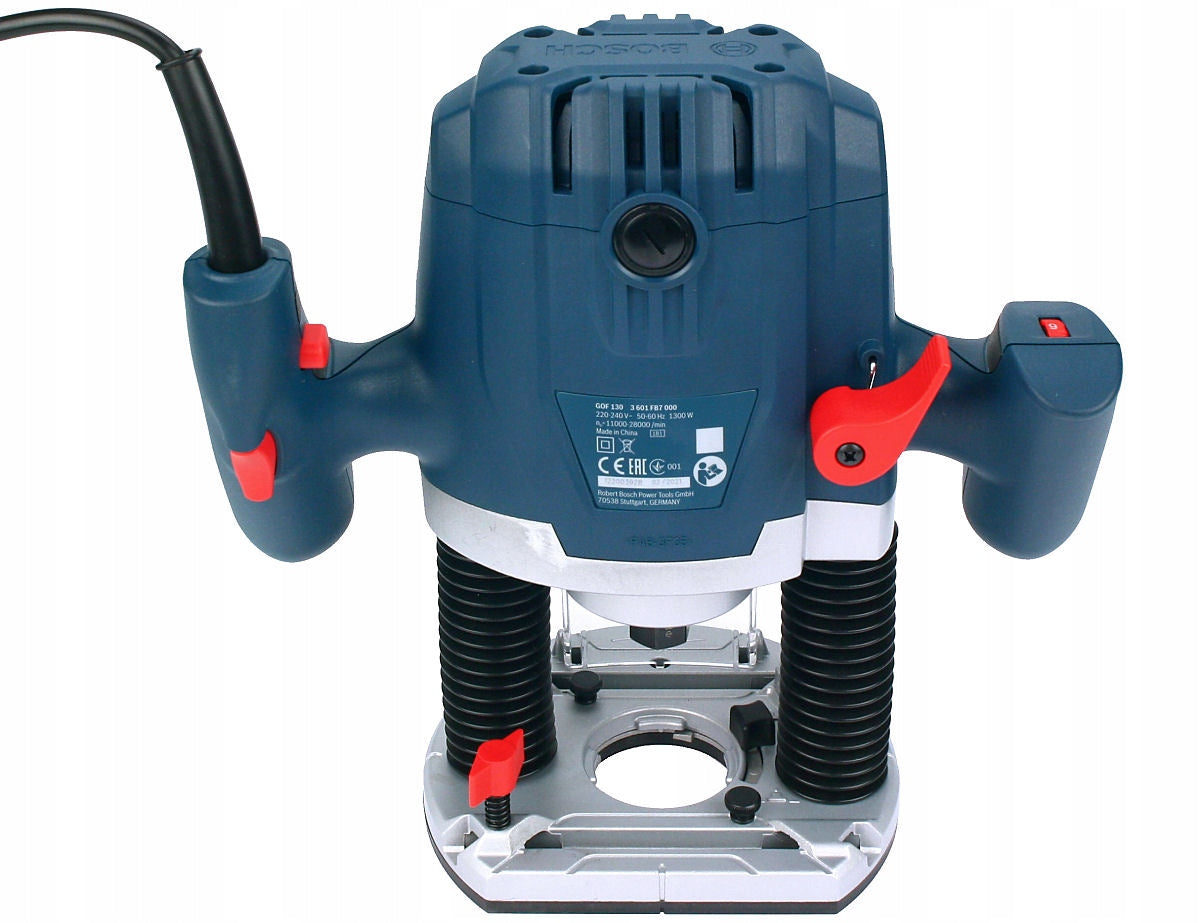

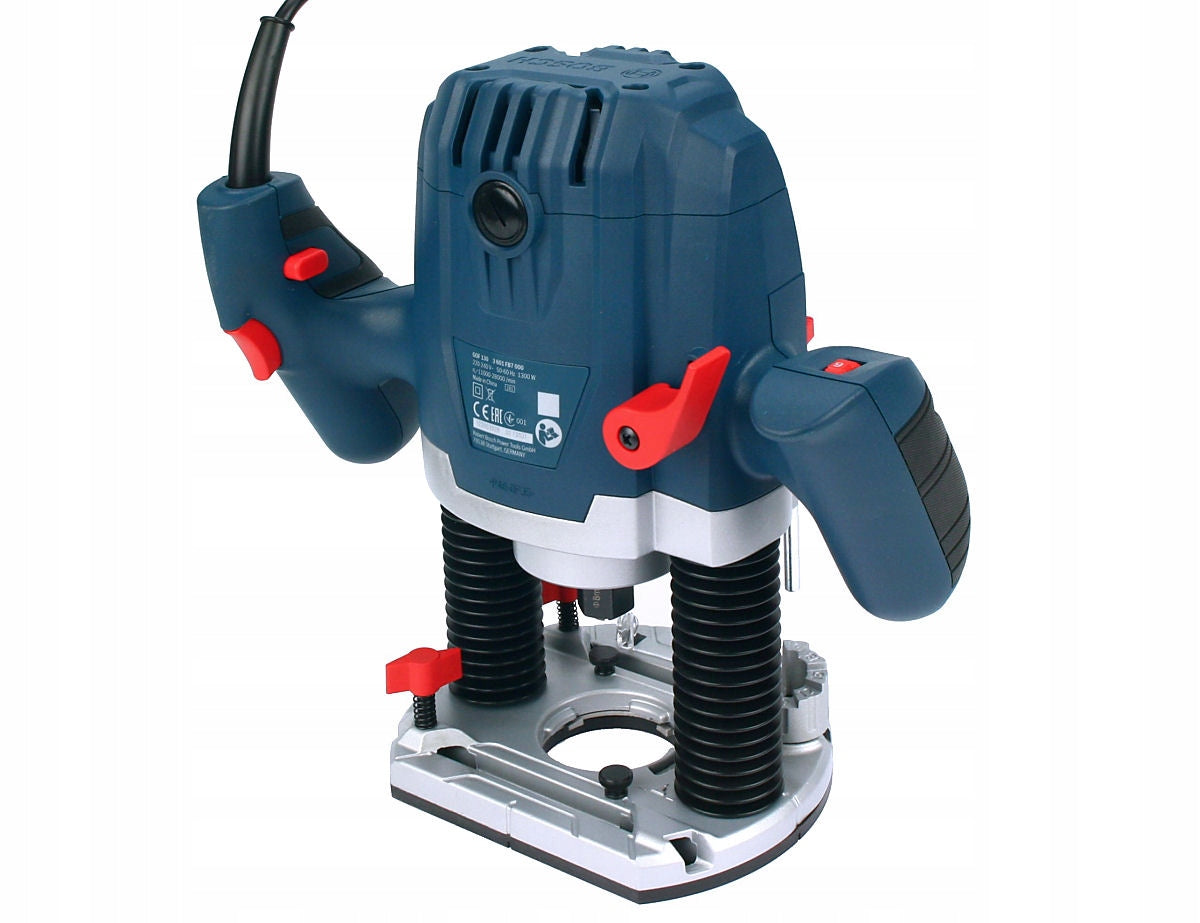

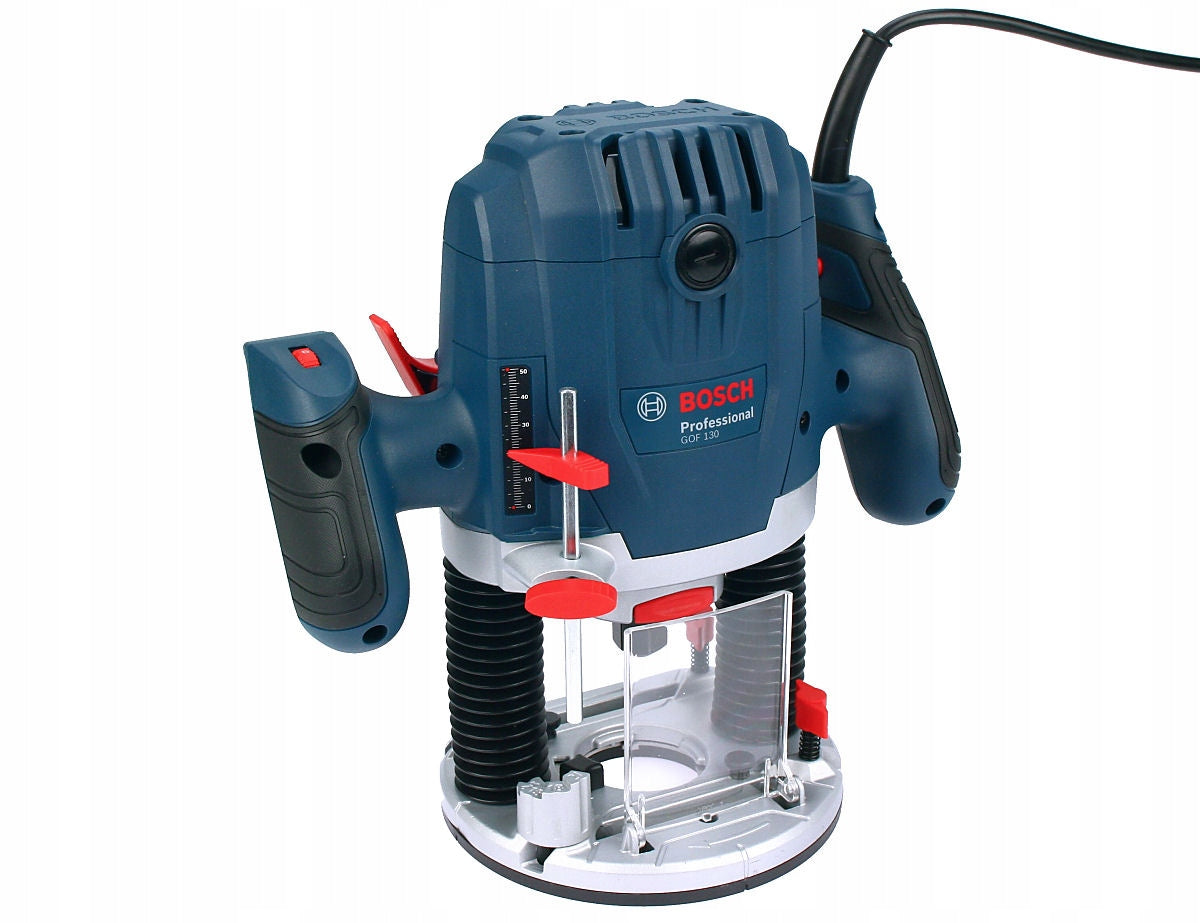

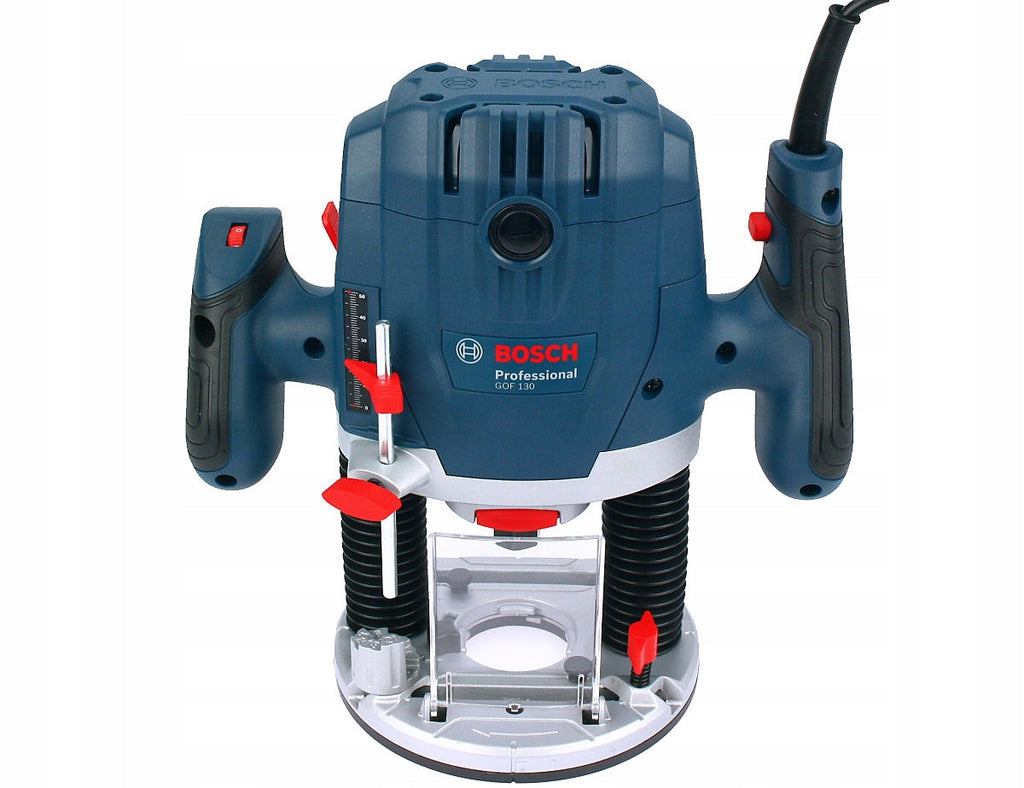

Frezuojamoji staklės BOSCH GOF 130, 1300 W

Trumpai apie prekę

Prekė: Frezuojamoji staklės BOSCH GOF 130, 1300 W. Kategorija: Frezavimo staklės.

• Gamintojas: Bosch
• Modelis: 06016B7000
• Įtampa: 230 V

The equipment of the offered milling machine includes:

• parallel chain
• copying pin
• adapter for dust extraction
• centering stem
• guiding roller
• nut with sleeve 8 mm
• nut with sleeve 6 mm
• key for terminals

Technical parameters:

• Engine power 1.300 W
• Rotation speed: from 11.000 to 28.000 rpm (adjustable)
• Maximum stroke of the milling body 55 mm
• Tool holder 6 mm, 8 mm, 1/4"
• Weight of the device 3,5 kg
• Dimensions of the device 152 x 272 x 277 mm

One of the most popular spindle milling machines from BOSCH designed for: framing, chamfering, cutting cuts and grooves, cutting edges and profiles, cutting various shapes, and at 1.300W the milling machine easily copes with these and other tasks.

Powerful and highly efficient motor with a power of 1.300W and a high rotational speed of 28.000 rpm ensuring fast and precise execution of various types of milling work.

The BOSCH Electronic system – a function of gradually increasing the rotational speed enabling precise material processing, adjustment takes place in the speed range from 11.000 rpm to 28.000 rpm.

The main switch built into the handle allows for easy and quick operation of the tool.

The dust extraction function allows for quick installation of dust extraction, and at the same time cleaner working conditions.

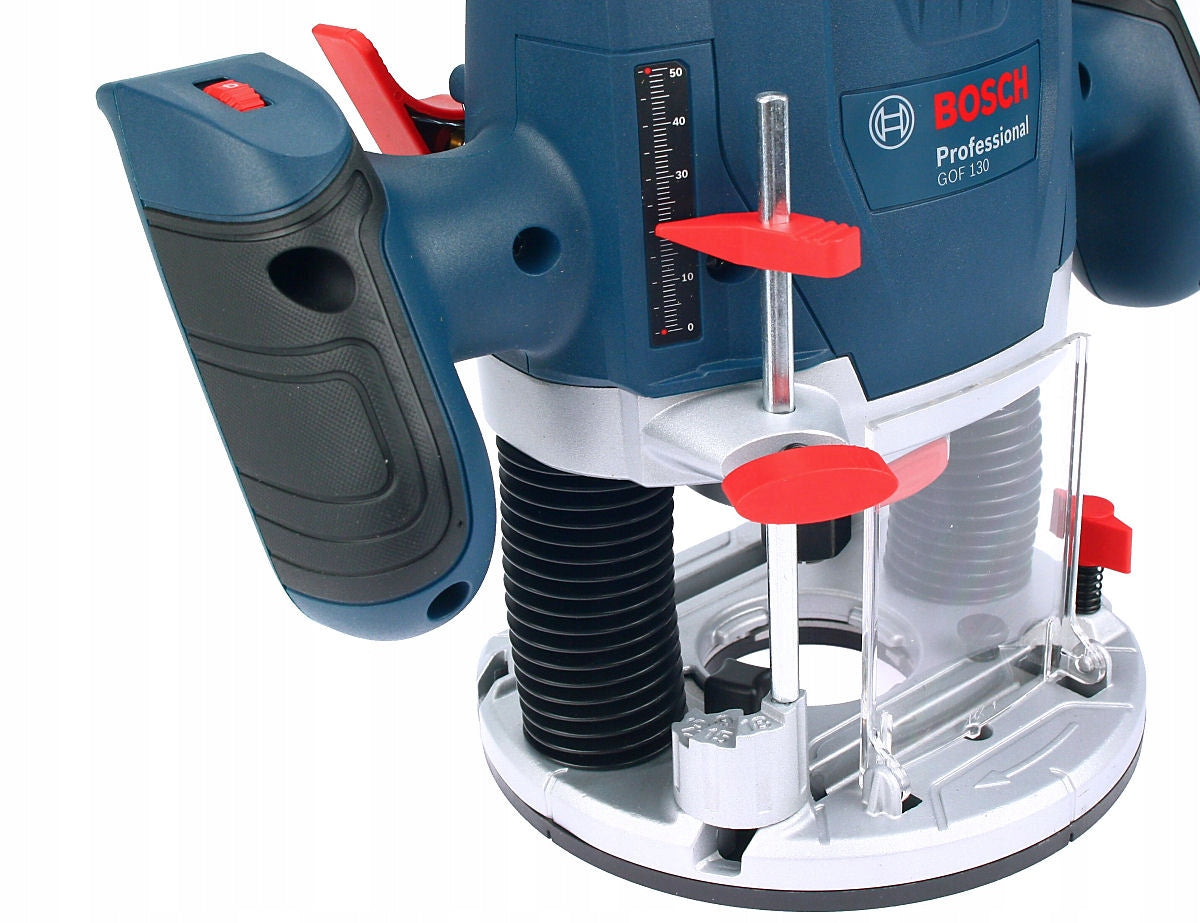

Initial, very easy to adjust the milling depth with a clear scale.

Multi-stage milling depth adjustment thanks to multi-stage depth limiter.

Baynet mounting for copy pins, quick and easy installation of copy inserts.

Double guide columns increase the precision of vertical milling machine guidance.

Guide columns with safety guards increase tool life.

Very easy to use spindle lock allows you to quickly change the cutter using only one key.

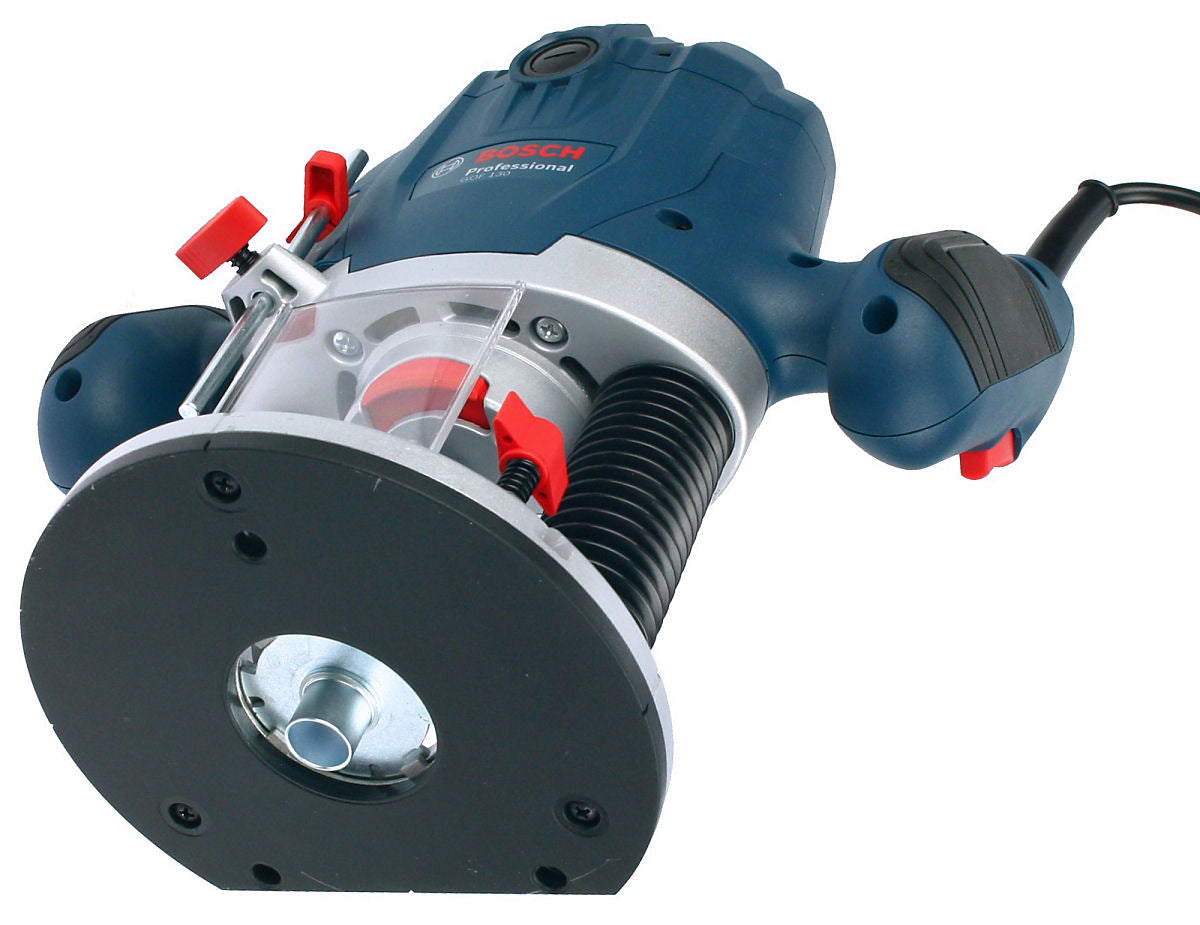

The main base cast in aluminium covered with a layer of plastic facilitates the guide of the milling machine on the material being processed.

The dust cover increases work safety.

Ergonomic design ensures optimal control and ease of use of the device.

Anti-vibration handles covered with Softgrip material increase the comfort of work by preventing the tool from slipping out and reducing vibrations transmitted to the hands.

A wide range of accessories in serial equipment:

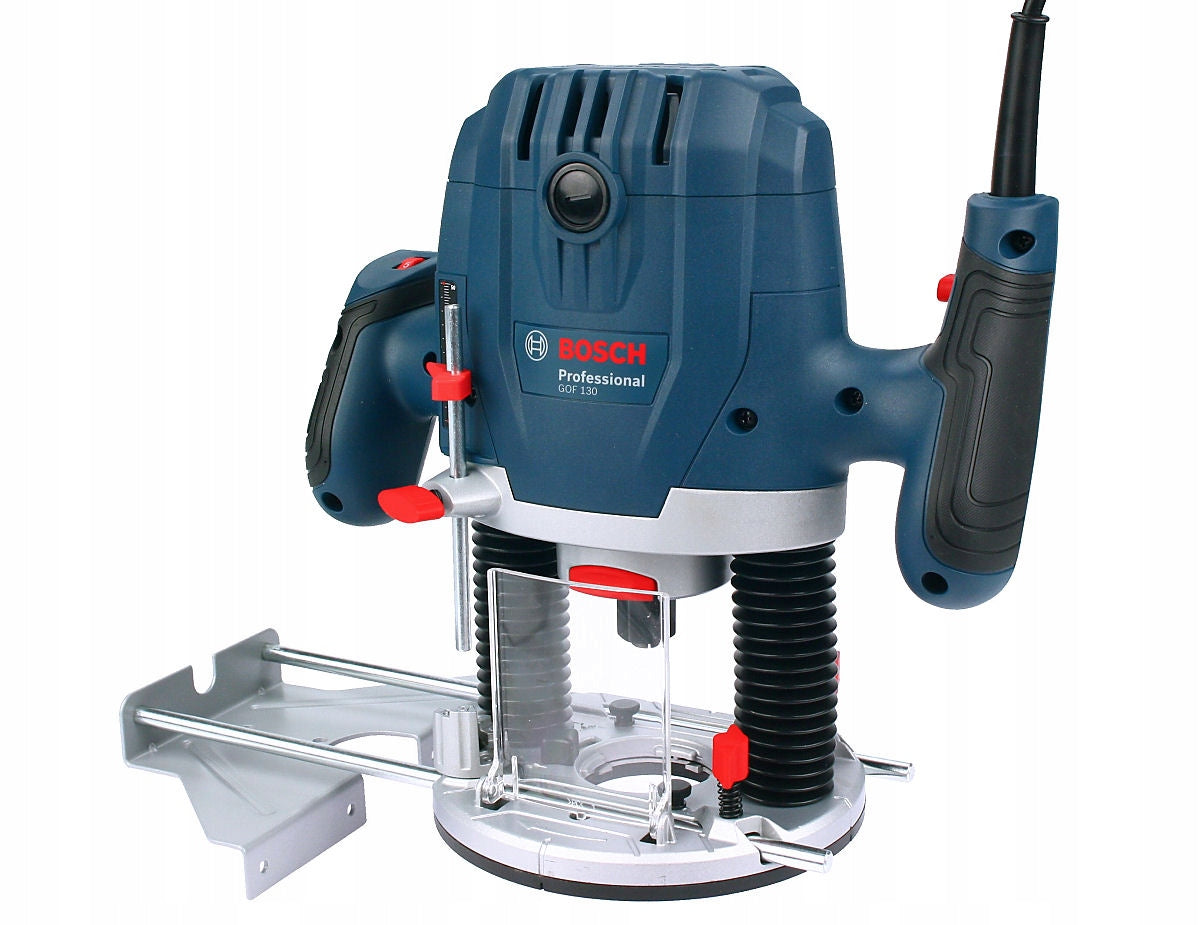

• Parallel guide
• Guide roller
• Copy pin
• Centering pin
• Mounting nut with bushing 6 mm
• Mounting nut with bushing 8 mm
• Adapter for connecting dust extraction
• Mounting Wrench

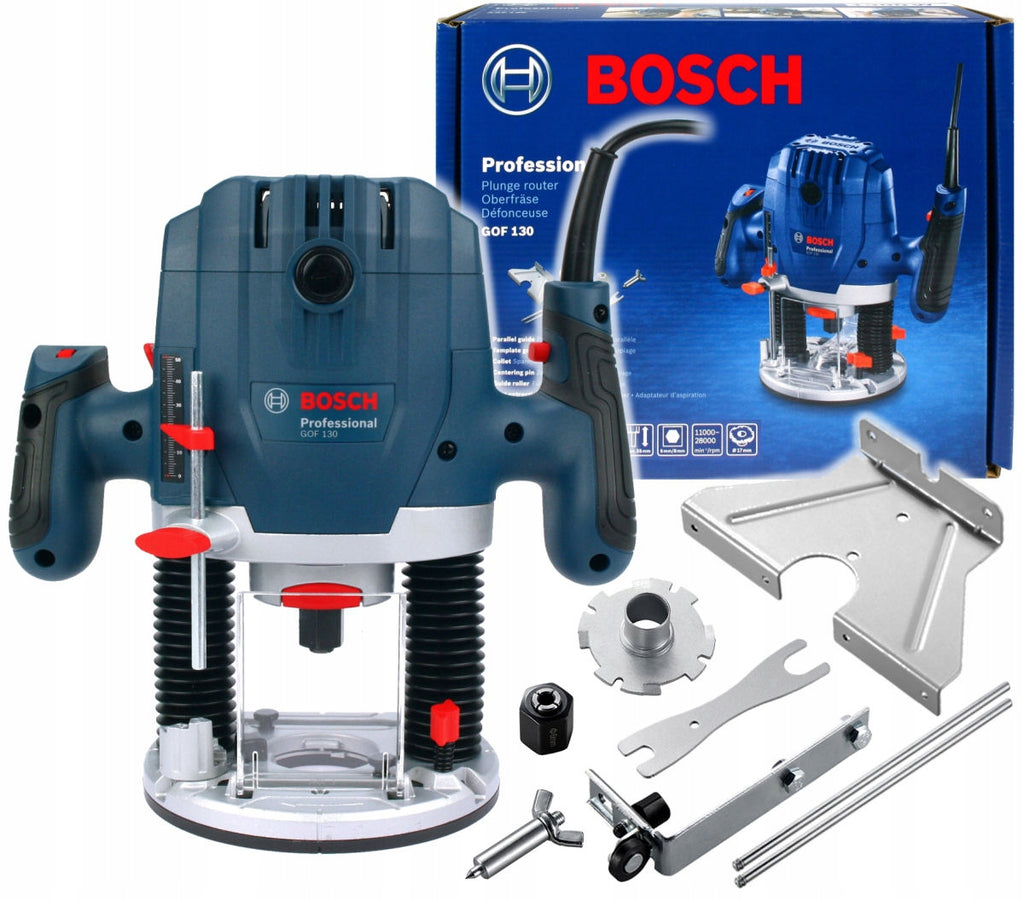

Delivery includes:

• Spindle milling machine from BOSCH
• Parallel guide
• Copy pin
• Dust extraction adapter
• Centering pin
• Guide roller
• Nut with bushing 8 mm
• Nut with bushing 6 mm
• Wrench for clamps
• User manual in Polish
