Frezuotojas BOSCH GOF 20-12, 2000 W, su L-BOXX dėklu

Trumpai apie prekę

Prekė: Frezuotojas BOSCH GOF 20-12, 2000 W, su L-BOXX dėklu. Kategorija: Frezavimo staklės.

• Gamintojas: Bosch
• Modelis: 0601627221
• Įtampa: 230 V

The equipment of the offered milling machine includes:

• Clamp sleeve 8 mm
• Clamp sleeve 12 mm
• centering stem
• parallel chain
• copying pin 17 mm
• adapter for copy pin
• roller chain
• dust extraction attachment
• edge dust extraction attachment
• two-sided socket wrench 17/24 mm
• insert for tool case and accessory
• tool case L-BOXX 238

Technical parameters:

• Engine power: 2.000 W
• Rotation speed: from 10.000 to 25.000 rpm (adjustable)
• Milling depth: from 0 to 80 mm
• Maximum stroke of the milling body: 80 mm
• Tool mounting system: 8 mm / 12 mm
• Dimensions: 336 x 309 x 160 mm
• Weight of the device: 6,3 kg

Universal milling machine from BOSCH designed for: framing, chamfering, cutting cuts and grooves, cutting edges, profiles and various types of shapes, and at 2.000W the milling machine easily copes with these and other tasks.

A very powerful and very efficient motor with a power of 2000W and a high rotational speed of 25.000 rpm ensuring fast and precise execution of various types of milling work.

The main switch built into the handle allows for easy and quick operation of the tool.

Integrated dust extraction handle allows for quick installation of the dust extraction hose, and at the same time ensures clean working conditions.

Initial, very easy adjustment of milling depth with a clear and transparent scale.

BOSCH Constant Electronic system – guarantees an even pace of operation regardless of the degree of load, the device automatically maintains the set rotational speed regardless of whether the soft or hard element is processed.

Initial speed selection and smooth engine start allow you to adjust the operating parameters to the properties of the material being processed.

Patented, precise adjustment of milling depth in 0,10 mm increments during plunge milling.

Aluminum cast bases coated with a plastic layer facilitate the guide of the milling machine over the processed material, and at the same time protect the workpiece from damage and scratches.

Reinforced column handle in the base increases the precision of the milling machine, especially in the vertical plane.

Parallel guide with very precise adjustment in the milling machine equipment, the guide ensures very accurate guidance of the milling machine along the edge of the workpiece, and precise adjustment ensures high accuracy and convenience of operation.

The dust extraction function allows for quick installation of dust extraction, and at the same time cleaner working conditions.

Double guide columns increase the precision of vertical milling machine guidance.

Very easy to use spindle lock allows you to quickly change the cutter using only one key.

The dust cover increases work safety.

Ergonomic design ensures optimal control and ease of use of the device.

Anti-vibration handles covered with Softgrip material increase the comfort of work by preventing the tool from slipping out and reducing vibrations transmitted to the hands.

A wide range of accessories in serial equipment:

• 8 mm clamping sleeve
• 12 mm clamping sleeve
• centering pin
• parallel guide
• 17 mm copy pin
• adapter for copy pin
• roller guide
• Dust extraction attachment
• edge dust extraction attachment
• 17/24 mm double-sided socket wrench

L-BOXX 238 BOSCH plastic suitcase with cartridge - this is the latest line of suitcases from BOSCH. Thanks to the special design of additional hooks, all suitcases from the L-BOXX line can be combined into one whole. This system allows you to transport and carry several tools at the same time, it is very practical and what is important safe because we can easily secure several tools at the same time.

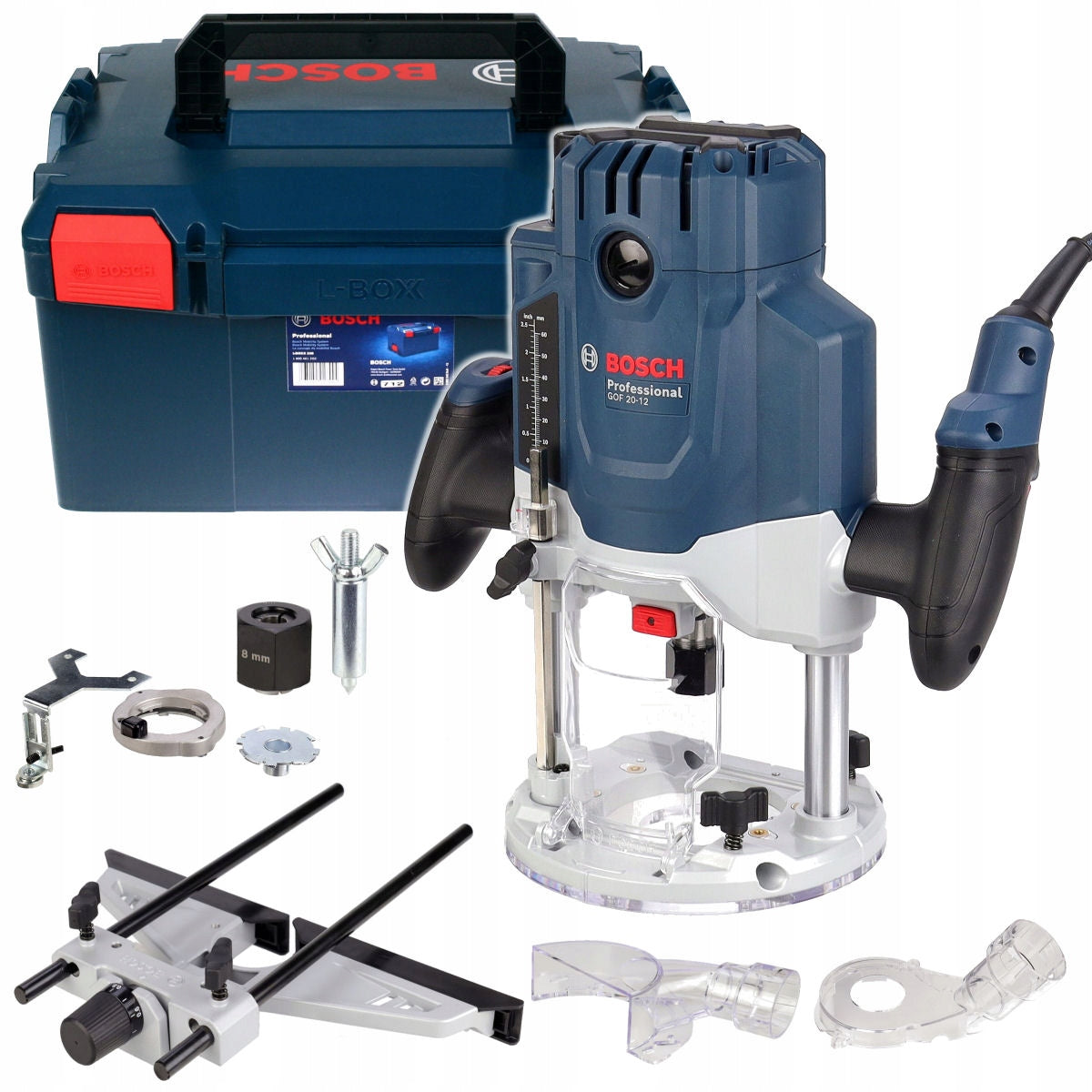

Delivery includes:

• Spindle milling machine from BOSCH
• 8 mm clamping sleeve
• Clamp sleeve12 mm
• Centering pin
• Parallel guide
• Copy pin 17 mm
• Adapter for copy pin
• Roller guide
• Dust extraction attachment
• Edge dust extraction attachment
• Double-sided socket wrench 17/24 mm
• Refill for tool case and accessory
• Tool case L-BOXX 238
• User manual in Polish

Specifications
