Garažo vartų pavaros FORCE BEST1000 ULTRA, iki 15 m²

Trumpai apie prekę

Prekė: Garažo vartų pavaros FORCE BEST1000 ULTRA, iki 15 m². Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: BEST_1000_ULTRA

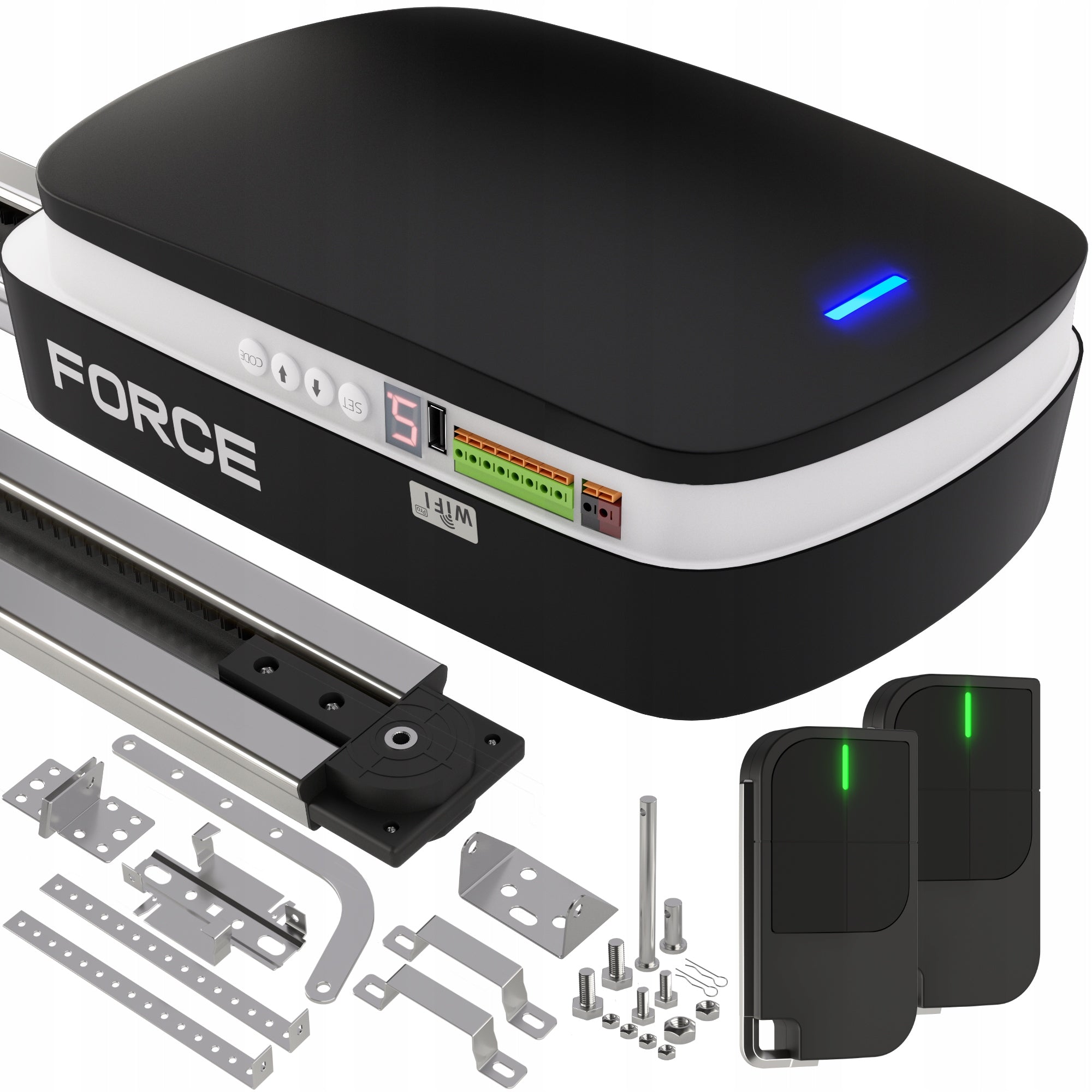

The BEST 1000 set includes:

• BEST 1000 ULTRA drive with 1000 N of thrust!
• 2x 4-channel remote control
• Control unit built into the drive head
• Built-in garage lighting - 25W
• 3.15m running rail with Kevlar belt (supports gates up to 2.55m high)
• Carriage with unlocking function
• Head mounting bracket - quick assembly
• Set of mounting elements
• Two yokes for mounting to the ceiling
• Radio receiver built into the control board
• Factory input for connecting the factory WiFi controller (the controller itself is offered as an additional option)

• Characteristic for this drive is high thrust of up to 1000 N! For this reason, this drive can support gates with an area of up to 15 m2. Thus, it can support single-station and double-station garage doors, e.g. with dimensions of 3m wide x 2,5m high.
• thanks to the high thrust, the engine does not have to work at maximum speed to lift the gate, thanks to which the life of the drive increases, and the components do not wear out,
• automatic adjustment of downforce.
• built-in anti-crush encoder - when the gate encounters an obstacle during movement, it automatically stops and retracts
• programmable marginal positions
• control via the control input (possible connection of the control button (e.g. classic bell switch, code keyboard, magnetic card reader, etc.
• operation of photocells protecting against closing the gate in case of intersection of photocell light by an obstacle
• engine power regulation
• illumination of the garage by starting the drive

2 x FORCE remote control for 4-channel gate

Remote control for 4-channel gate, with dynamically randomly variable code with a frequency of 433.92 MHz. Gate remotes will help you manage your home automation. FORCE drive remotes are not compatible with other 433,92 MHz gate remotes.

• Power Supply: 230V (50Hz)
• Motor Type: DC Motor with Permanent Magnet
• Pulling force: 1000 N
• Torque on the motor shaft: 7 Nm
• Lifting height: 3 m
• Weight: 7 kg
• Dimensions: 400x210x160 mm
• Opening speed: 5,77 m/min
• Operating temperature: -20°C +50°C
• Remote control range: > 30 m
• Power: 350 W
• Factory input to WiFi driver (WiFi driver is an additional option)

• supports gates up to 2,55 m high
• equipped with emergency unlocking in the event of an interruption in the supply of electricity, just pull the "pump" and the gate unlocked
• high working culture - the rail with kewlar strap is characterized by quiet operation
• Kevlar strap reinforced with six steel cords
• mounting accessories

Drive equipped with a solid split guide with a length of 3,15 mm with Kevlar strap x 1 pc.

• mounting hardware
• rail bracket

• rail support handles
• set of screws required for installation
