Garažo vartų valdiklis RTX Tuya Smart WiFi su jutikliu

Trumpai apie prekę

Prekė: Garažo vartų valdiklis RTX Tuya Smart WiFi su jutikliu. Kategorija: Automatizavimo moduliai.

• Gamintojas: RTX
• Modelis: WGM2

Universal WiFi module designed for intelligent control of garage door

• Convenient power supply 230V AC- no additional power supply required
• Small dimensions-can be fixed under the manual button
• Exit with voltage-free contact type N.O. (normally open)
• Allows you to control each gate mechanism with a standard push button input
• Opening sensor -notification of unauthorized opening
• Possibility to set automation schedule
• Control gate operation from anywhere in the world
• Free Tuya Smart app for Android and iOS
• Easy installation and operation
• Voice control with Google Home and Amazon Alexa

The device does not require a gateway - works with a 2,4GHz WiFi router

• Open/Close with animation from any location in the world using the free Tuya / Smart Life app
• Disabling/disabling manually with the button
• Schedule - planned weekly automation cycle open/close
• Defined notifications o opening/closing
• Voice support when connected to Google Assistant or Alexa
• Notification of leaving the gateway open with a defined delay time
• Event history (log)
• Scenario - setting the control dependency np.względem time of day

The kit includes a reed opening sensor

• Any attempt to unauthorizedly open the gate causes the reed sensor to operate
• In the Tuya Smart app, you can enable sound notifications about the sensor working, so that the user will receive information about the intrusion attempt.
• Each sensor violation is remembered, in the application you can view the history of events and get information about the date and time of opening or closing the gate

with manual button control function

Each drive has the ability to connect manual control.

Usually it is a 2 pin connector, which after a short circuit with the gate open causes the gate to close, and a short circuit with the gate closed causes it to open. Usually, a manual control button is connected here. Our module is also connected to this place (or the already connected manual button).

Simple, self-assembly in a few steps:

• Install the module near the gate
• Connect the driver to the 230V AC power source (1)
• Attach reed opening sensor (2). The sensor element with wires attaches to the wall, and the magnet on the edge of the gate so that they are close to each other when the gate is closed.
• Connect the control wires to the input of the gate drive control button (3)

Universal application

Small dimensions allow the device to be mounted in a wall box or lighting fixture, as well as on a DIN rail in a fuse box using the holder included in the set.

Convenient voice operation

After linking the Tuya Smart Life app to your Google Home account you can control your device using voice commands

Voice commands controlling the gateway available after linking the Tuja app to Google Home:

1. Hey Google, open the garage
2. Hey Goggles, close the garage

Quick service from the main panel of the application

The gateway can be controlled directly from the main application panel.

The relay miniature includes a quick control button, there is no need to "enter" the device control panel

Integration with Google Home Alexa

Once the Tuya/Smart life app is connected to Google Home or Alexa, the user can voice control the opening or closing of the gate.

The device allows you to define a PIN for voice control in Google Home.

The RTX controller has a built-in Bluetooth Low Energy (BLE) communication module - the device is automatically identified in the TUYA environment

1. Click "+"to add a device - thanks to Bluetooth communication directly with your phone, the application will instantly find a new device
2. Click "Add" -if you have a Zigbee gateway in your system, after confirmation the device will be paired.

Tuya Smart Life joined ZigBee Alliance thanks to which huge possibilities of expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

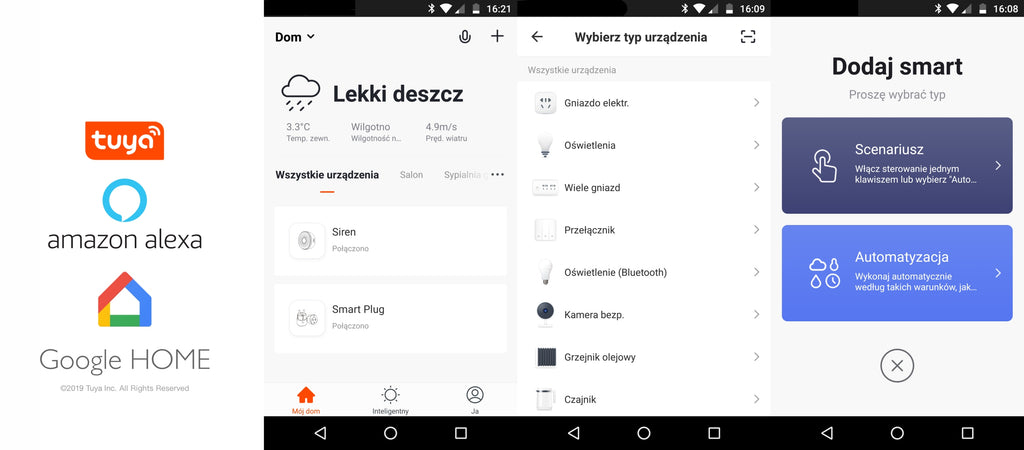

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Technical specification:

• Control range: unlimited (works with mobile internet)
• WiFi bandwidth: 2,4Ghz
• WiFi coverage: up to 30m (depending on ambient conditions)
• Operating temperature: 0-50st.C
• Network voltage: 85-265V AC 50-60Hz
• Contact type: N.O. (normally open)
• Contact capacity:10A
• Dimensions: 46x51x18mm
• Weight: 72g

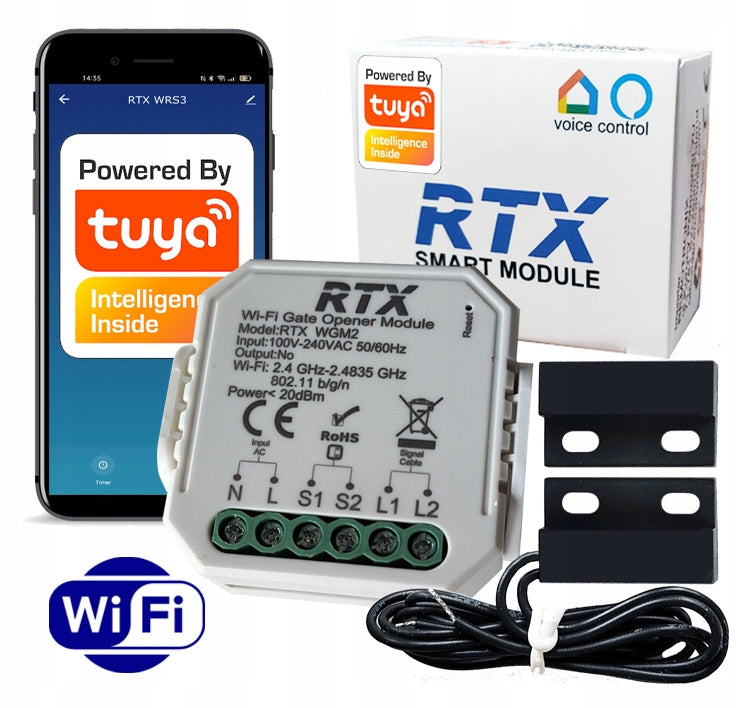

Set Contents:

• Controller Module
• Contacttron with cable length. 10cm
• Mounting clip
• Installation instructions (PL)
