Garažo vartų valdiklis su WIFI, Bluetooth, TUYA SMART ir jutikliu

Trumpai apie prekę

Prekė: Garažo vartų valdiklis su WIFI, Bluetooth, TUYA SMART ir jutikliu. Kategorija: Automatizavimo moduliai.

• Gamintojas: MBG Line
• Modelis: SB012

✅ Open and close the gate from anywhere in the world with your smartphone!

✅ Check the closing status of your garage door!

✅ Share the ability to control the garage door with your loved ones!

MBG line SB012

• Wireless operation via WIFI
• In addition, the built-in Bluetooth module for easier pairing of the module with the application (the device itself shows in the application as available to add)
• Compact dimensions: only 39,2 x 39,2 x 18 mm (dimensions without mounting clip)
• Mounting clip for mounting the device on the wall or on the DIN rail
• The set includes a 5-meter cable with a closure sensor (contactor)
• Power supply from 100-240V AC voltage, which can be taken, for example, from an existing drive power source
• Possibility of tracking event history and receiving notifications about opening the gate
• Compatible with the popular TUYA / Smart Life app
• Full set of mounting accessories included

The device offers a convenient and secure solution for monitoring and controlling access to the garage. With this device, users can remotely open and close the garage door via their smartphone, which is especially useful for guests or suppliers. In addition, the smart sensor can send notifications about the status of the gate, informing about its opening or closing, which allows you to monitor the security of the garage on an ongoing basis, as well as integrate it with other devices in the TUYA ecosystem, which allows you to create comprehensive smart home systems.

The module can be hidden in an electric can or mounted on a holder from a set or DIN rail.

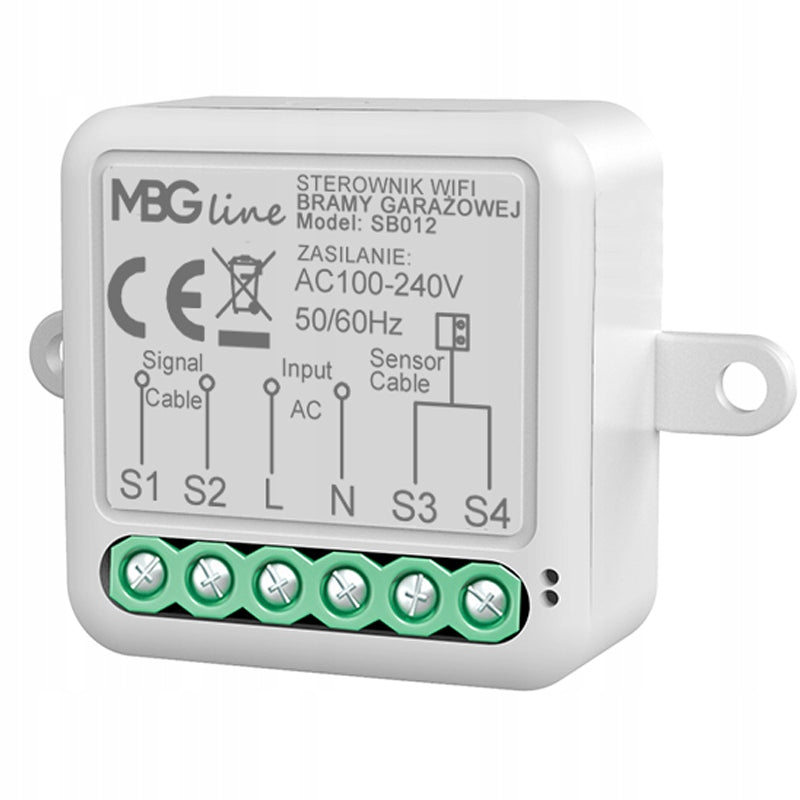

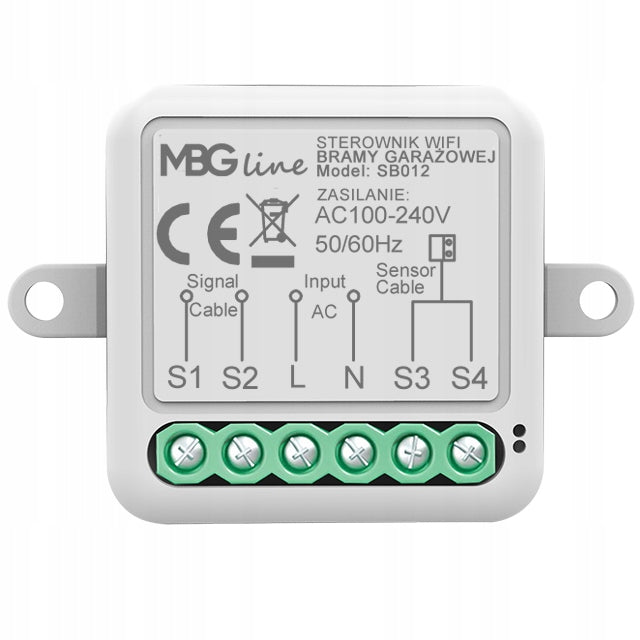

1. Connection of signal cable
2. Power connection 100-240V
3. Connection of the closure sensor
4. Parts of the closure sensor are mounted, e.g. on the wall at the gate
5. The second part is mounted in such a way that after closing the gate it adheres to the part from point. 4
6. We connect the signal cable in the gate machine in the same place and in the same way as the wall button to control the gate (so-called. step control - pulse, if the entrance is already occupied - we plug into the same place in parallel).

The device works with Tuya Smart - the most popular application for Internet of Things (IoT) devices

• possible integration of approximately 11000 different devices
• 30 categories (air conditioning, control, power supply, monitoring, etc.)
• 10000 manufacturers of smart devices
• constantly developed with new features and supported devices
• app completely free for Android and iOS

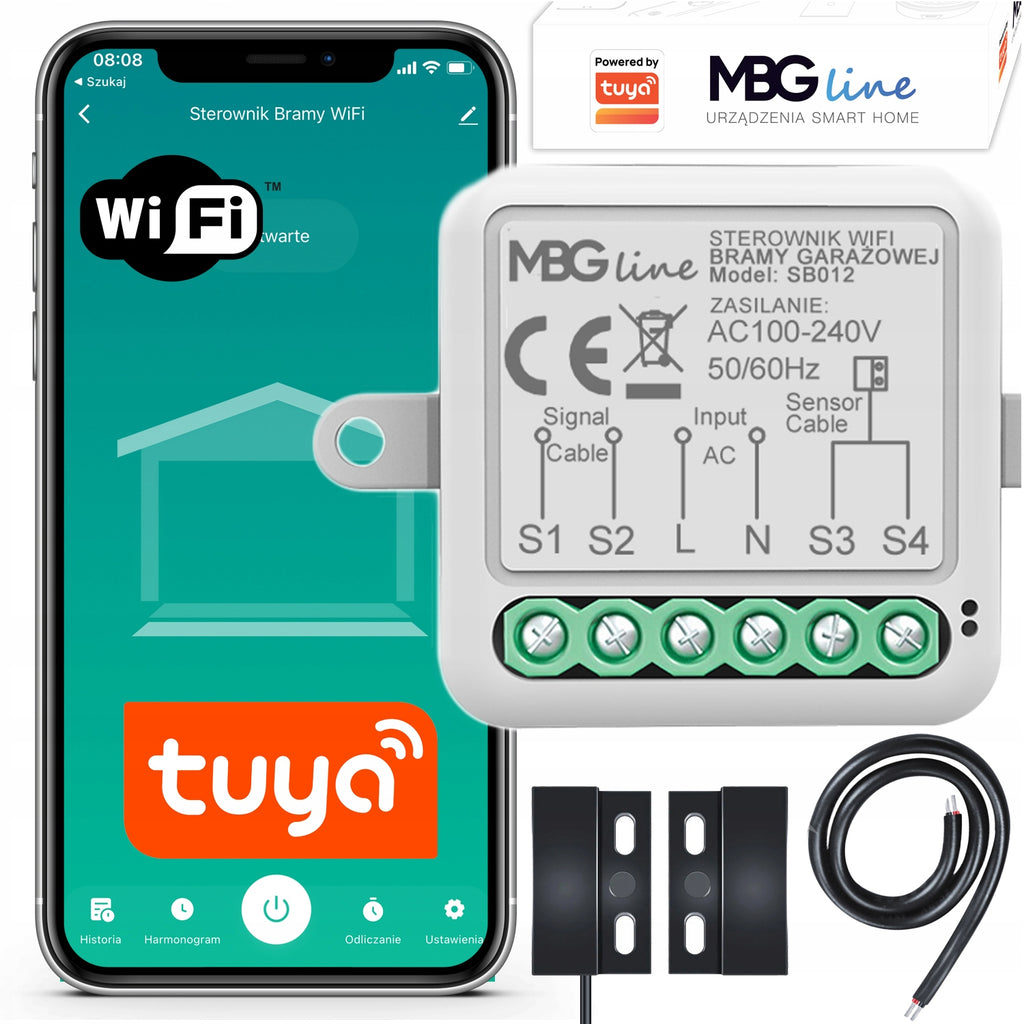

• Gate controller MBG line SB012 with mounting clip
• closure sensor with long cable 5m
• Set of mounting screws
• Cable to plug into the power supply (50cm)
• Free set of clamps
• Free metal angle
• Full polish manual in printed form
• All packed in an aesthetic box

The relay supports voice support of the most popular assistants such as GOOGLE HOME or AMAZON ALEXA!

Connect the device to power, reset and turn on the TUYA application - the device itself will display as proposed to be added to the application!

• Input voltage: 100-240V ~ 50/60Hz
• Degree of protection: IP20
• Communication: WIFI (IEEE 802.11b/g/n)
• Dimensions: 43 x 39,2 x 22.3 mm
• For use indoor
• Operating temperature: -10°C/40°C
• Built-in bluetooth module: YES (facilitates pairing)
• To use the relay, you need to download the TuyaSMART application from Google Play or the App Store

1. Reset button
2. Mounting brackets that we can break if necessary
3. Wire clamps

Specifications
