Garso išskyriklis HDMI ARC 4K HDR HDCP2.2 su Toslink

Trumpai apie prekę

Prekė: Garso išskyriklis HDMI ARC 4K HDR HDCP2.2 su Toslink. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: ARC

Hello

In this auction, it offers:

Perfect solution for set-top boxes, TVs and home theaters

Our devices meet the highest standards. They are made of high-quality materials and are fully shielded, ensuring that they deliver the highest quality picture and sound without interference.

This device is used for extraction, i.e. pulling the audio signal to possible outputs: - optical Toslink (SPDIF) or audio minijack.

A simple, convenient and affordable solution for expanding your home theater system.

Extractor supports ARC audio return channel and audio formats: PASS, 2.1CH, 5.1CH

Full support for ULTRA HD 2160P and EDID 2.2.

24-carat gold-plated HDMI ports

No drivers required - 100% automatic Plug and Play device

TECHNICAL SPECIFICATION

Factory new, high quality product.

Input: 1x 19-pin HDMI-A port

Outputs: 1xport 19-pin HDMI-A, SPDIF out, audio minijack out

Full support for ULTRA HD 4K@60Hz and EDID 2.2

3D format - supports

Support for HDR 10 Dolbby Vision and Dolby Atmos

sRGB, YCbCr, xvYCC, Depp Color - supports

Colour depth: 48 bits

8-channel LPCM/192 kHz/24-bit - supports

DTS-HD Master Audio - supports

Audio video synchronization (AV-sync) - supports

Cable support: up to 15 meters at the entrance and 25 meters at the exit

In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal.

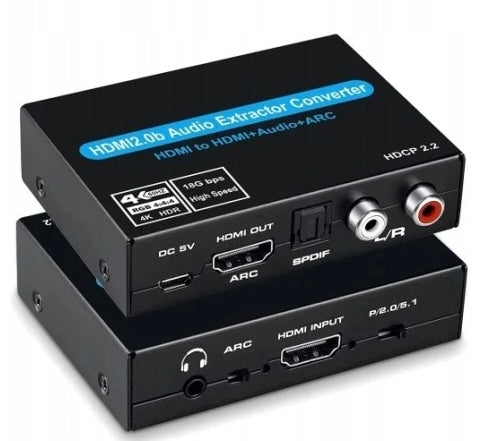

DC/5V Power Supply

HDMI Output with ARC

L/R analog output

SPDIF optical output

3.5mm R/L Jack

HDMI input

Audio mode switch

ARC Switch

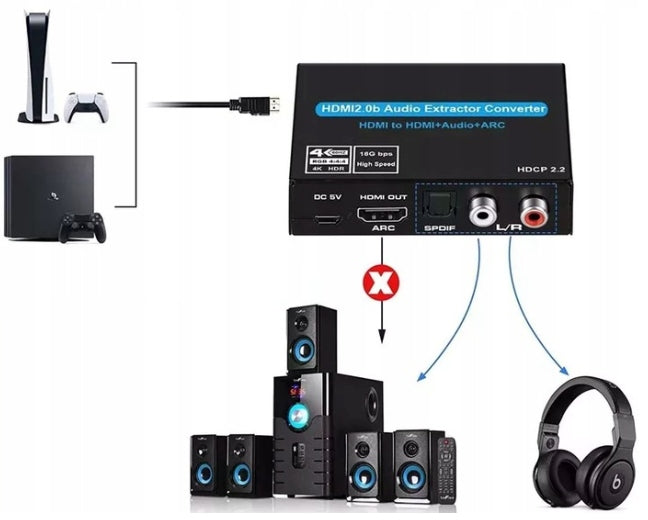

The most commonly used use of this converter is to connect a new ARC TV to other audio devices not equipped with HDMI ARC

➕ built-in amplifier - often the digital signal is quite weak, so the amplifier is sometimes necessary

➕ support HDMI 2.0 - provides high quality data transfer and functions

➕high sound quality, thanks to the use of a high-quality converter

➕Support HDCP 2.2, currently most devices that support HDMI 2.0 require support for this protocol

➕high sampling rate (192 kHz) - unlike most other converters

➕easy connection - just plug in cables and voilà

➕high aesthetics - if you value design this device is for you

➕ and many other advantages that you will appreciate during use

How does ARC work?

If you want to connect your device via the HDMI ARC port, you need to find an HDMI port marked ARC on your TV, e.g. HDMI 2 (ARC).

Connect the extractor to the TV using an HDMI cable (also supporting ARC, i.e. it must be HDMI 2.0 or higher) via a port marked HDMI OUTPUT ARC

Then connect the cable through one of the audio outputs (minijack or Toslink port) connect the audio device on which you want to get sound.

You may need to activate the ARC feature in your TV settings, but this is not the rule :)

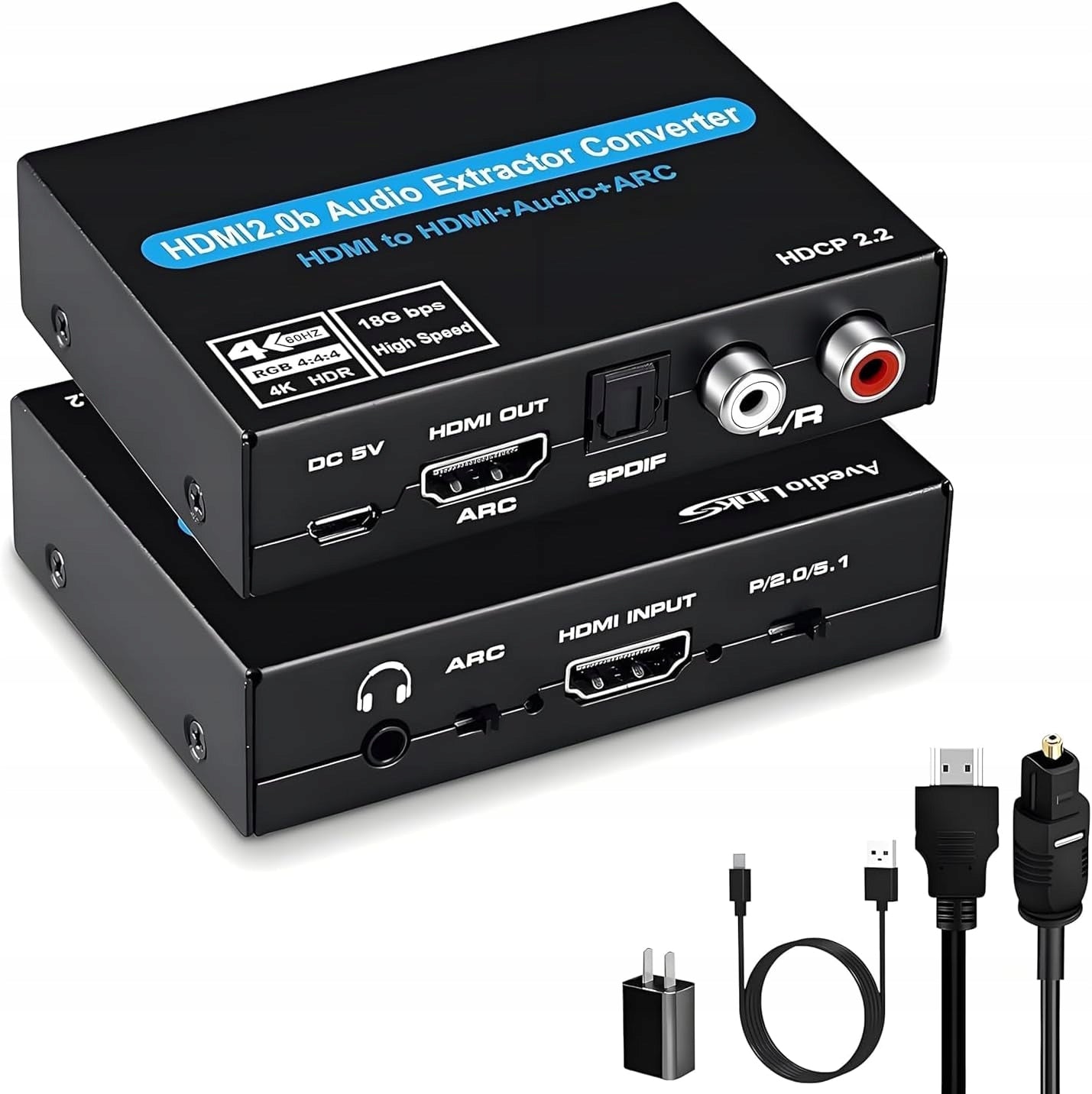

In the set you will receive:

Audio Extractor with HDMI

Power supply + cable

User manual

Aesthetic packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	FXS777
Parametry	Model	ARC
Parametry	Brand	no brand
Parametry	Kind	converter
Parametry	Product weight with unit packaging	0.35 kg
Parametry	Customs tariff code	85437090
