Garso izoliacinė akustinė puta K6s, 350x100 cm, termoizoliacinė

Trumpai apie prekę

Prekė: Garso izoliacinė akustinė puta K6s, 350x100 cm, termoizoliacinė. Kategorija: Garso izoliacijos elementai.

• Gamintojas: Bitmat
• Modelis: K6s
• Ilgis: 350 cm
• Medžiaga: synthetic rubber

Thickness: 6 mm

Raw material tested by PIMOT — Automotive Industry Institute

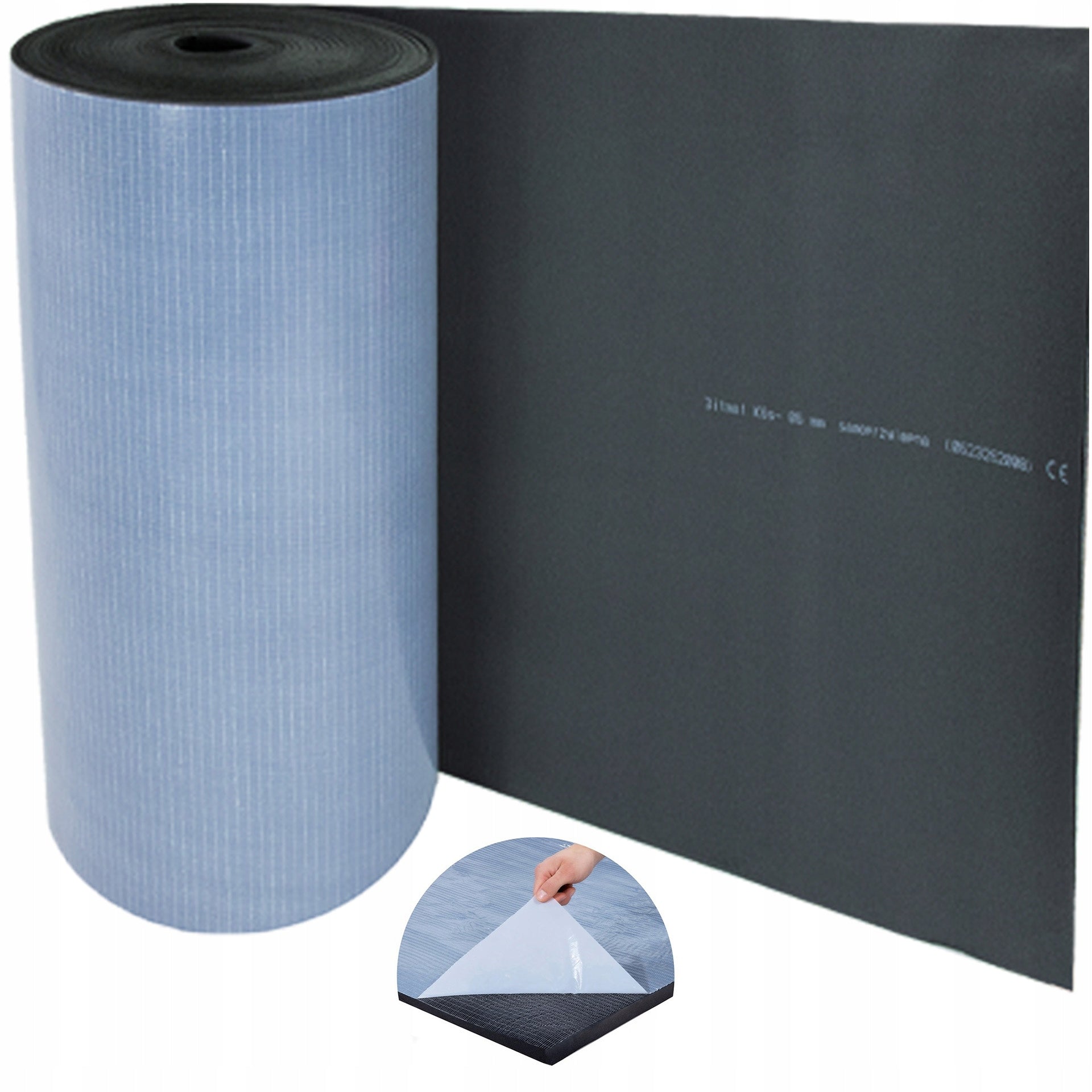

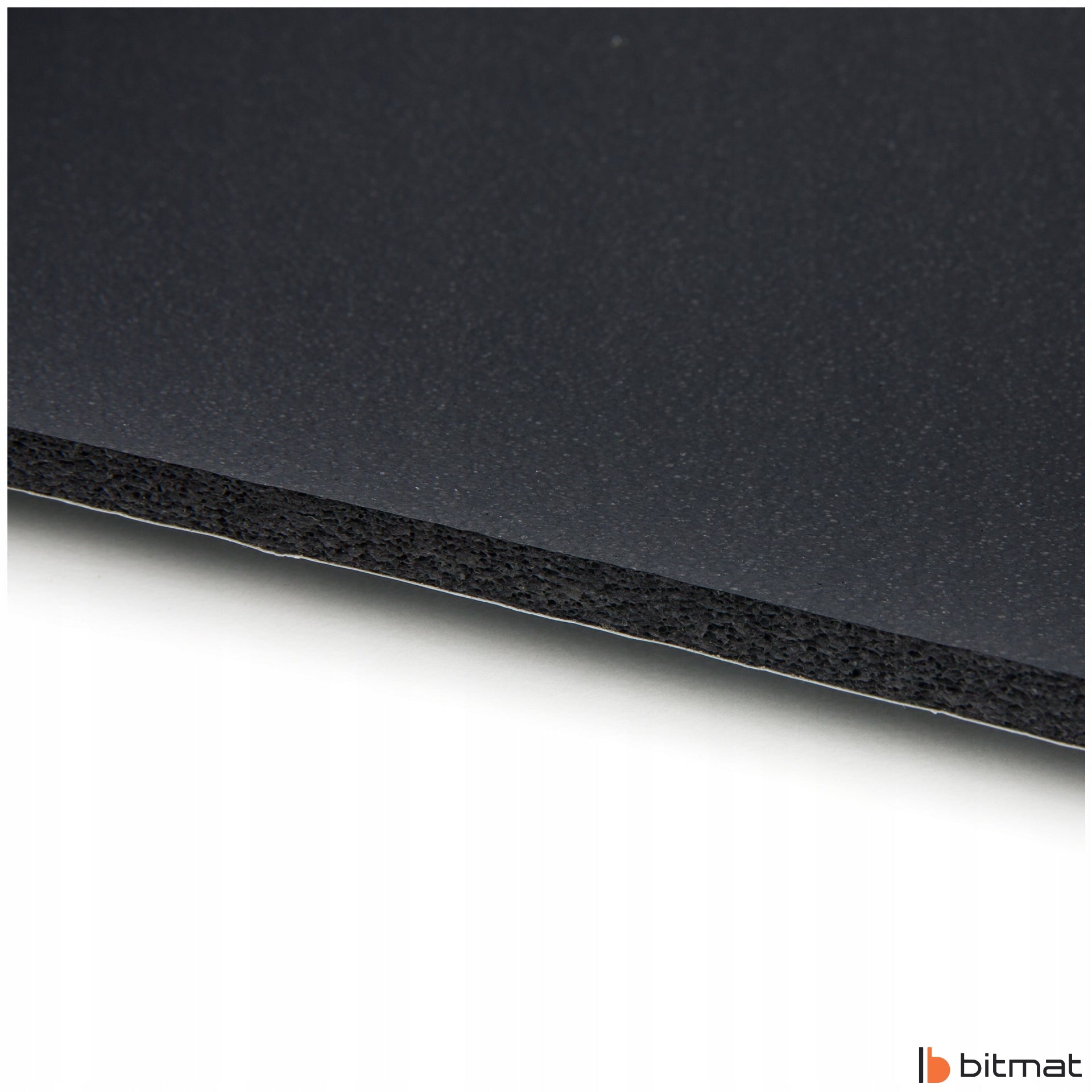

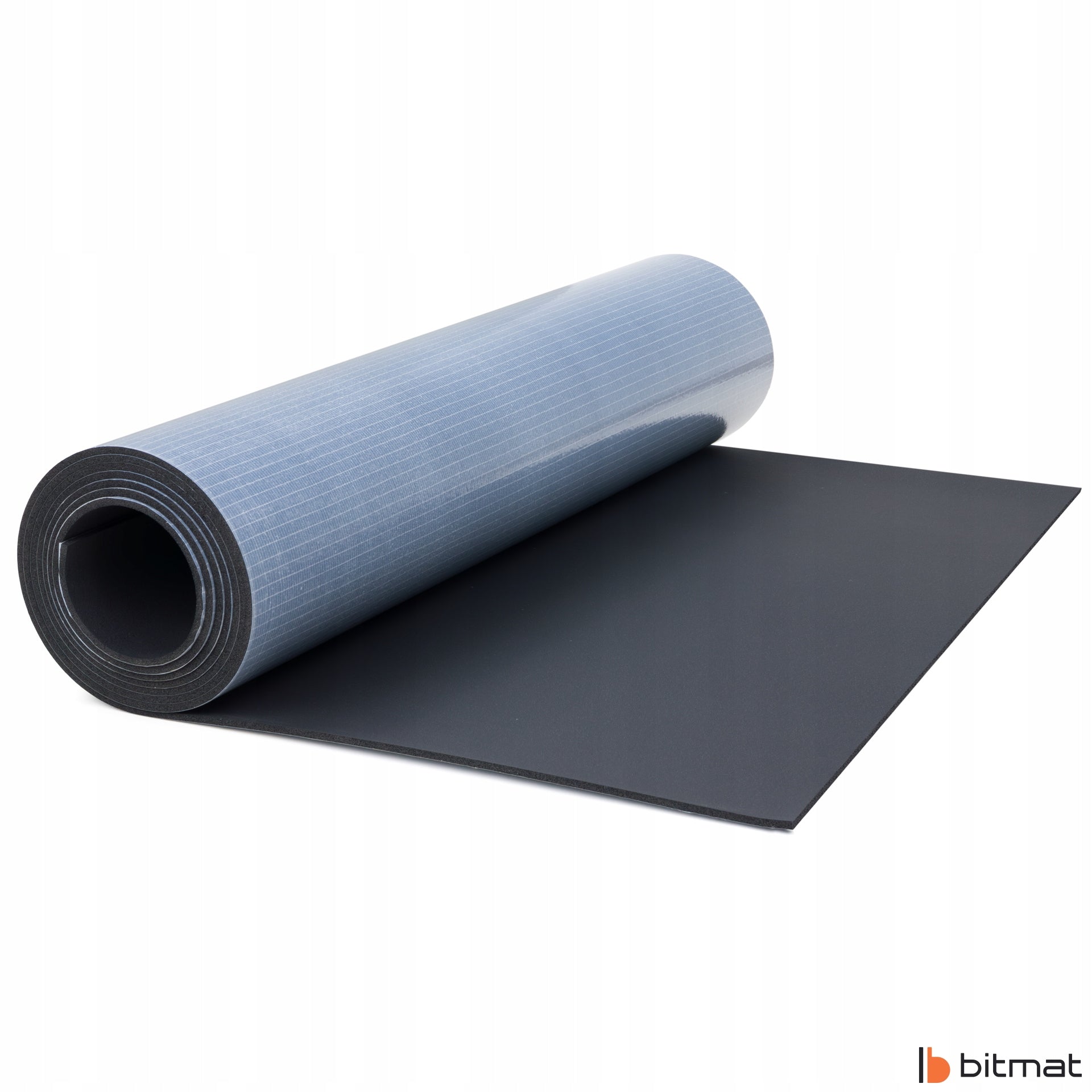

Soundproofing mat K6s Bitmat — foam insulating rubber with closed cell structure with a layer of strong adhesive, has high acoustic and insulation properties.

The material does not absorb moisture and is resistant to chemicals, creates an acoustic barrier and perfectly absorbs noise and isolates from temperature (thermal).

1 piece = 350 cm x 100 cm = 3,5m2

2 pieces = 700 cm x 100 cm = 7m2

3 pieces = 1050 cm x 100 cm = 10,5m2

Foam is sold from a roll with a width of 100 cm.

Properties and advantages:

• Does not absorb water and odors
• Resistant to chemicals
• Low weight
• Very strong adhesive
• Flexible - easy installation
• Medium isolation and high frequency absorption
• High thermal insulation
• High density provides a wide spectrum of attenuated frequencies
• Does not oxidize, does not emit harmful substances for health
• Self-extinguishing, not spreading fire, not forming burning drops
• The foamed rubber structure also provides excellent insulation

The product has a hygienic certificate and a certificate issued by PIMOT.

How to soundproof a car?

First, we stick a butyl mat on each metal element, mapping it to the shape of the sheet metal. The second layer is waterproof rubber foam — 6 mm rubber foam with glue.

Why several layers?

The butyl mat stiffens the body, creates a barrier to noise, eliminates resonance, rumbling and humming. Rubber foam isolates from noise and high frequencies.

*The pictures show how the mat can be used.

How to soundproof a pipe?

First, we stick a butyl mat on each element of the pipe, mapping it to the shape of the surface. The second layer is StP Black Ton foam for sound absorption. The third layer is responsible for isolating the sound foam type K6s.

Why several layers?

The butyl mat stiffens the pipe, creates a barrier to noise, eliminates resonance, rumbling and humming. StP Black Ton Foam and K6s Type Foam isolates from noise and high frequencies.

1. Pipe 2. Ab25 3. StP Black Ton 4. K6s

Application:

• Construction: ventilation ducts, insulation of buildings, silencing of walls and ceilings.
• Automotive: car silencing, car audio, thermal insulation, boats, planes.
• Industry: soundproofing of machines, compressors, aggregates.

Thanks to their noise-reducing properties, as well as their dust-free and fibre-free structure, pK6s from Bitmat are suitable for use in public, industrial and commercial buildings.

Technical data:

• Thickness: 6 mm
• Weight 1 m2: Not more than 1 kg
• Density: 50-60 kg/m3
• Water absorption: maximum 0.1 %
• Temperature range: -50 °C to 85 °C
• Flammability class: B s3 d0, UL94 V-0
• Meets ISO3795 standard
• Acoustic insulation: ~ 40 dB
• Closed cell structure
• Color: Black
• pH: Neutral
• Reaction to fire: Self-extinguishing, non-creating burning drops, non-spreading fire
• Corrosion resistance (DIN 1988): Meets the requirements
• Compliant with CE standards
• Resistance to fungi and bacteria (VDI 6022): Meets requirements
• Hygienic Certificate No. 149/322/149/2025
• Health Aspects: Does not contain dust or fibers. Does not contain heavy metals (cadmium and lead)

The price is for 1-piece K6s rubber foam (with glue) with dimensions:

length 350 cm, width 100 cm, thickness 6 mm
