Garso izoliacinė bituminė-butilo danga, 2,5 mm

Trumpai apie prekę

Prekė: Garso izoliacinė bituminė-butilo danga, 2,5 mm. Kategorija: Garso izoliacijos elementai.

• Gamintojas: Bitmat
• Modelis: AB25 Rolka 2,5mm grubości 700x50cm + wałek
• Ilgis: 700 cm
• Medžiaga: butyl

The most effective for soundproofing cars and machines!

Thickness: 2,5 mm

1 piece = 700 × 50 cm = 3,5m2

Raw material tested by PIMOT — Industrial Automotive Institute

Buying at this auction, you will get a pressure roller!

Butyl rubber mat manufactured in Europe on the basis of experience in the sale and assembly of soundproofing materials from Standartplast – StP and Bitmat.

At the auction the latest version of the AB-25 mat!

The composition of the mixture and embossing of aluminium have been changed.

It is the most effective model of butyl mats from the AB series from Bitmat that can be used in the car.

We do not recommend thicker butyl mats than 2,5 mm due to the fact that the butyl mat must be rolled out very well to the shape of the sheet metal.

The new AB-25 model has damping properties increased by 15% compared to the previous version.

Mat parameters:

• MLF vibration damping coefficient: 0,49 (the higher the coefficient, the greater the damping efficiency)
• Weight: 3,87 kg/m2
• Aluminium thickness: (0,1 mm - 100 μ)

Properties

• High quality cold bent aluminium 100µ-
• Nanopolymer technology, high stability at low and high temps
• UV resistance thanks to good quality aluminium
• Does not contain asphalt masses, aromatic hydrocarbons and other harmful substances
• High density butyl

Advantages of Bitmat butyl mats:

• More flexibility affects an even better mute effect
• No heating required
• Strong adhesive —does not peel off after time
• They don't break and they don't crumble
• Act anti-corrosion — often water approaches rigid butyl/bitumen mats
• Effectively reduce heat transfer thanks to aluminium
• Resistant na water i oil
• Non-toxic and odorless
• Resistant to fungi and mold
• They maintain maximum parameters in a wide temperature range from -50 to +120 degrees
• Attested for vehicles
• Larger mat area — in 1 piece up to 7 m (700 × 50 cm)

Application of butyl mat:

1. Passenger cars, trucks and special vehicles:

- Roof; Floor; Wheel arches; Mask; Tailgate; Trunk; Undercarriage; Door bacon; Bulkhead wall; Plastic engine cover

2. Machinery and equipment

3. Private construction

Bitmat mats can also be used on plastic surfaces thanks to their self-vulcanizing properties, they stick very well to any surface.

How to soundproof a car?

First we stick butyl mat AB-2*/AB-25/StP* (*available at our other auctions) on each metal element, mapping it to the shape of the sheet metal.

The second layer is rubber waterproof foam — foam rubber (available at our other auctions)

Why several layers?

The butyl mat stiffens the body, creates a barrier to noise, eliminates resonance, rumbling and humming.

Rubber foam isolates from noise and high frequencies.

This combination creates the most effective soundproofing laminate!

Example of the number of mats needed to soundproof a car*:

• Front and back doors - 700 × 50 cm Ab25 + 2 m2 rubber foam
• Floor - 2x 700 × 50 cm Ab25 + 7m2 rubber foam
• Roof - 400 × 50 cm Ab25 + 2m2 rubber foam
• Luggage compartment with wheel arches - 700 × 50 cm Ab25 + 3m2 rubber foam

* (quantities may be larger or smaller depending on: model, car/vehicle type)

Remember that the butyl mat must be rolled out all over and crumpled to the shape of the sheet metal.

Assembly advice

▶ Clean the soundproofed surface well with extraction gasoline or remover available at our auctions

▶ Touch the butyl mat to specific dimensions and stick on the selected body element.

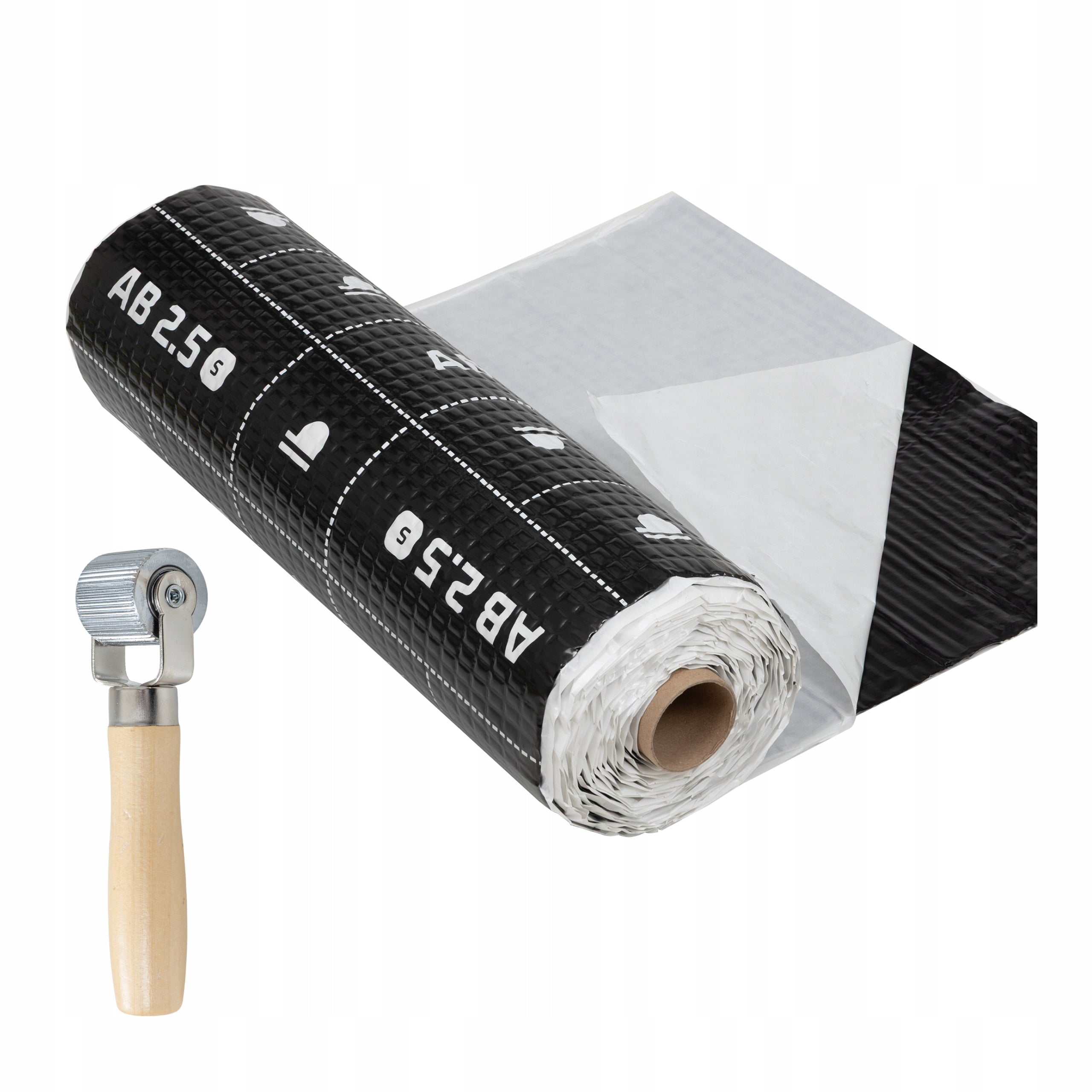

▶ Exactly roll out the butyl mat with a roller – the roller is included!

The price is for 1-piece butyl mat AB-25 with dimensions:

length 700 cm, width 50 cm, thickness - 2,5 mm

Pressure roller for free.
