Garso keitiklis HDMI ARC į Toslink, palaiko 4K HDR, HDCP2.2

Trumpai apie prekę

Prekė: Garso keitiklis HDMI ARC į Toslink, palaiko 4K HDR, HDCP2.2. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: 4K HDR

Ideal for set-top boxes, TVs and home theaters

Our devices meet the highest industry standards – made of high-quality materials and fully shielded, guaranteeing the highest quality of image and sound without interference.

It is a full-fledged audio signal extractor that redirects the sound to the selected output port:

Fiber Optic Toslink (SPDIF)

Audio mini-jack

A simple, convenient and economical solution for home theater expansion.

ARC audio backhaul channels and formats are supported: PASS, 2.1CH and 5.1CH.

Full support for ULTRA HD 4K 2160P and EDID 2.2 standards.

24K gold-plated HDMI interface – guarantees long-lasting and stable transmission without signal loss.

No driver installation required – 100% plug and play.

Technical specification:

Parameters: Details

Input: 1 HDMI-A port (19 pins)

Outputs: 1 HDMI-A port (19 pins), SPDIF output, mini-jack audio output

Resolution and refresh rate: Full support for Ultra HD 4K@60Hz, EDID 2.2

Other Image Features: Support 3D, HDR 10, Dolby Vision, sRGB, YCbCr, xvYCC, Dark Color Range

Color Depth: 48 bits

Audio formats: Dolby Atmos, DTS-HD Master Audio, 8-channel LPCM (192 kHz/24-bit)

Sync: Supports audio and video synchronization (AV synchronization)

Cable support: up to 15 meters per input and 25 meters per output

Additional Features: HDMI signal playback – ideal for mounting on the ends of long cables

Optimization of the change summary

Shorten sentences – remove unnecessary repetition (e.g. long fragments), simplify the structure.

Highlight the main advantages – eye-catching key features (gold-plated ports, plug and play, ARC).

Specification format – Tables make parameters more transparent to customers.

Grammar and style improvements – for example, changing home theaters to home theaters (without additional sentences), improving Deep Color spelling.

Added value – Emphasize the advantages of the golden port (continuous transmission).

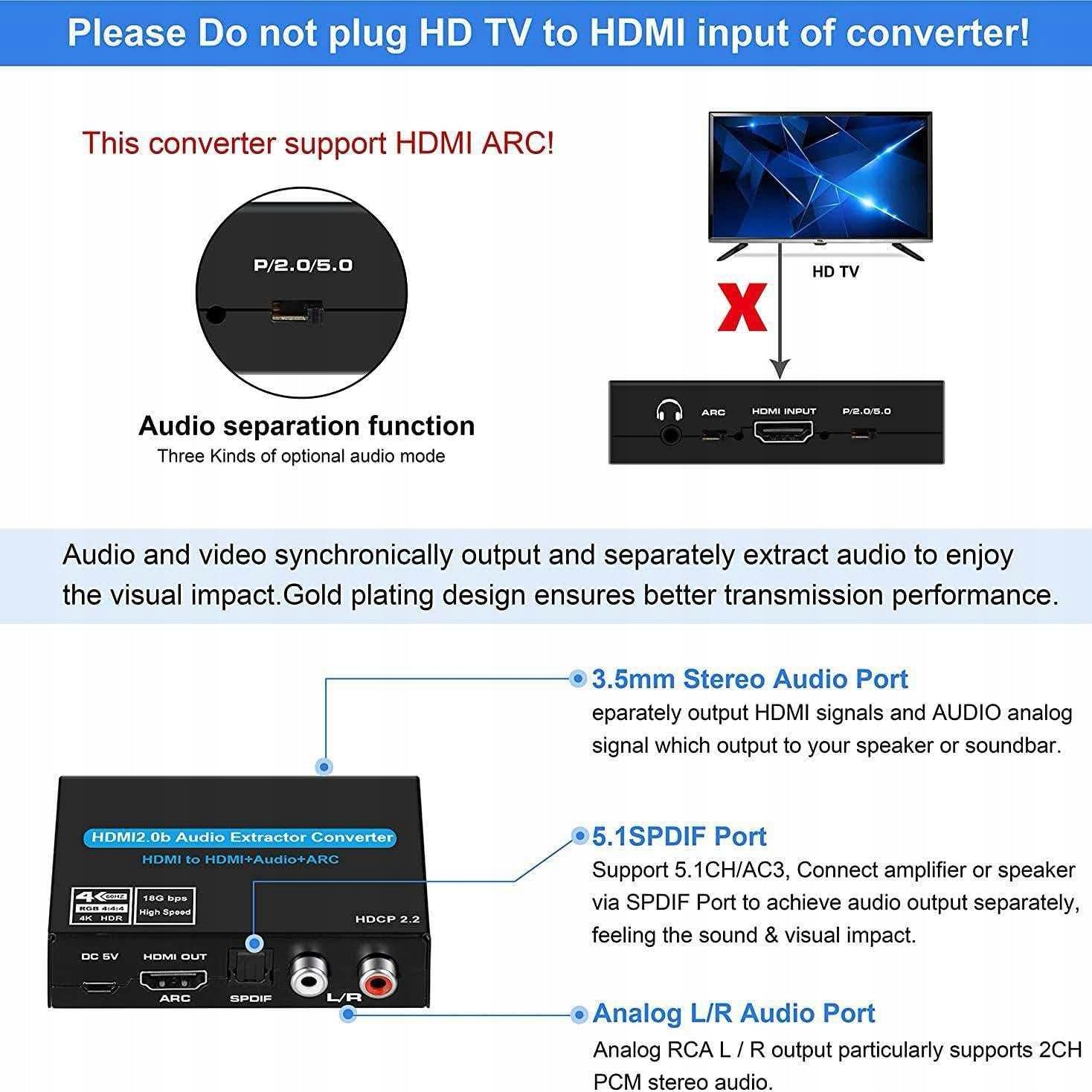

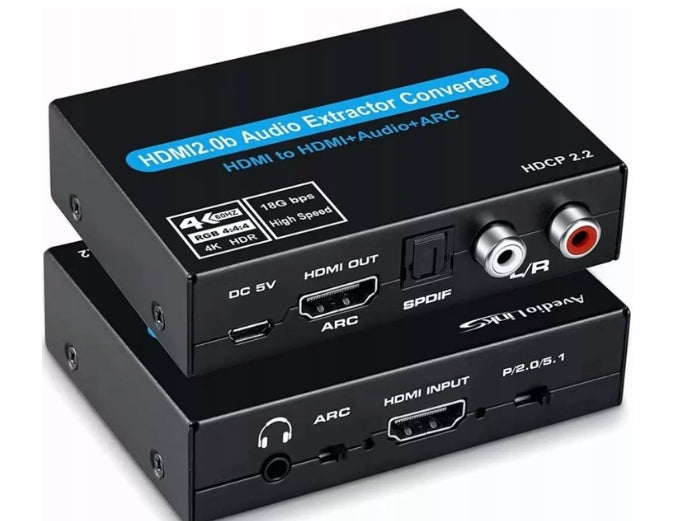

DC/5V Power supply

HDMI output with ARC

Analog output L/R

Optical output SPDIF

Socket 3.5 mm R/L

HDMI input

Audio mode switch

Switch ARC

Main purpose

This converter is designed to seamlessly connect a modern TV with HDMI ARC functionality to audio devices that do not have this port.

The most important advantages

✅ Built-in signal amplifier – solves the problem of weak digital signal, which often occurs in standard devices; an element necessary for stable transmission.

✅ Support HDMI 2.0 – guarantees the highest quality of data transmission and full functionality in accordance with modern standards.

✅ Support HDCP 2.2 – a requirement necessary for most devices that support HDMI 2.0, ensuring compatibility at the highest level.

✅ High sampling rate – 192 kHz – stands out from the competition by offering cleaner, more detailed sound.

✅ Simple installation and use – just connect the appropriate cables and the device is ready to work.

✅ Modern design – an ideal solution for people who appreciate aesthetics combined with functionality.

✅ Many additional benefits – you will discover them during everyday use.

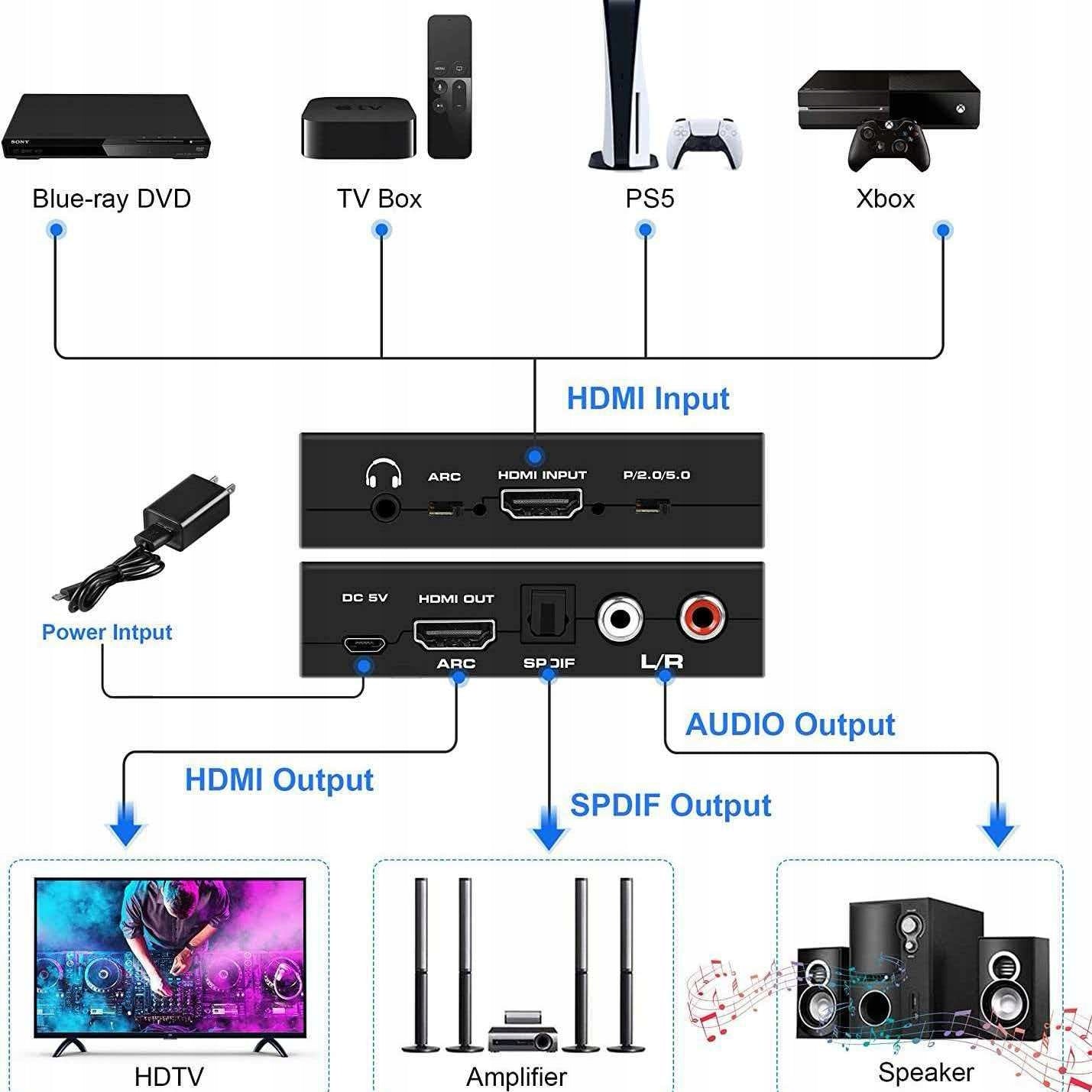

How does ARC work? How do I connect it?

To use the Audio Return Channel (ARC) function to transfer audio from your TV back to your soundbar or receiver, follow these steps:

Find the right port:

On the TV you need to find the HDMI port marked as ARC (e.g. HDMI 2 (ARC)). The audio signal will be transmitted through this port.

Connect via HDMI cable:

Connect the exhaust fan to the TV using an HDMI cable (standard 2.0 or higher).

On the TV, connect it to the HDMI (ARC) port.

We connect it to the HDMI (ARC) port.

To redirect audio to an audio device:

Use the cable to connect other audio output ports on your audio winch (3,5mm mini-jack or Toslink port) to the device where you want to play audio, such as speakers or soundbars.

Recent amendments:

Most often, the connection works right away, but if you can’t hear anything, check your TV settings – you may need to manually enable the eARC/ARC option.
