Garso signalo keitiklis California HIGH-LOW 2×RCA radijams be RCA lizdų

Trumpai apie prekę

Prekė: Garso signalo keitiklis California HIGH-LOW 2×RCA radijams be RCA lizdų. Kategorija: Kondensatoriai, filtrai.

• Gamintojas: California
• Modelis: 0594

MAG. 0594

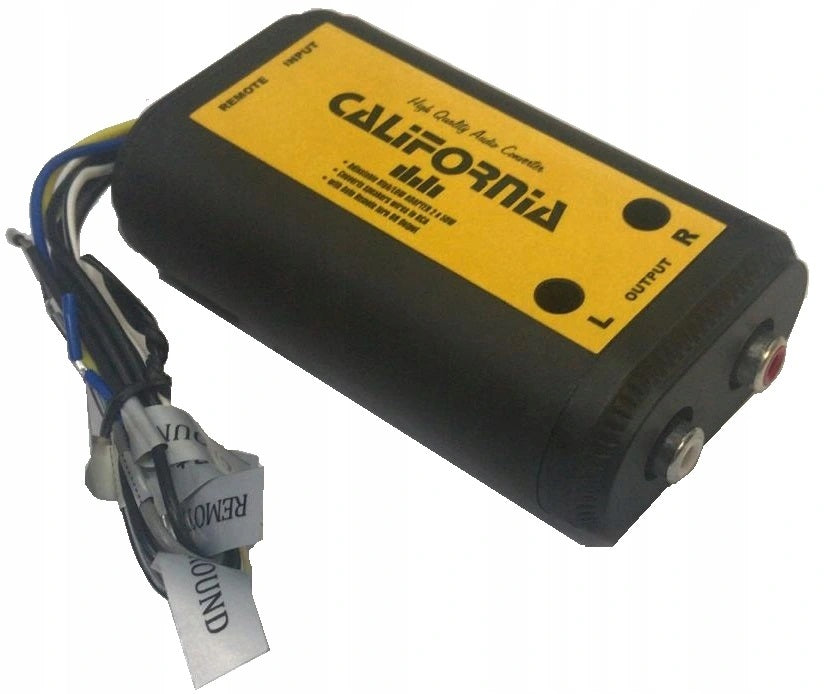

High-low 2×RCA audio signal converter

High-quality, 2-channel speaker signal to linear RCA (CINCH) converter.

Ideal for connecting an external amplifier to a radio without line outputs.

🔹 Key features:

• 🎚 Smooth, independent output level adjustment for each channel (L/R)
• 🔌 REMOTE TURN ON/OFF output – automatic switching on/off of the amplifier
• 🛡 Interference filter and solid component (DC) separation
• 💪 Supports radio players with output power up to 2×55W
• 🎵 2 RCA outputs (left and right channels)

📐 Specification:

• Signal Input: 2×50W (L+, L−, R+, R−)
• Signal Output: 2×RCA (L OUTPUT/R OUTPUT)
• Adjustment: potentiometers for each channel
• Power supply: +12V (yellow), weight (black)
• Amplifier control: REMOTE OUT (blue)

⚙ Connection:

• RCA outputs:

  L OUTPUT – left channel

  R OUTPUT – right channel

• Power supply:

  GROUND (black) – mass (−12V)

  12V (yellow) – +12V

  REMOTE OUT (blue) – for amplifier “Remote” input

• Speaker inputs:

  White (L+) – left, plus

  White-black (L−) – left, minus

  Grey (R+) – right, plus

  Grey-black (R−) – right, minus

  Black (Ground) – mass (optional, noise reduction)

🛠 Step by step assembly:

1. Set the potentiometers to a minimum.
2. Connect the wires according to the markings.
3. Turn on the radio – the signal will go to the converter.
4. Adjust the signal level with potentiometers.

📦 Included:

• HIGH-LOW 2×RCA signal converter

💡 Ideal solution if you want to connect the amplifier to factory or aftermarket radio without RCA outputs
